BS 6346 VV32 PVC Insulated SWA Armoured Power Cable
PRODUCTS NAME
BS 6346 VV32 PVC Insulated SWA Armoured Power Cable.
PRODUCTS KEYWORDS
VV32, STA Armoured, cu/pvc/sta/pvc, power cable, copper wire, pvc insulated cable, electric cable, wire and cables.
PRODUCTS APPLICATION
BS 6346 VV32 PVC Insulated SWA Armoured Power Cable, these power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical, and mechanical protections are needed (refinery areas, chemical plant...).
PRODUCTS STRUCTURE

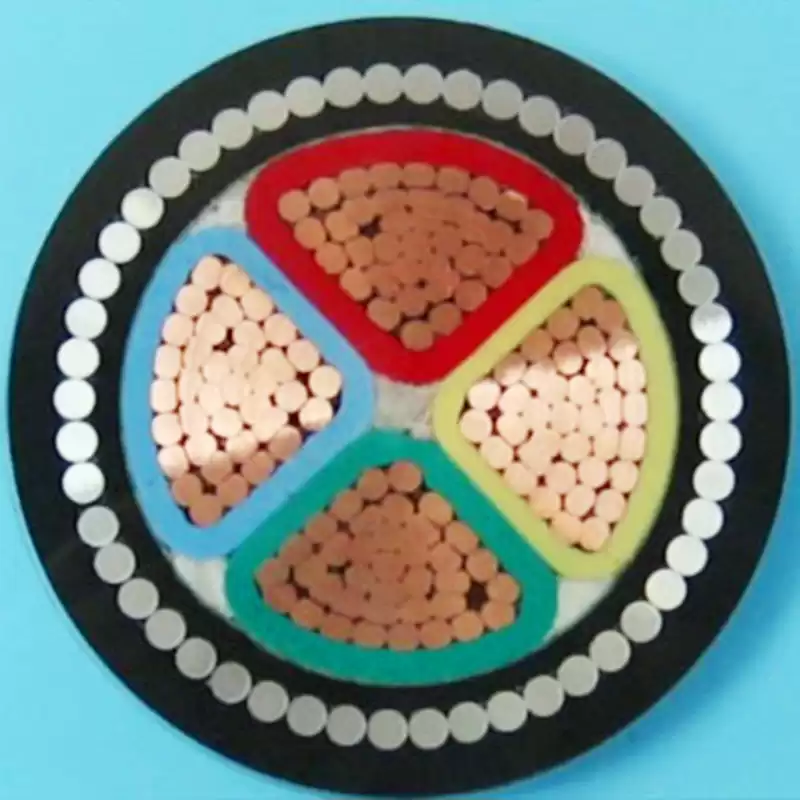

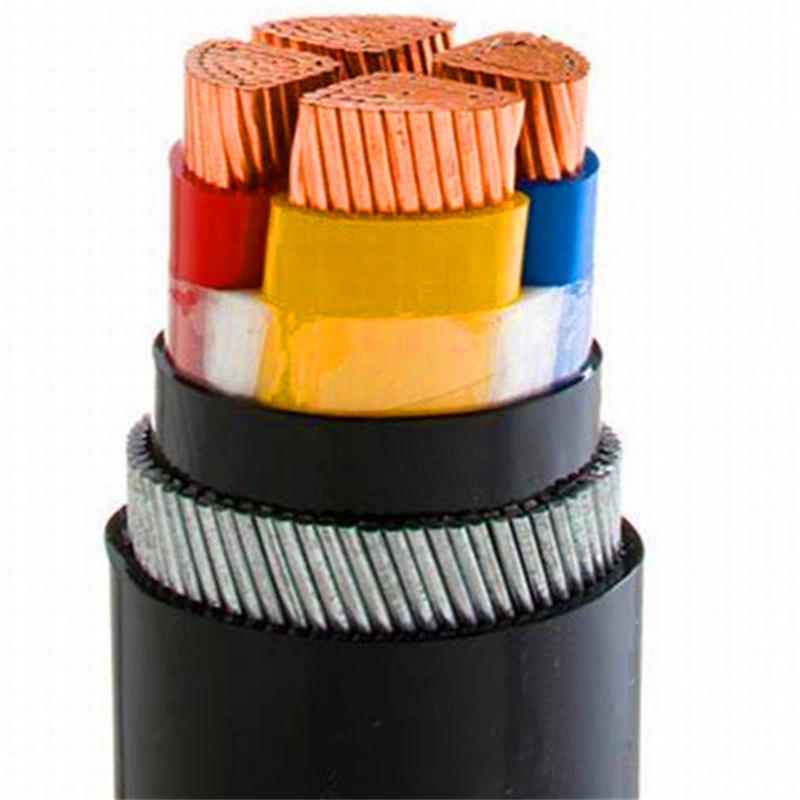

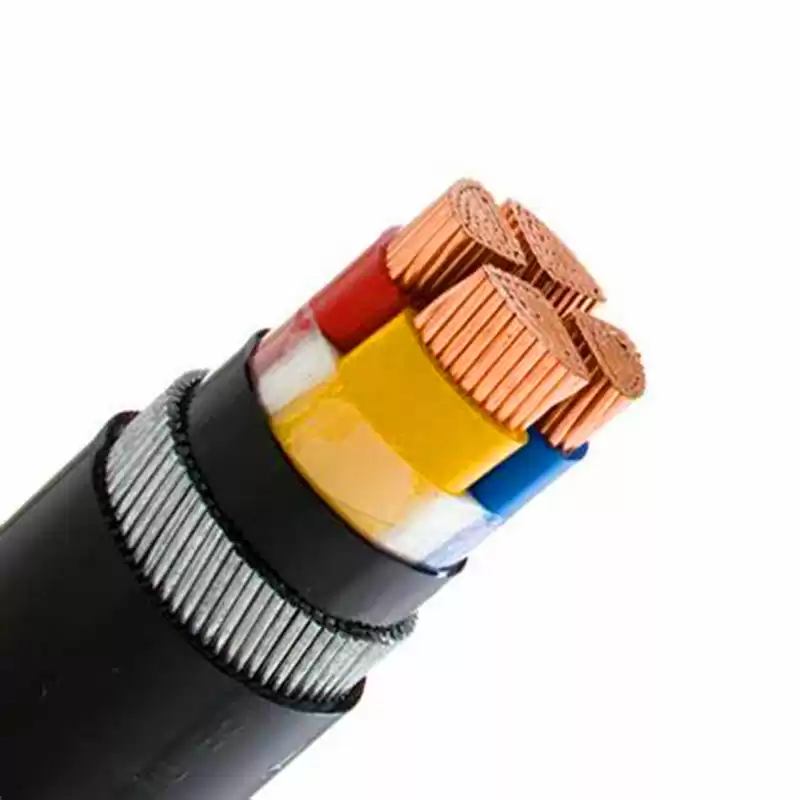

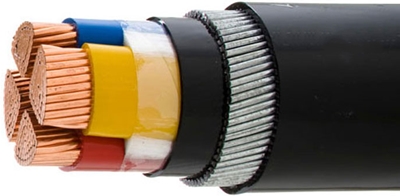

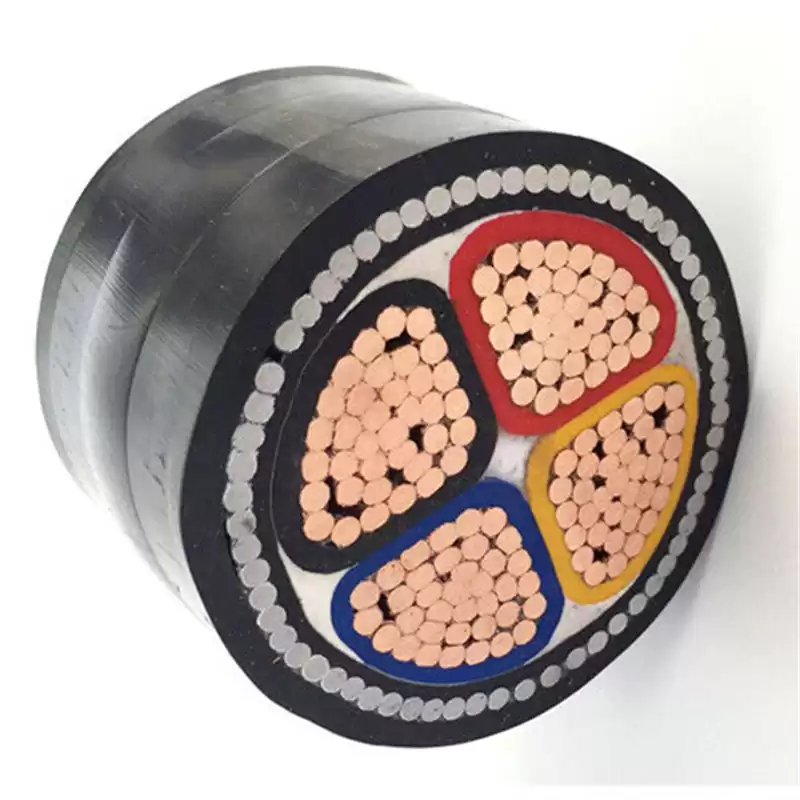

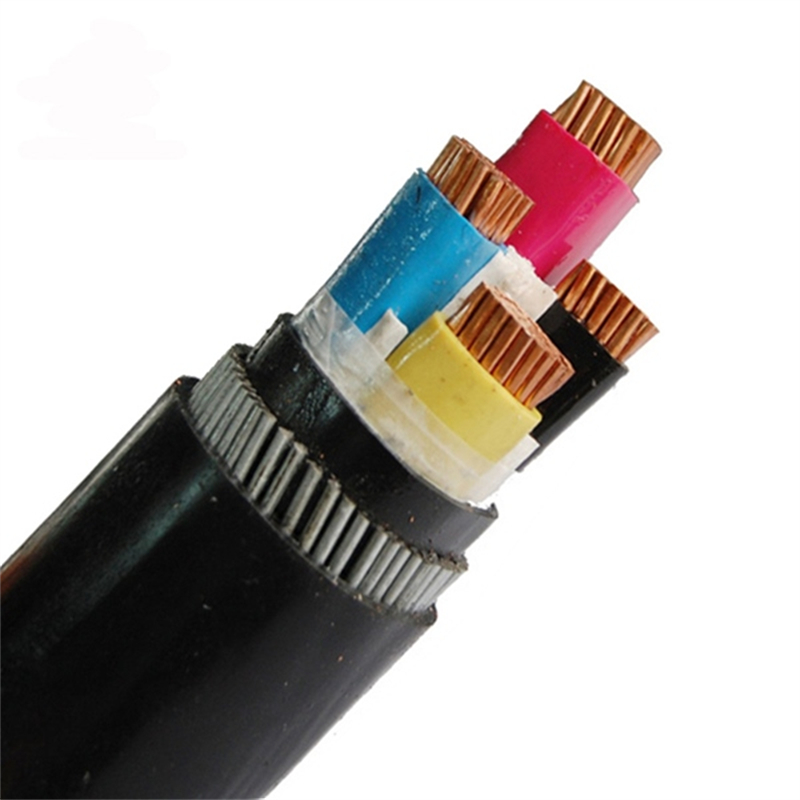

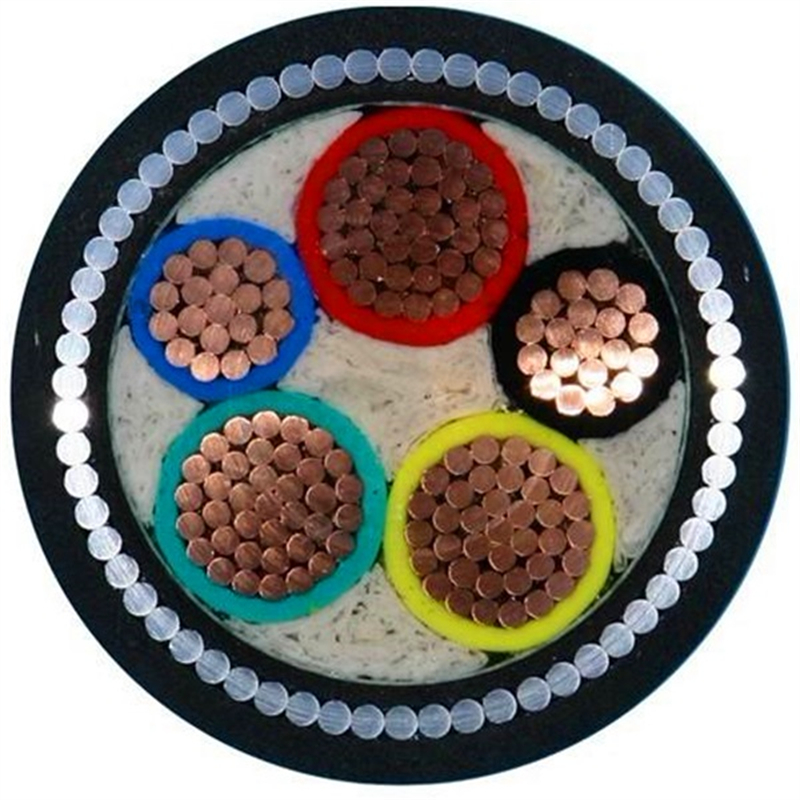

BS 6346 VV32 PVC Insulated SWA Armoured Power Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Inner Sheath Material
PVC (polyvinyl chloride).
---Armoured Material
SWA (Steel Wire Armoured).
---Out Sheath Material
PVC (polyvinyl chloride).
a
PRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
BS 6346 VV32 PVC Insulated SWA Armoured Power Cable.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 2.
|
|
Conductor Structure
|
3C x 19/2.14 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
1.4 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Inner Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Inner Sheath Thickness
|
1.2 mm.
|
|
Inner Sheath Colour
|
Black.
|
|
Armoured Material
|
SWA (Steel Wire Armoured).
|
|
Armoured Wire Diameter
|
2.0 mm.
|
|
Out Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Out Sheath Thickness
|
2.0 mm.
|
|
Out Sheath Colour
|
Black, red, orange, or others.
|
|
Conductor Cross-section
|
3 x 70 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
35.0 mm.
|
|
Voltage Rate
|
600/1000V, 0.6/1kV (U0/U).
|
|
About Net Weight
|
3518 kg/km.
|
|
Production Standard
|
GB/T 12706-2020, IEC 60502, BS 6346, VDE 0276.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
0.268 Ω/km.
|
|
Max. Ampacity
at 25℃ in Undergroun
|
245A.
|
