BS5467 YJV32 XLPE Insulated SWA Armoured Power Cable
PRODUCTS NAME
BS5467 YJV32 XLPE Insulated SWA Armoured Power Cable.
PRODUCTS KEYWORDS
BS 5467, SWA, YJV32, SWA Armoured, cu/xlpe/pvc/swa/pvc, power cable, copper wire, xlpe insulated cable, electric cable, wire and cables.
PRODUCTS APPLICATION
BS5467 YJV32 XLPE Insulated SWA Armoured Power Cable, these power and control cables are used for electricity supply in low vMulti-core PVC cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
PRODUCTS STRUCTURE

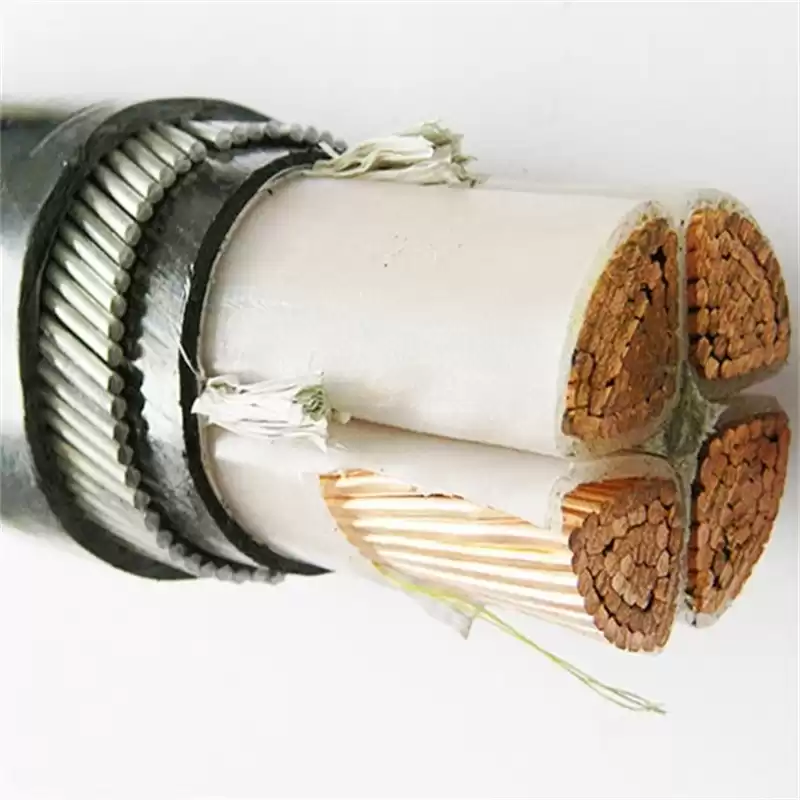

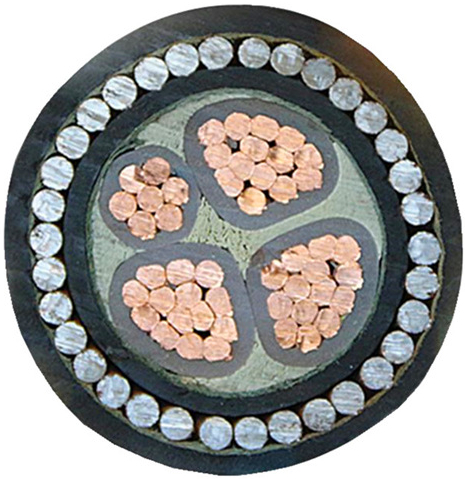

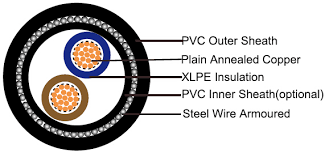

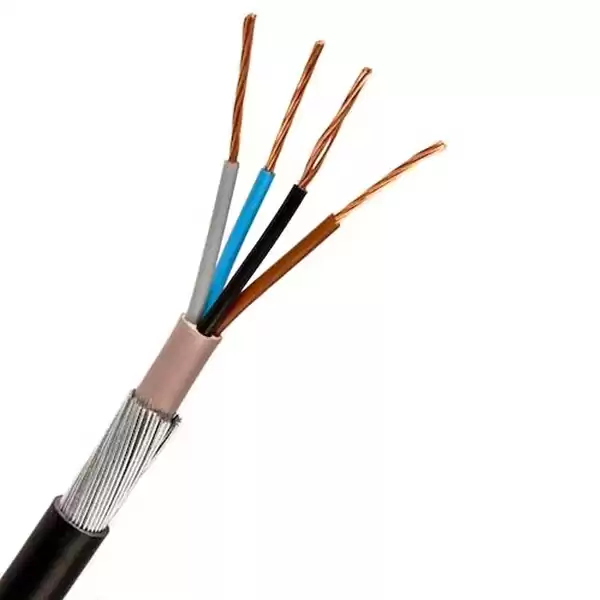

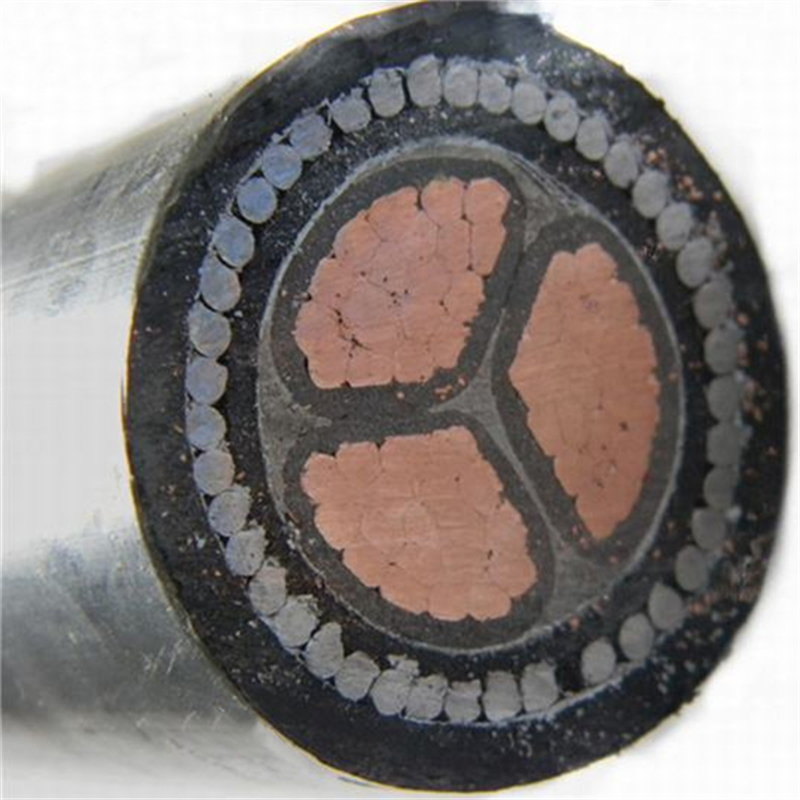

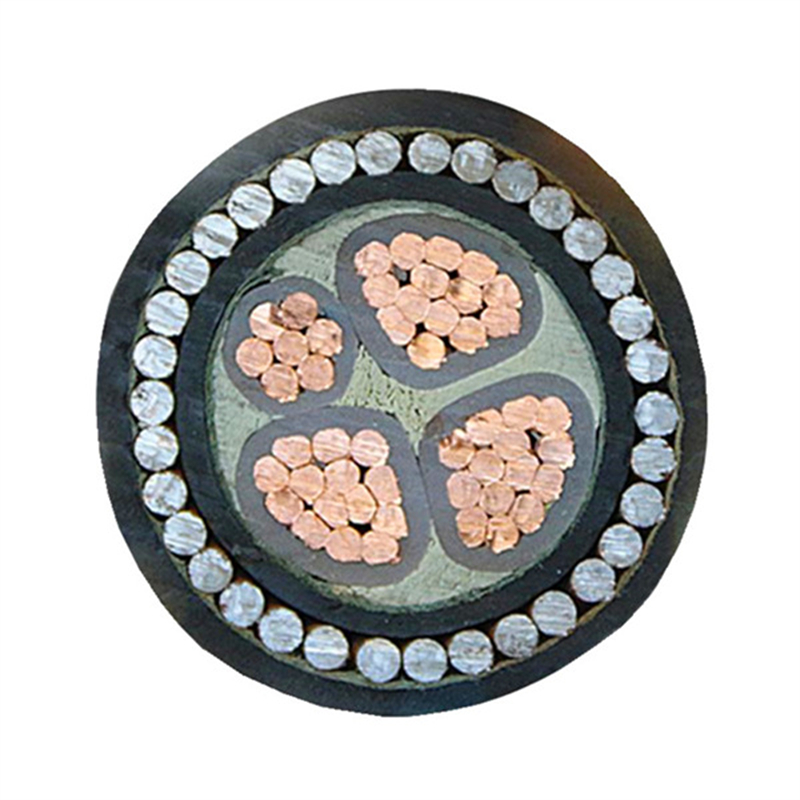

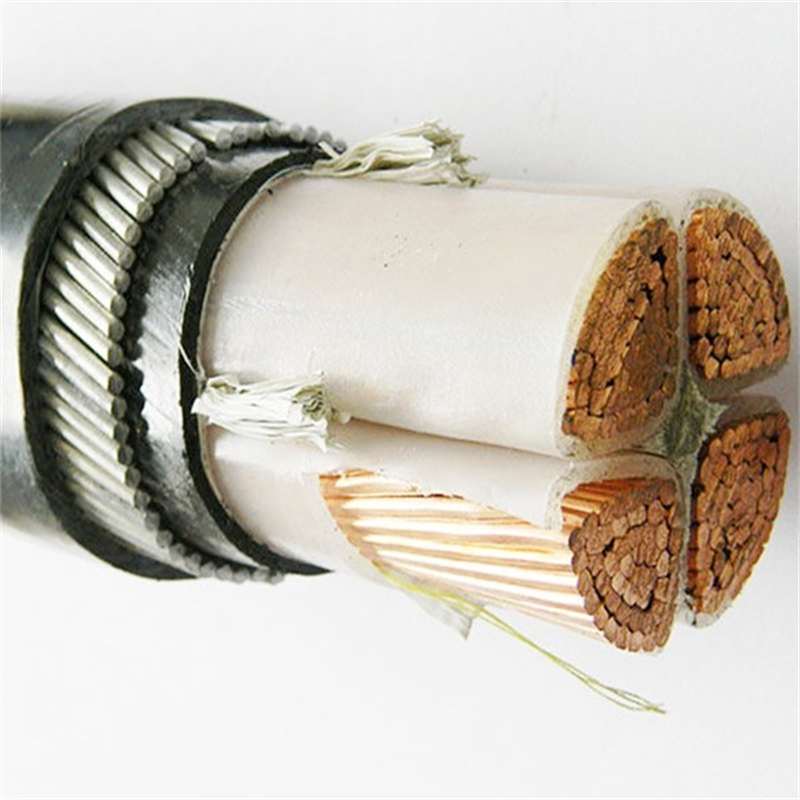

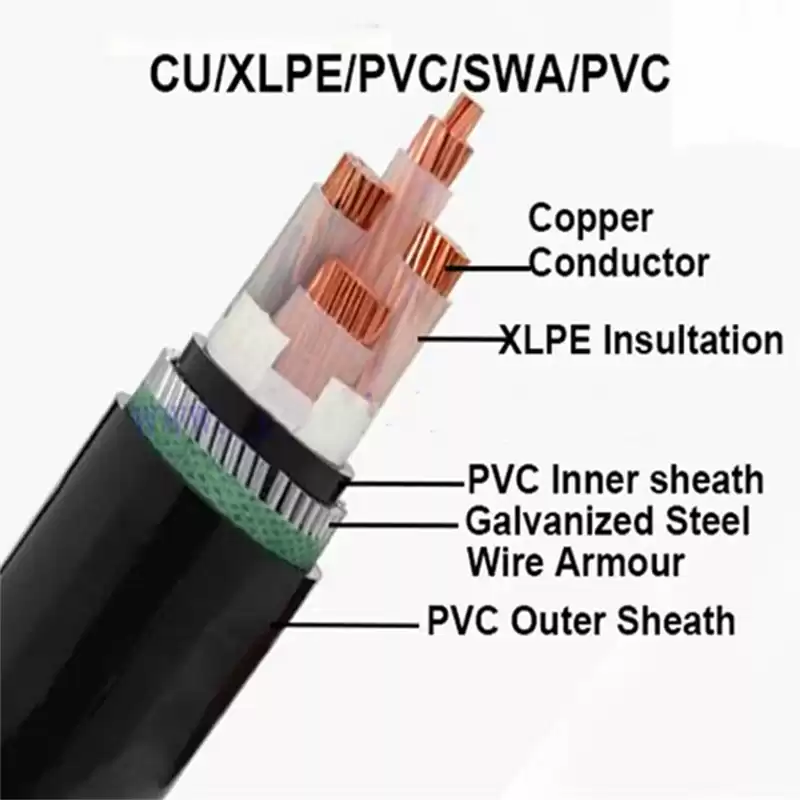

BS5467 YJV32 XLPE Insulated SWA Armoured Power Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
XLPE (polyvinyl chloride).
---Inner Sheath Material
PVC (polyvinyl chloride).
---Armoured Material
SWA (Steel Wire Armoured).
---Out Sheath Material
PVC (polyvinyl chloride).
a
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
BS5467 YJV32 XLPE Insulated SWA Armoured Power Cable.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 2.
|
|
Conductor Structure
|
3C x 19/2.14 mm.
|
|
Insulation Material
|
XLPE (cross-linked polyethylene).
|
|
Insulation Thickness
|
1.4 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Inner Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Inner Sheath Thickness
|
1.2 mm.
|
|
Inner Sheath Colour
|
Black.
|
|
Armoured Material
|
SWA (Steel Wire Armoured).
|
|
Armoured Wire Diameter
|
2.0 mm.
|
|
Out Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Out Sheath Thickness
|
2.0 mm.
|
|
Out Sheath Colour
|
Black, orange, or others.
|
|
Conductor Cross-section
|
3 x 70 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
35.0 mm.
|
|
Voltage Rate
|
600/1000V, 0.6/1kV (U0/U).
|
|
About Net Weight
|
3518 kg/km.
|
|
Production Standard
|
GB/T 12706-2020, IEC 60502, BS 6346, VDE 0276.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
0.268 Ω/km.
|
|
Max. Ampacity
at 25℃ in Underground
|
245A.
|
