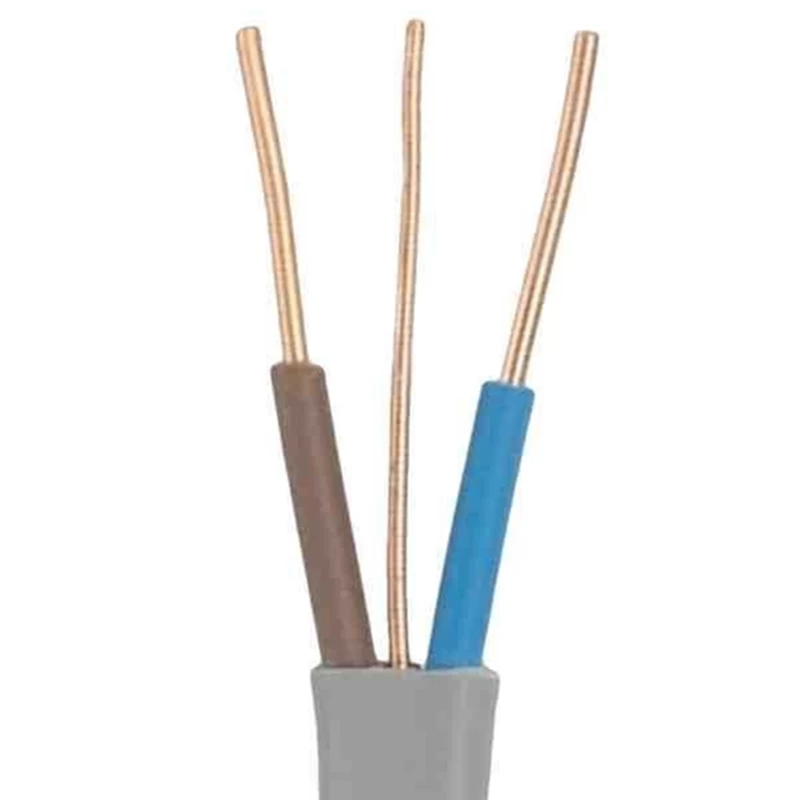

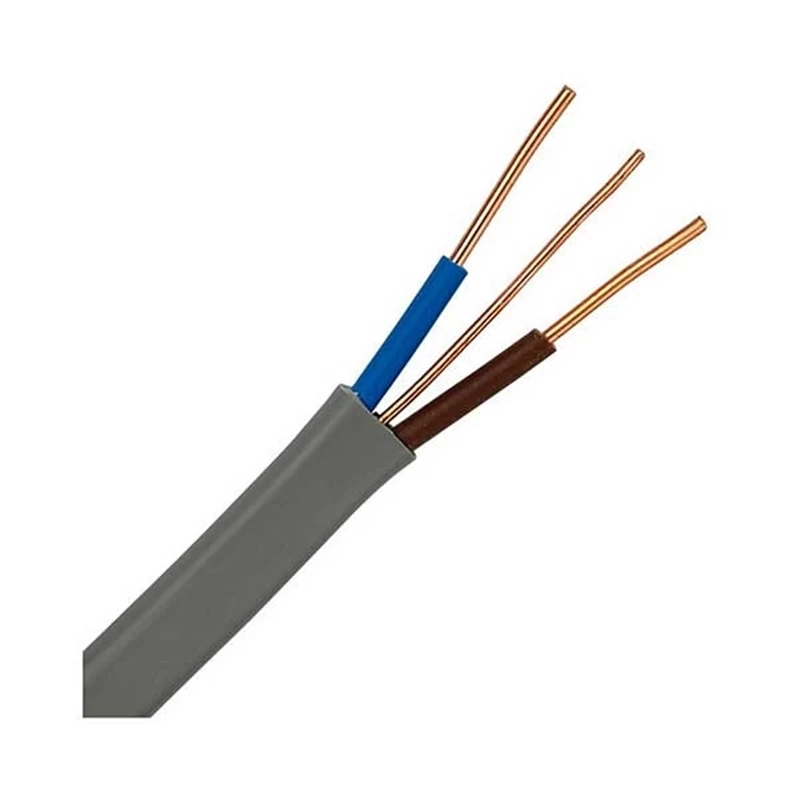

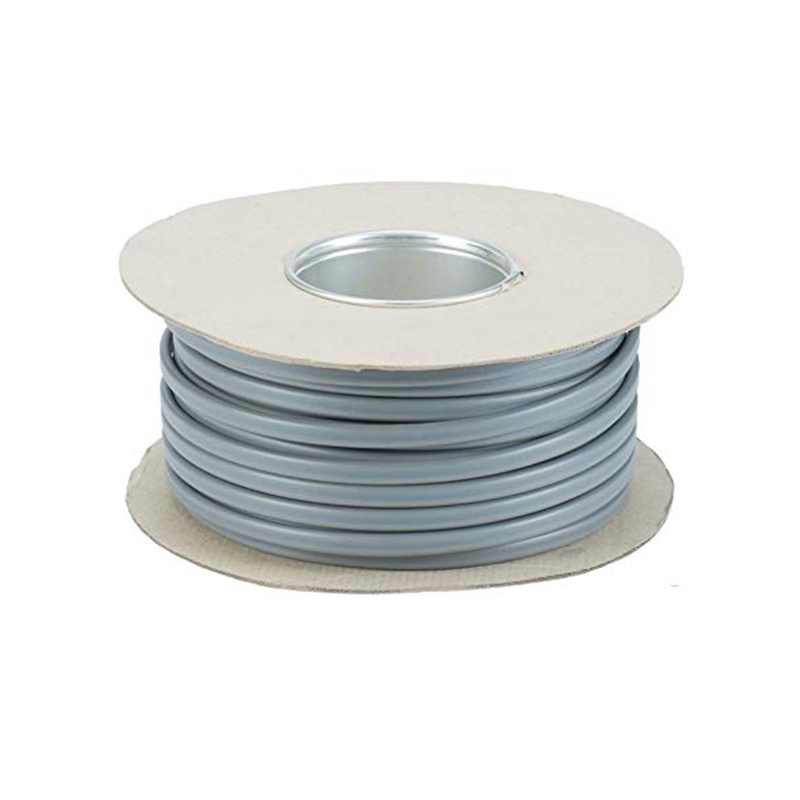

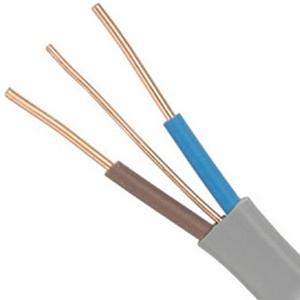

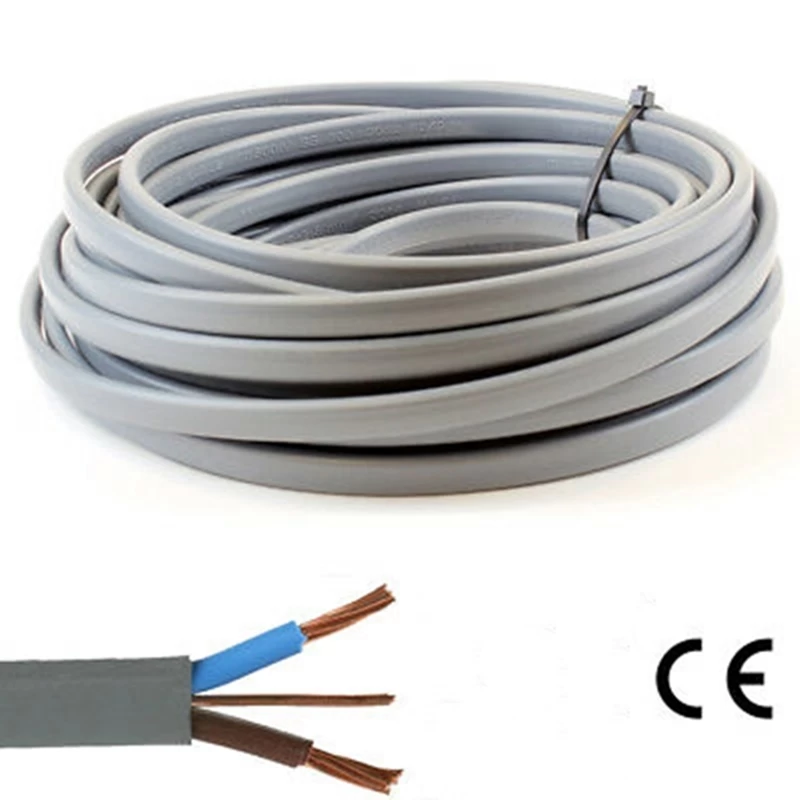

BS6004 6242Y Flat Twin and Earth BVVB Electrical Cable

BS6004 6242Y Flat Twin and Earth BVVB Electrical Wire and Cable, copper wire, PVC insulation, bare earth (if available), PVC sheath. It is used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.



BS6004 6242Y Flat Twin and Earth BVVB Electrical Wire and Cable


MAIN KEYWORDS

BVVB, BLVVB, 6242Y, 6241Y, 6243Y, 6242B, flat twin and earth cable.


APPLICATION CHARACTERISTICS

BVVB flat twin and earth cable is domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunk where mechanical protection is required. 6242Y is flat PVC sheathed low voltage wiring cable typically used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.



PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper, solid class 1 (0.75~4 mm2), or strand class 2 (6~16 mm2).

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Colour

  2C: brown, blue.

---Earth Material

   Bare copper wire (if available), class 1 solid or class 2 strand.

---Sheath Material

   PVC (Polyvinyl chloride).

---Sheath Colour

   Grey, or others.

---Core Number

   2C, 2 cores (flat twin cable);  3C, 3 cores (flat twin and earth cable).

---Voltage Rate (U0/U)

   300/500V

---Working Temperature

   -15℃~+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   BS 6004

---Products Delivery

Within 7-10 working days as soon as we received the deposit.




REMARK

---The above information is for reference only, the formall data, please refer to the actual product.

---The cable maybe has the inner sheath, and the material of inner sheath is PVC.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the 6242Y flat twin BVVB cable (earth wire is optional), according to the practice, the common specification is 1.0~6 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.



MAIN ADVANTAGE



HOT-SELLING PRODUCTS



RAW MATERIAL



PRODUCTION PROCESS

INSPECTION PROCESS


FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
