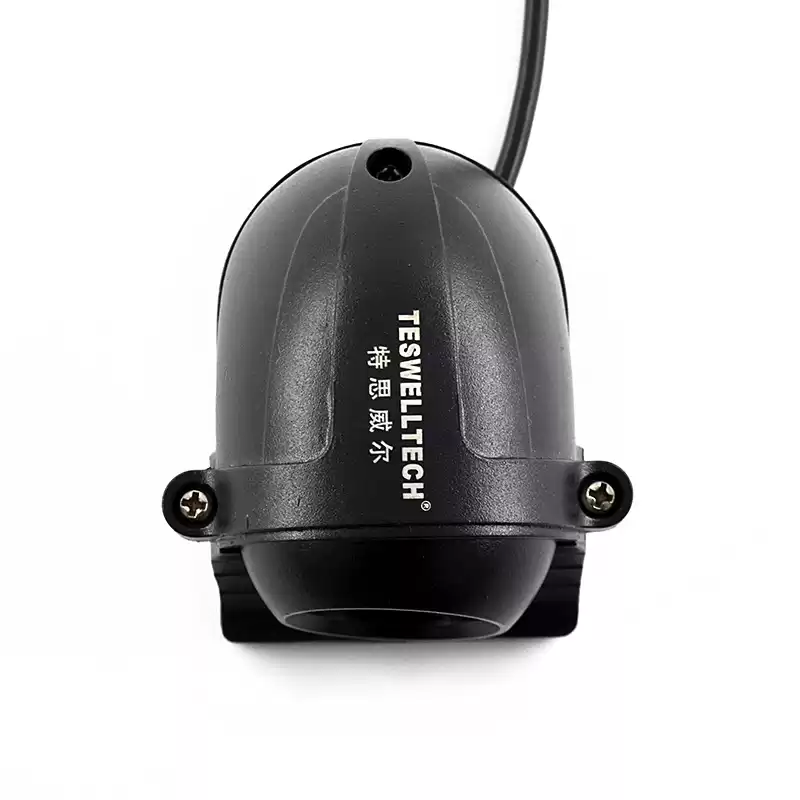

BSD Camera

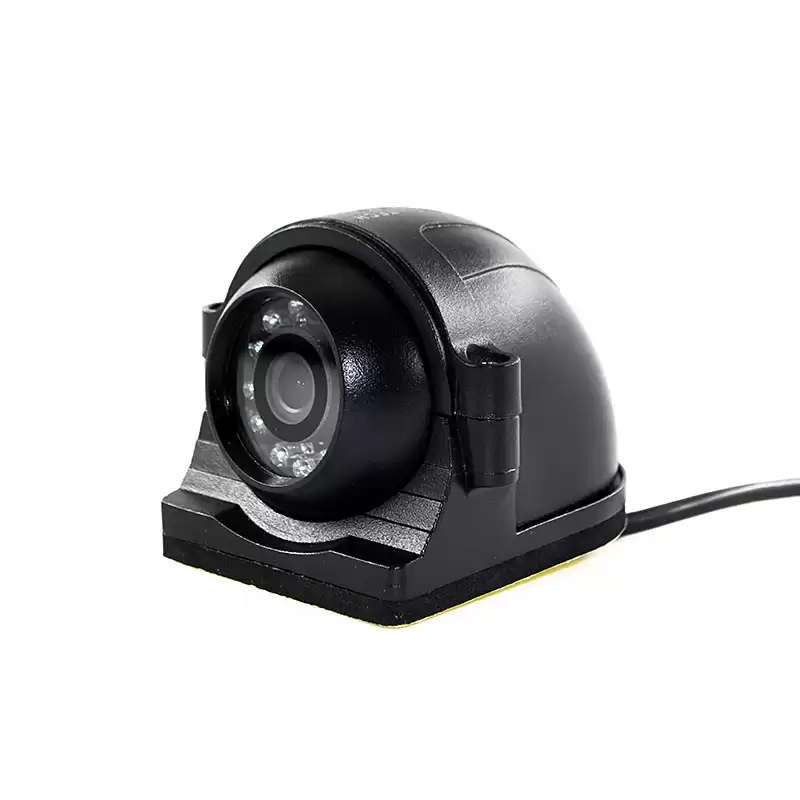

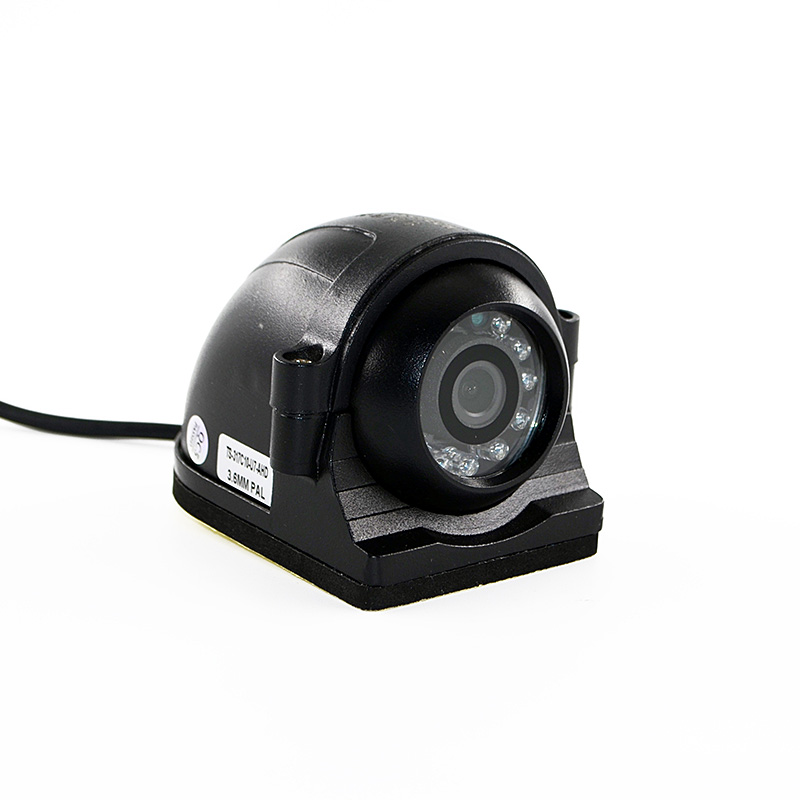

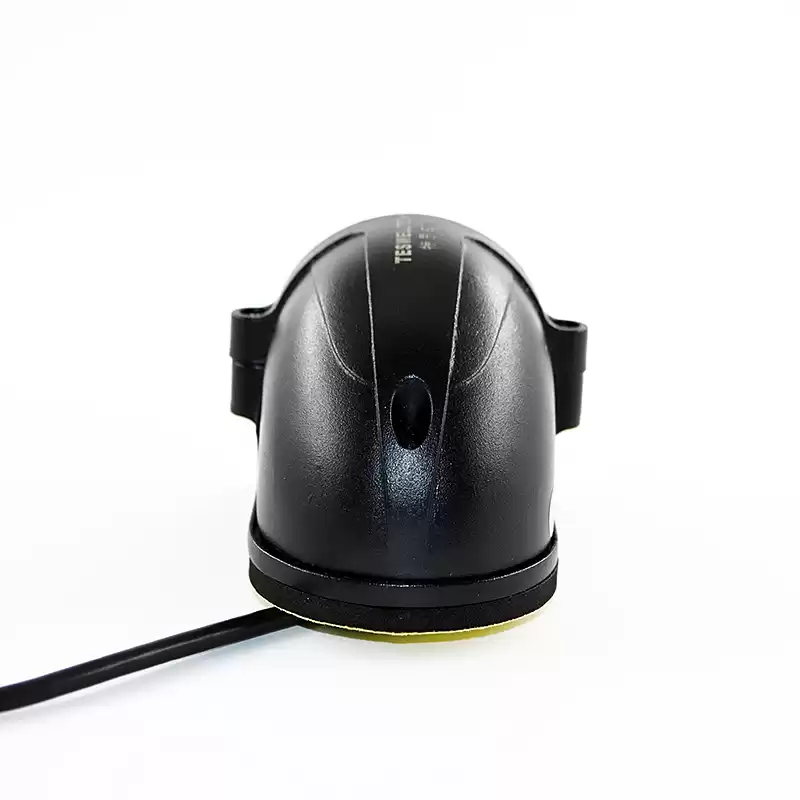

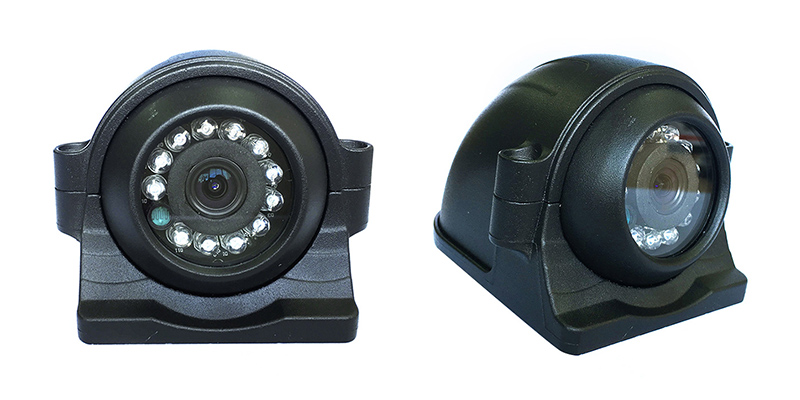

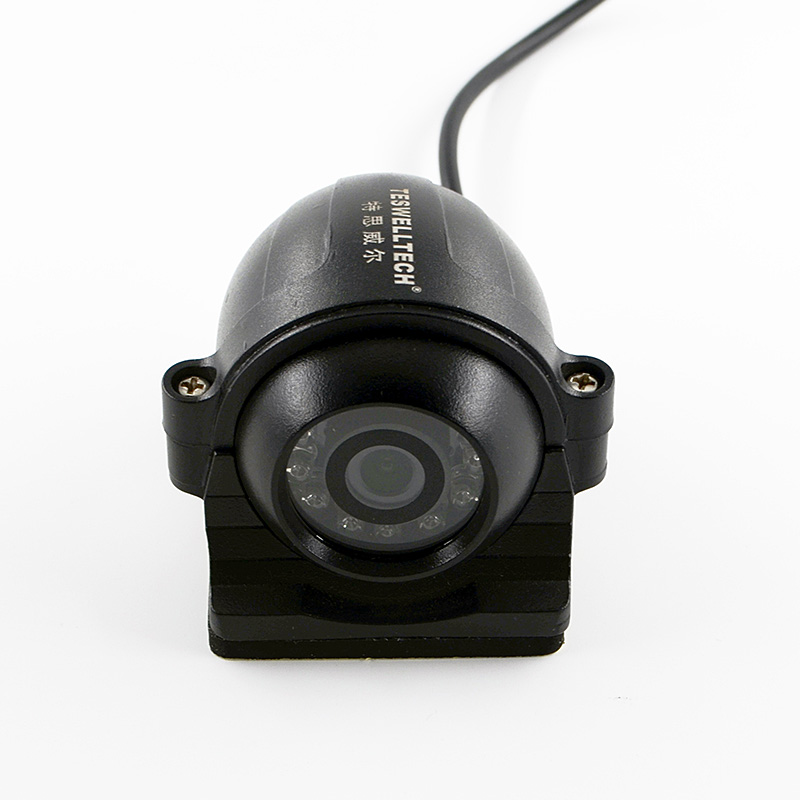

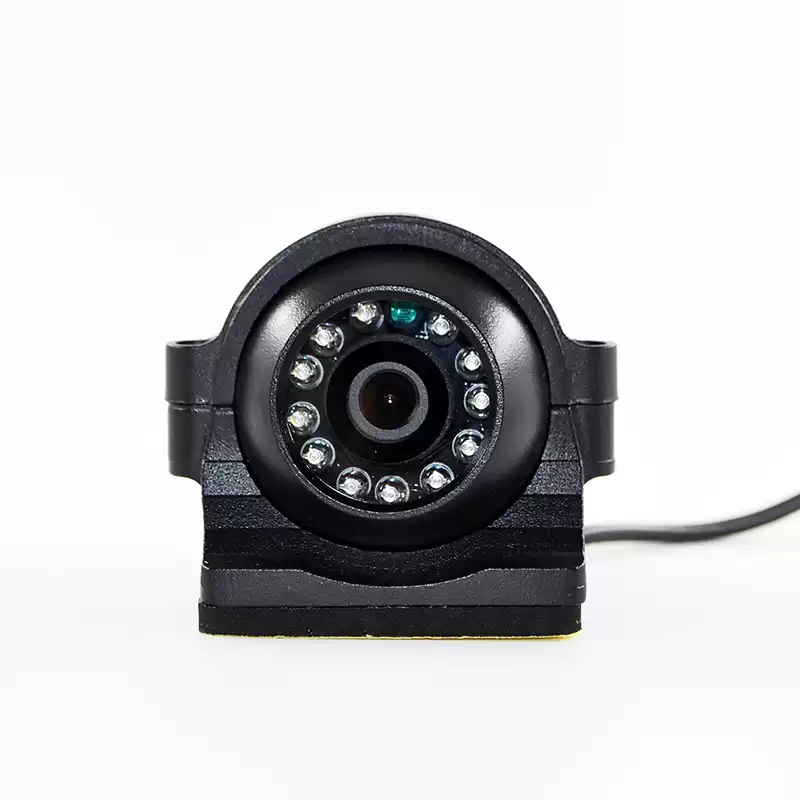

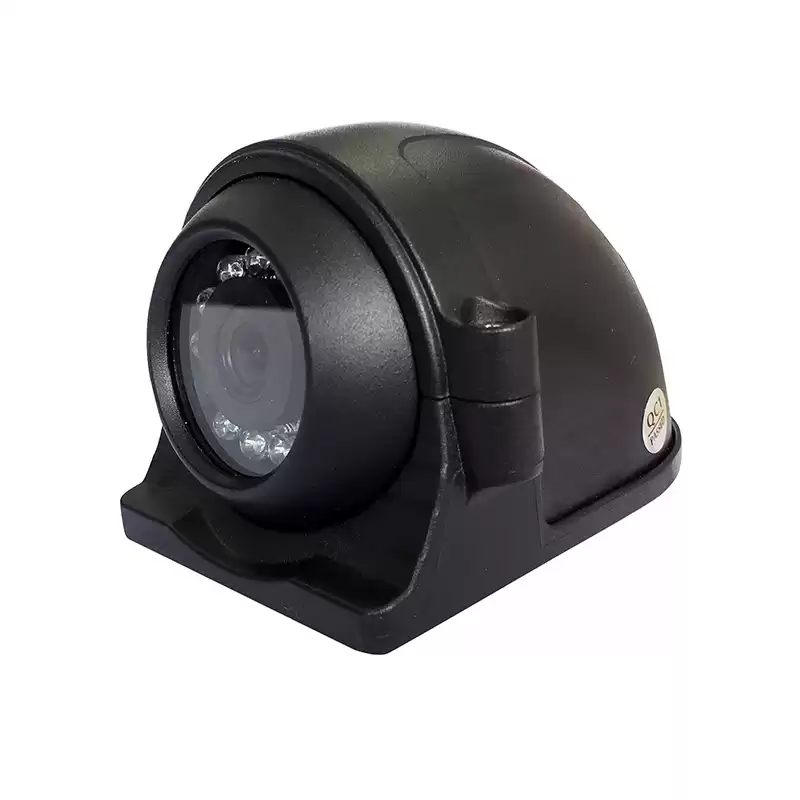

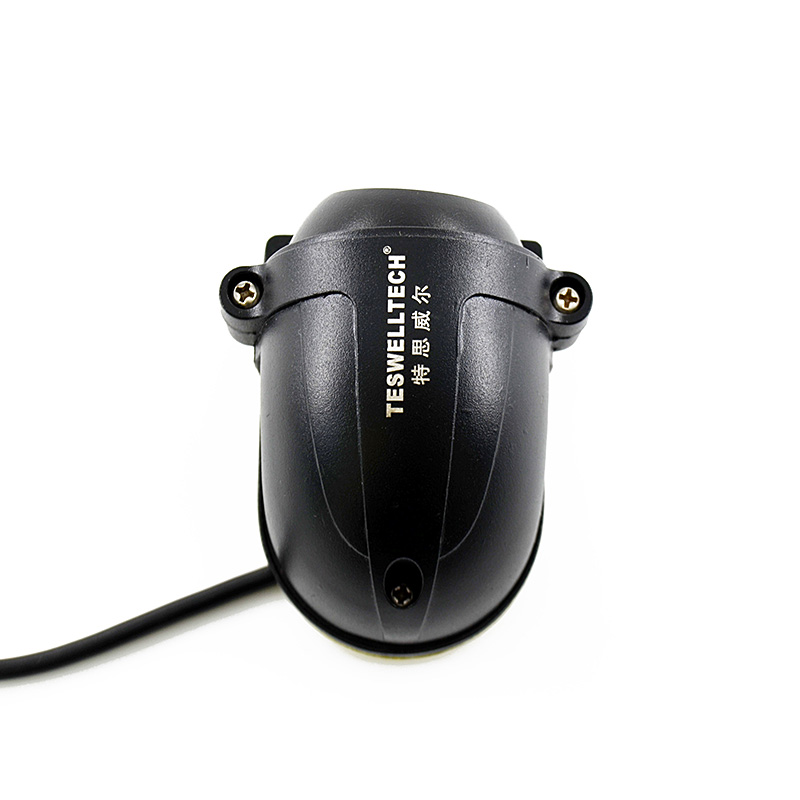

Illustration
Model:TS-317C10
Technical Parameters
|
Item |
Parameter |
|
Sensor |
JX-H65,1/4'',120W CMOS Sensor |
|
Pixel Size |
3.75um*3.75um |
|
Lens type |
4G |
|
Length |
3.6mm |
|
Iris |
F2.4 |
|
Lens Connector Type |
M12*P0.5 |
|
FOV(Field of View) |
D=112° H=92° V=51° |
|
Image |
Color |
|
Resolution |
default1280*720P(1280*960 max) |
|
Output Signal |
Analog HD |
|
Video Format |
default PAL |
|
Frame Rate |
25FPS |
|
Power Voltage |
VCC12V |
|
Power Current |
47--105mA(±10%) |
|
Power Consumption |
0.56--1.26W(±10%) |
|
Waterproof Level |
IP67 |
|
Work Temperature |
-20°-- +60° |
|
Stored Temperature |
-25°-- +80° |
|
Aviation Cable |
0.57m |
