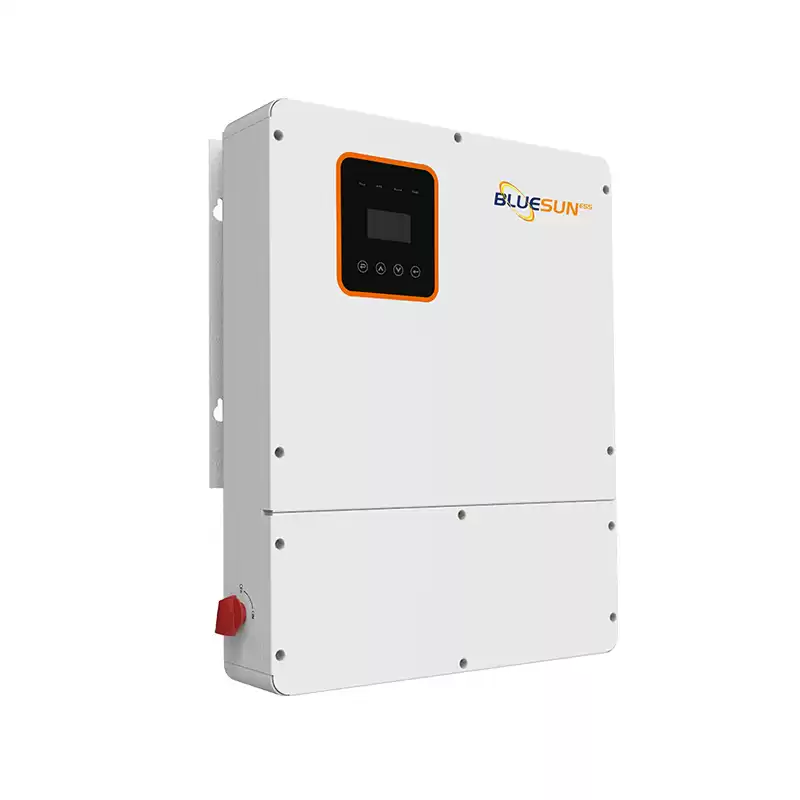

BSE5KH1NA-BSE12KH1NA 5-12KW Split Phase High Voltage 4MPPTs 120/240V

Model

BSE5KH1NA

BSE-7K6H1NA

BSE8KH1NA

BSE10KH1NA

BSE-12KH1NA

PV input

PV input power

6.5KW

10KW

10.4kw

13kw

15.6KW

MPPT number

4

PV voltage range

150 - 500V

Max PV input voltage

500V

Each MPPT input current

12A

AC output(on grid)

Rated AC output

120/240V 5KVA

120/240V 7.6KVA

120/240V 8KVA

120/240V 10KVA

120/240V 11.4KVA

AC output voltage

211-264V@240V

AC output frequency

50/60Hz（45 to 54.9Hz / 55 to 65Hz）

Max output current

22.7A

34.5A

36.4A

45.4A

50A

AC reverse charging

Yes

Power factor

0.8leading…0.8lagging

THDI

< 2%

Backup AC output

Rated Backup output power

5KVA

7.6KVA

8KVA

10KVA

11.4KVA

Max backup output power

6.25KVA 60S

9.5kVA 60S.

10KVA 60S

12.5kVA 60S.

15KVA 60S

Backup AC output voltage

110-120/220-240 split phase

AC Frequncy

50/60Hz

Output THDI

< 2%

Battery

Max charge&discharge current

80 A / 63 A

80 A / 80 A

Battery voltage range

85V~400V

Battery capacity range

6.6 to 66 kWh

Battery type

Lithium/Lead-acid

Communication

CAN,RS485

Efficiency

Max efficiency

≥ 98.2%

CEC efficiency

≥ 97.2%

General Data

AC and backup output conduit size

25.4mm

PV input conduit size

25.4mm

Battery input conduit size

34.5mm

environment humidity

0-95%

Altitude

0~4000M（Derating when over 2000m）

IP Grade

IP65

Weight

30kg

Dimension (D*W*H)

530* 660*200mm

Cooling

Natural cooling

Noise emission(dB)

<25dB

<29dB

Display

LCD

Communication

Modbus, RS485，WIFI,4G

Self-consumption at night

< 2.5 W (with battery enabling < 5 W)

No transformer

YES

EMC

FCC Part 15 ClassB
