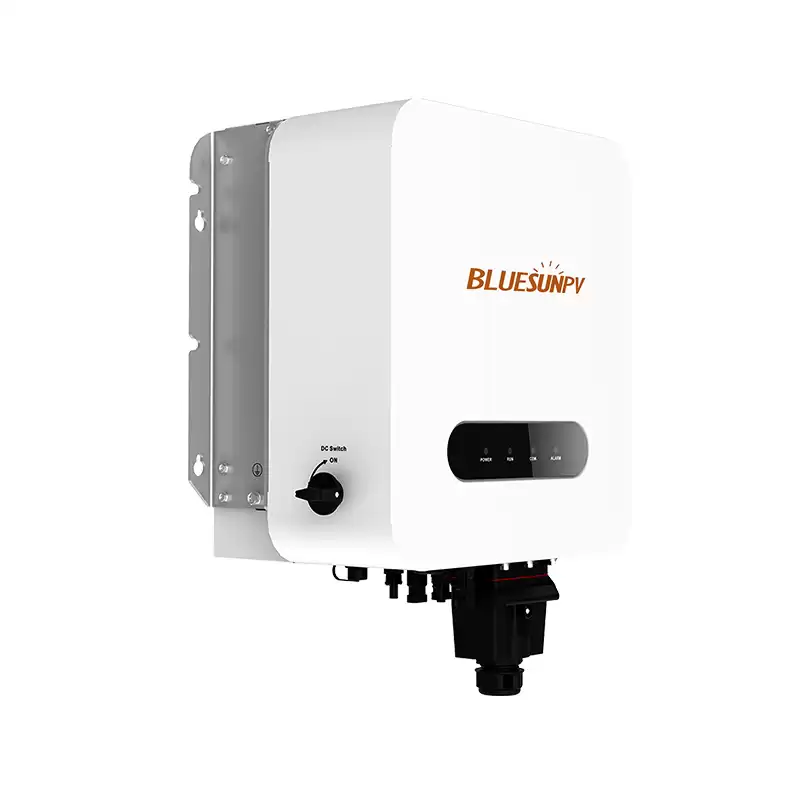

Product Description
1.High Efficiency
*Max efficiency 99.0%. *Double channels of MPPT.
*High precision & intelligent string detection. *Compatible with 182/210 PV panels.
2.Reliable
*8K~17K natural cooling, 20K~33K smart air cooling.Compact structure, easy for installation and maintenance.
*Reliable under/over voltage protection, anti-islanding.
*Built-in AC and DC lightning protection module and provide full range of lightning protection.
3.Friendly
*Supporting Stand-alone Antibackflow interface.
*Mobile phone APP and check the status information of inverter.100%Pn under 45℃.
|
Technical Parameters
|
|
Model
|
BSM6K-B
|
BSM10K-B
|
BSM15K-B
|
BSM30K-B
|
BSM50K-B
|
BSM100K-B
|
|
DC Input
|
Max. DC Voltage
|
550V
|
1100V
|
|
Starting Voltage
|
140V
|
200V
|
|
MPPT Voltage Range
|
90-500V
|
200V-1000V
|
|
MPPT Range Full Load
|
240-480V
|
370V-850V
|
450V-850V
|
425V-850V
|
450V-850V
|
550V-850V
|
|
Max. Input Current of Each MPPT
|
13A/13A
|
20A / 20A
|
26A /20A
|
40A /40A
|
60A /60A
|
65A / 65A / 65A / 65A
|
|
Max. short-circuit current
|
19A/19A
|
30A / 30A
|
39A / 30A
|
60A /60A
|
90A /90A
|
100A / 100A / 100A / 100A
|
|
Number of DC Inputs
|
1 /1
|
1 /1
|
2 /1
|
3 /3
|
5 /4
|
5 / 5 / 5 /5
|
|
MPPT Number
|
2
|
2
|
2
|
|
2
|
4
|
|
AC Output
|
Rated Output Power
|
6kW
|
10kW
|
15kW
|
30kW
|
50kW
|
100kW
|
|
Max. Active Power (cosθ=1)
|
6.6kW
|
11kW
|
16.5kW
|
33kW
|
55kW
|
110kW
|
|
Rated Output Voltage
|
220V/230V(Mono Phase)
|
400V (Three Phase) (380V optional)
|
|
Operating Voltage Range
|
172.5V-276V
|
300V-520V
|
|
Rated Output Current
|
/
|
14.5A
|
21.7A
|
43.5A
|
72.2A
|
144A
|
|
Max. Output Current
|
30A
|
16.0A
|
23.9A
|
47.6A
|
79.4A
|
1583.8A
|
|
Rated Grid Frequency
|
50Hz / 60Hz
|
50Hz / 60Hz
|
|
Power Factor
|
0.8 (Leading) ~ 0.8 (Lagging)
|
|
THD
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
|
System Parameters
|
Max.Efficiency
|
98.55%
|
98.60%
|
98.61%
|
99.00%
|
99.03%
|
99.00%
|
|
European Effciency
|
98.00%
|
98.40%
|
98.40%
|
98.80%
|
98.51%
|
98.52%
|
|
AC/DC SPD
|
Support
|
|
Insulation Impedance Detection
|
Support
|
|
Residual Leakage Current Detection
|
Support
|
|
PV String Fault Detection
|
Support
|
|
Output Overcurrent Protection
|
Support
|
|
Protection Degree
|
IP65
|
|
Operating Temperature Range
|
-40℃~ +60℃
|
|
Cooling System
|
Natural Cooling
|
|
Standby Power Consumption
|
<1W
|
<1W
|
<1W
|
<1W
|
<1W
|
<5W
|
|
Topology Structure
|
Transformerless
|
|
Operating Altitude
|
4000m (Derating above 3000m)
|
5000m (Derating above 3000m)
|
|
Display
|
LED Indicator + APP
|
|
Communication
|
WiFi / GPRS / 4G
|
RS485 / WiFi / GPRS / 4G
|
|
Mechanical Parameters
|
Dimensions (W*H*D)
|
325*380*177mm
|
380*400*247mm
|
380*400*247mm
|
380*450*247mm
|
520*520*265mm
|
800*680*330mm
|
|
Weight
|
≤14kg
|
≤22kg
|
≤22kg
|
≤35kg
|
≤44kg
|
≤89kg
|
