Product Description

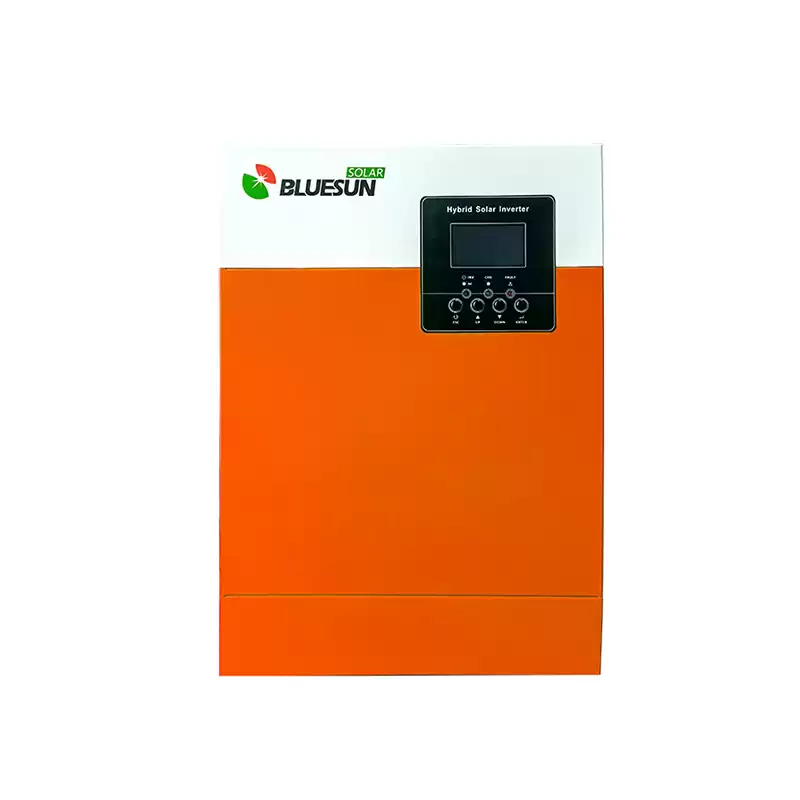

This is a multi-functional inverter/charger,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display such as battery charging current, AC/solar charger priority,and acceptable input voltage based on different applications.
|
MODEL
|
BSM-3500LV-24
|
BSM-5500LV-48
|
|
Capacity
|
3.5KVA/3.5KW
|
5.5KVA/5.5KW
|
|
Parallel Capability
|
NO
|
Yes,Max to 12 Units
|
|
INPUT
|
|
Nominal Voltage
|
220VAC
|
|
Acceptable Voltage Range
|
170-280VAC (For personal Computer)90-280VAC (For HomeAppliances)
|
|
Frequency
|
50/60 Hz (Auto sensing)
|
|
OUT PUT
|
|
Nominal Voltage
|
220/230VAC ±5%
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Frequency
|
50/60 Hz
|
|
Waveform
|
Pure Sine wave
|
|
Transfer Time
|
10ms(For personal Computer);20ms(For HomeAppliances)
|
|
Peak Efficiency (PV tolNV)
|
96%
|
|
Peak Efficiency (Battery to INV)
|
93%
|
|
Overload Protection
|
5s@>=150% load; 10s@110%-150% load
|
|
Crest Factor
|
3:1
|
|
Admissible Power Factor
|
0.6-1 (i nd uctiveor capacitive)
|
|
BATTERY
|
|
Battery Voltage
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
Charging Method
|
CC/CV
|
|
Solar Charger & AC Charger
|
|
Solar Charger TYPE
|
MPPT
|
|
Max.PV Array Power
|
4000W
|
5500W
|
|
Max. PV Array Open Circuit Voltage
|
500VDC
|
|
PV Array MPPT Voltage Range
|
120VDC ~450VDC
|
|
Max. Solar InputCurrent
|
15A
|
18A
|
|
Max. Solar Charge Current
|
100A
|
100A
|
|
Max. AC Charge Current
|
60A
|
60A
|
|
Max. Charge Current
|
100A
|
100A
|
|
PHYSICAL
|
|
Dimensions, D*W*H(mm)
|
482*290*113
|
|
Package Dimensions, D*W*H(mm)
|
565*380*190
|
|
Net Weight (Kgs)
|
9
|
10
|
|
Communicationlnterface
|
USB/RS232/Dry-contact
|
|
ENVIRONMENT
|
|
OperatingTemperature Range
|
-10°C to50°C
|
|
Storage temperature
|
-15°C-60°C
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
Product specifications are subject to change without further notice.
