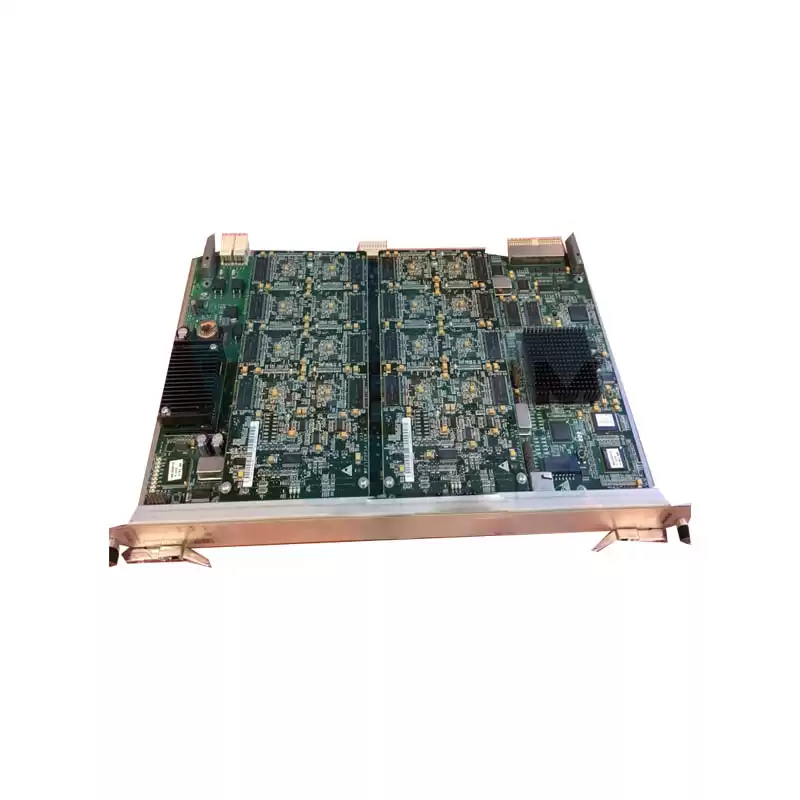

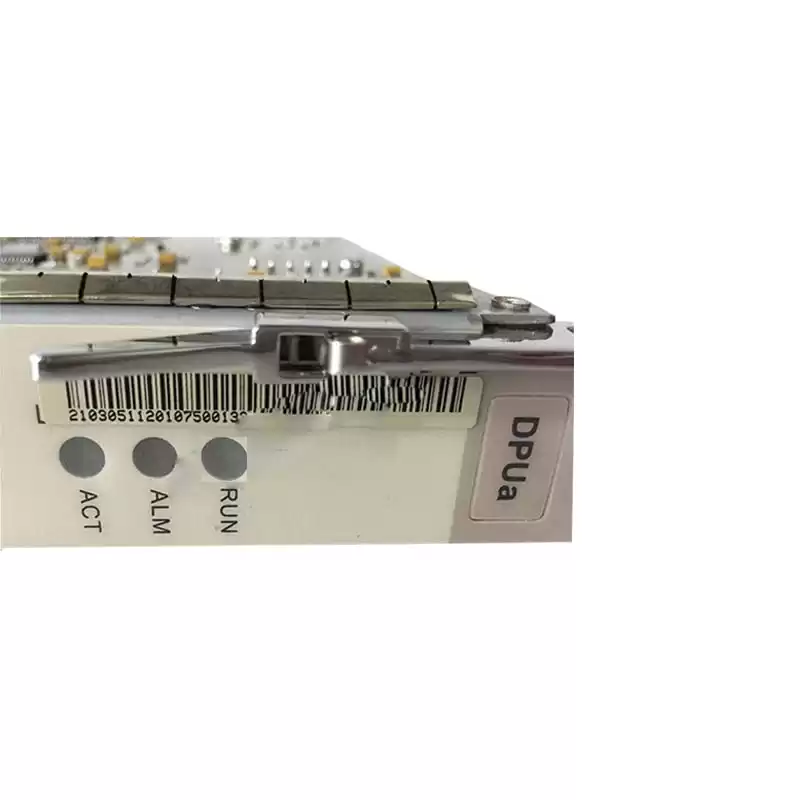

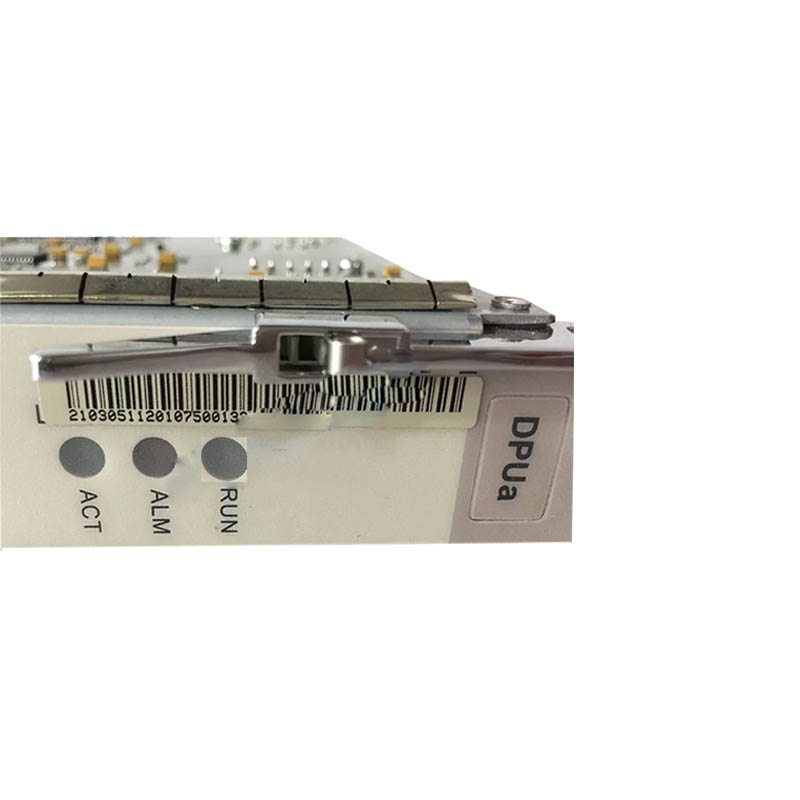

BTS Huawei BSC6900 DPUa GSM Network Equipment 2103051120107B001012
Product Description
|
BSC6900 Cabinet
|
2120447
|
WP1E3PFNS
|
|
DPUa
|
2103051120107B001012
|
WP11DPUa
|
|
DPUb
|
2103051816107B000261
|
WP13DPUb
|
|
DPUc
|
21030518131083000754
|
WP13DPUc
|
|
DPUd
|
21030518141094000296
|
WP13DPUd
|
|
EIUa
|
210305112110AB000525
|
WP11EIUa
|
|
FG2A
|
210305148810AB000279
|
WP11FG2a
|
|
GCUa
|
21030511161083000345
|
WP11GCUa
|
|
LPUo
|
|
|
|
NETo
|
|
|
|
TNUb
|
|
|
|
OIUa
|
21030511221097000985
|
WP11OIUa
|
|
OMUa
|
210223880610A7000288
|
WP11OMUa
|
|
OMUb
|
210223711110A1000339
|
WP11OMUb
|
|
PEUa
|
2103051486107B000012
|
WP11PEUa
|
|
POUo
|
030KRR10A7000047
|
WP11PPOU0
|
|
POUc
|
210305274810A7000187
|
WP11POUc
|
|
SCUa
|
21030511171083001250
|
WP11SCUa
|
|
TNUa
|
210305111810AB000657
|
WP11TNUa
|
|
XPUa
|
210305111910A2000193
|
WP11XPUa
|
|
XPUb
|
210305278010A9000058
|
WP11XPUb
|
DPUa(Data Processing Unit REV: a): General Data Processing board version.TCS box is the E1/T1 interface board configuration, DPUa veneer configuration in 9~13 slots; TCS plug box using STM 1 interface board configuration, DPUa veneer configuration in 1~3, 8~13 slots.
|
Index name
|
Parameter values
|
|
Overall dimensions
|
366.7mm×220mm
|
|
Power Supply
|
Two way redundancy backup - 48 v DC (provided by the plug box back)
|
|
Power Consumption
|
60W
|
|
Weight
|
1.26kg
|
|
The long-term working temperature
|
0℃～45℃
|
|
The short-term working temperature
|
-5℃～+55℃
|
|
Long-term work relative humidity
|
5%～85%
|
|
Short-term work relative humidity
|
5%～95%
|
Product Details
Our Advantages
We have Huawei DPUa for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei DPUa, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei DPUa represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
