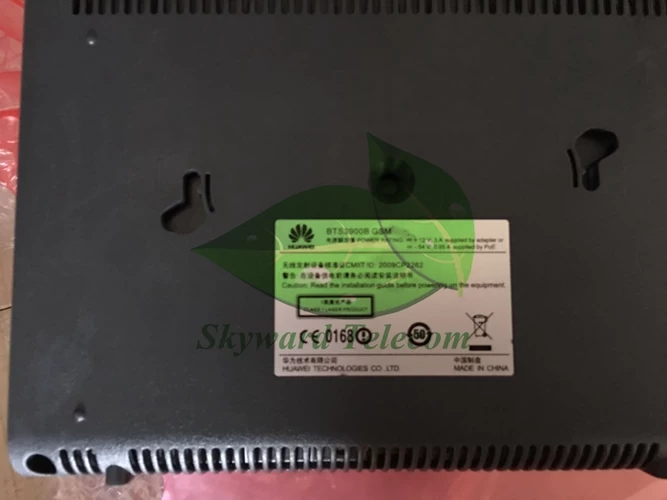

HUAWEI BTS3900B Overview
By keeping up with the rapid development in the field of wireless communications, the wireless communication network becomes more reliable. However, for the blind spot coverage and private network with specific coverage, capacity, and service requirements,more flexible solutions are required. Customer-oriented and innovative, Huawei unveils the industry-leading BTS3900B GSM compact pico BTS With the volume of only 2 L, the BTS3900B integrates multiple functional units of the traditional BTS, enabling multiple functions of the traditional BTS. Incorporated with the compact and noiseless design, as well as the support of IP transport, the BTS3900B features flexible site selection possibility and easy installation, enabling fast and cost-effective blind spot coverage. In addition, the BTS3900B provides effective services to small office buildings and Small and Medium-Sized Enterprises (SMEs) with the private network.
As an intelligent BTS, the BTS3900B features automatic data configuration, automatic frequency configuration, and automatic power adjustment, enabling convenient deployment and maintenance of the BTS. The BTS3900B supports dual-band network configuration and a maximum of two carriers.
Simple Structure and Quick Network Construction
The BTS3900B is 2 L in volume and 1.5 kg in weight, one of the smallest pico BTS ever developed in the industry. No dedicated equipment room is required for the BTS3900B, and it can be easily installed by one person with few common tools. The compact and integrated design of the BTS3900B facilitates installation, removal, and fast deployment.
BTS3900B supports automatic data configuration, automatic frequency configuration, and automatic power adjustment, enabling the provision of services in a short time.
Components
The main components of the BTS3900B consist of the baseband processing board, RF module,and plastic housing. The baseband processing board processes baseband signals andimplements main control and transmission functions, and the RF module transmits, receives,and processes RF signals.If AC power supply is used, the power adapter is required for the BTS3900B. The power adapter converts the AC power into the working voltage of the BTS3900B. If the PoE mode isadopted, external PoE power equipment must be configured. The PoE power equipmentsupplies power to the BTS3900B through the Ethernet cable. In this case, the power adapter isnot required. The BTS3900B can be employed with built-in antennas or external antennas.
Specification
|
Dimensions (height*width*depth)
|
130*25*54(mm)
|
|
weight
|
15kg
|
|
Temperature
|
–10℃ to +45℃ (Short-term: +40℃ to +45℃)
|
|
Relative
humidity
|
5% RH to 95% RH
|
|
Air pressure
|
70 kPa to 106 kPa
|
|
Operating
environment
|
ETSI EN 300019-1-3 V2.2.2 (2004-07) Class 3.1: "Temperaturecontrolled locations"
|
|
Storage
environment
|
ETSI EN 300019-1-1 V2.1.4 (2003-04) Class 1.2: "Weather protected,
not temperature-controlled storage locations"
|
|
Transportation
environment
|
ETSI EN 300019-1-2 V2.1.4 (2003-04) Class 2.3: "Public
transportation"
|
|
Protection
degree
|
IP30
|
|
EMC
|
The BTS3900B meets the Electromagnetic Compatibility (EMC)
requirements and complies with the following standards:
CISPR 22 (2003)
CISPR 24 (1998-09+ A1:2001 A2:2003)
EN55022(2006)
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-29
ETSI 301 489-1 V1.5.1(2004)
ETSI 301 489-8 V1.2.1(2002)
ETSI EN 301 502 V8.1.2 2001-07
ITU-R SM.329-10 2003
FCC 47CFR Part5(2006)
|
|
Availability
|
≥ 99.9998%
|
|
MTBF
|
633,000 hours
|
|
MTTR
|
≤ 1 hour
|
