BTTZ BTTQ mineral insulated Power Cables
MAIN KEYWORDS
BTTZ mineral insulated
cable, BTTQ mineral insulated cable, bare mineral 500V cable, bare mineral insulated 750V cable, MIC fire resistant cable, BS 6387 mineral insulated cable, GB/T 13033 mineral insulated cable, IEC 60702 mineral insulated cable, BTTYZ electric cable, BTTVQ mineral insulated cable.
PRODUCTS CHARACTERISTICS
(1) Completely
fireproof. It does not burn itself,
nor will it cause fire, and the flame will not produce toxic smoke and gas when
it burns.
(2) Strong
overload protection. The BTTZ
mineral insulated cable will not be damaged, if it exceeds the current rating
as long as its heat does not reach the melting temperature of copper (1083℃).
(3) Resistance
to high temperature. The highest
operating temperature of BTTZ mineral insulated cable can reach 250℃ in normal
time, because the melting temperature of magnesium oxide is 2800℃, and
the melting temperature of copper is 1083℃.
(4) Moisture-proof,
anti-corrosive, explosion-proof. BTTZ mineral insulated cables have seamless
copper tubing and sealed cable terminals, it can effectively block most oil,
water, gas and flame.
(5) Long
service life. Magnesium oxide and copper can withstand aging; the service life
of common cable can reach more than 3 times.
(6) Environmental
protection. Even if the BTTZ mineral insulated has been put into the flam, and
the temperature of the flam close to the melting point of copper, it would not
produce smoke, halogens or toxic gases.
(7) Radiation
resistance, anti-electromagnetic interference. After irradiation, the
resistance value of conductor and insulation will not change. It has a seamless
and sealed copper sheath, making it one of the best shielding materials for use
in nuclear facilities, computer rooms, power distribution and control rooms and
other important applications.
(8) Small
in size and light in weight. Compared with ordinary cables, BTTZ mineral
insulated cable has a 60% reduction in volume and a 30% reduction in weight.
(9) Good
grounding performance, copper sheath can provide good grounding performance, do
not need a separate earth wire.
(10) BTTZ mineral
insulated cable has some defects, such as high hardness, cannot water, joints,
expensive
accessories, etc.
PRODUCTS APPLICATION
(1) Fire protection systems for all types of buildings.
(2) High-rise civil buildings, office buildings, hotels, shopping malls, exhibition centers, museums, libraries, hospitals, stadiums, airports and so on.
(3) High temperature field, such as steel, smelting, glass and other workshops.
(4) Flammable and explosive fields, such as petroleum, chemical, pharmaceutical, nuclear and military enterprises.
(5) National defense engineering, such as ship, aviation, aerospace, satellite launch, control center, etc.

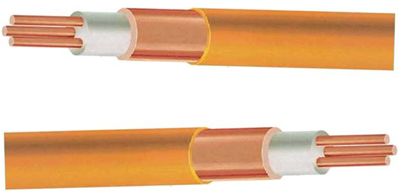

PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed solid copper wire.
---Insulation Material
Magnesium
oxide mineral compound
---Sheath Material
Plain copper tube

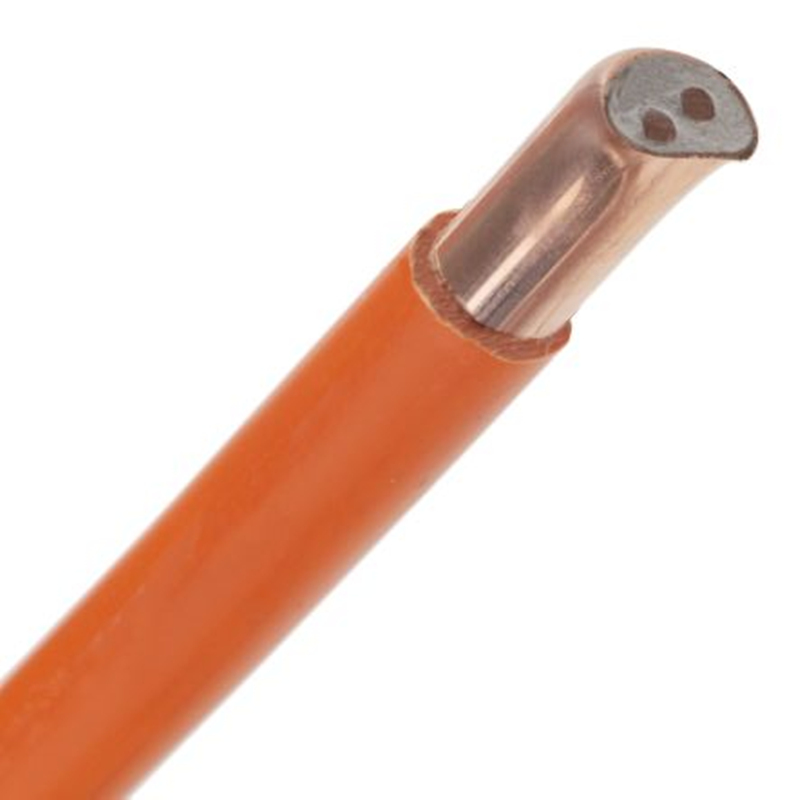

---Out Sheath (optional)
PVC, PE, or LSZH (low smoking zero halogen).
---Core Number
1C, 2C, 3C,
4C, 7C
---Voltage Rate
500V, 750V
---Working Temperature
Normal: -15℃～+250℃,
special period: 1083℃
---Minimum Bending Radius
20 x Out
Diameter
---Production Standard
GB/T 13033, IEC 60702,
BS 6387, BS 6207, BS 5266, VDE 0284, AS 3188
---Products Delivery
Within 15-20 working days as soon as we received the deposit.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.

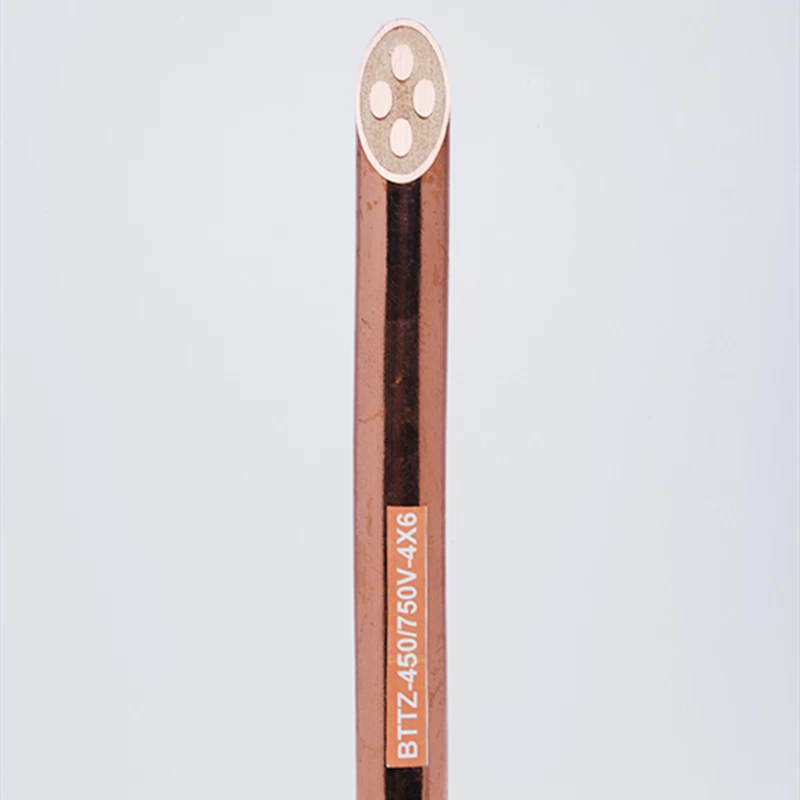

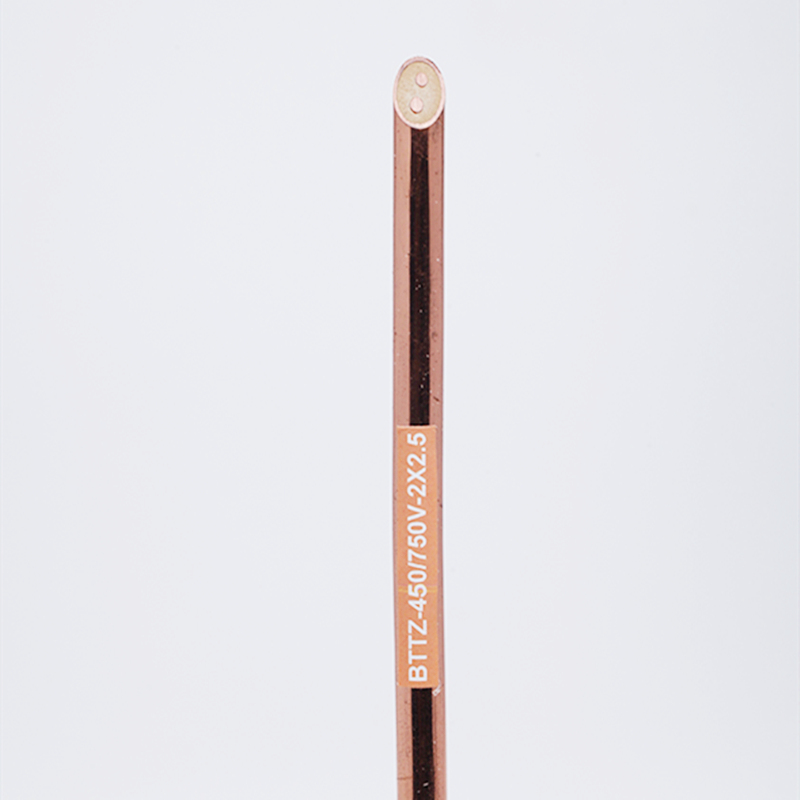

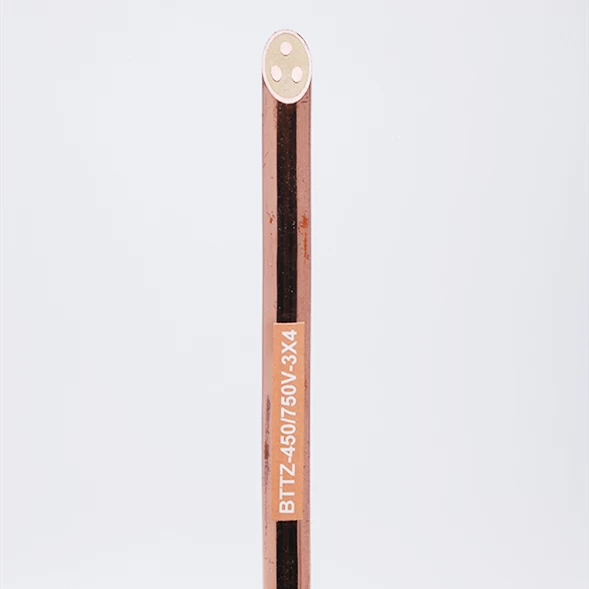

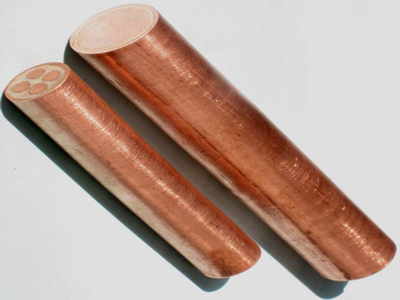

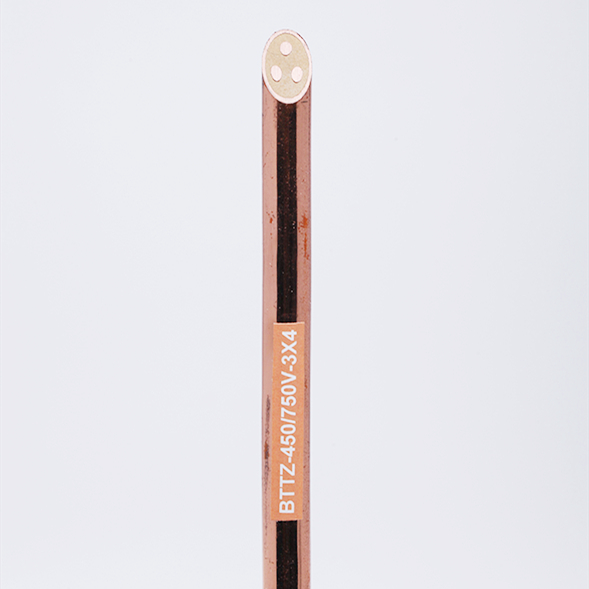

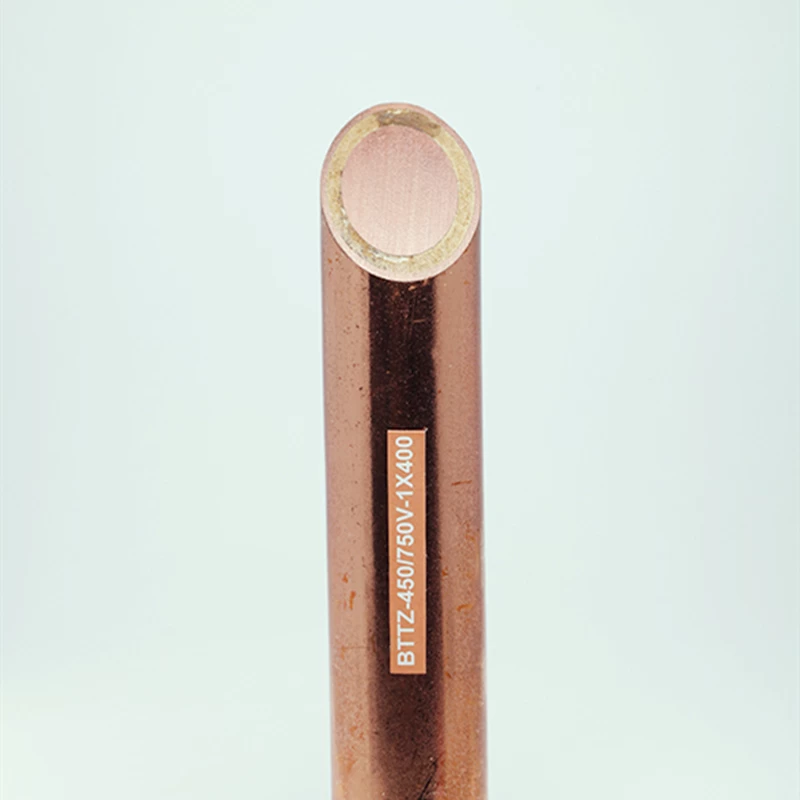

---BTTZ or BTTQ Mineral insulated cable is
composed of copper conductor, magnesium oxide insulation, and seamless copper
tube protective sheath. It has strong fire resistance and can be widely used in
various fields.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
