Bucket Crane Trucks ISUZU

truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck

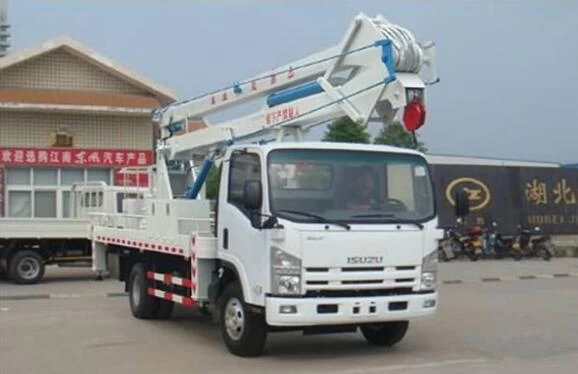

18m Man Lift Truck Isuzu

18m Man Lift Truck Isuzu

Function:

Bucket Crane Truck Isuzu (also called Hydraulic beam lifter, bucket boom truck, truck mounted aerial lift, telescopic platform truck, aerial lift work trucks, aerial platform trucks, Man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Boom lift truck, telescopic boom truck, articulated boom lift truck, aerial working platform, overhead wroking truck


 Basket Crane Truck ISUZU (18M)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 8350 x 2400 x 3500 mm
GVW / Kerb Weight 10,000 kg / 7,305 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4HK1-TCG40
Power 190Ps (139KW)
Displacement 5193 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MLD transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 3815 mm / 2
Tyre Specification 8.25-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 18 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

 Aerial working platform truck Isuzu boom lift vehicle
