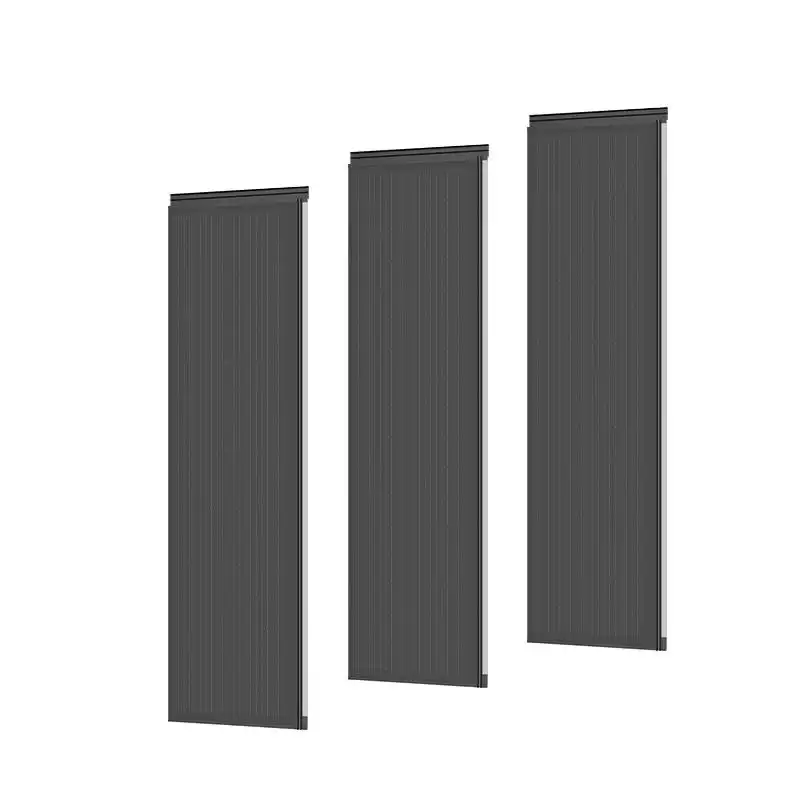

GREYSTONE Building Integrated Photovoltaic Solar shingles Solar Panel
Product Details
Advantages
-
Integration of building materials to reduce roofing costs;
-
No bracket installation, reduce installation cost;
-
The left and right structure is waterproof, and the upper and lower double channels are waterproof, which is safe and reliable;
-
System-level heat dissipation and ventilation to reduce the internal temperature of the building;
-
Lightweight, reducing roof load-bearing requirements;
-
3.2mm+3.2mm all-steel double glass structure, impact resistance 5400Pa+;
-
Structural wind-proof, resistant to grade 12 wind;
-
Advanced packaging technology, stable and reliable.
Product Specification
Structural parameters
|
Item model
|
GSBMT-S1/92W
|
GSBMT-V1/97W
|
|

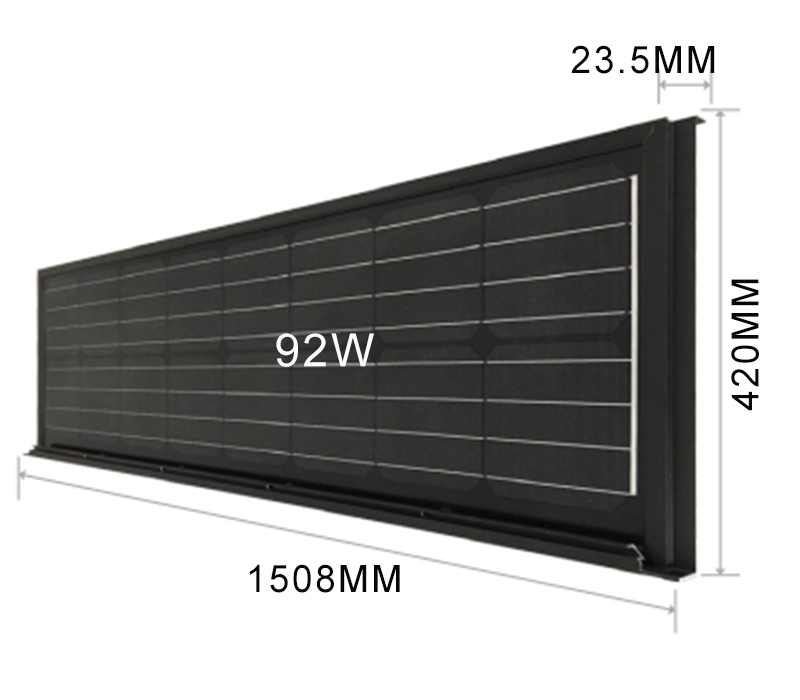

Dimension
|
1508mm*420mm*23.5mm
|
1547mm*423mm*23.5mm
|
Colour
|
Black
|
Black
|
|
Weight
|
11±0.5kg
|
11±0.5kg
|
|
Area
|
0.633㎡
|
0.65㎡
|
|
Encapsulation type
|
Double glass
|
Double glass
|
|
Type of solar cell
|
Monocrystalline PERC
|
Monocrystalline PERC
|
Electrical parameters
|
|
Peak power(Pmax)
|
92W
|
97W
|
|
Peak voltage(Vmp)
|
9.03V
|
9.32V
|
|
Peak Current(Imp)
|
10.19A
|
10.19A
|
|
Open circuit voltage(Voc)
|
10.97V
|
11.66V
|
|
Short circuit current(Isc）
|
10.73A
|
10.73A
|
Carbon Neutrality Index
|
25-year power generation
|
2300kwh
|
2425kwh
|
25-year power generation equivalent to standard coal
|
700kg
|
740kg
|
25 years of power generation equivalent to carbon emission reduction
|
1870kg
|
1975kg
|

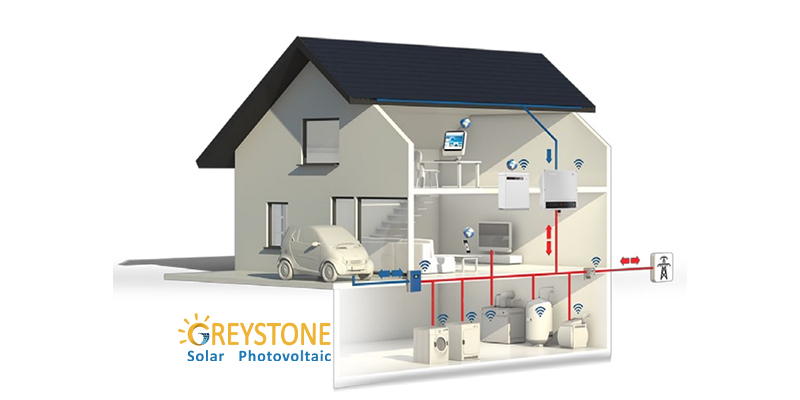

Working Diagram

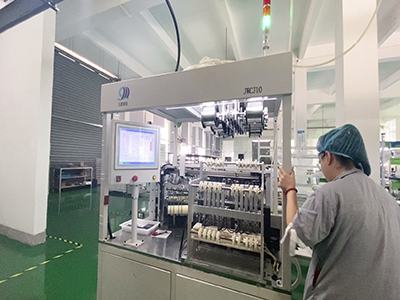

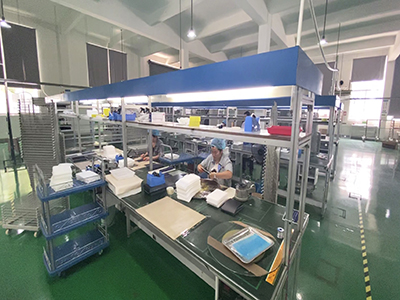

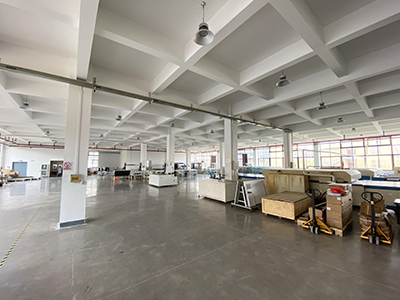

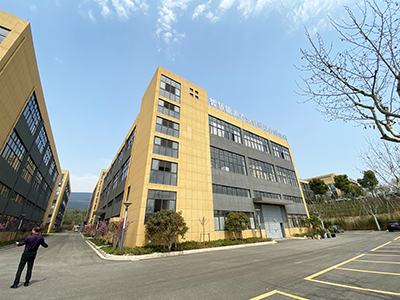

Factory

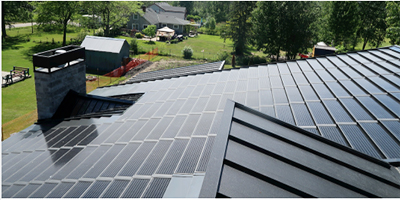

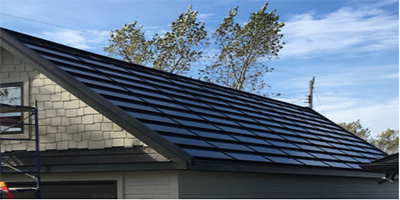

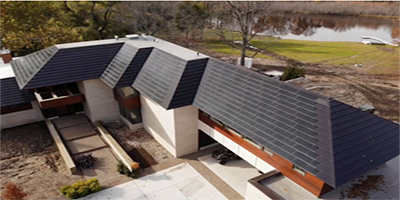

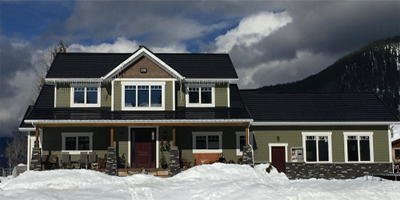

Projects
FAQ
Q1: Does your company accept LOGO customization?
A1: Sure, we could print your company LOGO on the products and package.
Q2: Do you accept customization on the size?
A2: Yea, if the size is reasonable.
Q3: What's types of solar panels do you supply?
A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270w-700w
Q4: Do you sell solar cell and glass separately?
A4: Yes, just feel free to leave a message.
Q5: Is it possible for me to get a sample before production?
A5: Of course, samples could be offered for your evaluating the quality first.
