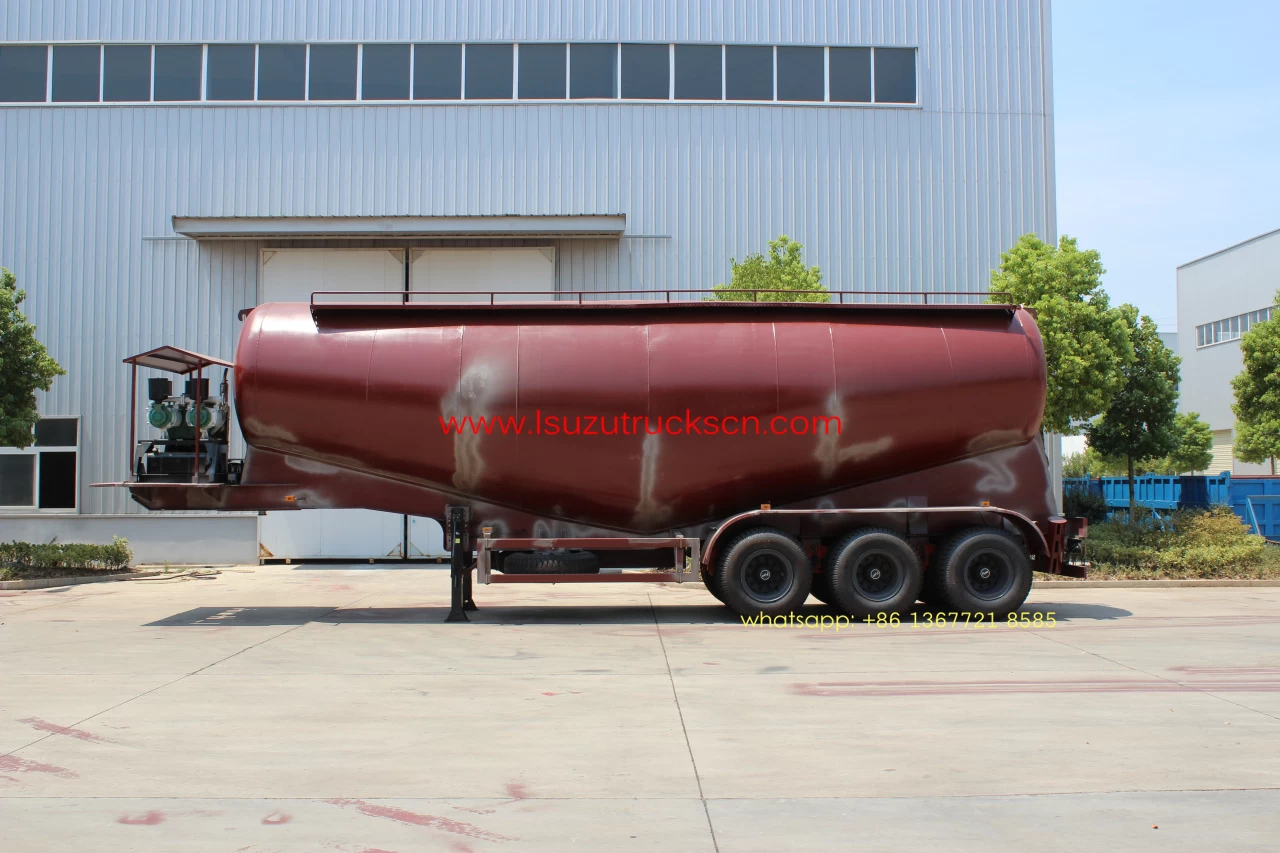

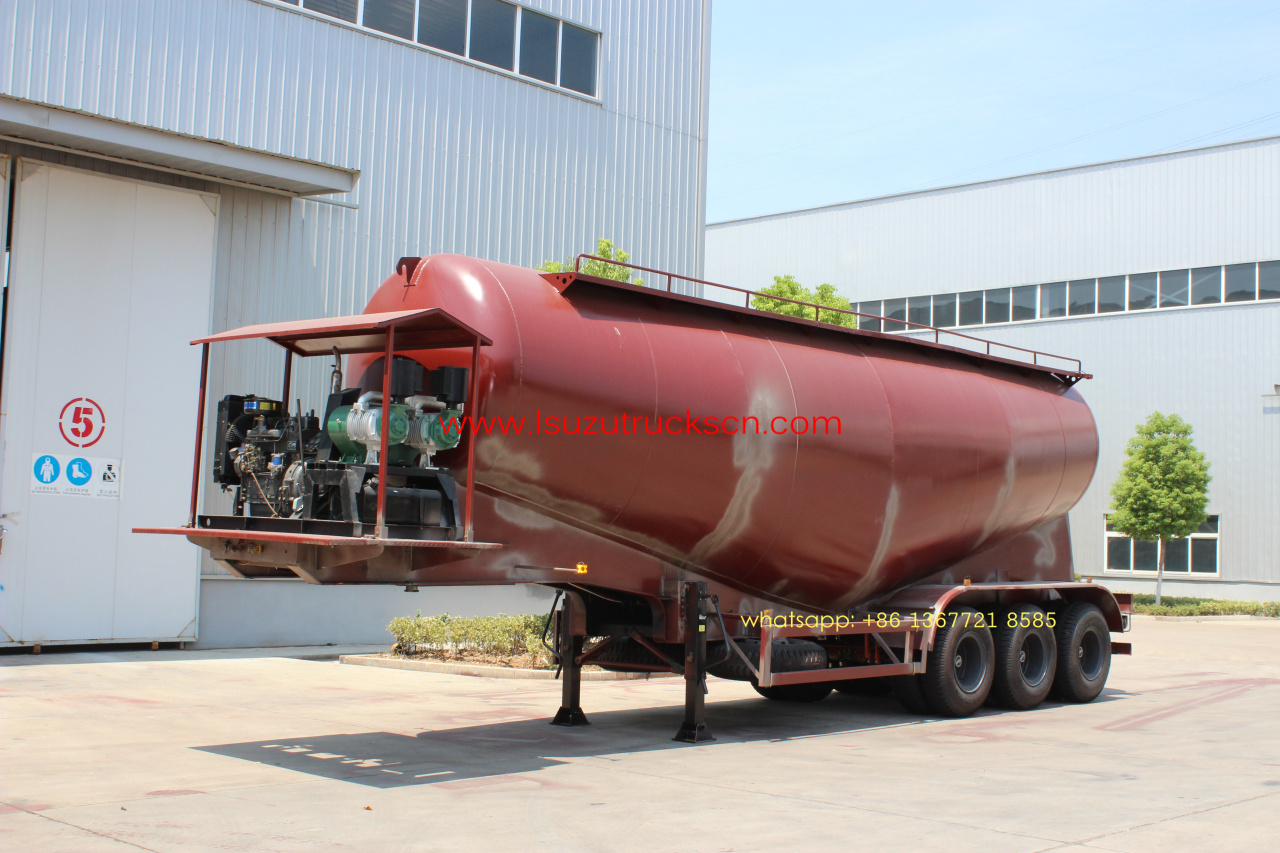

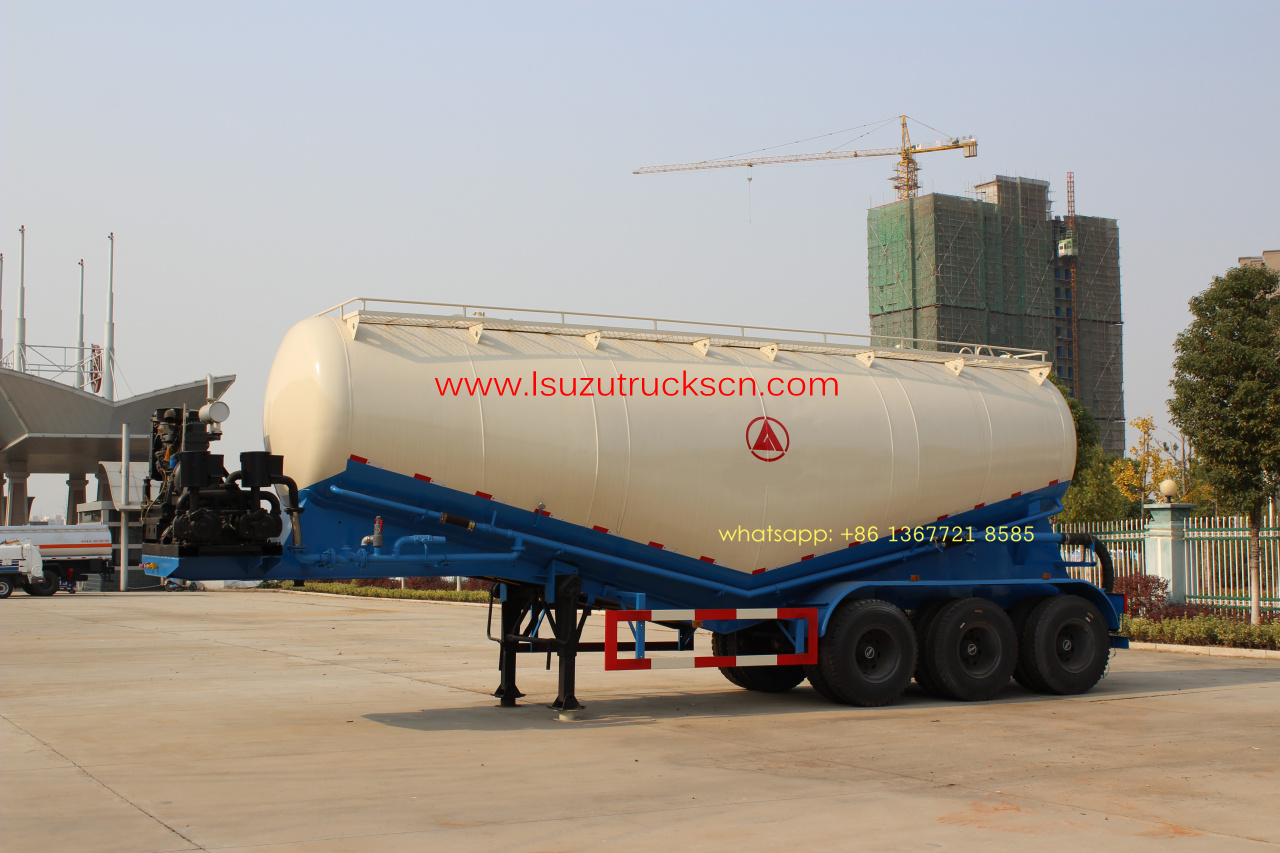

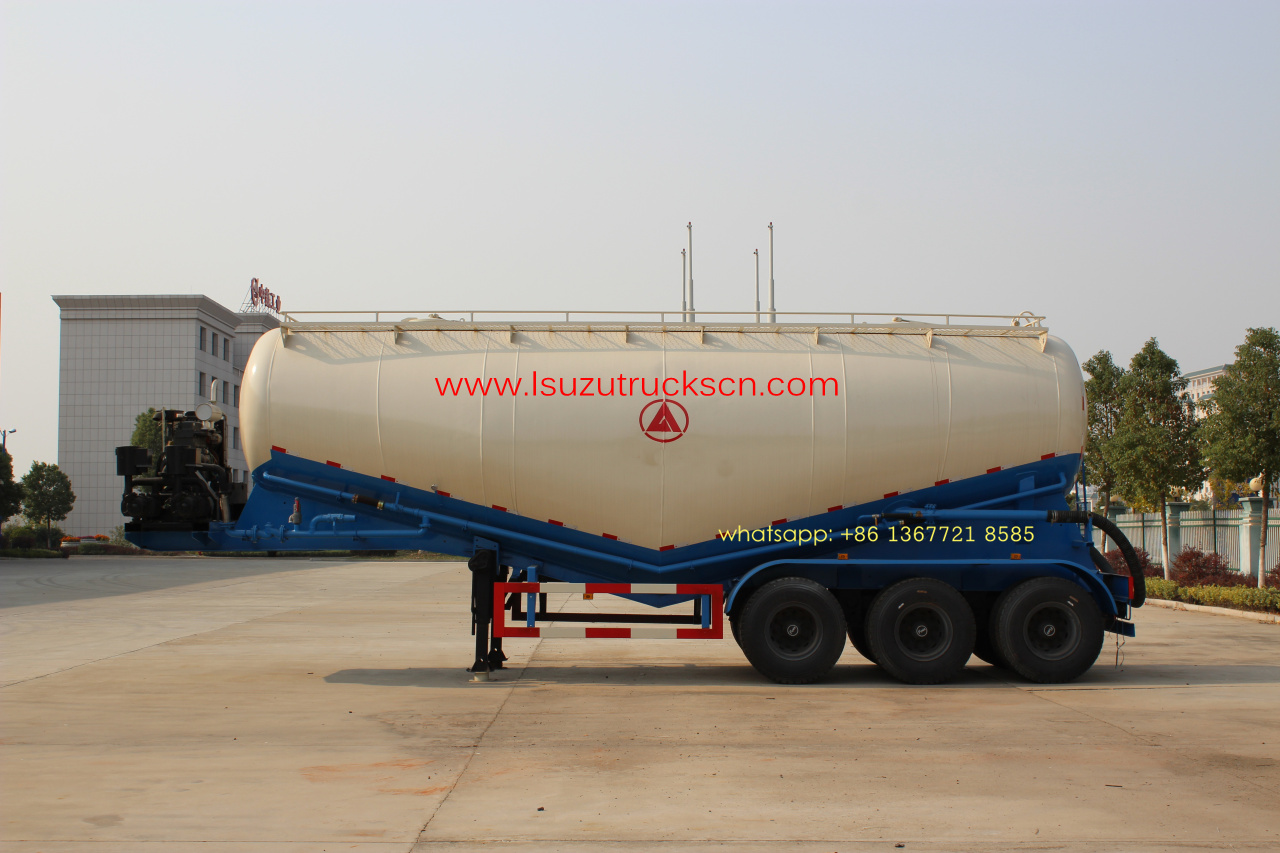

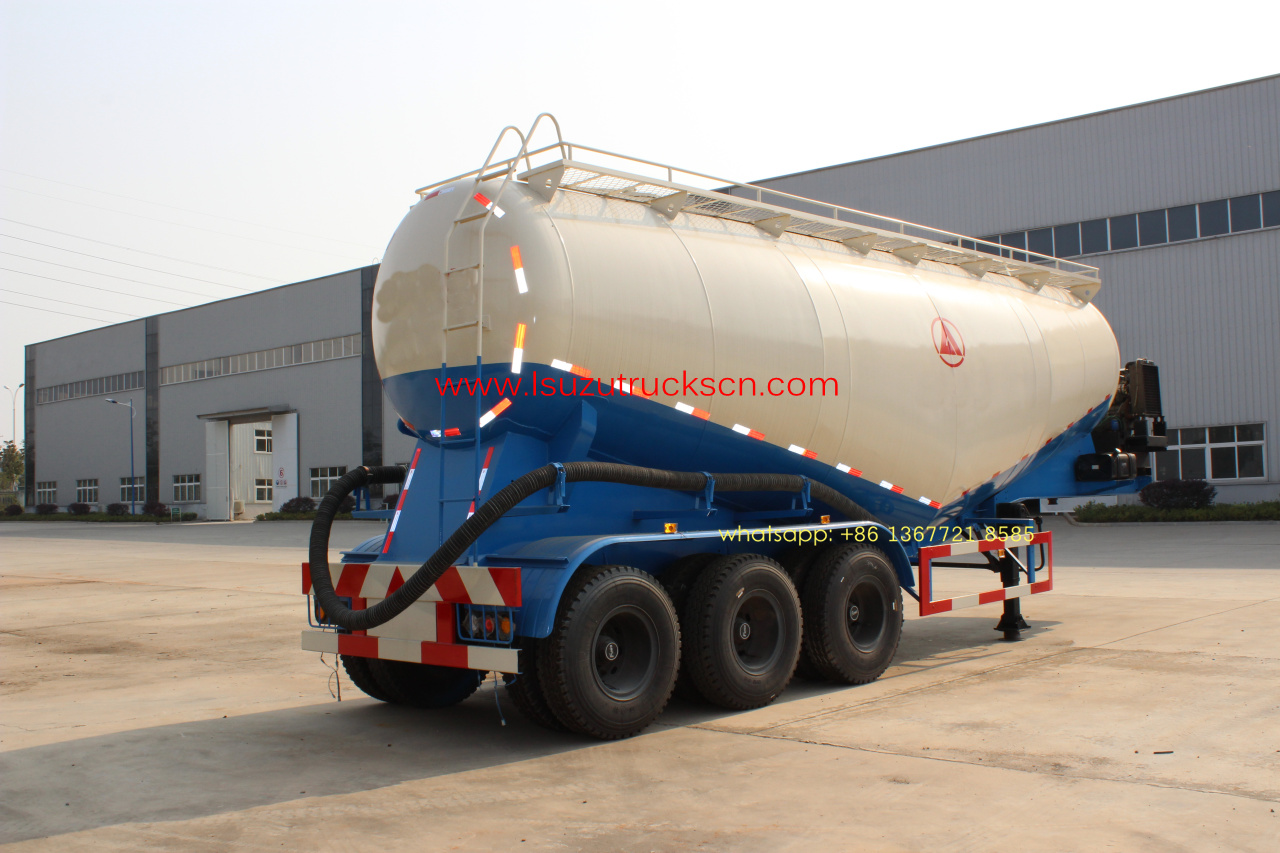

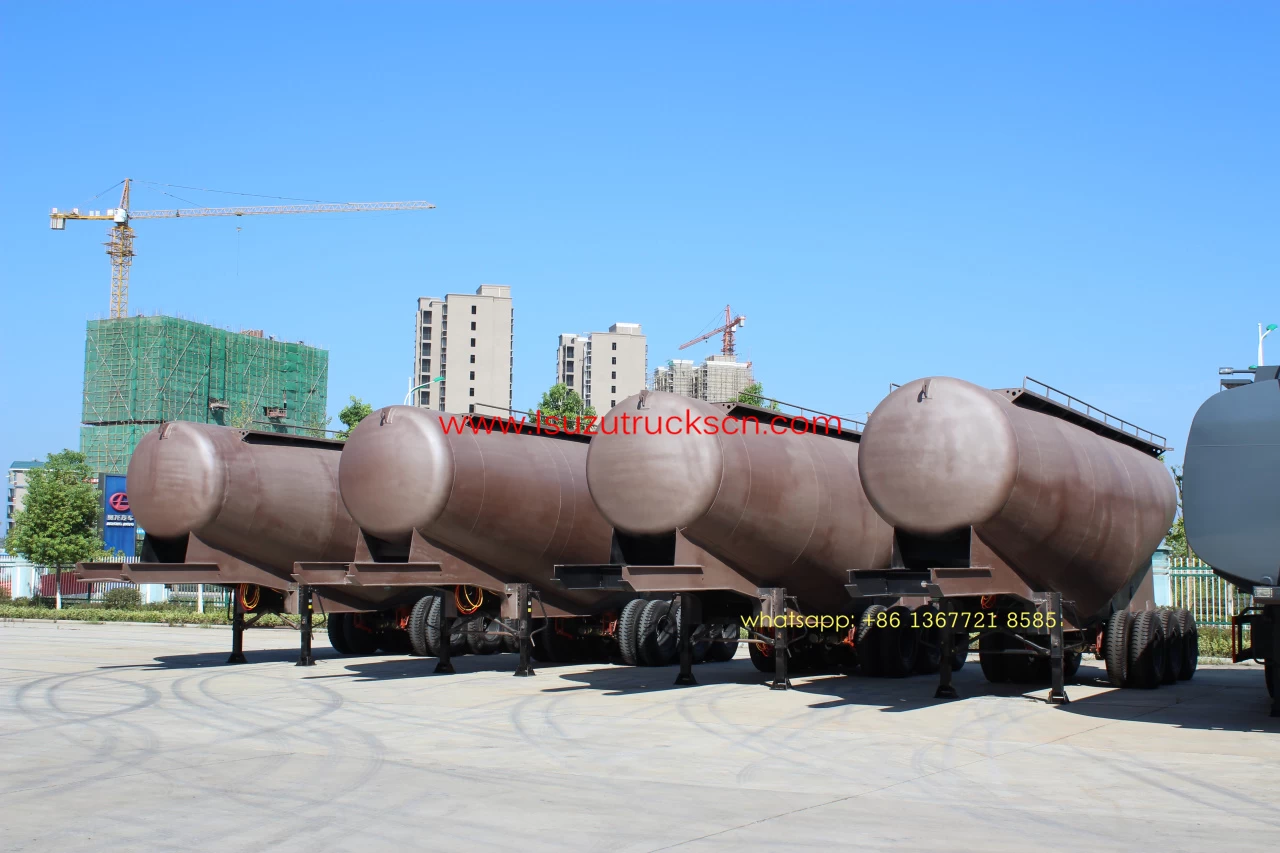

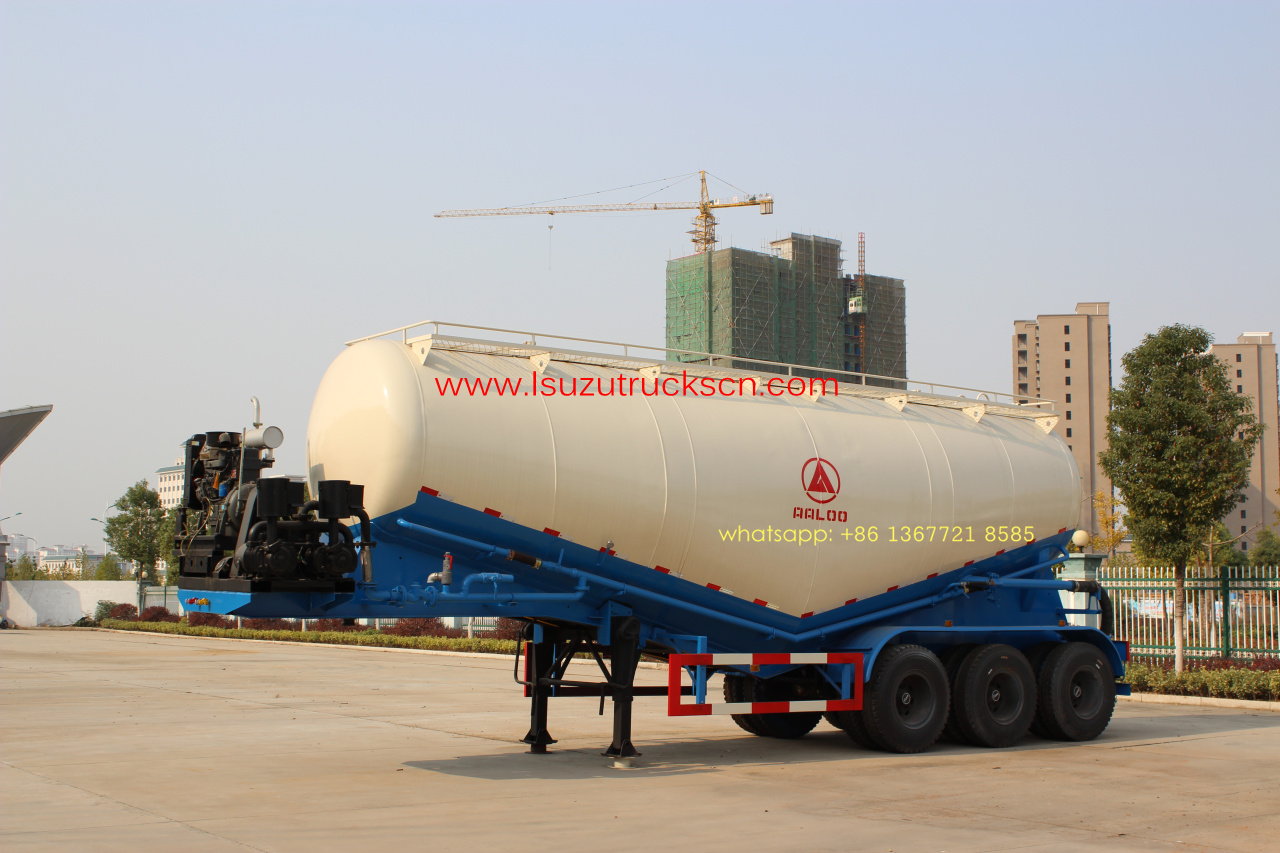

Bulk Cement Trailer
(35m3)

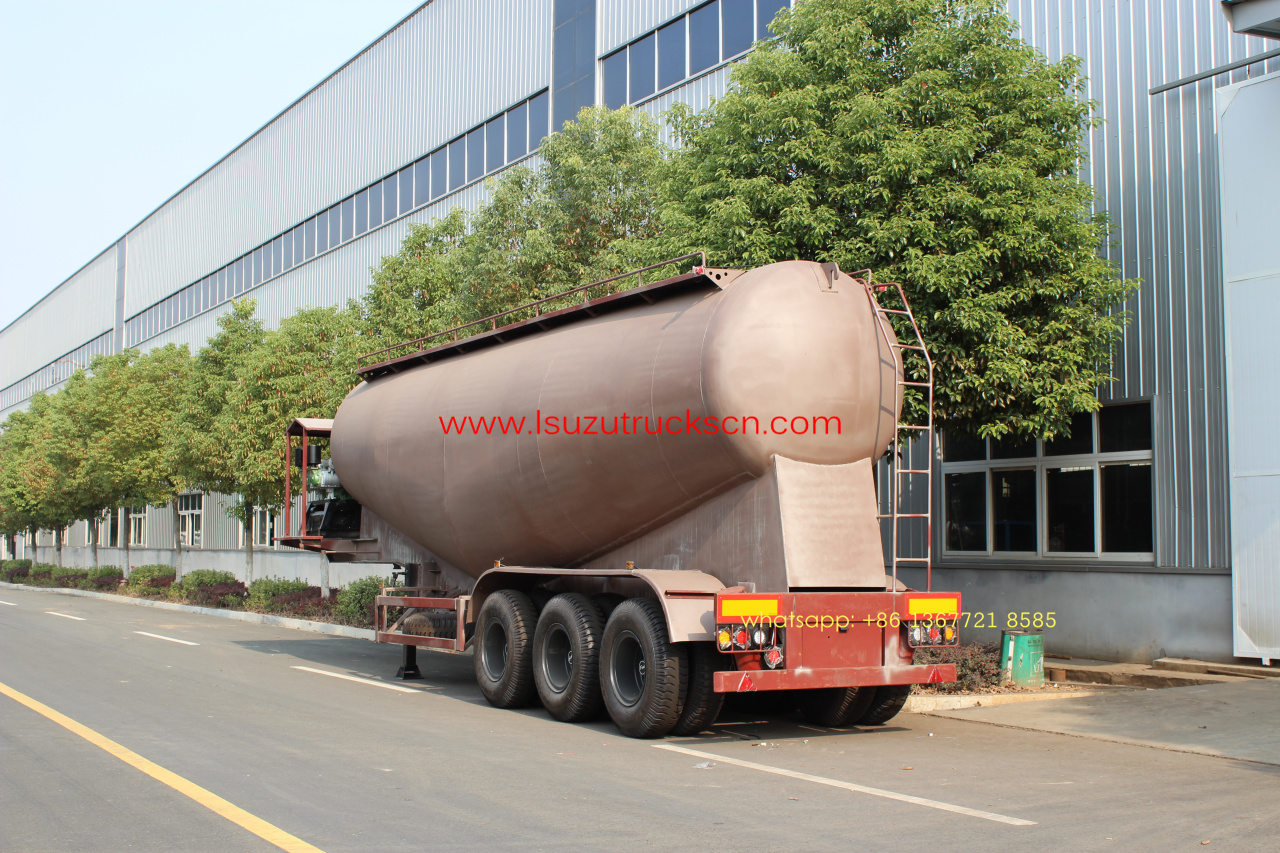

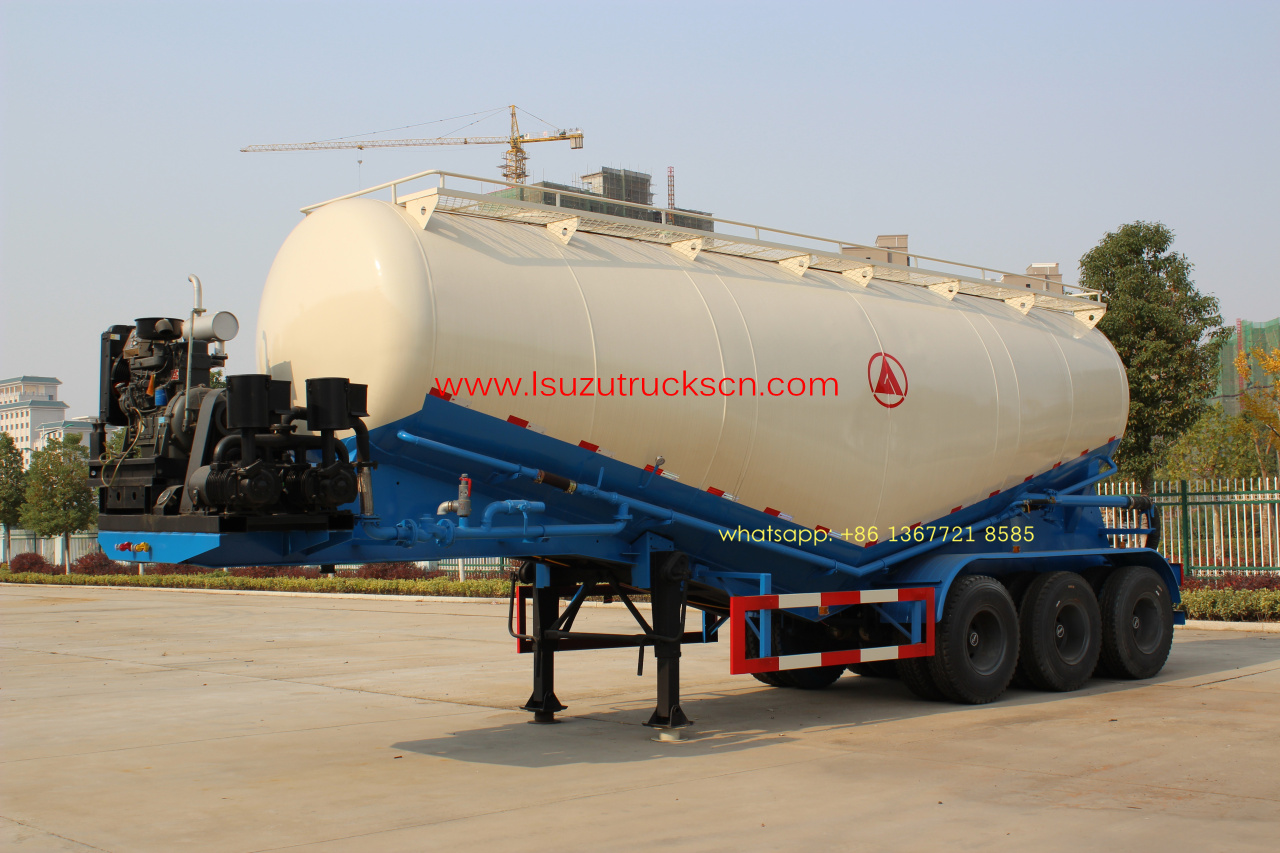

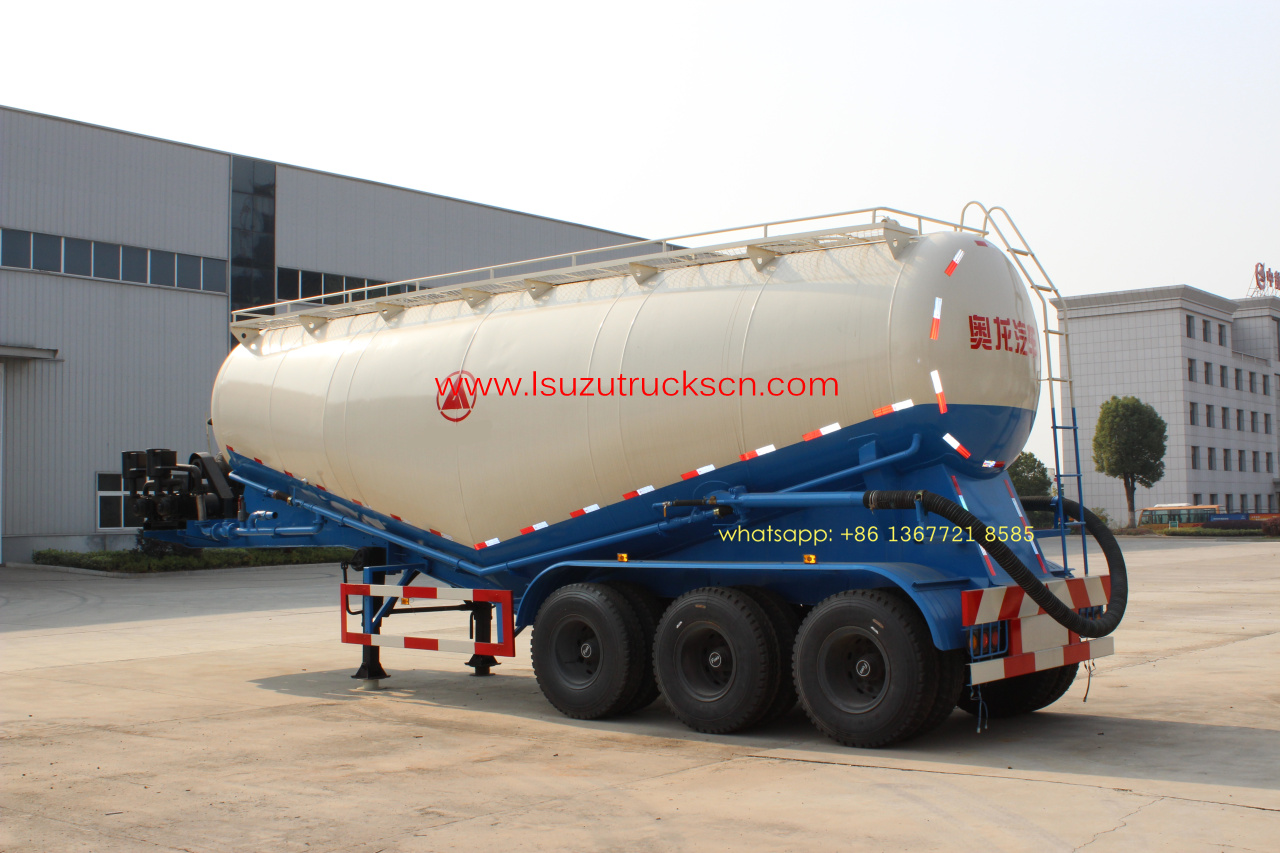

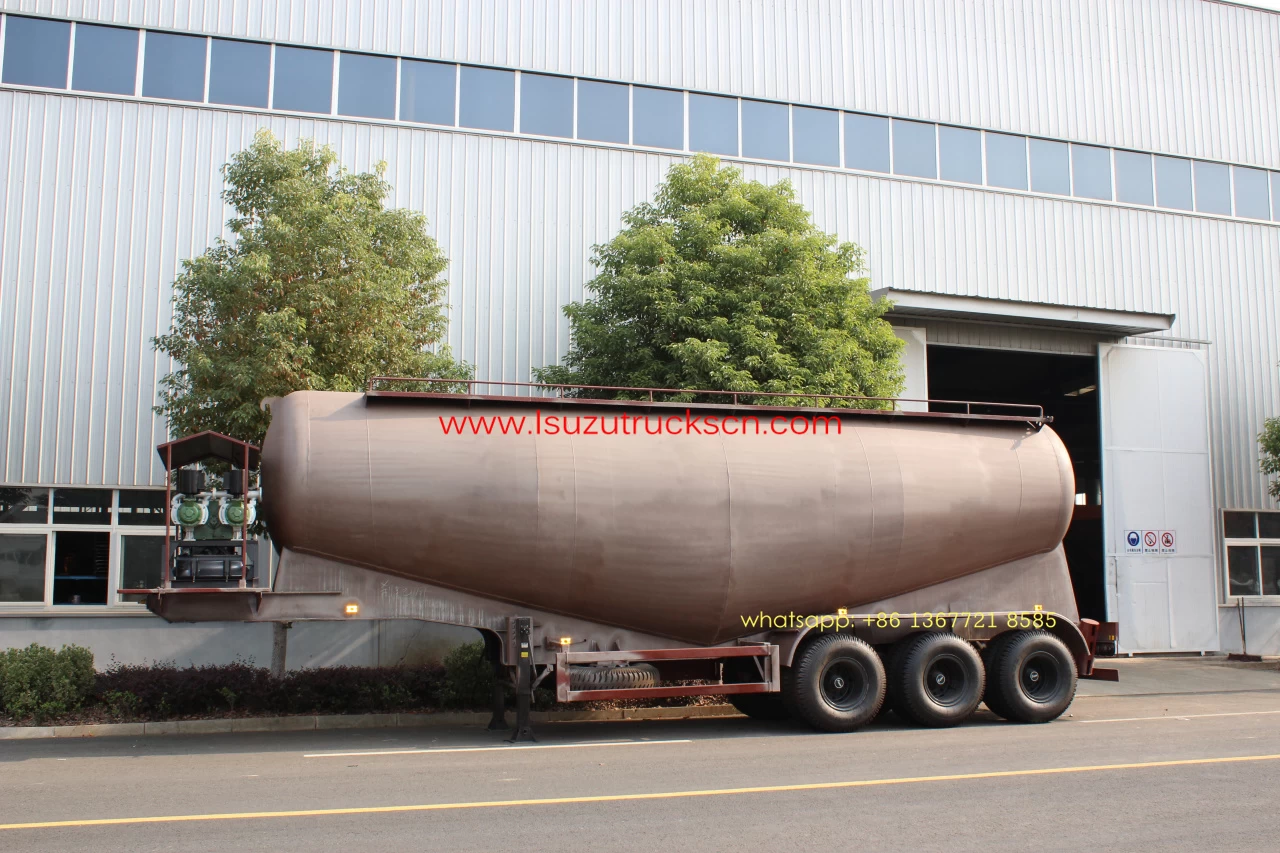

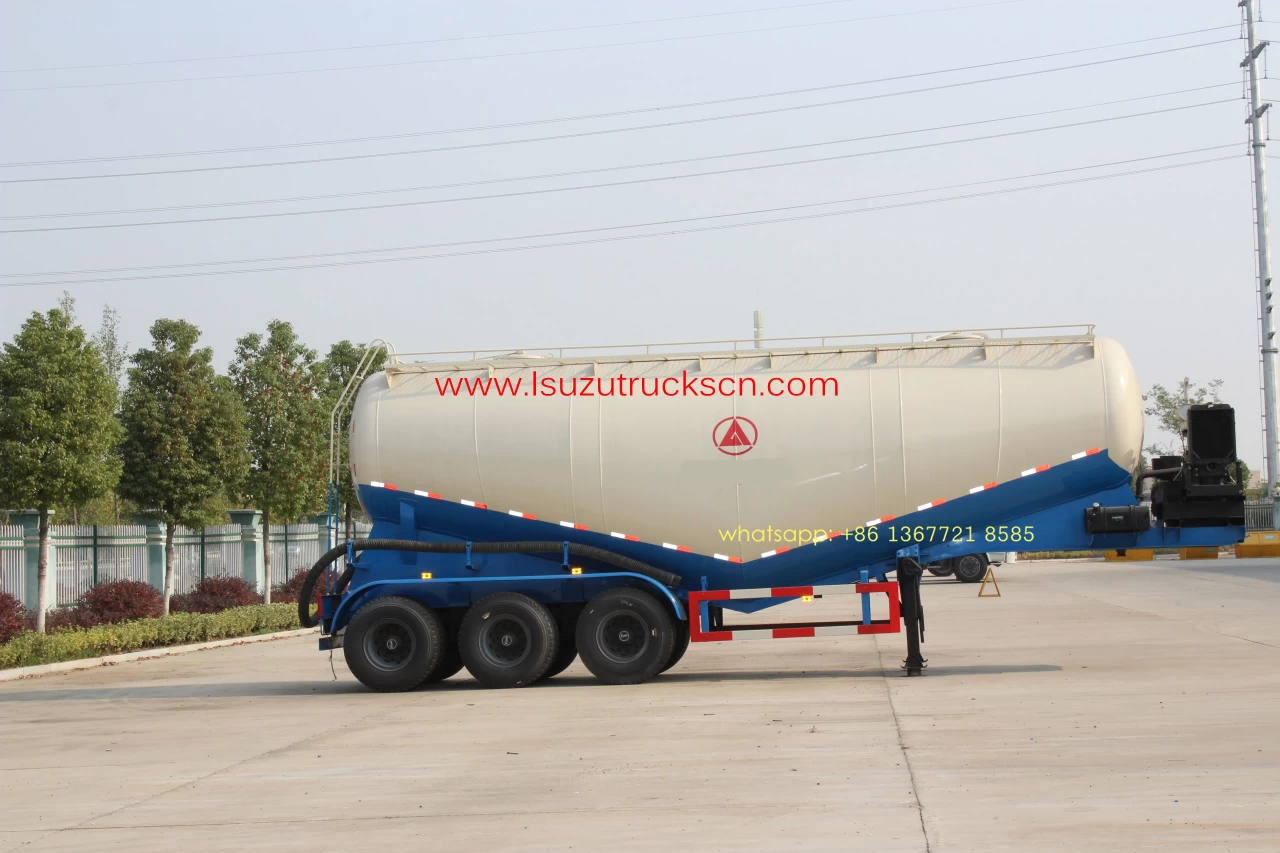

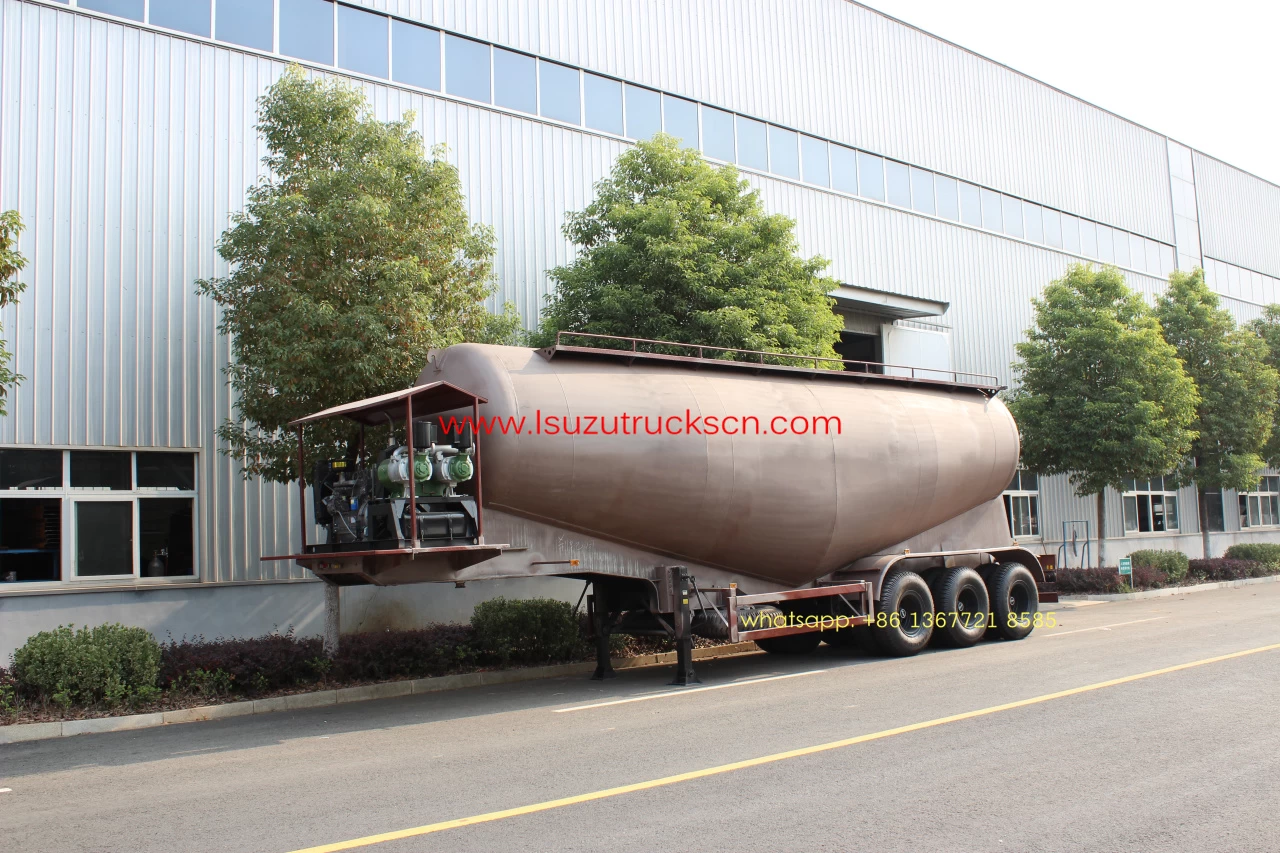

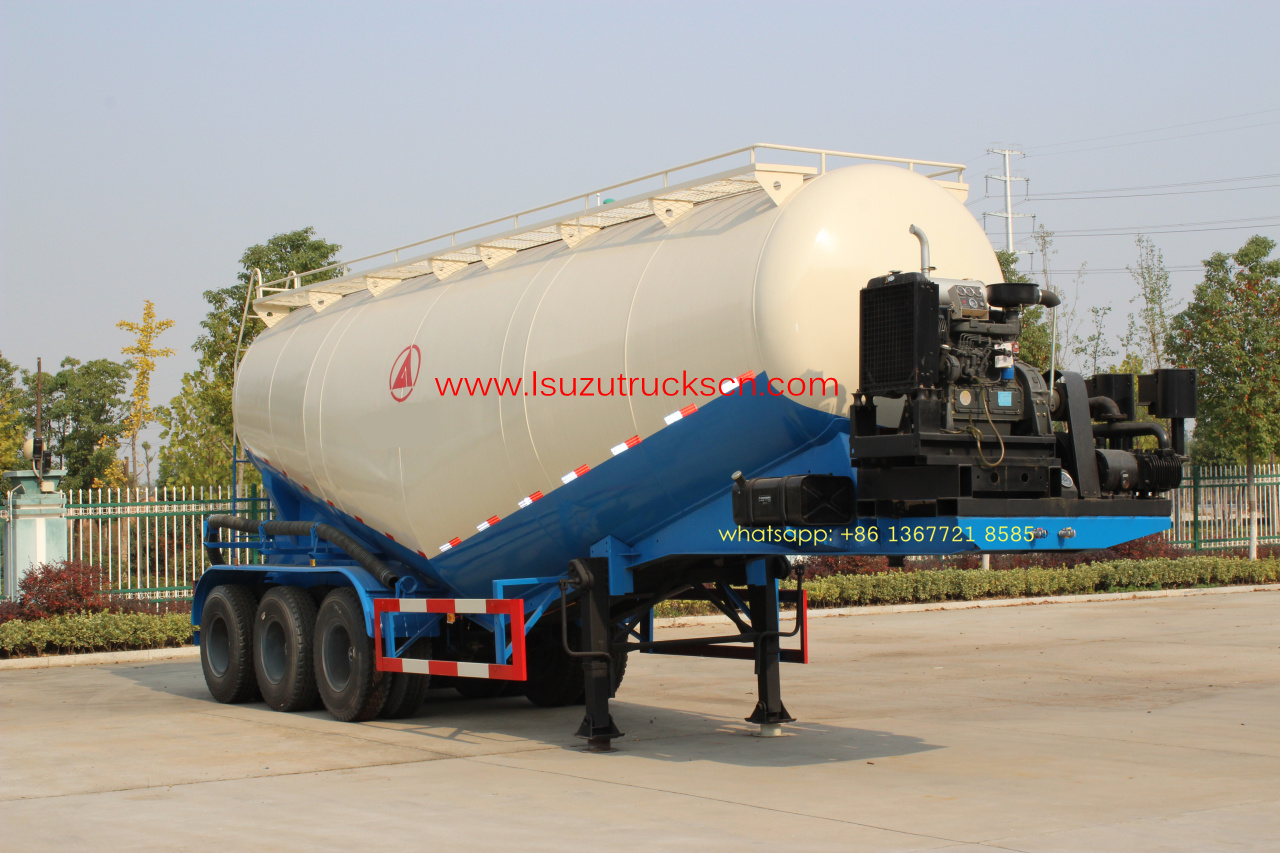

Bulk cement trailer (also called as Cement
trailers, Cement tank trailer, Cement flour tank trailer, Silo trailer, bulk
powder tanker trailer, bulk trailer and so on), Capacity of this trailer is
between 30-70 Cbm.
Application:
CEMENT
TRAILER Self Loading is used for carrying cement, lime, flour or any other dry
powder materials in bulk and it has ability to load the material by itself
without need of any other loading machine. We use China famous brand Vacuum
motor for loading operation.

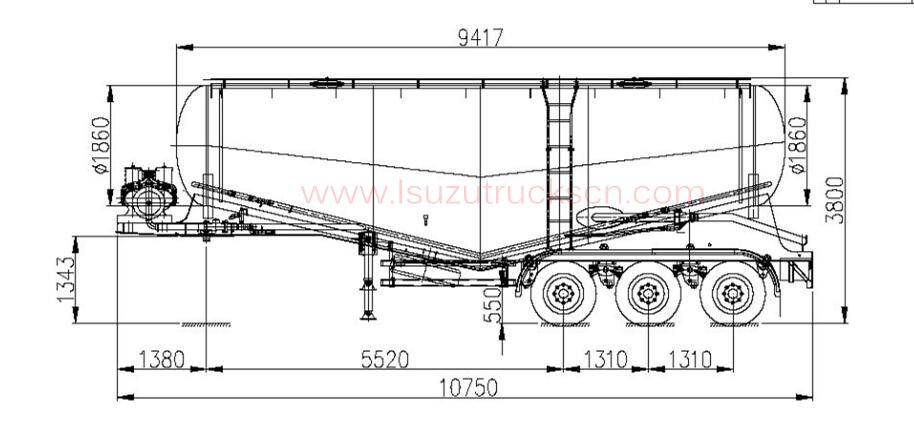

Technical drawings of 35m3 Bulk Cement Trailer:
Key Features:
1, Thispowder tanker semi-trailer comes with a 35m3 lifting tank. The volume can be
tailor-made based on specific requirements.
2, For
the powdery chemicals tanker semi-trailer, we have designed a special
high-temperature resistant fluidized structure. A national patent has been
obtained for the high-temperature resistant design. Due to the special design,
90% of goods can be dumped when the truck cabinet lifting degree reaches 15°.
The rest 10% will be completely unloaded within 4 to 5 minutes.
3, In
stark contrast to the conventional power truck, this powder tanker semi-trailer
is featured by light weight, low gravity center, fast unloading speed with less
residue, easy maintenance, etc.
Parameters
of Bulk Cement Trailer 35m3
|
Tank Body
|
|
Shape
|
One v-shaped silo, double silo, or triple silo design
|
|
Dimension
|
10066mm×2500mm×3900mm (The exact
size depends on the final design. )
|
|
Tare Weight
|
8740 kg
|
|
Tanker capacity (m3)
|
35 m3
|
|
Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
|
End Plate
|
5mm or 6mm /Q235 carbon steel
|
|
Rated pressure (Mpa)
|
0.2
|
|
Vertical delivery height (m)
|
≥15
|
|
Horizontal delivery distance (m)
|
≥5
|
|
Discharge speed (t/min)
|
≥1.2
|
|
Discharge residue rate (%)
|
≤0.3
|
|
|
|
|
Special Configuration
|
|

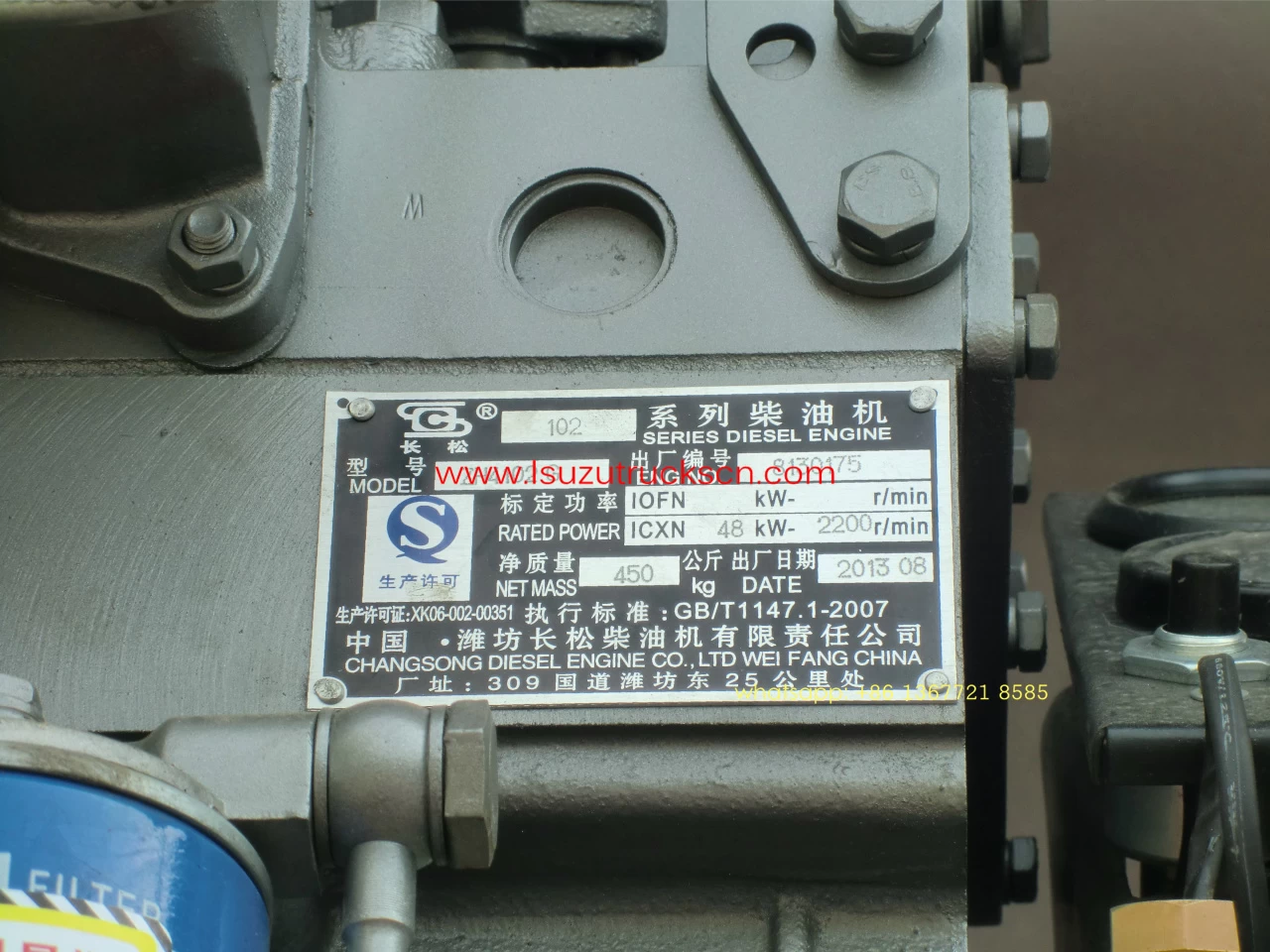

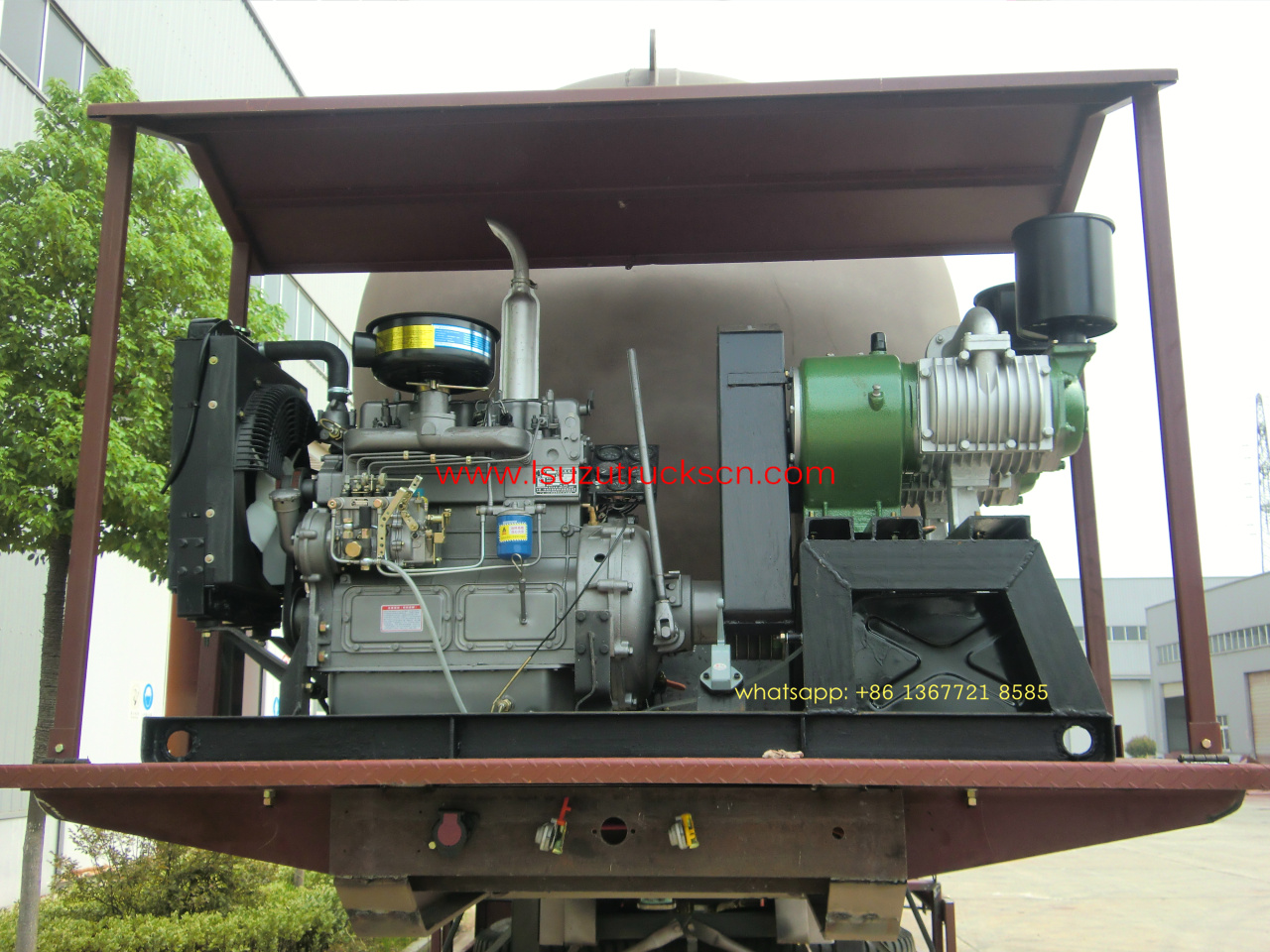

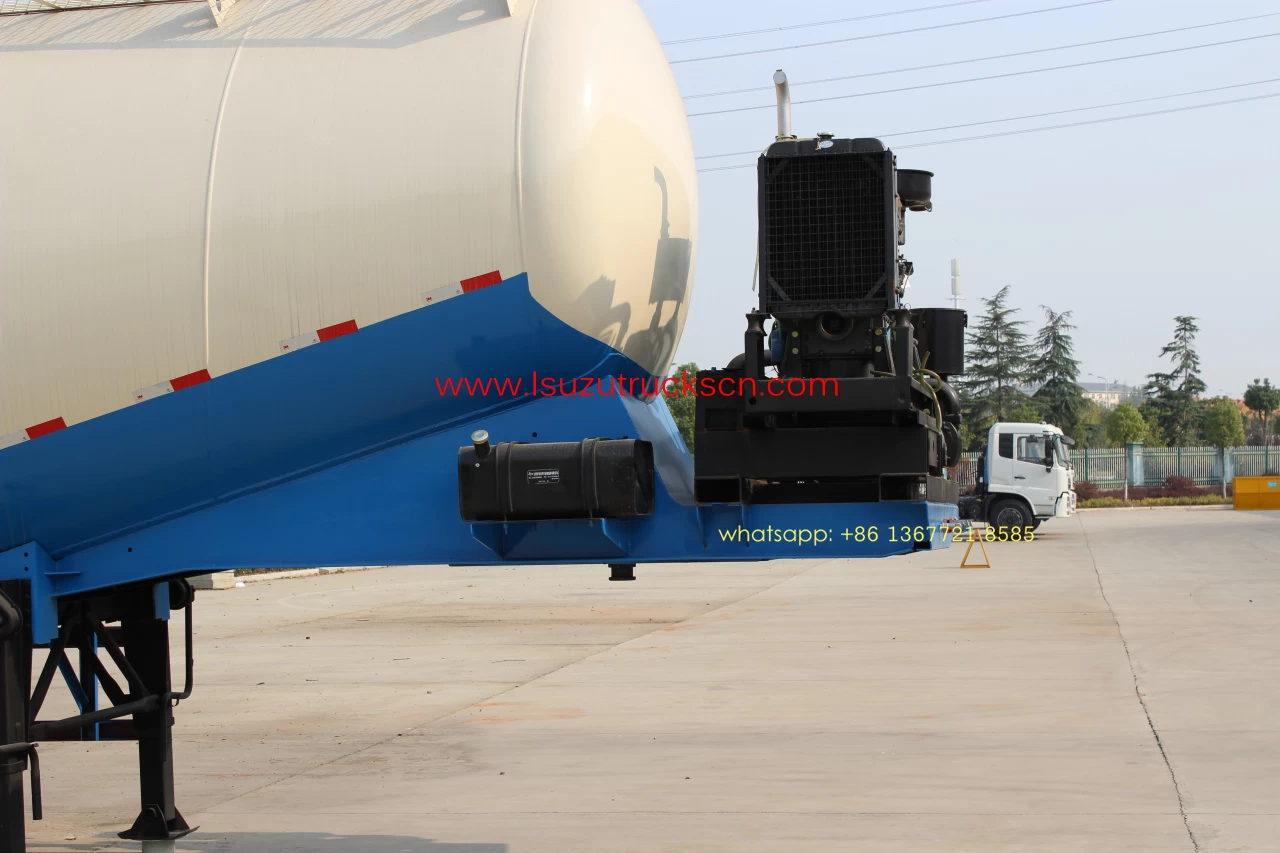

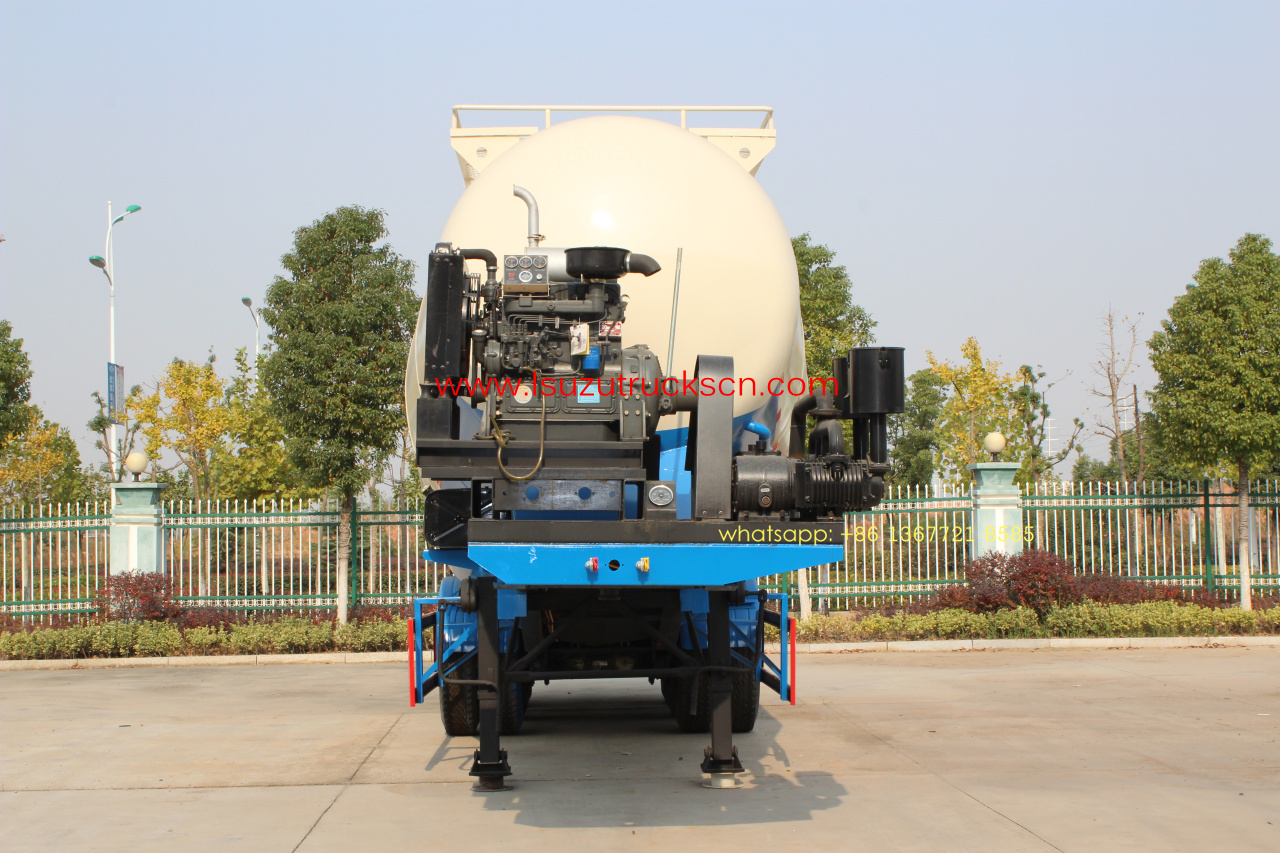

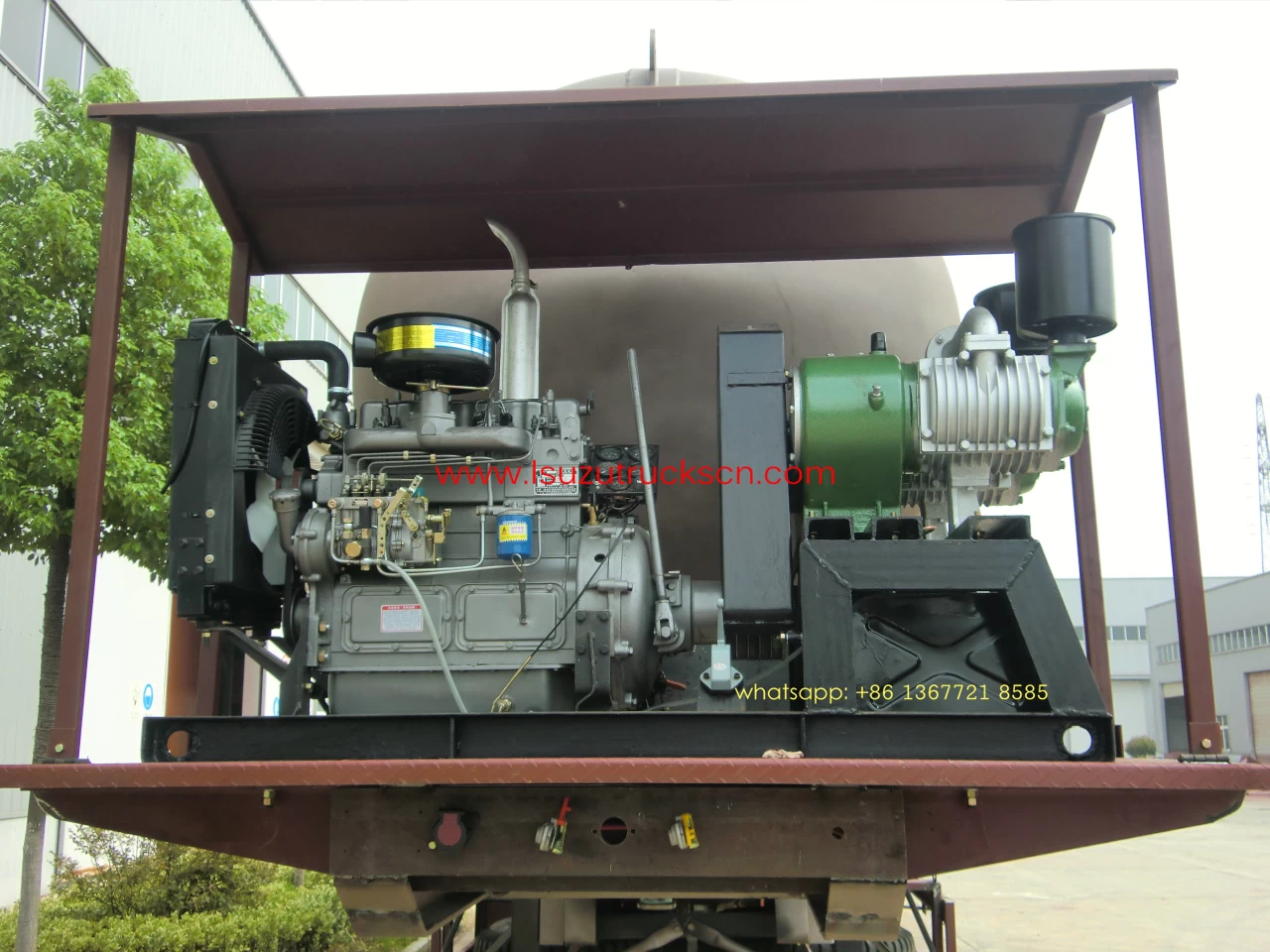

Diesel Engine
|
WEICHAI, Tianhe 4100/4102 or other brands
|
|
Air Compressor
|
Famous brand 8 m³/10m³/12 m³or other brands
|
|
Manhole Cover
|
Carbon steel or Aluminum 500mm(Diameter)
|
|
Discharging Valve
|
Diameter is 3 or 4 inch （Material: Aluminum）
|
|
Discharging Pipe
|
3 or 4 inch rubber hose, 1pcs, 6m/each
|
|
Cat Walk
|
With (Common model or special design)
|
|
Pressure water tank
|
Optional
|
|
Chassis
|
|
Main Beams
|
Welded design, Q345 carbon steel
|
|
Axle
|
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
|
|

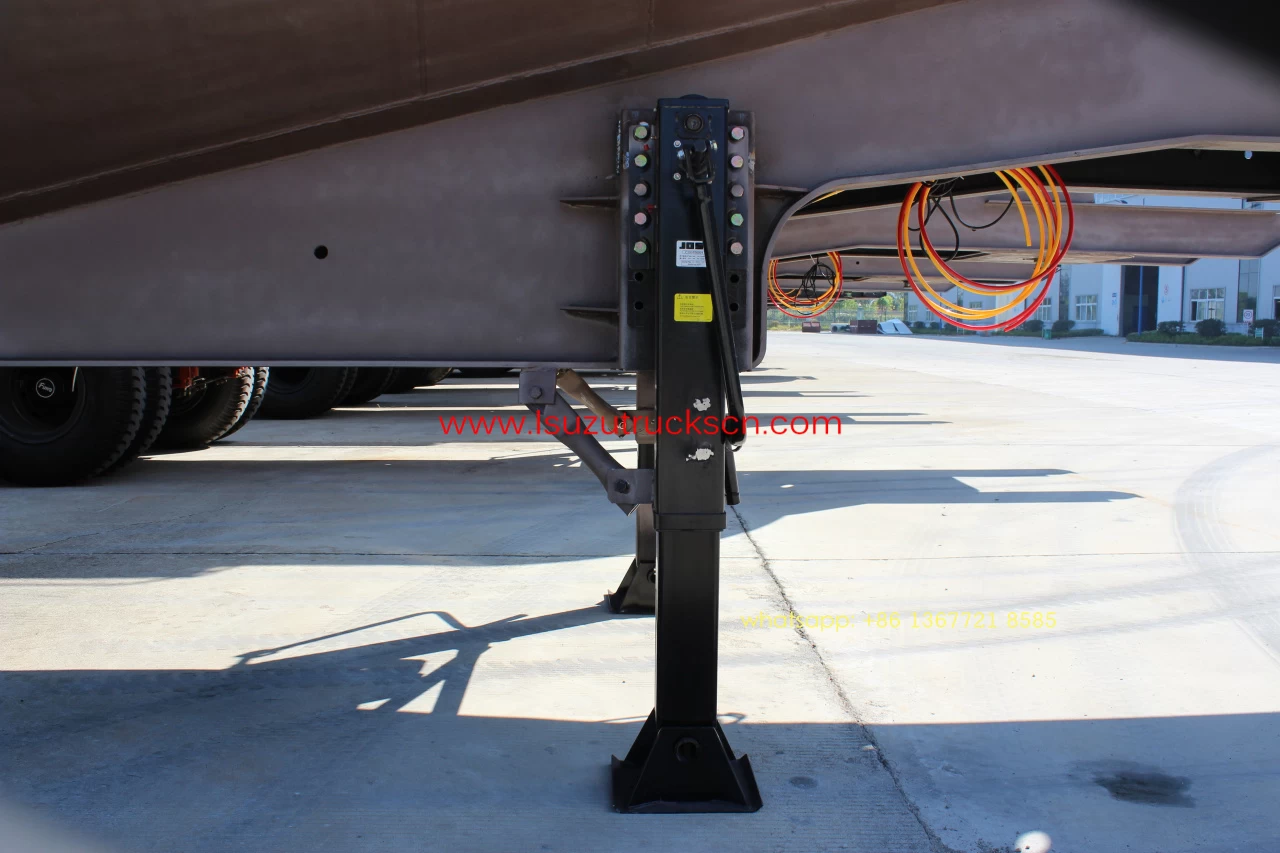

Landing Gear
|

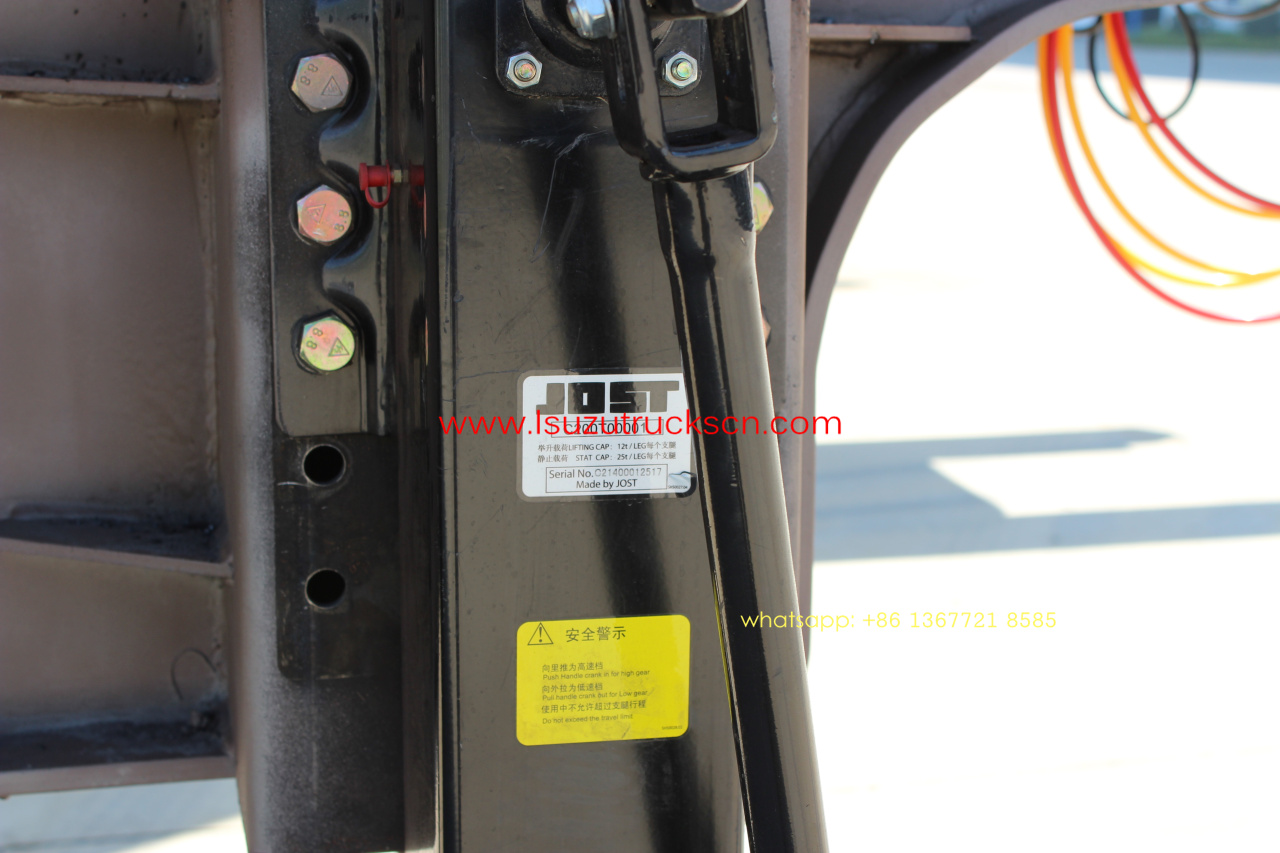

JOST (D200T) or CHINA BRAND 28T
|
|
King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
|
Suspension
|
Mechanical suspension/Germany or America type /Air Suspension
|
|
Leaf Spring
|
90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers
|
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L
air tank
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20 Chinese Brand
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
|
ABS
|
Optional
|
|
Semi Trailer Surface Coating
|
Sandblasted, anti-rust chassis surface is available with 1 layer of
anticorrosive primer and 2 layers of top coats.
|
|
Accessories
|
One standard tool box
|
|
Shipping Terms
|
By bulk cargo, RORO
|
