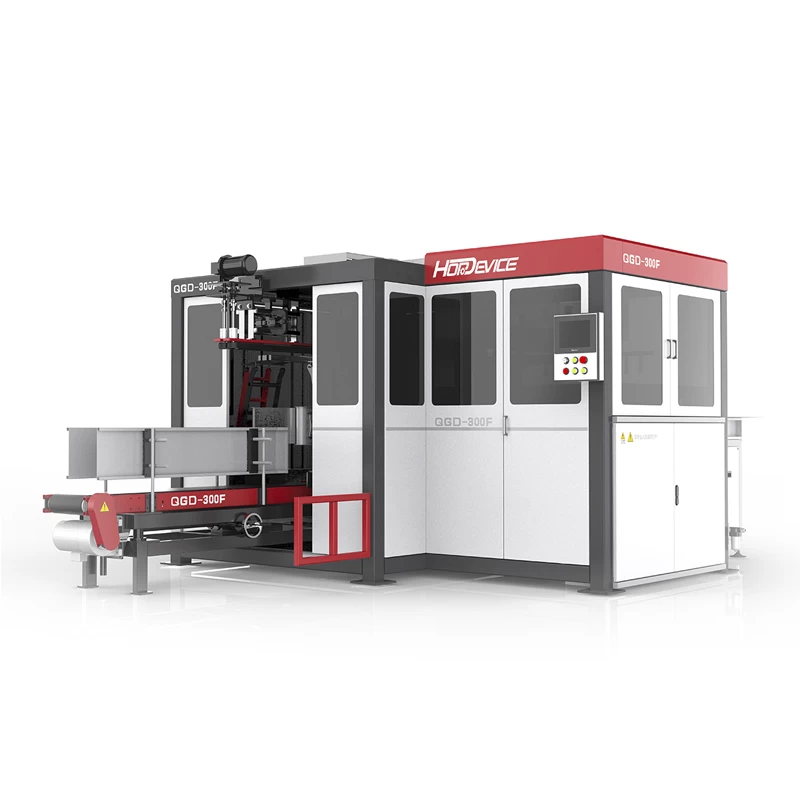

Bulk heavy bag fertilizer packaging machine QGD-300F
The unit has the following major features:
1.In view of the fact that the packaging material contains powdery substance, which is easy to escape in the filling process, a fully closed filling mouth is specially designed. The filling mouth is equipped with a return gas dust removal device, which takes into account the high efficiency of blanking and the effect of dust collection.(patented technology)
2.Split type bag holding mechanism reduces the dead Angle of dust cleaning in equipment maintenance;
3.The whole machine adopts completely enclosed external protection, which greatly improves the working environment on site.
|
Model
|
QGD-300F
|
|
Speed
|
≤300 bags/hour
|
|
Weighing Range
|
20-30kg/Bag
|
|
Accuracy
|
±0.2%
|
|
Sealing Method
|
1.woven bag: fold/sewing
2.paper bag: heat sealing/ sewing
3.complex film plastic bag: heat sealing
4.crepe paper bag covered edge+ sewing
|
|
Power Supply
|
AC 380Vx3 50Hz
|
|
Total Power
|
11kw
|
|
Air Pressure
|
0.5-0.7MPa
|
|
Air Supply
|
0.8Nm³/min
|
|
Noise
|
≤75db(test above 1m)
|
|
Working environment Temperature
|
indoor 0～+40℃
|
|
Dimension
|
4600(L)*3150(W)*2150mm(H)
|
