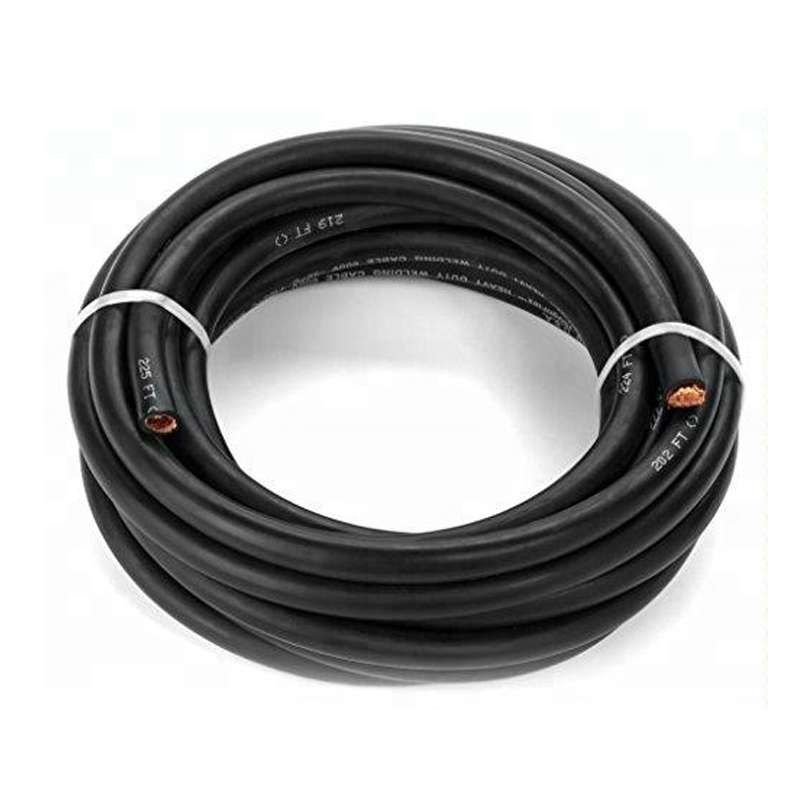

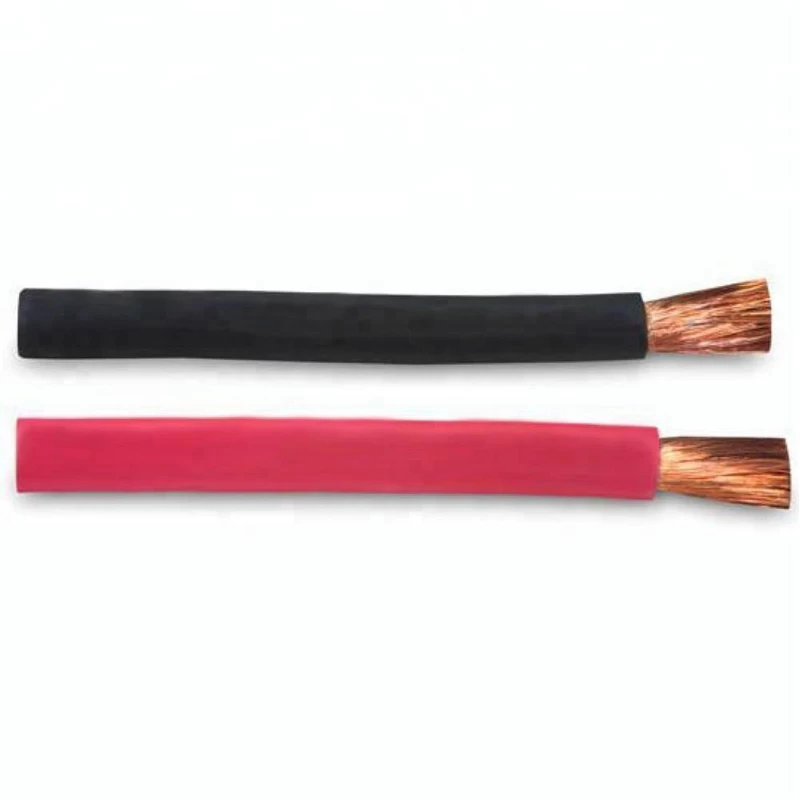

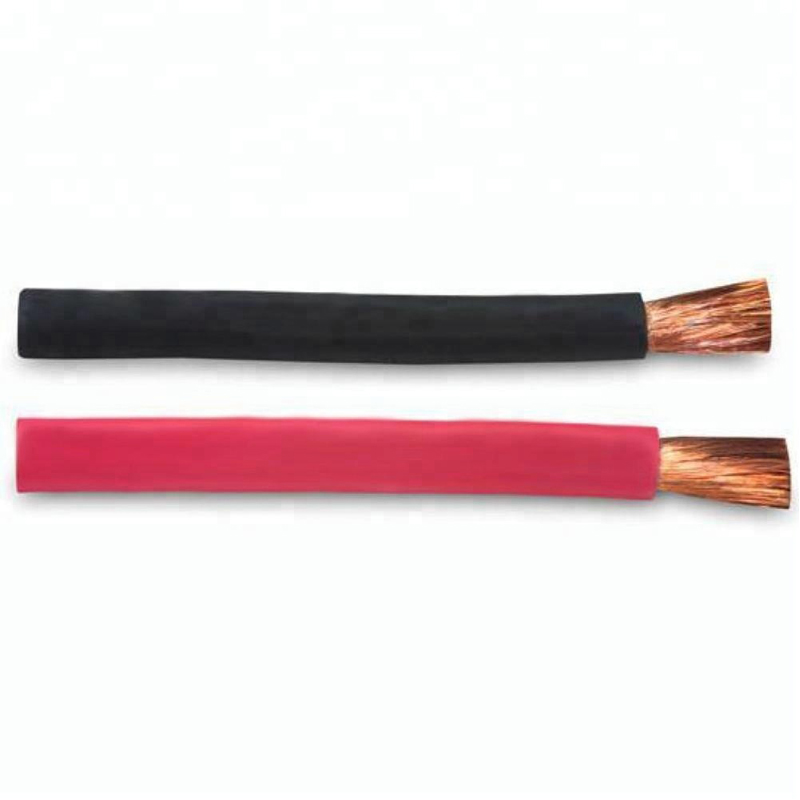

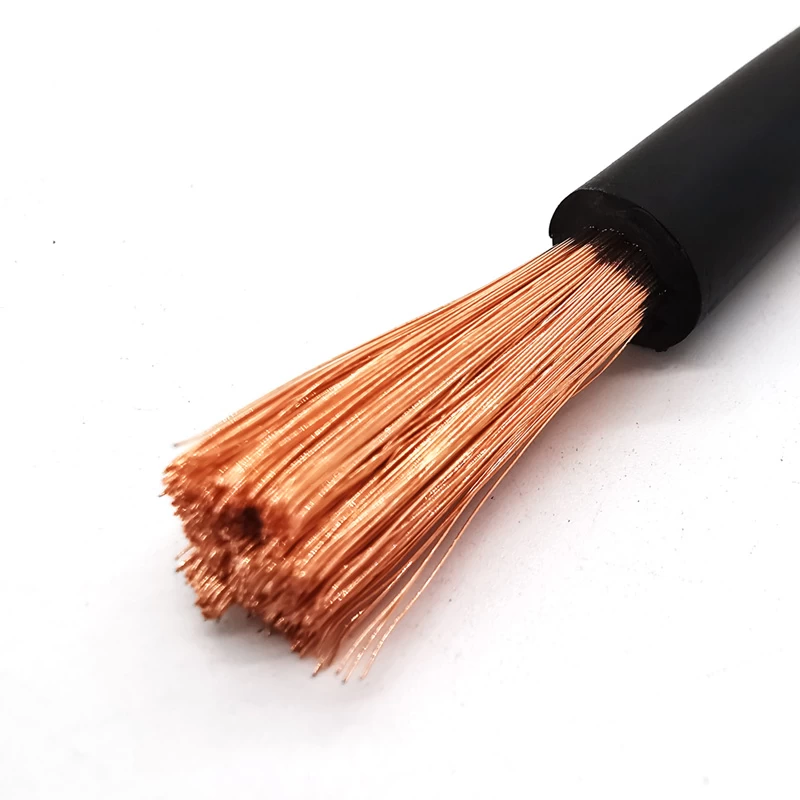

Bulk welding machine cable for sale

Professional production of all kinds of wire and cable, including welding cable, if you need, please contact us




welding-cable-_02

Product Description



  •  Product standard:
    The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012

  • Main of cables features
    1,Uo/U is 450/750V,300/500,
    2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

  • Application:

          Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power

          plant, householdelectrical applance,insurment and telecommunication equipment.







Conductor
Nominal Section

 ( mm2)

Conductive Core Thickness of
Section Sheath (mm)
Average Outer
Diameter (mm2)
20oC Conductor
Resistance≤(Ω/km)
Reference
Weight(kg/km)
Number/Diameter
of Core(mm)
Min Max YH YHF
10 322/0.20 1.8 7.5 9.7 146 153.51 146 153.51
16 513/0.20 2 9.2 11.5 218.9 230.44 218.9 230.44
25 798/0.20 2 10.5 13 316.6 331.15 316.6 331.15
35 1121/0.20 2 11.5 14.5 426 439.87 426 439.87
50 1596/0.20 2.2 13.5 17 592.47 610.55 592.47 610.55
70 2214/0.20 2.4 15 19.5 790 817.52 790 817.52
95 2997/0.20 2.6 17 22 1066.17 1102.97 1066.17 1102.97
120 1702/0.30 2.8 19 24 1348.25 1392.55 1348.25 1392.55
150 2135/0.30 3 21 27 1678.5 1698.72 1648.5 1698.72
185 1443/0.40 3.2 22 29 1983.8 2020.74 1983.8 2020.74

welding-cable-_03_20190916162533_20190916162203welding-cable-_05





BVVB-flat-cable-_08


BVVB-flat-cable-_09BVVB-flat-cable-_10BVVB-flat-cable-_11BVVB-flat-cable-_12

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.





Product Tags cable for welding          welding cable          machine cable welding cable          general cable welding cable          welding cable reels          mig welding cable          kuwes welding cable          neoprene welding cable          red welding cable
