Replacement Bullzoder Excavator Track Shoes Track Bolt
Product Description
Part
Number: Undercarrigae Track Bolt
Material: 40Cr
Color: Black/Customized
Finish: Smooth
Package: Based on customer requirement

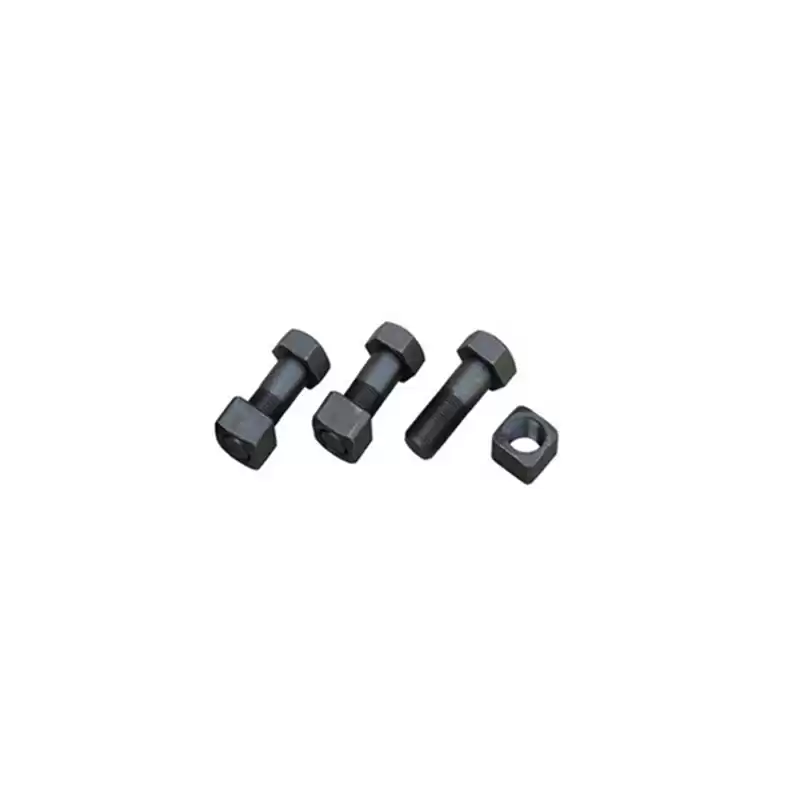

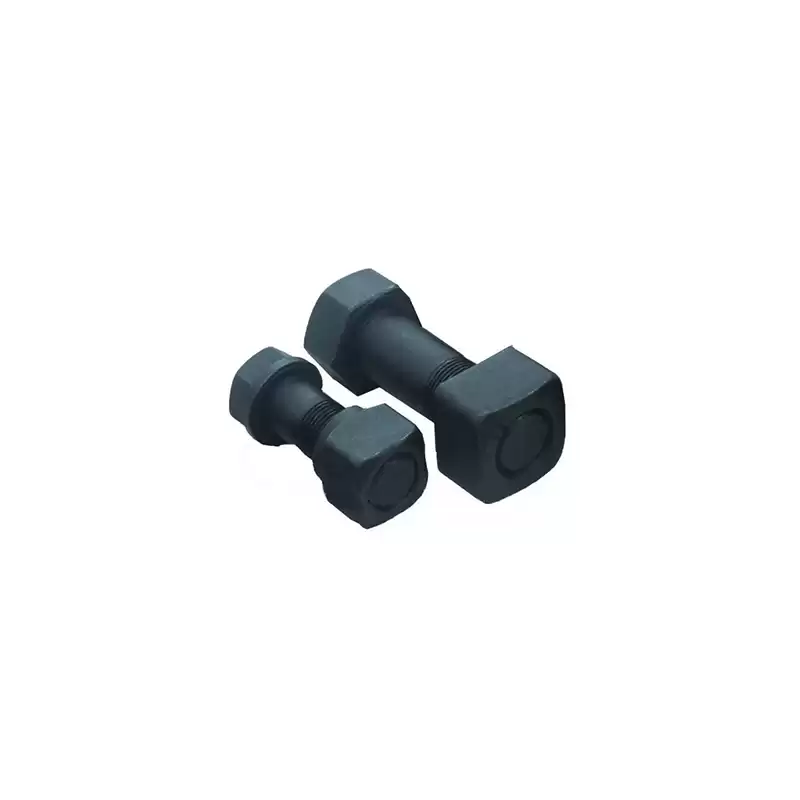

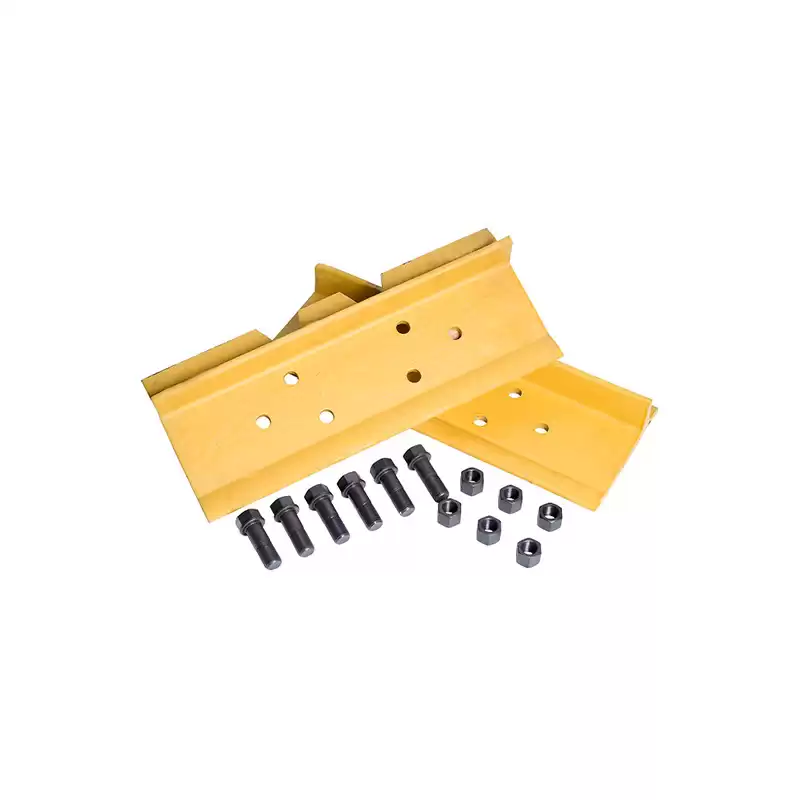

Dozer Track Shoes Bolt Assemble

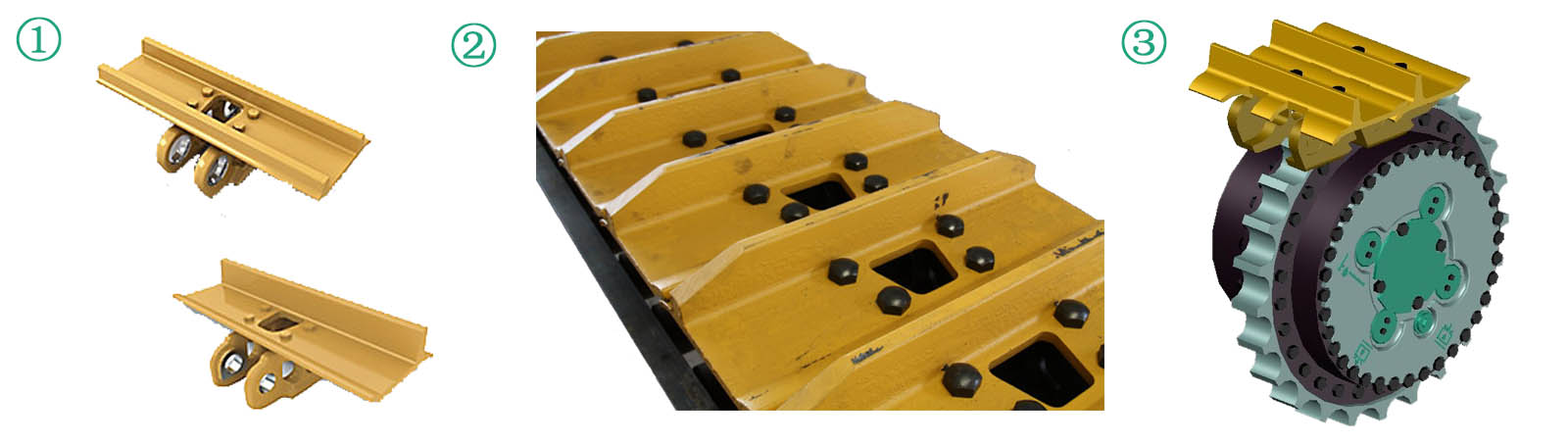

Track Bolt can quick and easy replace in different types of machinery, like bullzoder and excavator undercarriage.
By the way,we also can accept Customizedrequirements.
|
TRACK & MASTER SHOE BOLTS
|
|
DIAMETER
|
LENGTH (mm)
|
LENGTH (in.)
|
REFERENCE
NO.
|
|
M12-1.0
|
40
|
1.57
|
571894,
FT694
|
|
M14-1.5
|
45
|
1.77
|
205-32-21210,
OK 20
|
|
M14-1.5
|
50
|
1.97
|
203-32-21220,
110-32-11410
|
|
M14-1.5
|
56
|
2.2
|
203-32-21220
|
|
M16-1.5
|
46
|
1.81
|
4I7538,
HT245
|
|
M16-1.5
|
50
|
1.97
|
205-32-51120
|
|
M16-1.5
|
57
|
2.24
|
130-32-11213
|
|
M16-1.5
|
65
|
2.56
|
130-82-07212
|
|
M16-1.5
|
82
|
3.23
|
130-32-21252E
|
|
M18-1.5
|
59
|
2.32
|
135-32-11211,
79004259, FT981
|
|
M18-1.5
|
64
|
2.52
|
140-80-37210
|
|
M19-1.5
|
98
|
3.86
|
144-32-21342
|
|
M20-1.5 (W)
|
53
|
2.09
|
20Y-30-11210,
KM1514
|
|
M20-1.5 (B)
|
55
|
2.17
|
9W3619,
CR5437
|
|
M20-1.5 (W)
|
60
|
2.36
|
79035814,
FT2110
|
|
M20-1.5 (B)
|
63
|
2.48
|
6Y0846,
CR5496
|
|
M20-1.5
|
65
|
2.56
|
154-32-21331,
154-32-21321
|
|
M20-1.5
|
68.5
|
2.7
|
79004300,
FT1100
|
|
M20-1.5
|
105
|
4.13
|
14X-32-11350,
KM2247
|
|
M20-1.5
|
117
|
4.61
|
154-32-21260,
KM799
|
|
M22-2.0 (W)
|
56
|
2.2
|
207-32-51210,
KM1903
|
|
M22-1.5 (B)
|
65
|
2.56
|
6Y9024,
CR5922
|
|
M22-1.5 (W)
|
70
|
2.76
|
79035318,
FT2205
|
|
M22-1.5 (B,W)
|
75
|
2.95
|
8E6103,
143-4891
|
|
M22-1.5 (W)
|
75
|
2.95
|
LH1063
|
|
M24-2.0 (W)
|
65
|
2.56
|
208-32-51210,
KM1634
|
|
M24-1.5 (B,W)
|
67.5
|
2.66
|
1504741,
CR6603
|
|
M24-1.5 (W)
|
72
|
2.83
|
SI651
|
|
M24-1.5
|
76.2
|
3
|
175-32-11210,
176-32-11210, KM378
|
|
M24-2.0
|
125.5
|
4.94
|
175-32-41260
|
|
M27-1.5
|
82
|
3.23
|
195-32-11210,
KM 263
|
|
M27-2.0 (B)
|
93
|
3.66
|
195-32-41210,
KM1150
|
|
M27-1.5
|
140
|
5.51
|
195-32-41431,
KM1085
|
|
M27-2.0
|
145
|
5.71
|
195-32-23140
|
|
M27-1.5
|
152
|
5.98
|
195-32-31241,
KM651
|
|
M30-2.0 (B)
|
96
|
3.78
|
195-32-61210,
KM1999
|
|
M30-2.0
|
98
|
3.86
|
D7611000N15
|
|
M30-2.0
|
128
|
5.04
|
4314542
|
|
M30-2.0 (B)
|
167
|
6.57
|
195-32-61350,
KM2000
|
|
M33-2.0 (B)
|
114
|
4.49
|
198-32-41330
|
|
M33-2.0
|
145
|
5.71
|
3034712S
|
|
M33-2.0
|
162
|
6.38
|
3034712L
|
|
M33-2.0 (B)
|
185
|
7.28
|
198-32-31340
|
|
7/16"-20
|
41
|
1.61
|
2B5484,
IN1652
|
|
1/2"-20
|
38.1
|
1.5
|
8H7504
|
|
1/2"-20 (W)
|
40.39
|
1.59
|
R24688
|
|
1/2"-20 (B)
|
43
|
1.69
|
70097287,
AC231
|
|
1/2"-20
|
43.1
|
1.7
|
616191C1,
IN 2760
|
|
1/2"-20
|
48
|
1.89
|
2A3223,
IN1198
|
|
1/2"-20 (B)
|
49
|
1.93
|
70644688,
AC1119
|
|
9/16"-18
|
42
|
1.65
|
4K7038
|
|
9/16'-18 (B)
|
49.3
|
1.94
|
R15309,
CA82
|
|
9/16"-18
|
51
|
2
|
7H3596,
CR429
|
|
9/16"-18
|
54
|
2.13
|
616199C1,
IN1199
|
|
9/16"-18
|
73
|
2.87
|
5P4684,
CR3623
|
|
9/16"-18
|
76.2
|
3
|
5A3187
|
|
9/16"-18 (B)
|
85
|
3.35
|
76015987,
FT2728
|
|
5/8"-18
|
46
|
1.81
|
8U2703,
CR3707
|
|
5/8"-18
|
50.8
|
2
|
7H3597S
|
|
5/8"-18
|
54
|
2.13
|
7H3597L,
CR1251
|
|
5/8"-18
|
57
|
2.24
|
5H8756,
6161207C1, CR330
|
|
5/8"-18 (B)
|
57
|
2.24
|
9G3110,
70097282, AC226
|
|
5/8"-18 (B)
|
66.7
|
2.63
|
3T8601,
CR4357
|
|
5/8"-18 (B)
|
82.55
|
3.25
|
9G8592,
CR5573
|
|
5/8"-18
|
88.9
|
3.5
|
5A4104,
3P2274
|
|
5/8"-18 (B)
|
90.5
|
3.56
|
3T8580
|
|
3/4"-16
|
56
|
2.2
|
1S1859,
CR1105
|
|
3/4"-16
|
60.3
|
2.37
|
7H3598
|
|
3/4"-16 (B)
|
60.4
|
2.38
|
6V1792,
CR4441
|
|
3/4"-16
|
63
|
2.48
|
1S8804
|
|
3/4"-16
|
70
|
2.76
|
7F8619,
CR331
|
|
3/4"-16 (B)
|
75
|
2.95
|
1061642
|
|
3/4"-16
|
76.2
|
3
|
311348R2,
CR3842
|
|
3/4"-16 (B)
|
81
|
3.19
|
6V1793,
CR4440
|
|
3/4"-16 (B)
|
99
|
3.9
|
1070719,
CR5444
|
|
3/4"-16
|
101.6
|
4
|
5A7524,
ID1295
|
|
3/4"-16 (B)
|
105
|
4.13
|
9S1838,
CR3326
|
|
3/4"-16 (B)
|
112
|
4.41
|
2P9670,
CR3119
|
|
3/4"-16 (B)
|
124.5
|
4.9
|
6T1441,
CR4699
|
|
7/8"-14 (B)
|
67
|
2.64
|
9M7444,
7H3599
|
|
7/8"-14
|
76
|
3
|
316910R1
|
|
7/8"-14 (B)
|
85
|
3.35
|
7T2748
|
|
7/8"-14 (B)
|
88.9
|
3.5
|
6V1723,
CR4135
|
|
7/8"-14 (B)
|
95.25
|
3.75
|
6V1724,
CR4132
|
|
7/8"-14 (B)
|
115
|
4.53
|
9W9058,
CR4789
|
|
7/8"-14 (B)
|
121
|
4.76
|
8S0395,
CR2709
|
|
7/8"-14 (B)
|
127
|
5
|
6V1725,
CR4133
|
|
1"-14 (B)
|
75.4
|
2.97
|
9M7445,
2M5657
|
|
1"-14 (B)
|
84
|
3.31
|
3T6308,
CR4029
|
|
1"-14 (B)
|
90
|
3.54
|
6T2638,
CR4670
|
|
1"-14 (B)
|
101.6
|
4
|
6V1726,
CR4036
|
|
1"-14 (B)
|
110
|
4.33
|
6V1727,
CR3858
|
|
1"-14 (B)
|
123
|
4.84
|
7T2283,
CR4669
|
|
1"-14 (B)
|
141
|
5.55
|
8S1723,
CR2669
|
|
1"-14 (B)
|
148
|
5.83
|
6V1728,
CR3859
|
|
1 1/8"-12 (B)
|
95
|
3.74
|
7T1000
|
|
1 1/8"-12 (B)
|
107
|
4.21
|
5P3868
|
|
1 1/8"-12 (B)
|
134
|
5.28
|
7T0999
|
|
1 1/8"-12 (B)
|
164
|
6.46
|
7T0998
|
|
1 3/8"-12 (B)
|
110
|
4.33
|
6T8853
|
|
1 3/8"-12 (B)
|
121
|
4.76
|
6I8648
|
|
1 3/8"-12 (B)
|
153.1
|
6.03
|
6T8521,
CR5640
|
|
1 3/8"-12 (B)
|
184.1
|
7.25
|
6T8520,
CR5639
|
|
BOTTOM
ROLLER/IDLER BOLTS
|
|
DIAMETER
|
LENGTH
(mm)
|
LENGTH
(in.)
|
REFERENCE
NO.
|
|
|
|
|
|
|
7/8"-9 (B)
|
87
|
3.43
|
6T1140,
CR4520
|
|
1"-8 (B)
|
98.5
|
3.88
|
6T1139
|
|
1 1/8"-7 (B)
|
139.7
|
5.5
|
9W4480
|
|
1 1/4"-7 (B)
|
114.3
|
4.5
|
9W7269
|
|
1 1/4"-7 (B)
|
177.8
|
7
|
9W4488
|
|
TRACK/SEGMENT
NUTS
|
|
DIAMETER
|
W.A.F.
|
THICK
|
REFERENCE
NO.
|
|
M12-1.0
|
19
|
15
|
571946,
FT887
|
|
M14-1.5
|
22
|
14
|
|
|
M16-1.5
|
24
|
16
|
5I6125
|
|
M18-1.5
|
27
|
18
|
79039445,
FT982
|
|
M20-1.5
|
30
|
27
|
093-0321
|
|
M20-1.5
|
30
|
25
|
FT1101
|
|
M20-1.5
|
30
|
21
|
9W3361,
79035816, FT2111
|
|
M22-1.5
|
32
|
22
|
9W4381,
CR5923
|
|
M24-1.5
|
35
|
24
|
178-32-11220,
KM1491
|
|
M24-1.5
|
33
|
29
|
4295785
|
|
M24-1.5
|
35
|
24
|
SI652
|
|
M24-1.5
|
33
|
23
|
150-4742
|
|
M27-1.5
|
41
|
41
|
195-32-11221,
KM264
|
|
M27-2.0
|
41
|
35
|
195-32-41220,
KM1151
|
|
M30-2.0
|
46
|
35.5
|
4281007
|
|
M30-2.0
|
46
|
38
|
195-32-61220,
KM1998
|
|
M33-2.0
|
50
|
42
|
198-32-31220,
KM2029
|
|
M33-2.0
|
46
|
40
|
4189671
|
|
7/16"-20
|
19
|
15
|
7K1706,
2B5483, CR2003
|
|
1/2"-20
|
19
|
15
|
6S3419,
FT888
|
|
9/16"-18
|
22
|
19
|
7K2017,
CR1968
|
|
5/8"-18
|
25
|
19
|
1M1408,
CR1250
|
|
3/4"-16
|
28
|
19
|
1S1860,
CR1967
|
|
7/8"-14
|
33
|
23
|
2S2140,
CR1969
|
|
7/8"-14
|
33
|
35
|
7G6442,
CR4136
|
|
7/8"-14
|
32
|
24
|
7T9825,
CR4249
|
|
1"-14
|
38
|
25
|
1S6421,
CR1970
|
|
1"-14
|
38
|
39
|
7G0343,
CR4037
|
|
1"-14
|
38.1
|
25.5
|
2V0250
|
|
1"-14
|
38.1
|
25.5
|
594424,
CR3431
|
|
1 1/8"-12
|
42
|
44
|
5P8221,
CR3835
|
|
1 1/8"-12
|
54
|
45
|
3T6292,
CR5638
|
|
M12-1.0
|
19
|
15
|
01803-01218
|
|
M14-1.5
|
22
|
20
|
01803-01420
|
|
M16-1.5
|
24
|
19
|
01803-01622
|
|
M18-1.5
|
27
|
21.5
|
01803-01824,
135-32-11221, KM 382
|
|
M20-1.5
|
30
|
24
|
01803-02026
|
|
M22-1.5
|
32
|
28.5
|
01803-02228,
KM226
|
|
M22-2.0
|
32
|
22
|
207-32-51220
|
|
M24-1.5
|
36
|
30
|
01803-02430,
KM228
|
|
M24-2.0
|
36
|
24
|
208-32-51220,
KM1635
|
|
M27-2.0
|
41
|
32
|
195-27-33141,
KM1397
|
|
1/2"-20
|
19
|
15
|
8H5724,
CR4896
|
|
9/16"-18
|
22
|
15.5
|
7H3606
|
|
5/8"-18
|
24
|
19
|
7H3607,
AC228
|
|
3/4"-16
|
28
|
19
|
7H3608,
CR787
|
|
7/8"-14
|
33
|
23
|
7H3609,
CR1001
|
|
1"-14
|
38
|
25.5
|
2M5656,
CR1270
|
|
1 1/8"-12
|
42
|
24.6
|
3S1356,
CR5845
|
