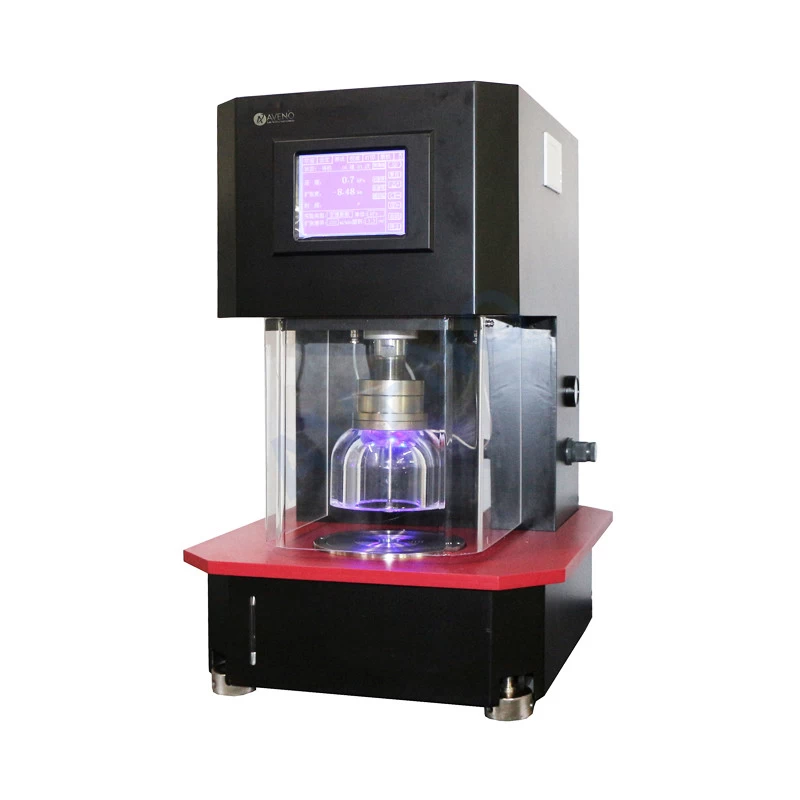

AG10- Bursting Strength Tester
Application Of Bursting
Strength Tester
Bursting Strength Tester is used to determine
the expansion force and divergence rate of fabric, woven, knitted fabrics,
non-woven, paper and board.
Standards Of Bursting Strength Tester
ASTM3786-06,ISO2758/13938-1, BS 3424/3137, BS
4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206,
FZ/T60019, JIS L 1018.6.17, BS-2922,
FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.
Key Specification Of Bursting Strength Tester
|
Model
|
AG10-1
|
AG10-2
|
|
Test range
|
2.00Mpa
|
10.00Mpa
|
|
Min division value
|
0.001Mpa
|
0.003Mpa
|
|
Test area
|
7.3cm2(φ30.5mm), 10cm2(φ35.7mm),
50cm2(φ79.8mm), 100cm2(φ112.8mm),
|
|
Max expansion height
|
75±0.02mm
|
|
Pressure speed
|
20-600ml/min
|
|
Test method
|
Constant
rate bursting
Constant
expansion
Constant
pressure
Constant
time bursting
|
|
Pressure units
|
Kpa,
kg/cm2, bar, lb/in2
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
550*450*700mm
|
|
Weight
|
125Kg
|
Accessories Of Bursting Strength Tester
|
Standard Accessories
|
7.3cm2 test set (φ30.5mm)
|
1set
|
|
50cm2 test set (φ79.8mm)
|
1set
|
|
Wrench
|
1pc
|
|
Calibration
plate
|
1pc
|
|
Rubber
diaphragm
|
1pc
|
|
English
operate software
|
1set
|
|
Cable
to connect with computer
|
1pc
|
