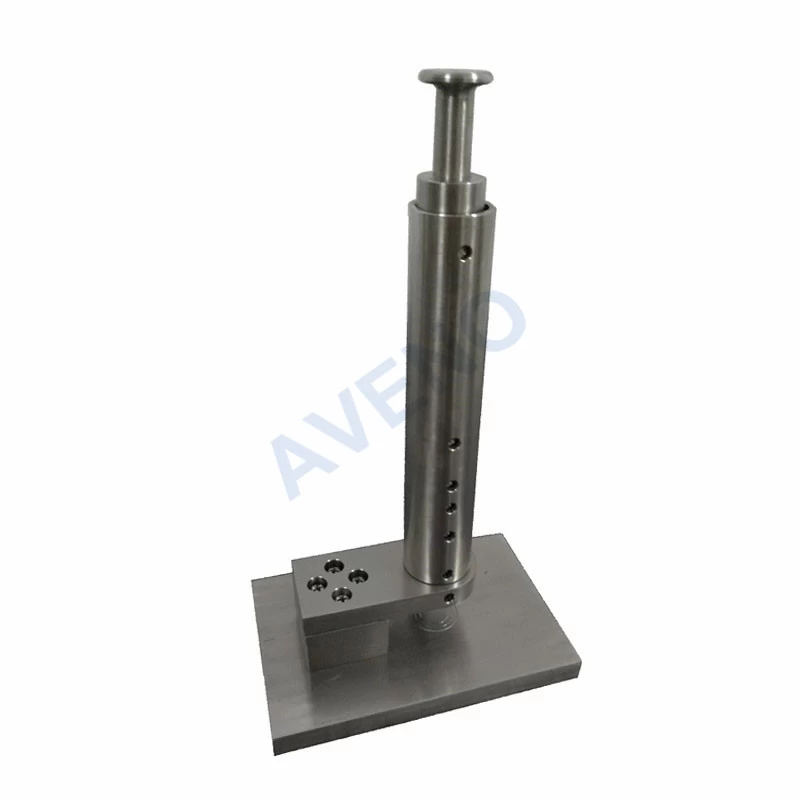

AG12B-Button Impact Resistance Tester
Application Of Button
Impact Resistance Tester
Button Impact Resistance Tester is used to determine the impact resistance of
plastic sew-through flange buttons. Individual buttons are placed on a surface
centered under a tube through which a preselected mass falls from a preselected
height. After the mass impacts the button the impacted button is removed and
visually examined using a 5X magnifying glass for breakage, cracking, or
chipping.
Standards Of Button Impact Resistance Tester
ASTM
D5171.
Key Specification Of Button Impact Resistance Tester
|
Model
|
AG12B Button Impact Resistance Tester
|
|
Material
|
Stainless steel
|
|
Impact Quality
|
0.84Kg
|
|
Testing Height
|
32mm. 44mm. 67mm. 83mm.
95mm. 117mm. 200mm
|
|
Dimensions
|
240*200*340mm
|
|
Weight
|
3kg
|
