Buy ETL CE led strip led driver model 12v 24v 36w

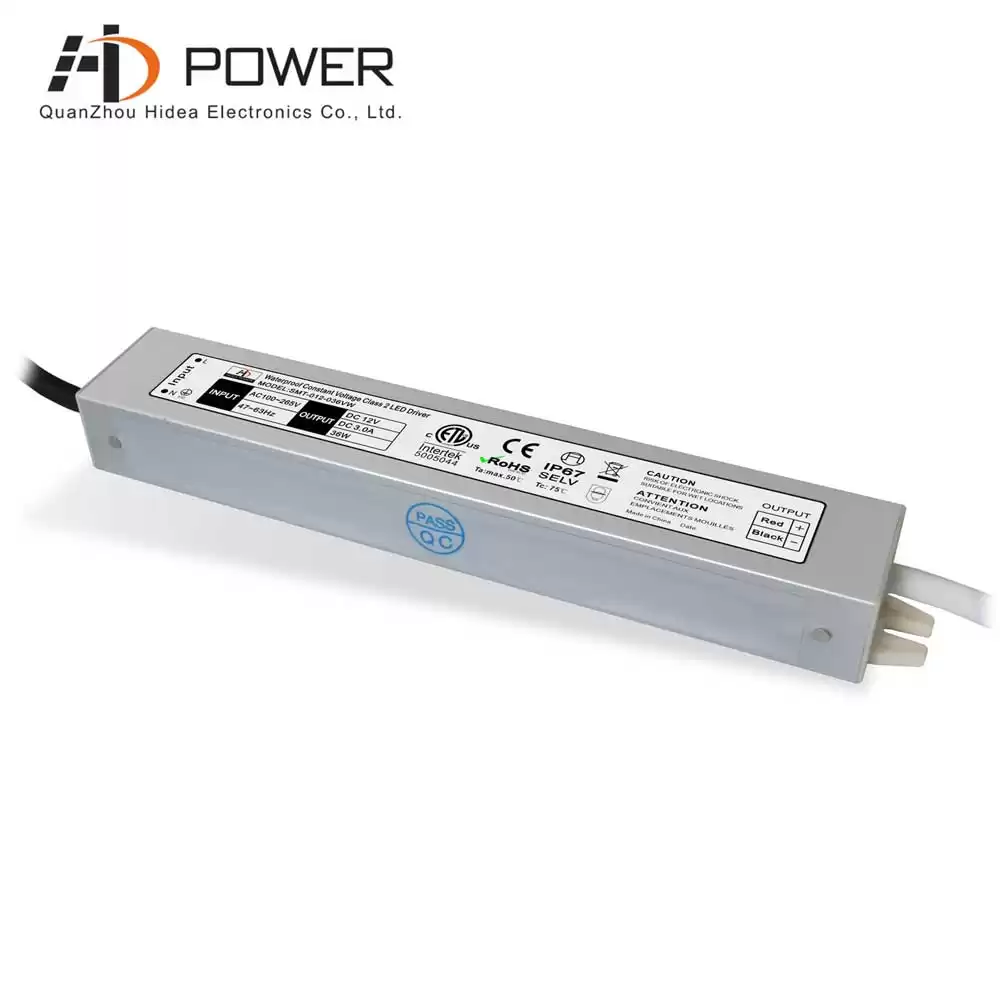

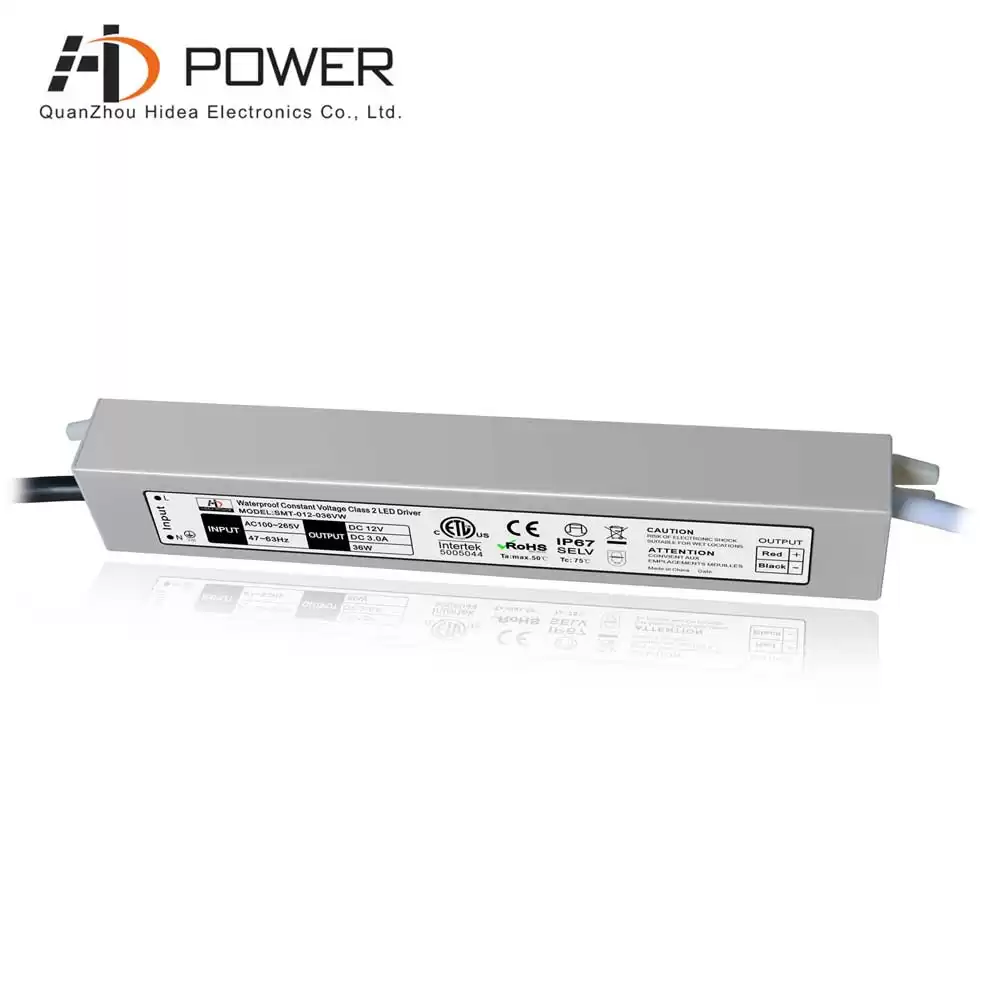

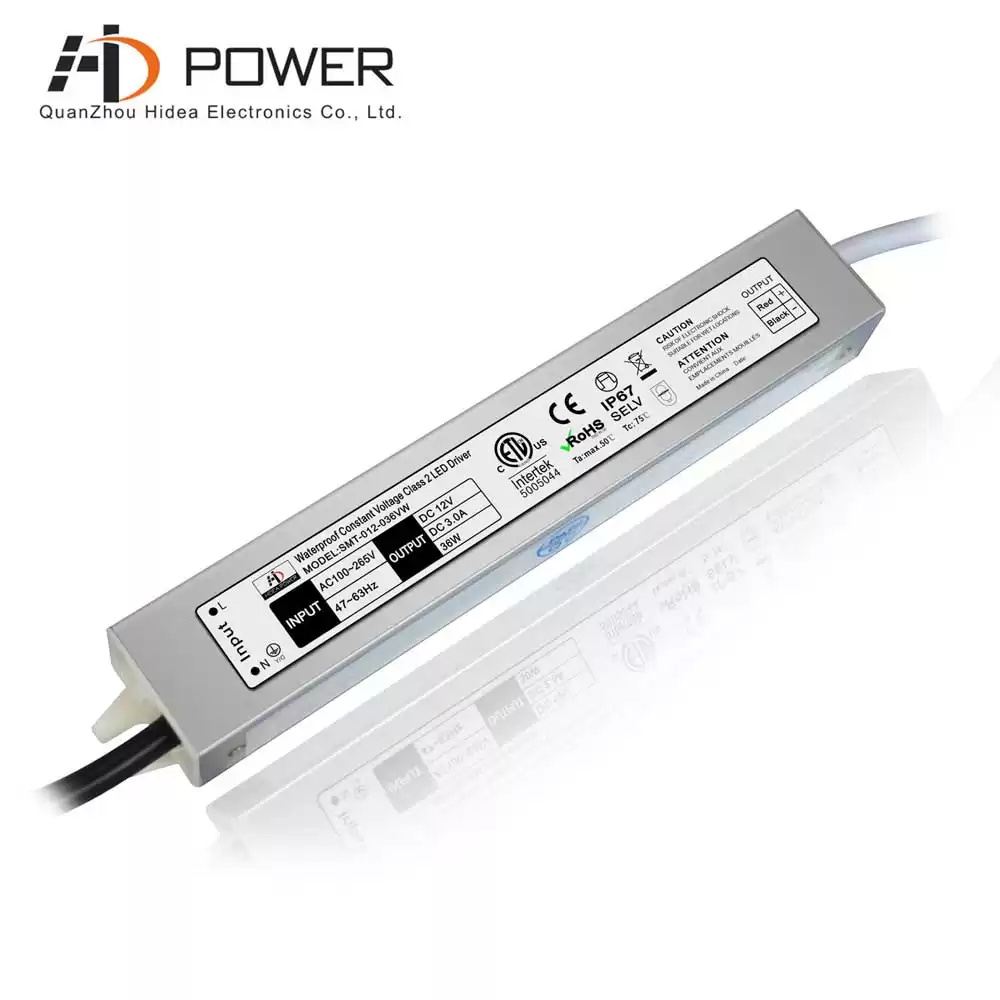

SMT-012-036VW is 12vdc 3amp 36w led driver, input voltage 100-265vac, ETL and CE listed, aluminum IP67 design for indoor lighting TDXL LED Modules 30w.
Specification
|
MODEL
|
SMT-012-036WW
|
SMT-024-036VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
3.0Amp
|
1.5Amp
|
|
CURRENT RANGE
|
0~3.0A
|
0~1.5A
|
|
RATED POWER
|
36W
|
36W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
81ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110-220VAC
|
60ms/110-220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>84%
|
>84%
|
|
AC CURRENT(Typ.)
|
3.5A/110,220VAC
|
2.0A/110,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL/ROHS/CE Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
Waterproof led driver 12v 36w is design as slim size for kinds of applications, max. height 20mm for mirror lighting, work well with Edge-Lit Flat Panel Troffer Series.
Related Products
|
 slim constant voltage led driver 0-10v dimming, 12vdc 3amp 36w output, 7 years warranty.
Mode：SMT-012-036VDSW
Dimming Mode : 0-10V Dimming
Output Power : 36W
input voltage：100~277V AC
Size：262*32*20MM （L*W*H）
|
