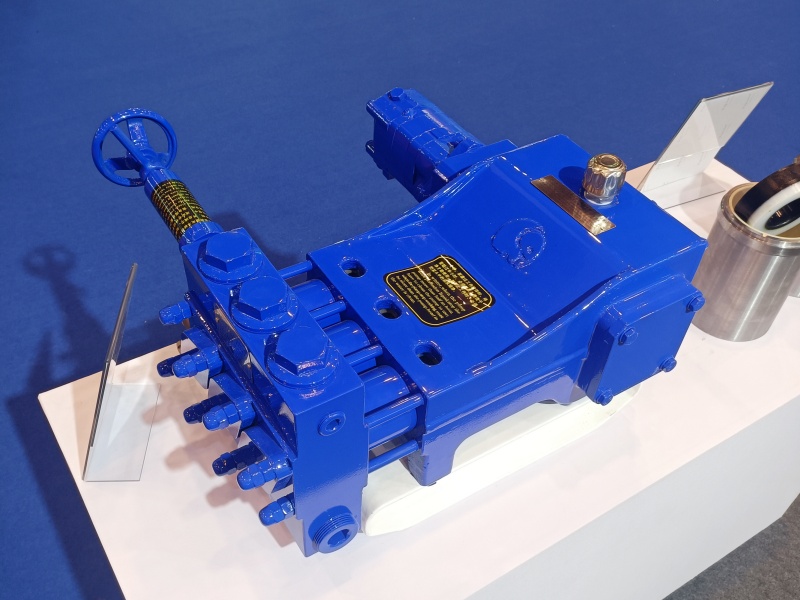

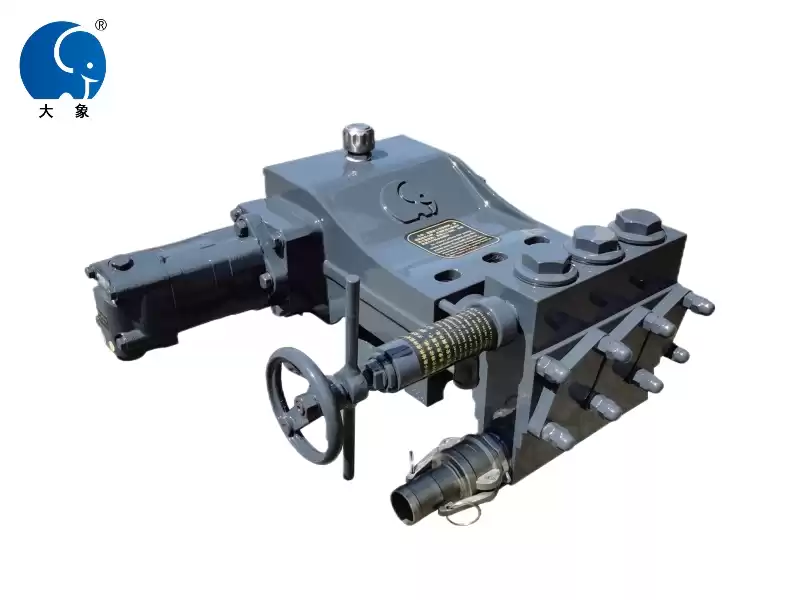

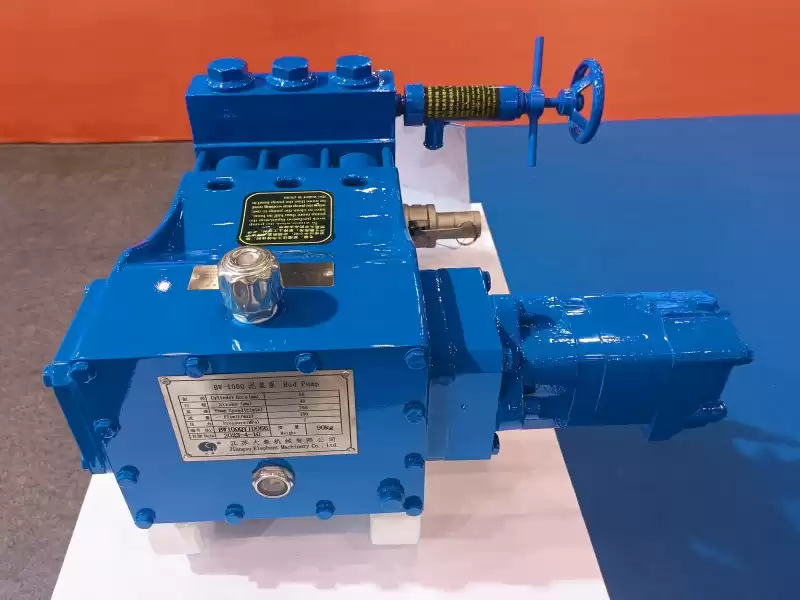

BW-100Q hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston pump.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
48 |
| Cyclinder Diameter (mm) |
55 |
| Flow ( L/min) |
100 |
| Pressure (Mpa) |
7 |
| Input Speed (r/min) |
295 |
| Input Power (KW) |
13 |
| Dimensions (mm) |
545*532*278 |
| Weight (kg) |
90 |
| Hydraulic Motor Model |
2K604-0045 |
| Hydraulic Motor Pressure (Mpa) |
18 |
| Maximum Motor Flow (L/min) |
58 |
Check this video to get more information regarding our BW-100Q reciprocating mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
