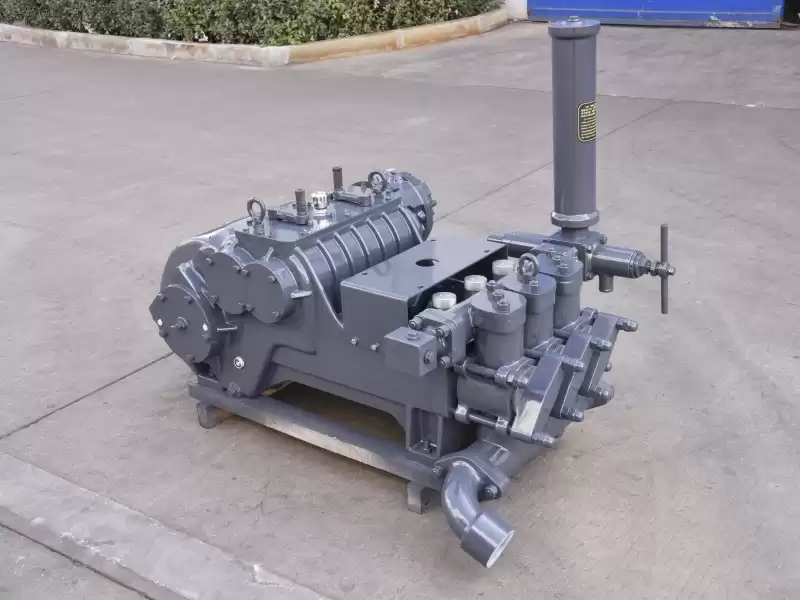

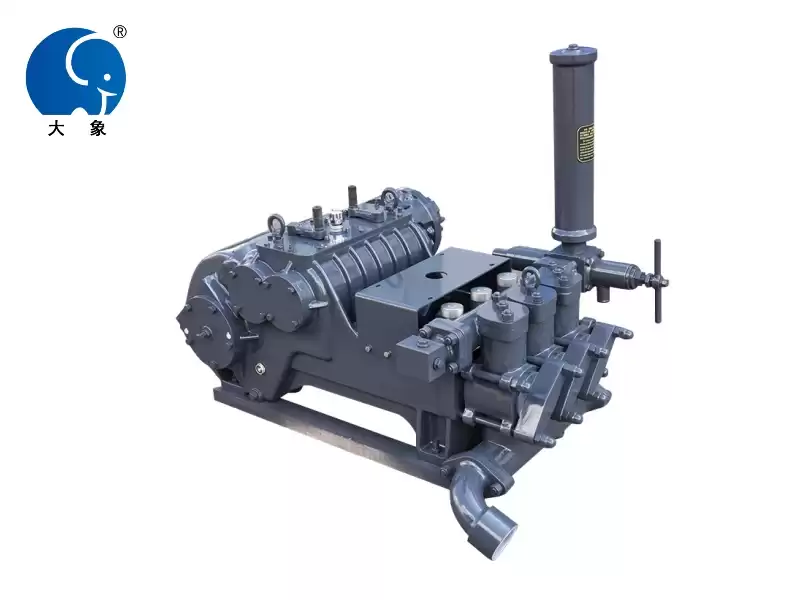

BW-400 reciprocating mud pump hydraulic usually run under 4 different speeds and flows by reduction gearbox.
It is a horizontal single acting triplex mud pump, can be used for new drilling techniques as hydro-hammer drilling within 1000m bore depth, screw drilling within 1500m bore depth, turbodrilling, ordinary inner core drilling method within 2500m bore depth.
Its main function is to circulate the washing fluid inside the drill bores and rush out the rock debris to the ground, to keep the bore bottom clean, to protect the bore wall from collapse and to cool down and lubricate the drilling bits or drilling tools.
For the abovementioned pumping fluid, it can’t contain any chemical impurities which are corrosive to metals and rubbers, meanwhile, the temperature should be no higher than 50℃. If the fluid is drilling mud, then it is recommended to follow below requirement:
1) Specific gravity: between 1.03~1.12,
2) Velocity: 18~25S
3) Allowable sand: max. 4% in content, max. diameter 3mm
4) PH Value: 7~8
5) No massive mud clods, grasses, tree leaves inside the fluid
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) |
110 |
| Cyclinder Diameter (mm) |
85 |
| Flow ( L/min) |
400 290 200 150 |
| Pressure (Mpa) |
3 4.5 6 10 |
| Input Speed (r/min) |
538 |
| Input Power (KW) |
35 |
| Dimensions (mm) |
1265*941*1026 |
| Weight (kg) |
650 |
| Hydraulic Motor Model |
1-175 |
| Hydraulic Motor Pressure (Mpa) |
20 |
| Maximum Motor Flow (L/min) |
105 |
Check this video to get more information regarding our BW- 400 plunger mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.

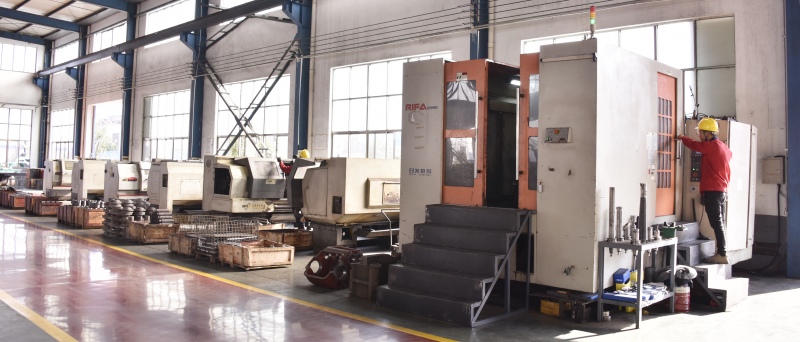

- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

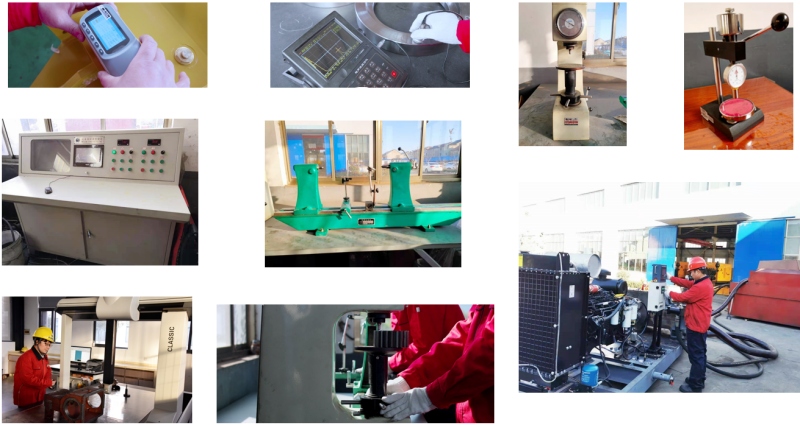

4- Advanced and professional testing and inspection equipment.
