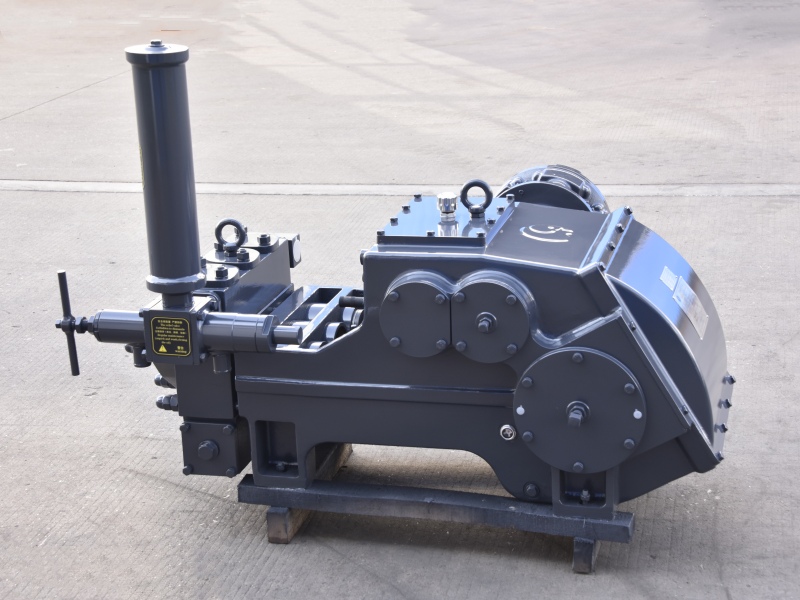

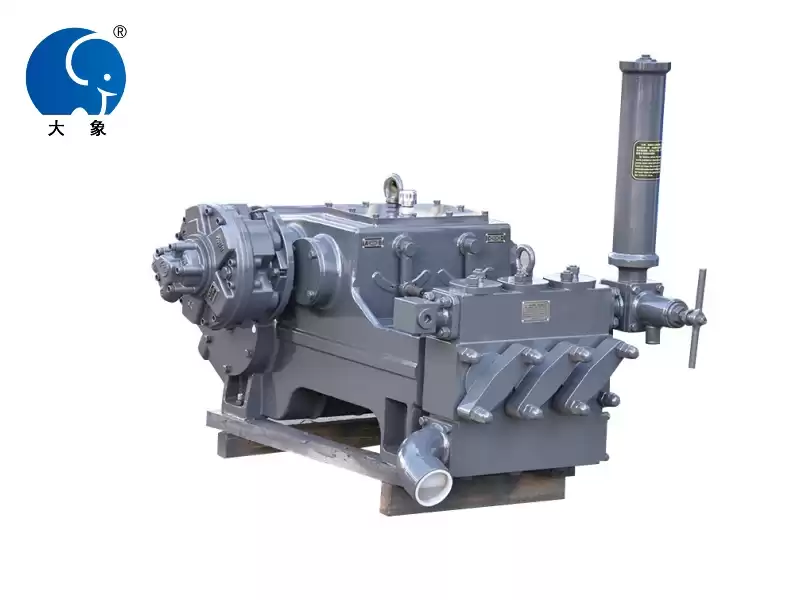

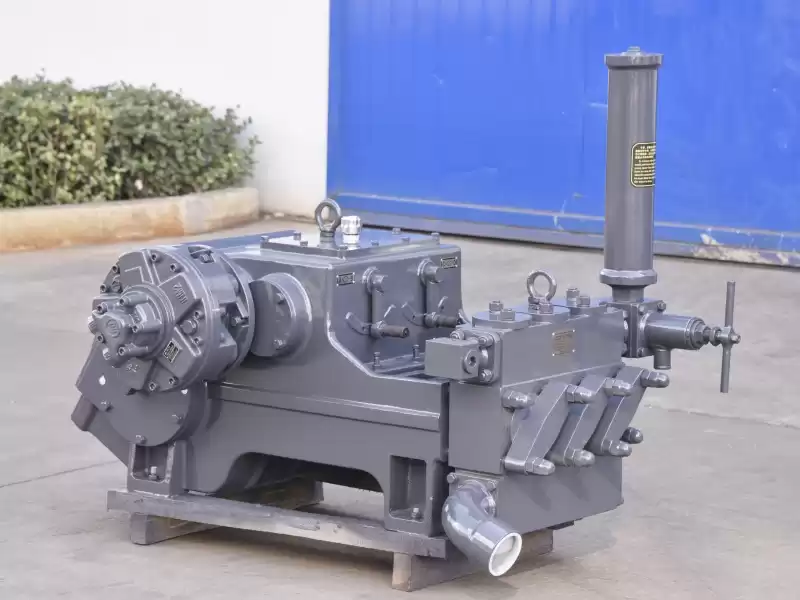

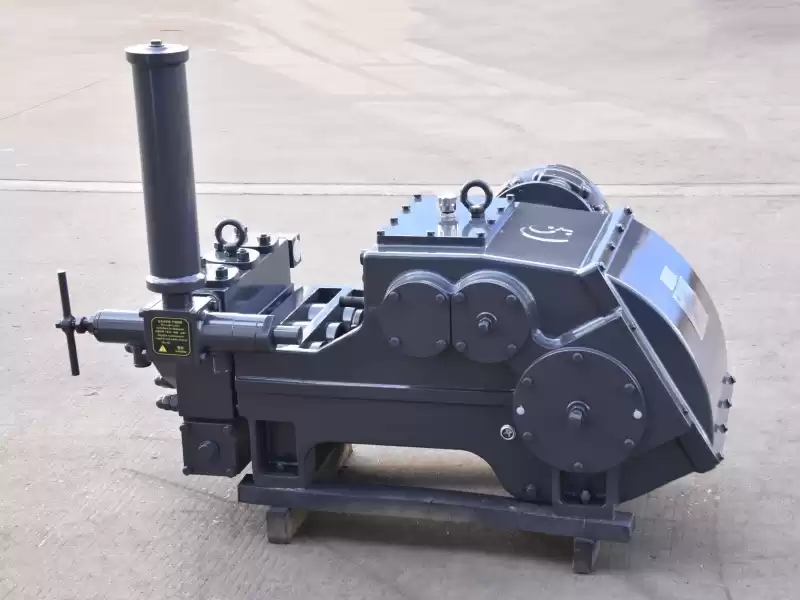

BW-800 mud pump for drilling rigs is a kind of multi-purpose horizontal triplex reciprocating single-acting piston pump, with four gear shifting and four traffic.
It can not only meet the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling, internal screw drilling, turbine drilling, common core drilling with a hole depth of 2000m or more, and non-excavation drilling rigs about 70 tons.
The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber parts, meanwhile, the temperature can not exceed 50℃. If the fluid is drilling mud, then it is recommended to follow below requirement:
1) Specific gravity: between 1.03~1.12,
2) Velocity: 18~25S
3) Allowable sand: max. 4% in content, max. diameter 3mm
4) PH Value: 7~8
5) No massive mud clods, grasses, tree leaves inside the fluid
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
135 |
| Cyclinder Diameter (mm) |
110 |
| Flow ( L/min) |
800 550 370 260 |
| Pressure (Mpa) |
3.5 5 7.5 10 |
| Input Speed (r/min) |
503 |
| Input Power (KW) |
54 |
| Dimensions (mm) |
1350*962*1025 |
| Weight (kg) |
950 |
| Hydraulic Motor Model |
2-350 |
| Hydraulic Motor Pressure (Mpa) |
20 |
| Maximum Motor Flow (L/min) |
195 |
Check this video to get more information regarding our BW- 800 No-dig mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.

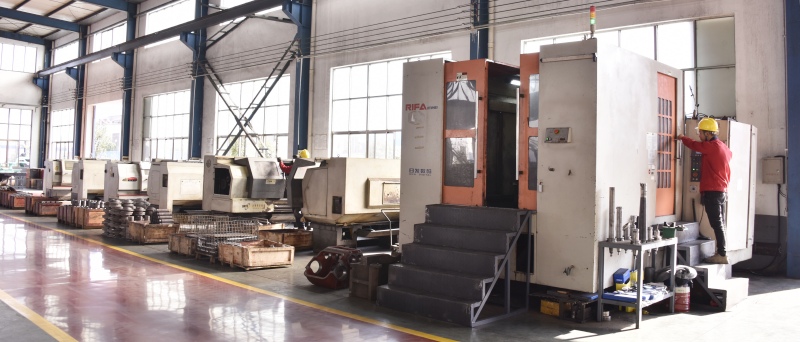

- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

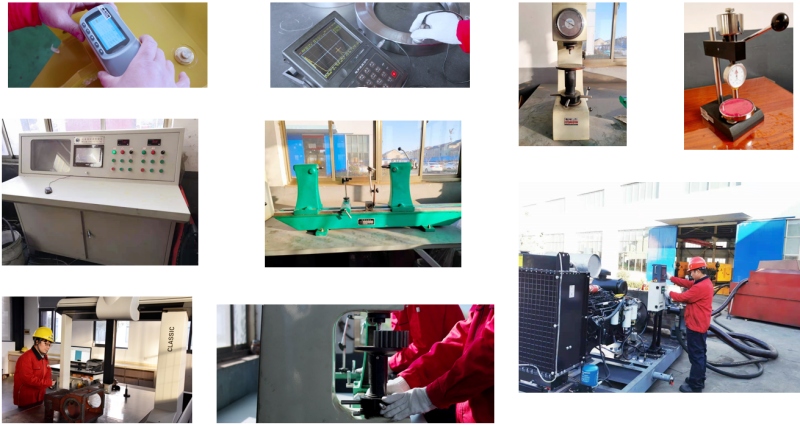

4- Advanced and professional testing and inspection equipment.
