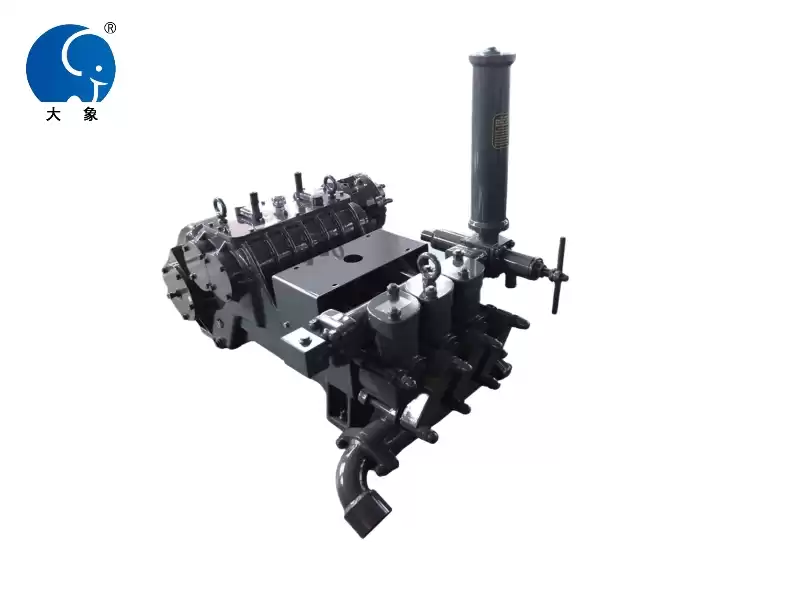

BWF-400 hydraulic mud pump is a kind of horizontal triplex reciprocating single acting plunger pump.
Its main function is to circulate the washing fluid inside the drill bores and rush out the rock debris to the ground, to keep the bore bottom clean, to protect the bore wall from collapse and to cool down and lubricate the drilling bits or drilling tools.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) |
110 |
| Cyclinder Diameter (mm) |
85 |
| Flow ( L/min) |
400 242 154 93 |
| Pressure (Mpa) |
2.3 3.8 6 10 |
| Input Speed (r/min) |
515 |
| Input Power (KW) |
30 |
| Dimensions (mm) |
1265*941*1026 |
| Weight (kg) |
650 |
| Hydraulic Motor Model |
1-150 |
| Hydraulic Motor Pressure (Mpa) |
20 |
| Maximum Motor Flow (L/min) |
95 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
