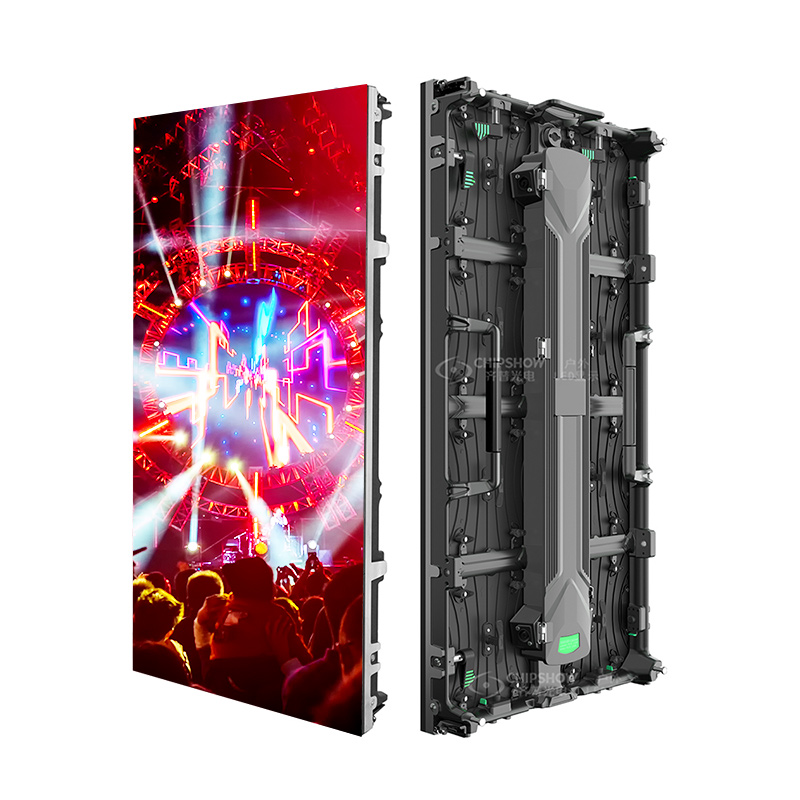

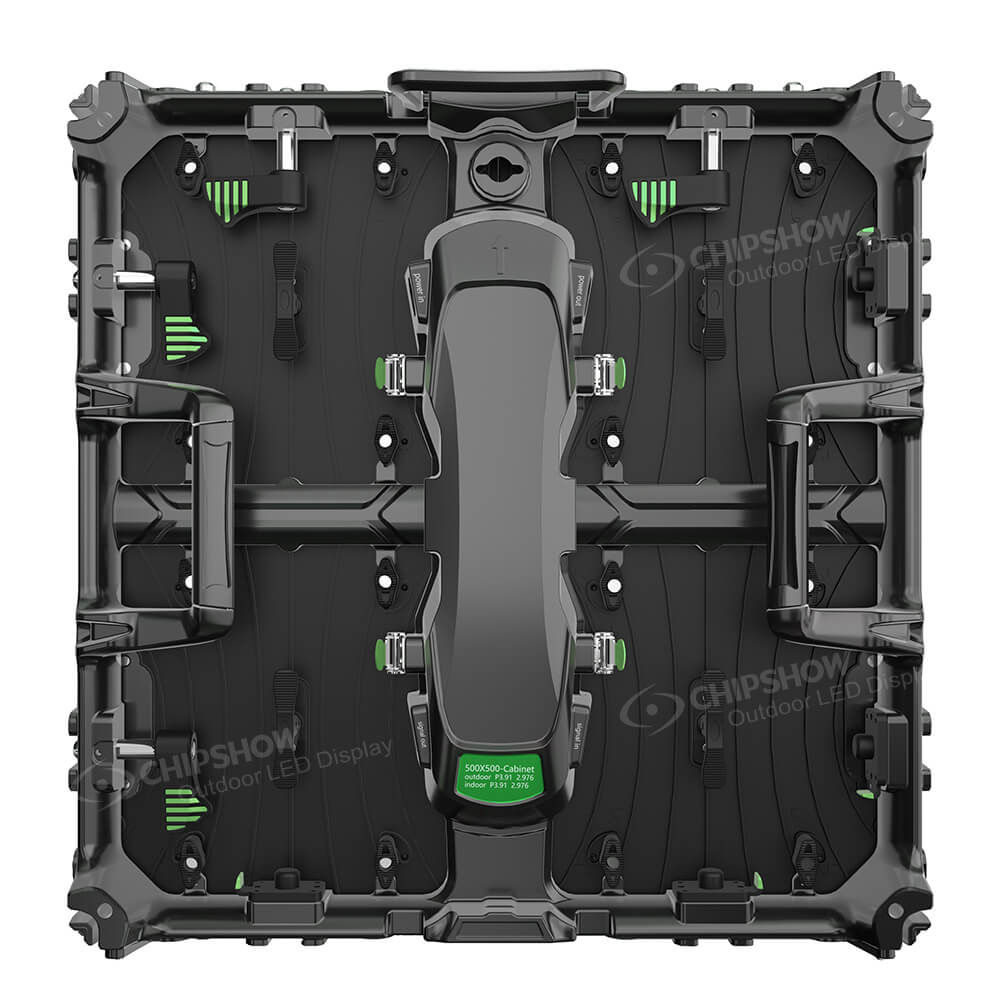

C-Beetle P3,3.91,4.81 Rental LED Screen

C-Beetle is a magnetic front maintenance LED screen, different sizes can be combined together, and the edge has a protective corner, used for various events.

Features

1. 500*500mm and 500*1000mm available.

2. Magnetic module, front service.

3. Power box with independent plug-in maintenance.

4. Die-cast aluminum design, high precision.

5. Fast locks, locating pin and alignment slot for quick installation.

6. Reinforced corner protector for better protection for the LEDs.

7. Excellent cooling design, no fans or air-conditioners needednoiseless, low power consumption, cost-effective.

8. 500*500mm and 500*1000mm cabinet can assemabled together.

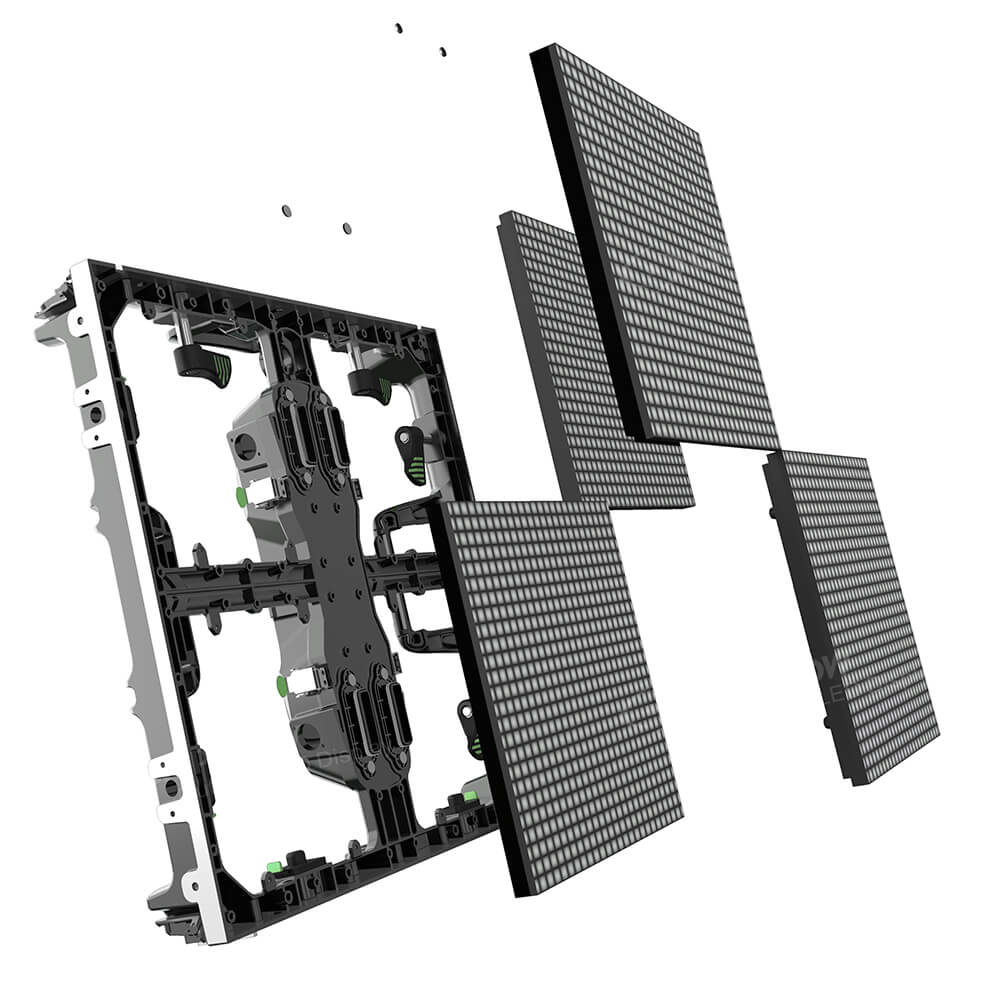

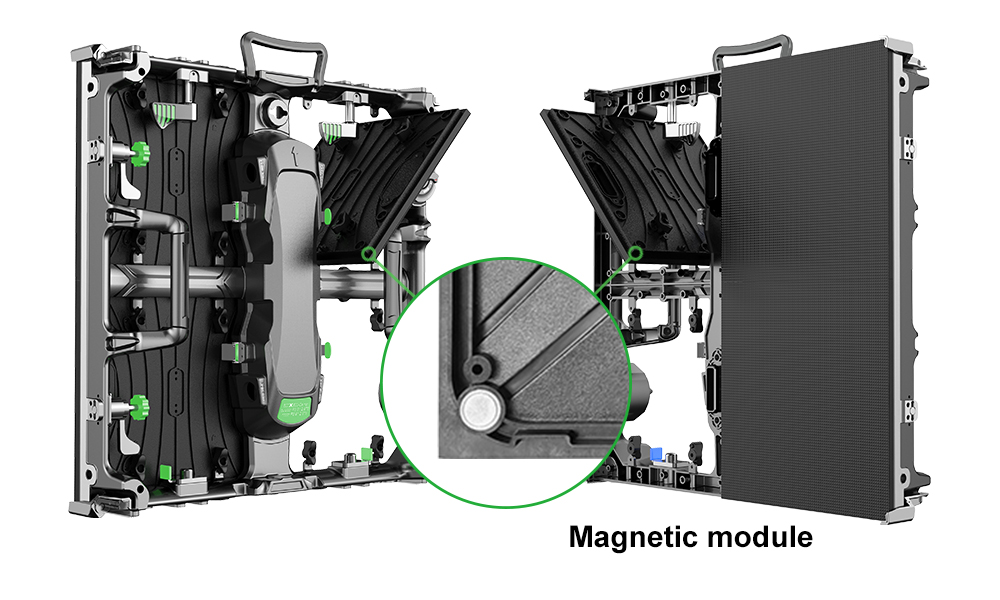

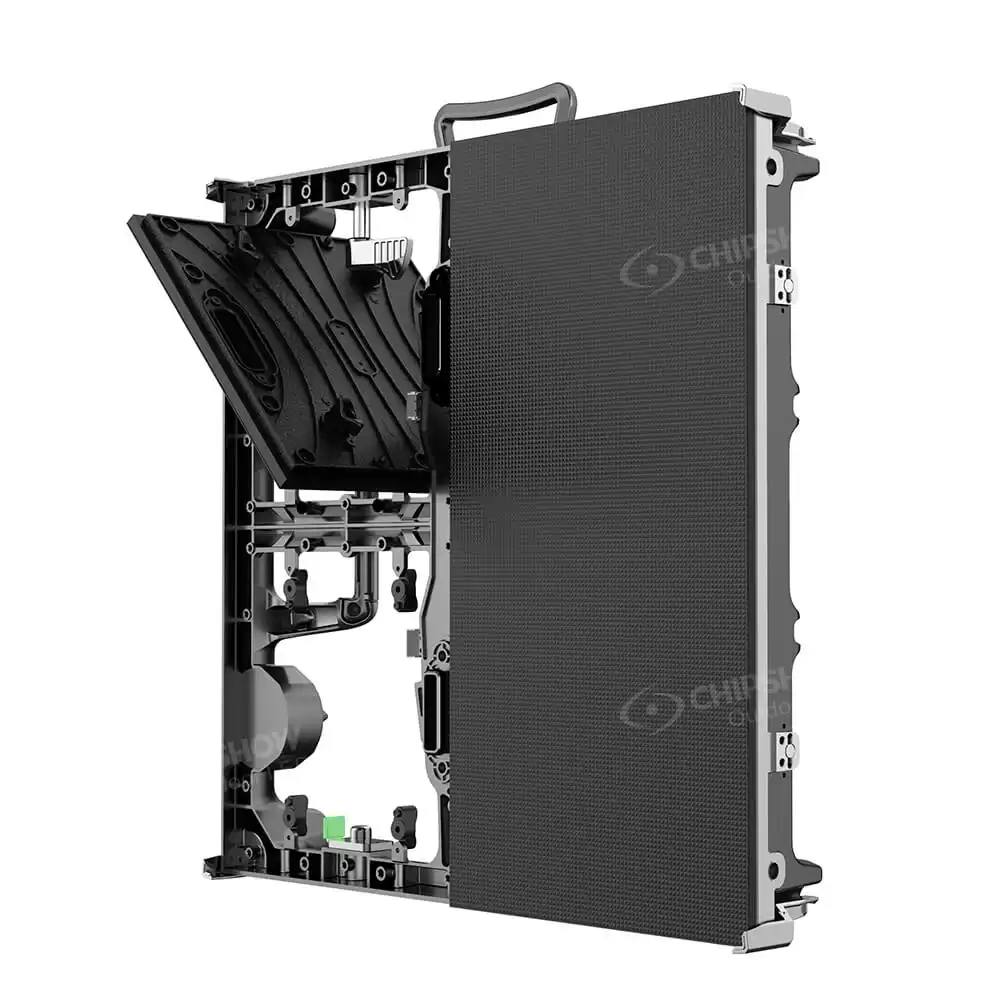

Magnetic front access

Magnetic module, front service


Fully front service

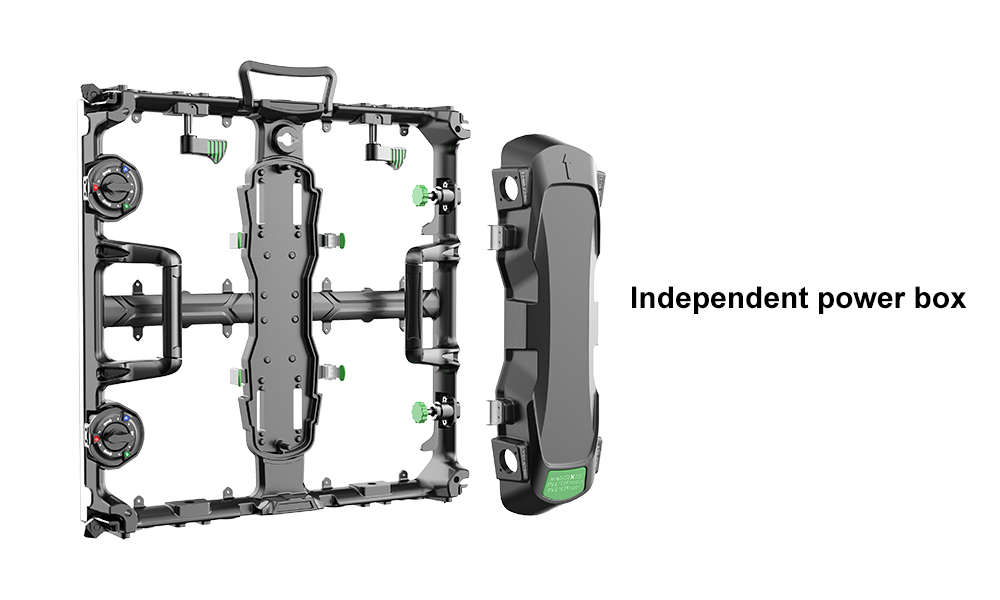

Power box with independent plug-in maintenance

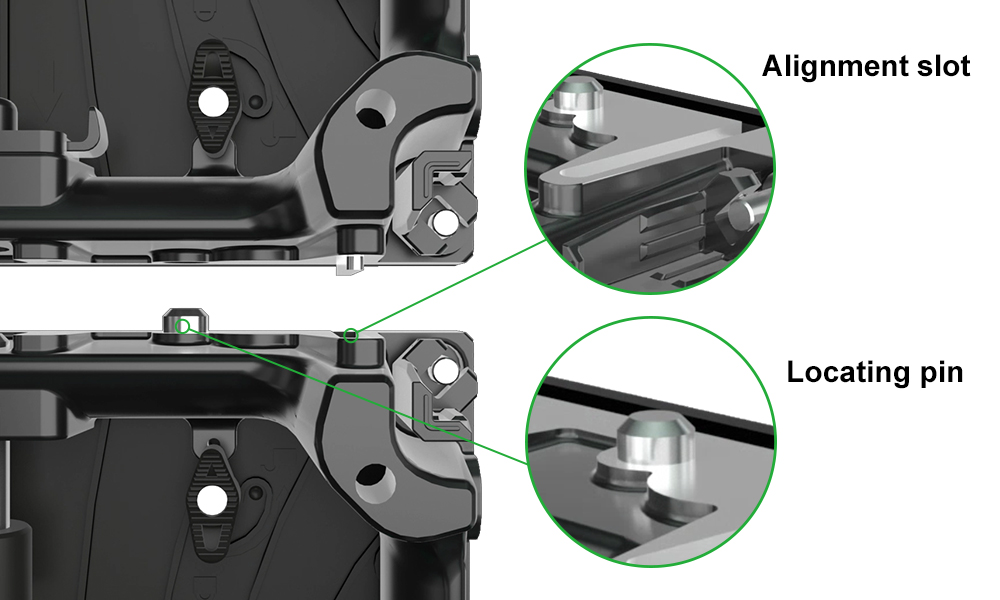

Quick Installation

Fast locks, locating pin and alignment slot for quick installation.

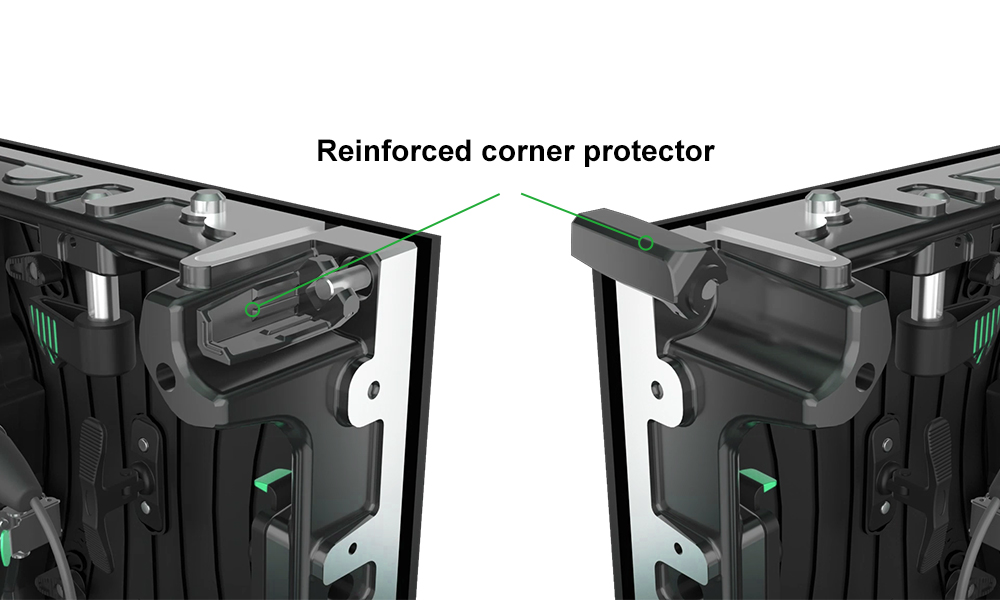

 Reinforced corner protector

Reinforced corner protector for better protection for the LEDs

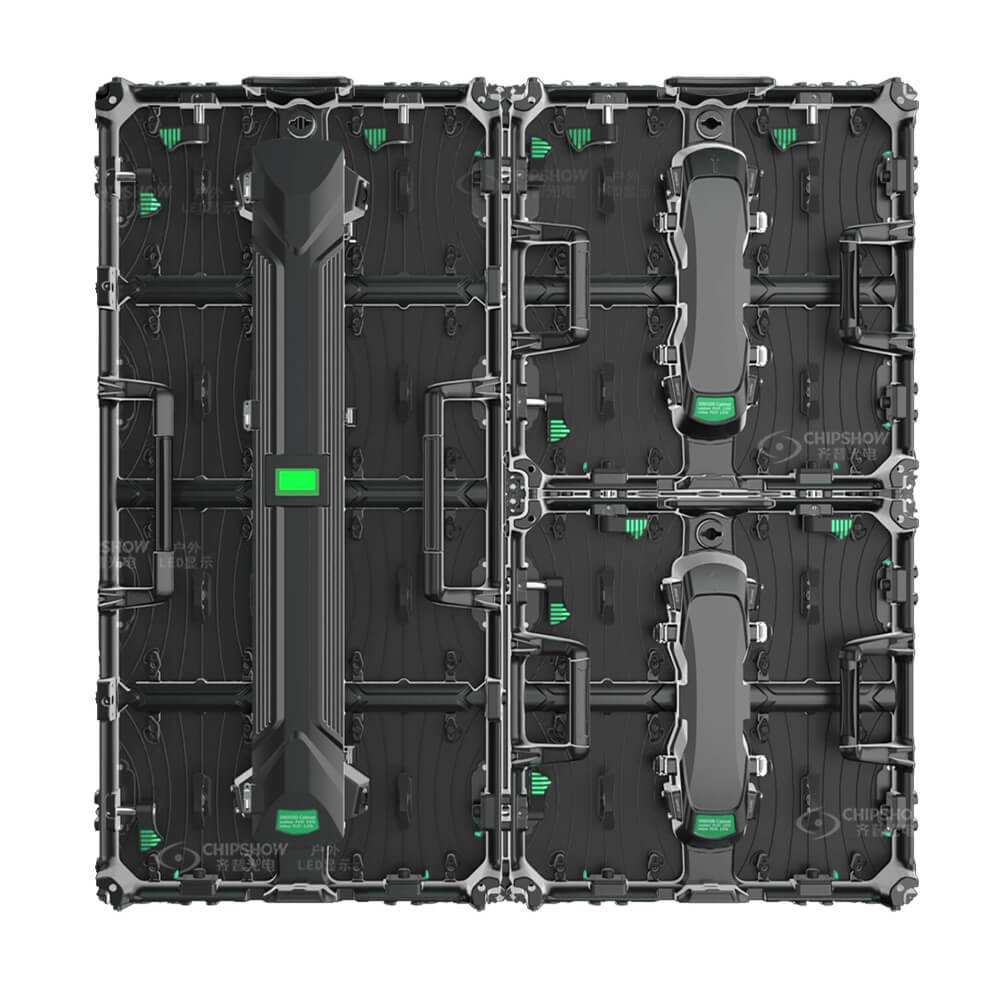

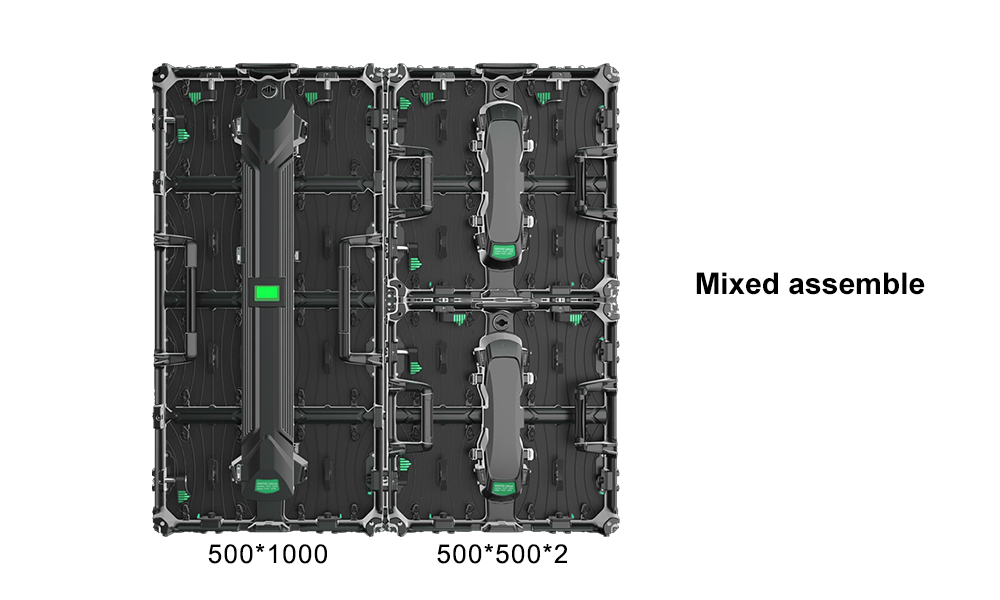

Different Size Mixed Installation

500*500mm and 500*1000mm cabinet can assemabled together

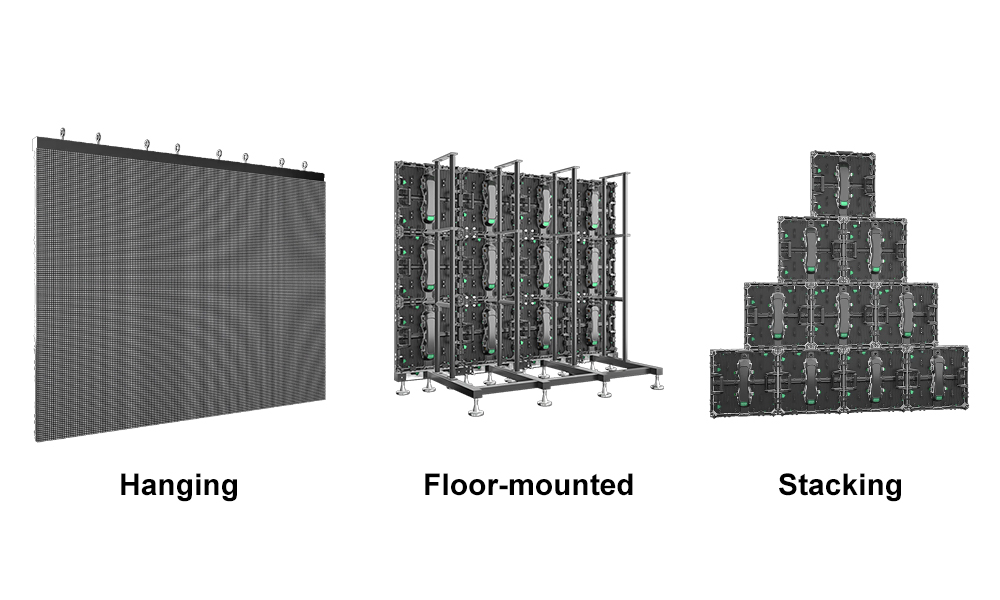

Multiple Installation Types

Specifications

Pixel Pitch

3,3.91,4.81mm

Module size

250*250*16mm

Pixel color

1R1G1B

Pixel LED

SMD1921

Cabinet material

Cast aluminum

Cabinet weight

26kg/

Cabinet size

500*500/1000*85mm

White balance

5000CD/㎡

Color temperature

6000K-8000K

View angel

H/V:120°/120°

Non-Flatness

<0.2mm

Module interval

<0.2mm

Maximal power

720W/㎡

Average power

240W/㎡

Refresh frequency

1920Hz-3840Hz

Gray grade

≥13bit

Working temperature

-20~50℃

Protection grade

Front/Back:IP40
