Advantages of Automatic C channel roll forming machine :
1. Automatically change different size in one minute, without changing rollers or spacers.
2. Post-cutting design, no worry about twist and flare caused by Pre-cutting design.
3. With computer controlled system which easy to operate and save time and cost .
4. Post-cutting system or fly-cutting for option.
We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts.
Profile drawing:
Product specification:
|
Bottom width (W)
|
100-300mm
|
|
Heigh(H)
|
40-100mm
|
|
Small side(E)
|
10-20mm
|
|
Material width(λ)
|
185-525mm
|
|
Material thickness(&)
|
Q235（1.8-3.5mm)/G350(1.8-2.8mm)
|
|
Embossing way
|
Embossing with "一"
|
|
Chain size
|
1.5 inch + 1.75 inch + 2.0 inch
|
|
Main shafts diameter
|
φ90/75mm Round steel with quenching and tempering treatment
|
|
Levelling shaft diameter
|
solid rollers φ110mm（upper2,down3）
|
|
Wall panel thickness
|
30mm
|
|
Machine base size
|
H446*199
|
|
Driving power
|
Servo motoer 45KW
|
|
Punching and cutting power
|
|
Forming speed
|
30m/min without punching
|
|
No. of punching
|
3 sets（double+double+single）14*25
|
|
Changing way
|
Unlimited change 0.37/0.75KW
|
|
Punching and cutting mode
|
Pre punching and cutting + Post cutting
|
|
roller material
|
Cr12
|
|
Forming station
|
4+5+5=14 Stations (without embossing）
|
|
Blade material
|
Cr12Mov, Heat treatment after wire cutting
|
|
Control mode
|
PLC（Taiwan FATEK）
|
Main features：
1. Feeding material guide and leveling device
Two rollers (one up and one down roller) for material guide and 5 rollers ( 2 up and 3 down rollers ) for straightening. solid and shafts diameter=φ110mm

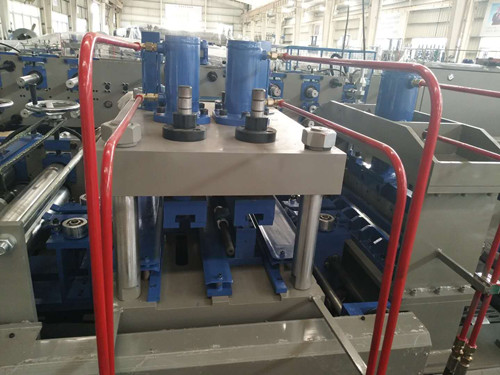

2. Pre-punching system
With 3 cylinders (one cylinder for single hole and 2 cylinders for dual-holes.)
Also, can make more punching sets as customer’s requires.
3. C purlin machine rollers and shafts
All the rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated;
Shafts manufactured from #45 steel or Gcr15 for optional,
Main Shaft Diameter=φ90/75mm, quenching and tempering treated
4. C purlin machine post-cutting system:
No need to change cutter for different size; Unlimited specification changing for height and bottom width;
Cutting blades made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
5.Control System
C purlin machine control box
(Touch screen brand: WEINVIEW, Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
6.Uncoiler
C purlin machine uncoiler
One set manual uncoiler, Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
7. C purlin exit rack
Un-powered, three units
