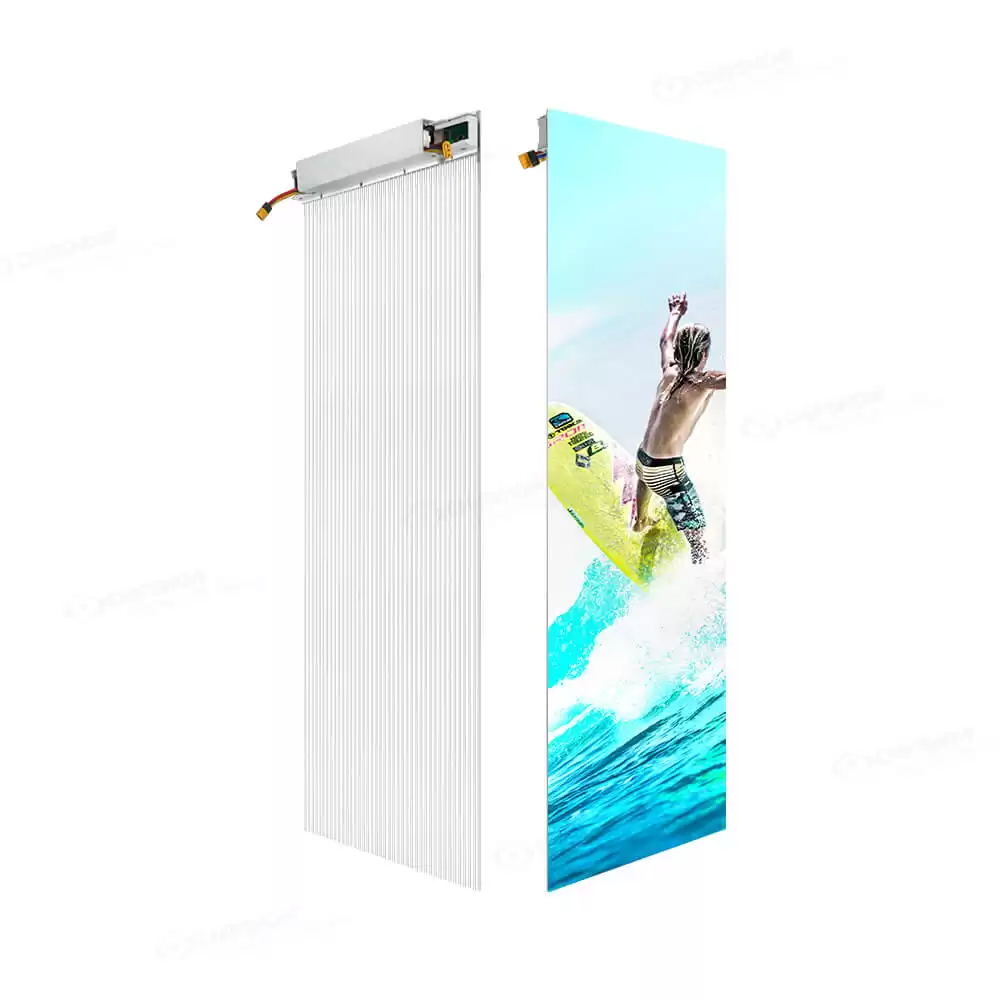

C-Film P8,10 Indoor Transparent LED Screen

With the characteristics of High transparency rate, invisible installation, ultra light & thin, it is very good to help business branding.

Advantages

1. Ultra-light and thin, the transparent part is only 3mm;

2. Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency.

3. The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%.

4. No fan power supply, quiet and noiseless.

5. It can be directly stuck to the glass or hanging installation, quick and worry-free.

6. Hidden design, all cables are stored in the control box, beautiful and generous appearance.

7. The screen can be spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in the other direction.

Installation

Directly glued to transparent glass or hanging installation

Application

Stage event, shopping mall, chain store, science museum, glass window, glass curtain wall building, leasing industry, New retail, etc.

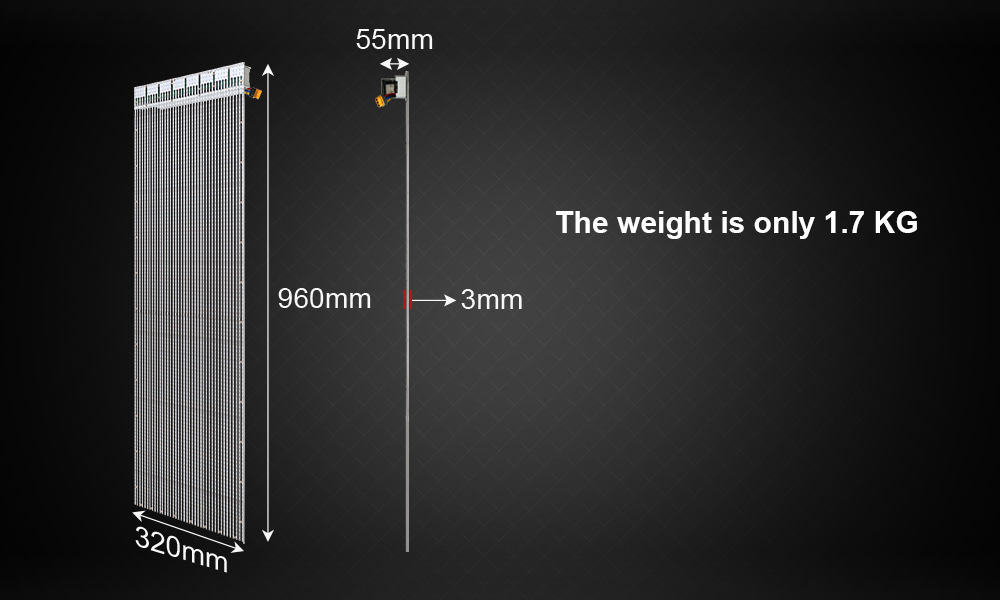

 Ultra-light and thin

The weight is 1.7kg, the transparent part is only 3mm

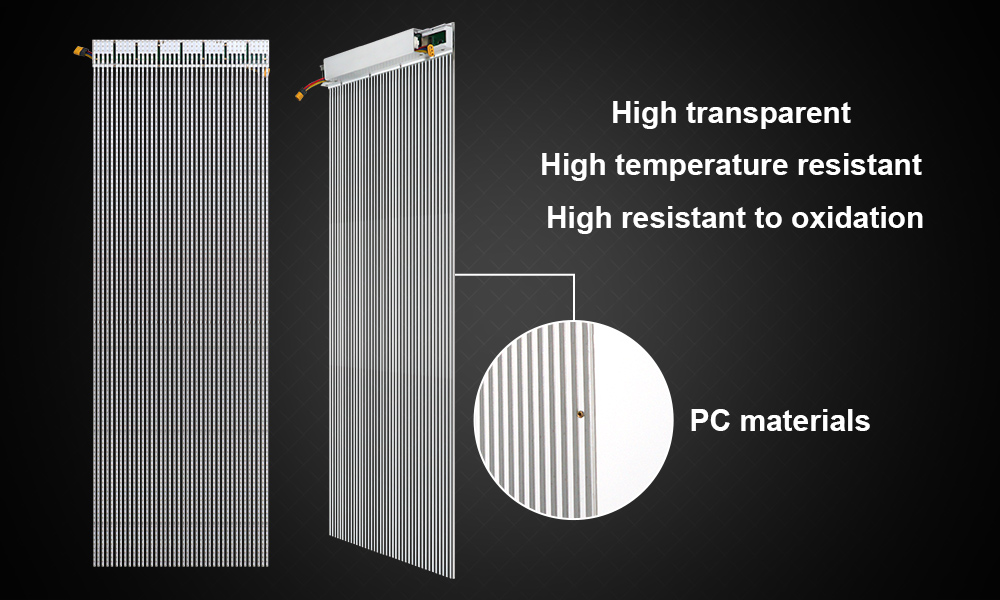

 High-end PC materials

Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency

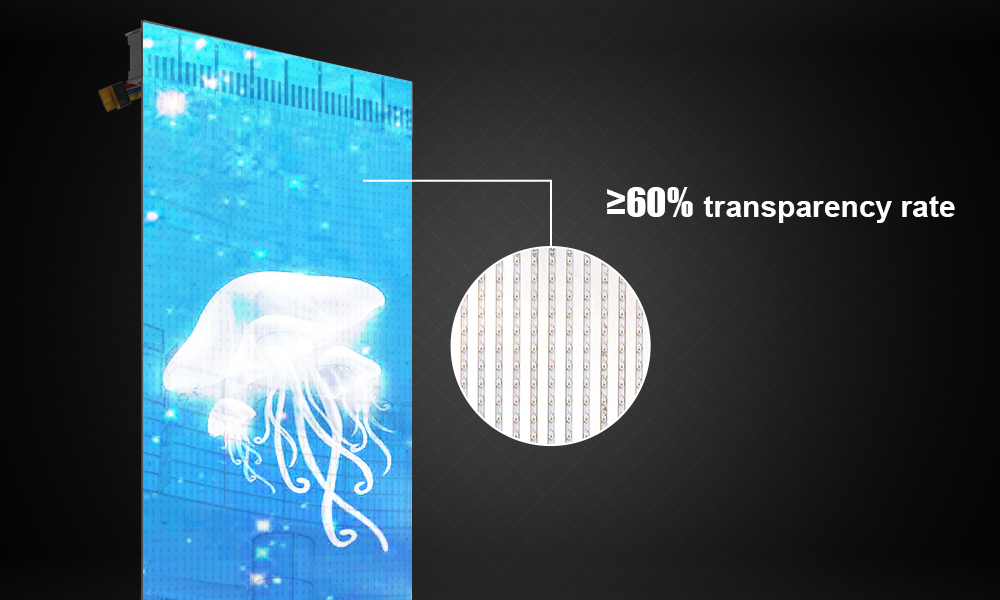

High transparency rate

The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%

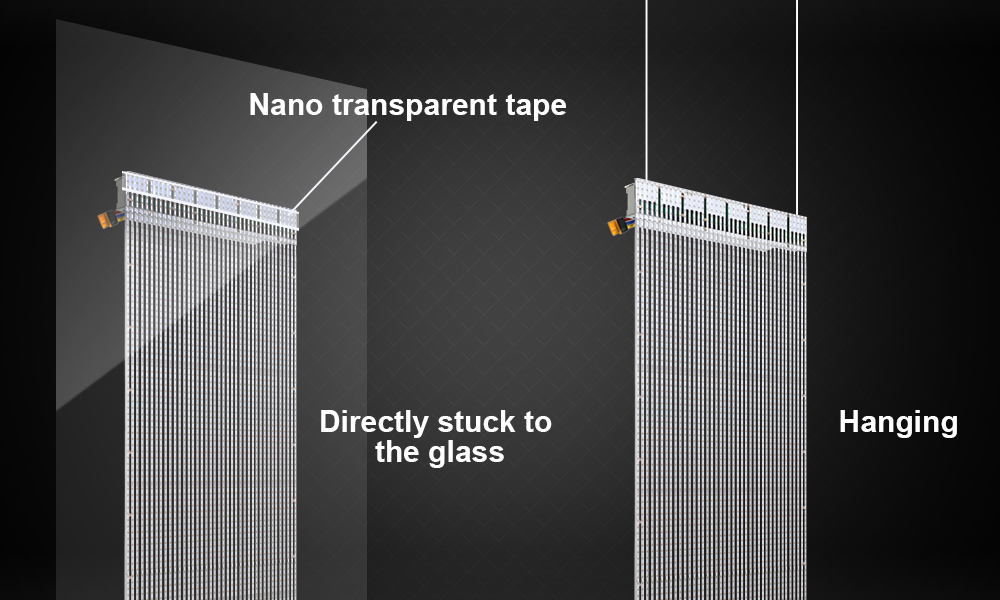

Directly stuck to the glass

It can be directly stuck to the glass or hanging installation, quick and worry-free

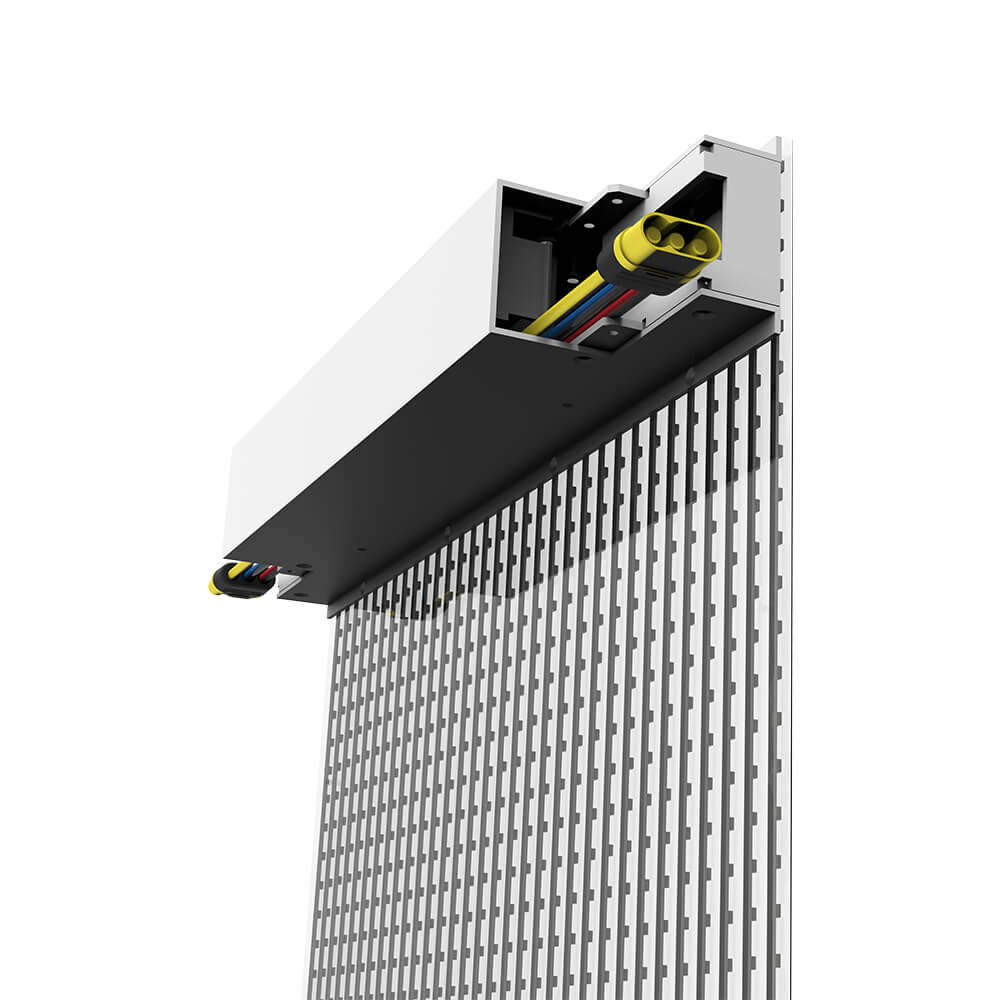

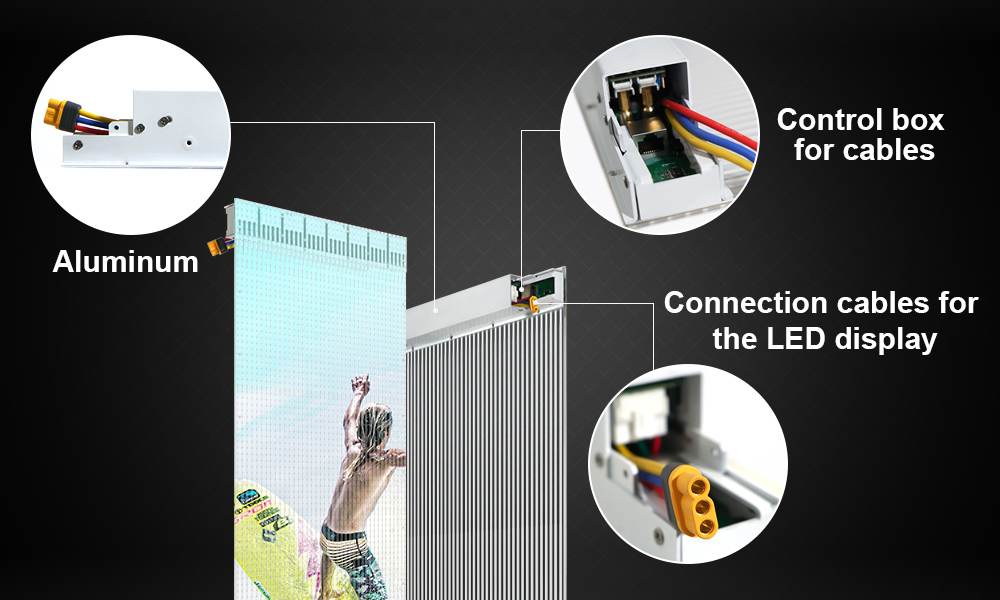

Hidden design

all cables are stored in the control box, beautiful and generous appearance

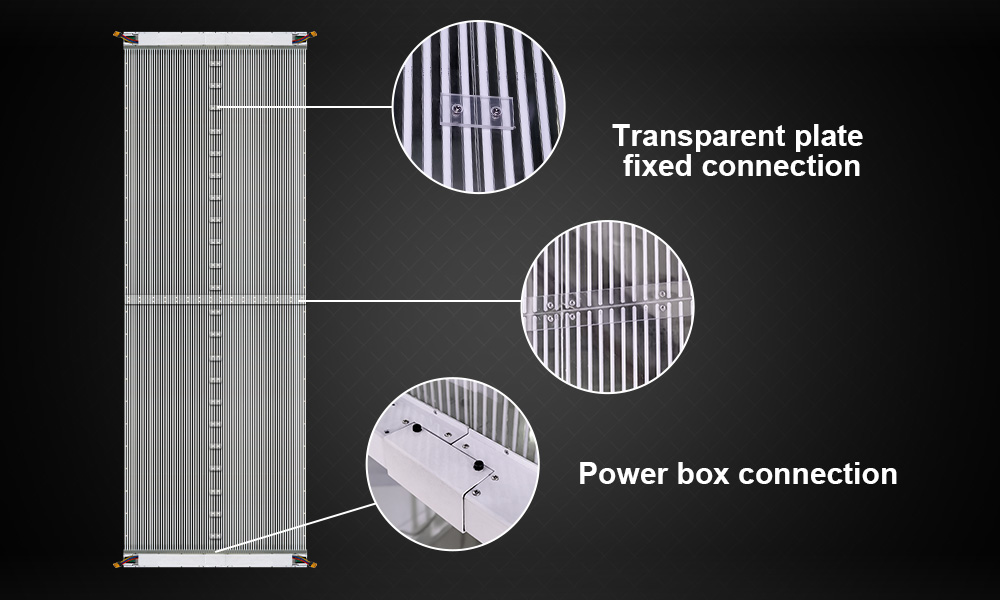

Seamless splicing between screens

The screens are spliced through transparent plate, and the power boxes are spliced through profiles

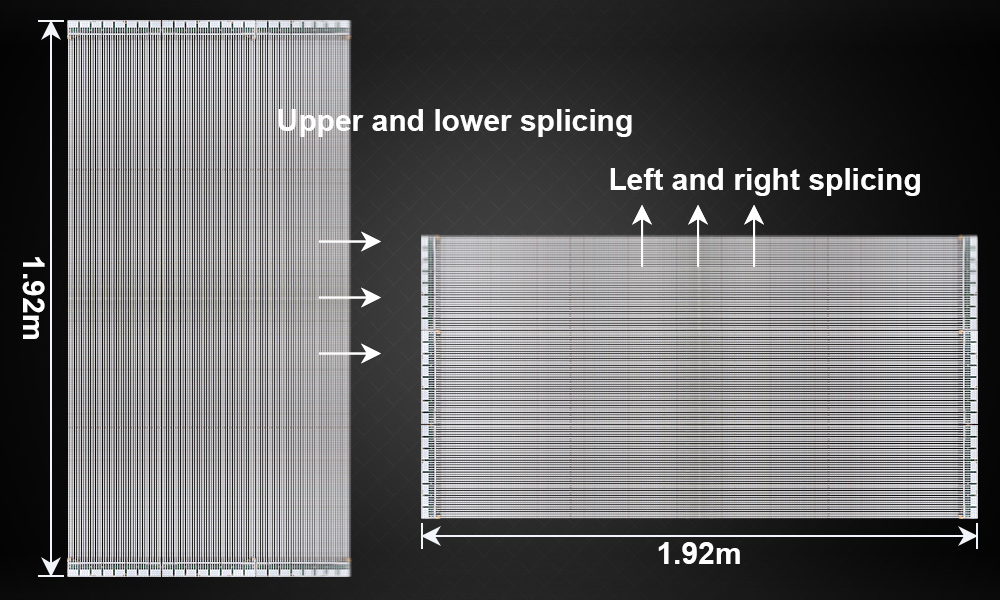

Spliced left and right or up and down

Spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in other direction



Specifications

Product

C-Flim

Pixel pitch

8, 10mm

Cabinet size

320*960*3mm

Cabinet weight

1.7kg

Brightness

3500CD/㎡

Refresh rate

2500 Hz

Max power consumption

≤300W/㎡

Average power consumption

100W/㎡

Working temperature

-20~+50℃

Gray grade

16bit

Certification

3C, FCC, CE, RoHS, fire test report, etc
