C-Flex P2,2.5,3 Indoor LED Screen

Indoor Flexible LED Display Solutions

Features

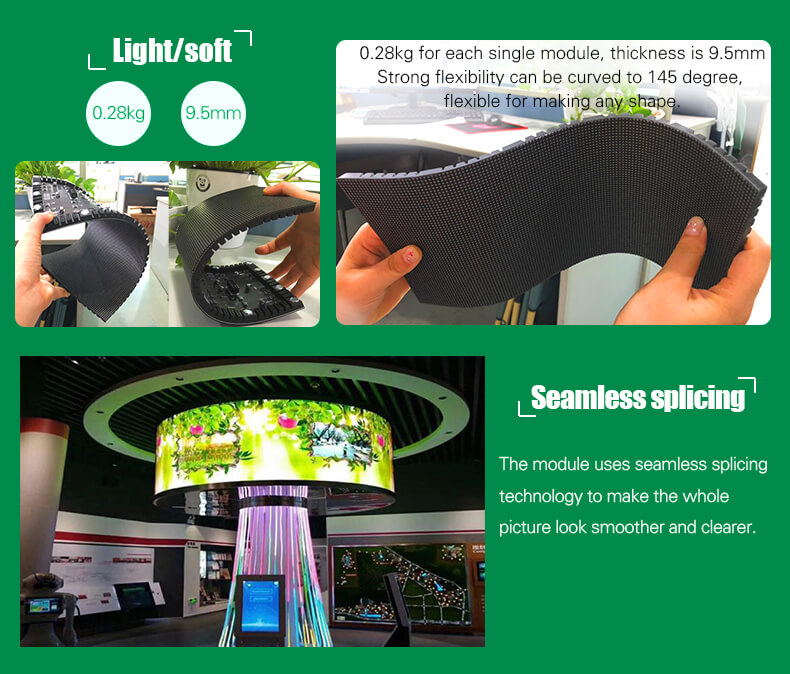

1. Light and thin: the weight is 0.28kg and thiness is 9.5mm.

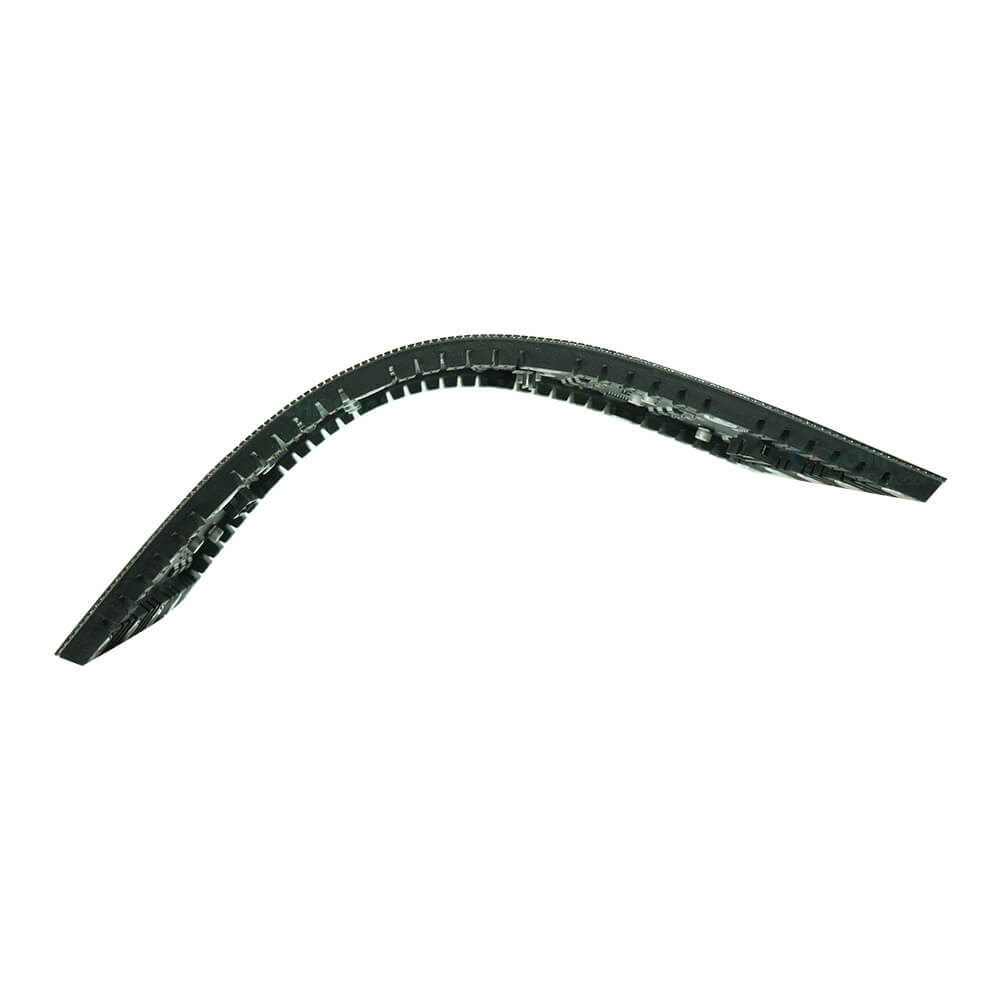

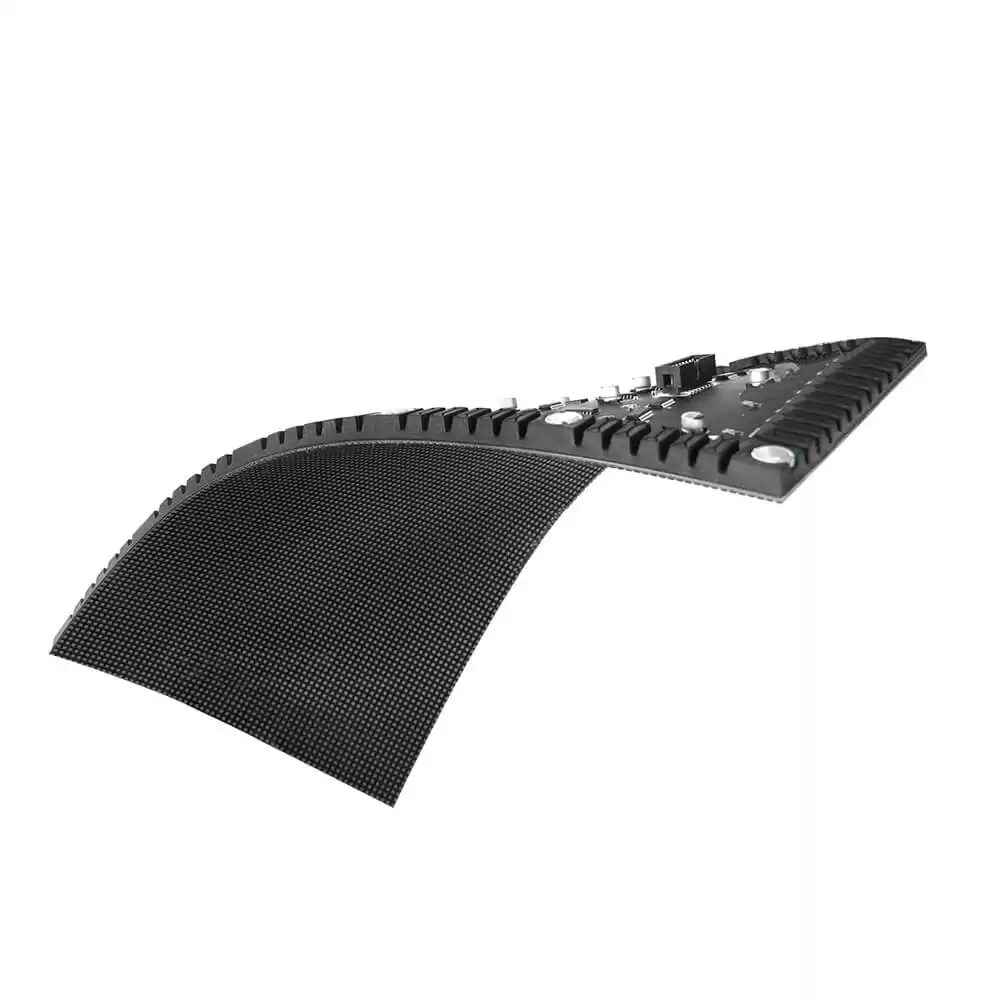

2. Soft: flexible soft PCB board, with a bottom shell made of silicone material.

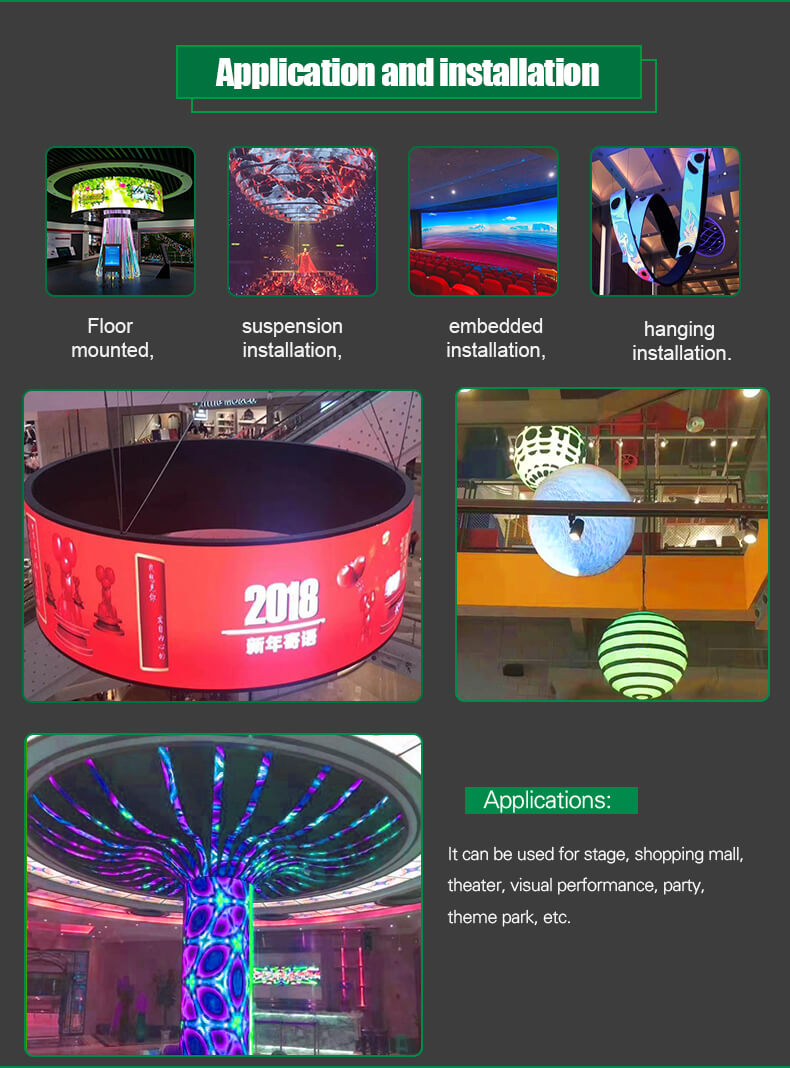

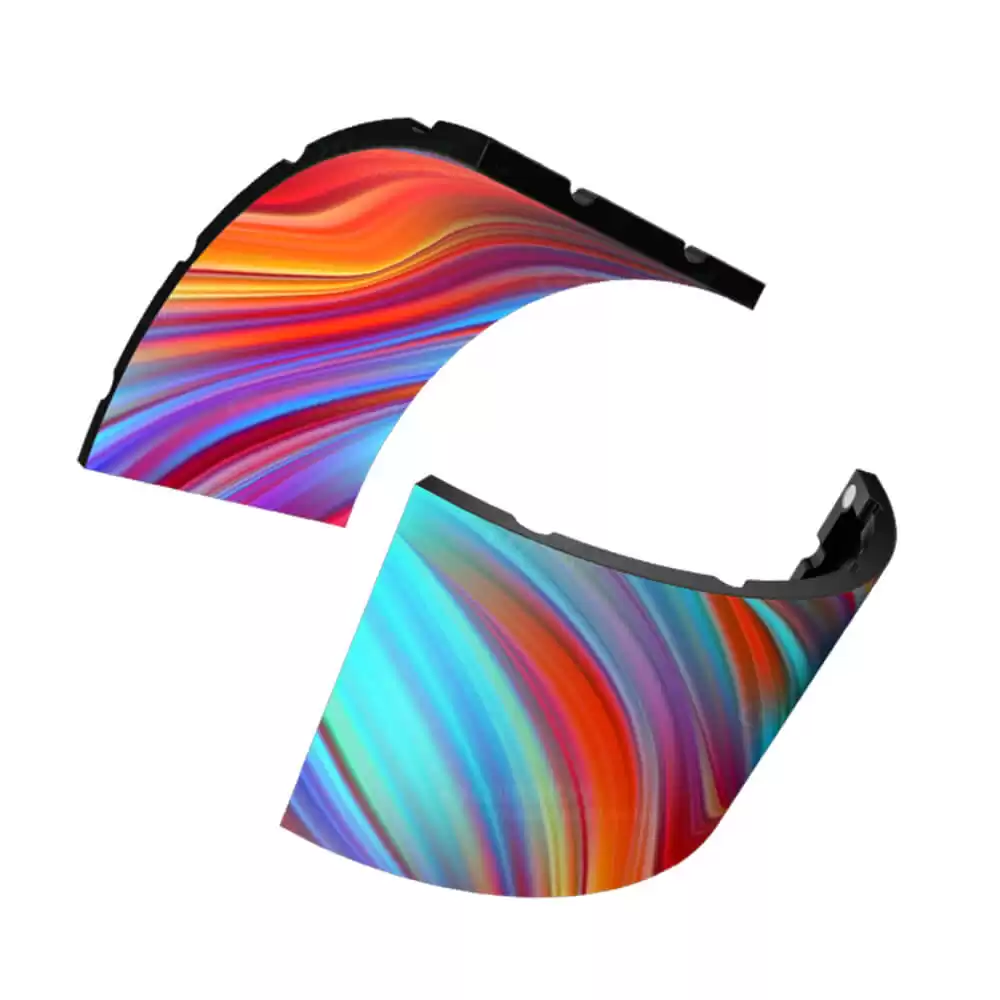

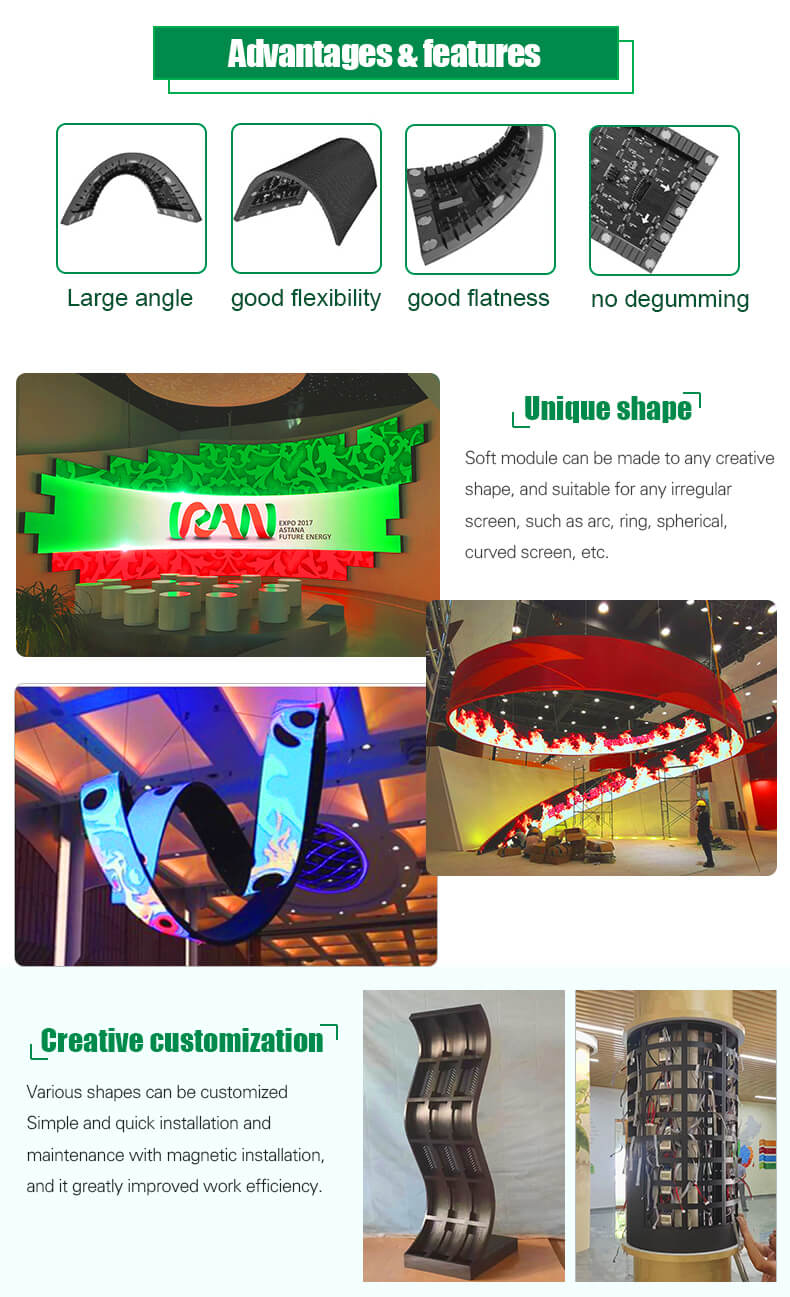

3. Creative shape: It can be bent, folded, wound, suspended, etc., freely combined into various shapes, artistic and creative.

4. Seamless splicing: 360-degree viewing angle, fully showing the streamlined appearance, seamless splicing.

5. High performance: High grayscale, high refresh, more high-definition and energy-saving.



HD Flexible LED Screen

Seamless Flexible LED Screen

flexible led screen panel



Specifications

Product

C-Flex

Pixel Pitch

2.0mm

2.5mm
3.07mm
Resolution rate
160*80

128*64

104*52

Module size

320*160*9.5mm

Pixel color

1R1G1B

Pixel LED

SMD 1515
SMD 2020 SMD 2020

Module Power

27W
18.5W 26W

Density

250000Dots/㎡

160000 Dots/

105625 Dots/

White balance

≤600 CD/㎡

≤800 CD/㎡
≤800 CD/㎡

Color temperature

6000K-8000K

Non-Flatness

<0.2mm

Module interval

<0.2mm

Maximal power/㎡

550W/㎡

360W/㎡
520W/㎡
Average power/㎡
180W/㎡
108W/㎡
173W/㎡

Refresh frequency

1920Hz-3840Hz

Gray grade

14bit

Working temperature

-20~50℃

Protection grade

 Front/Back :IP40/IP40
