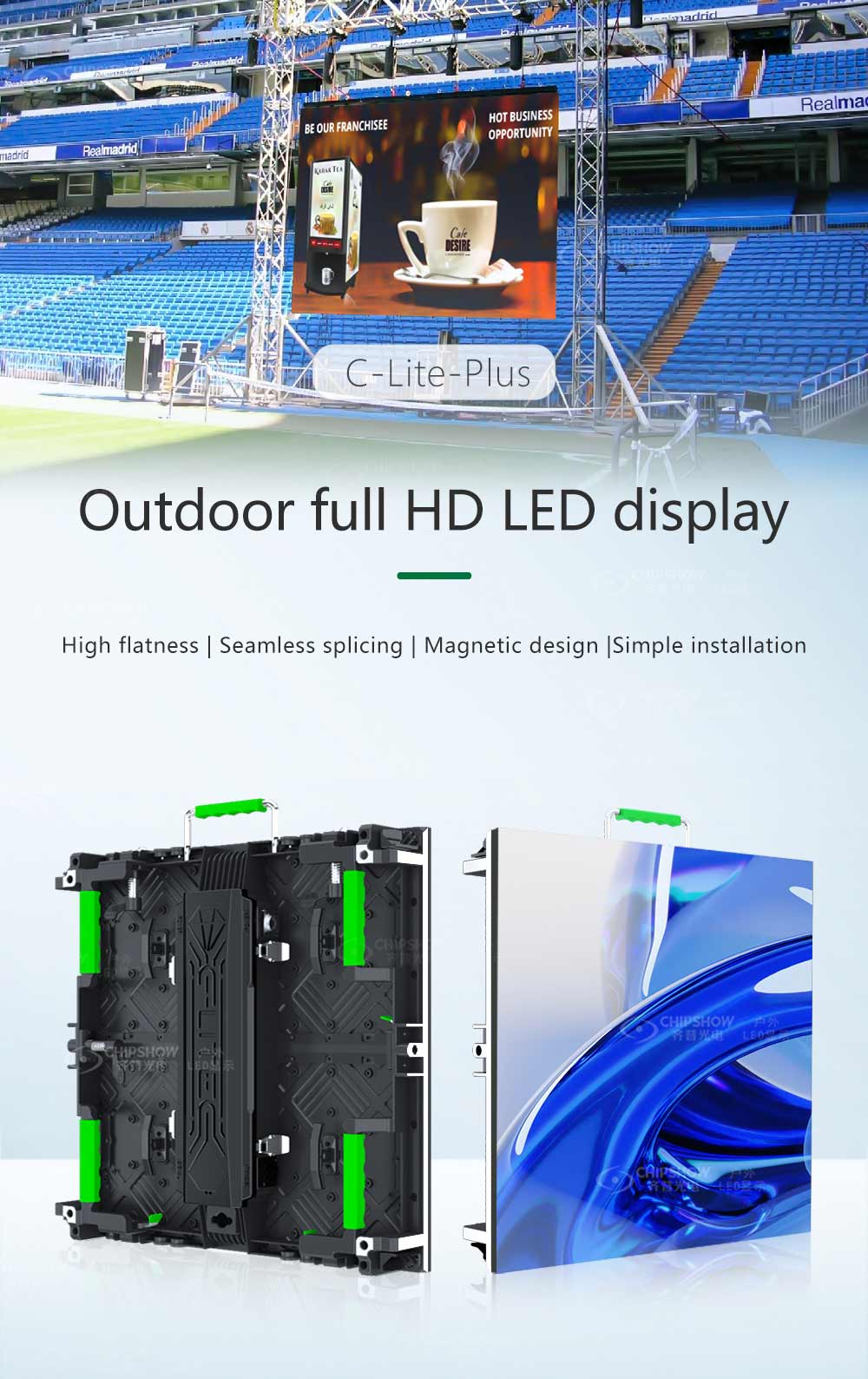

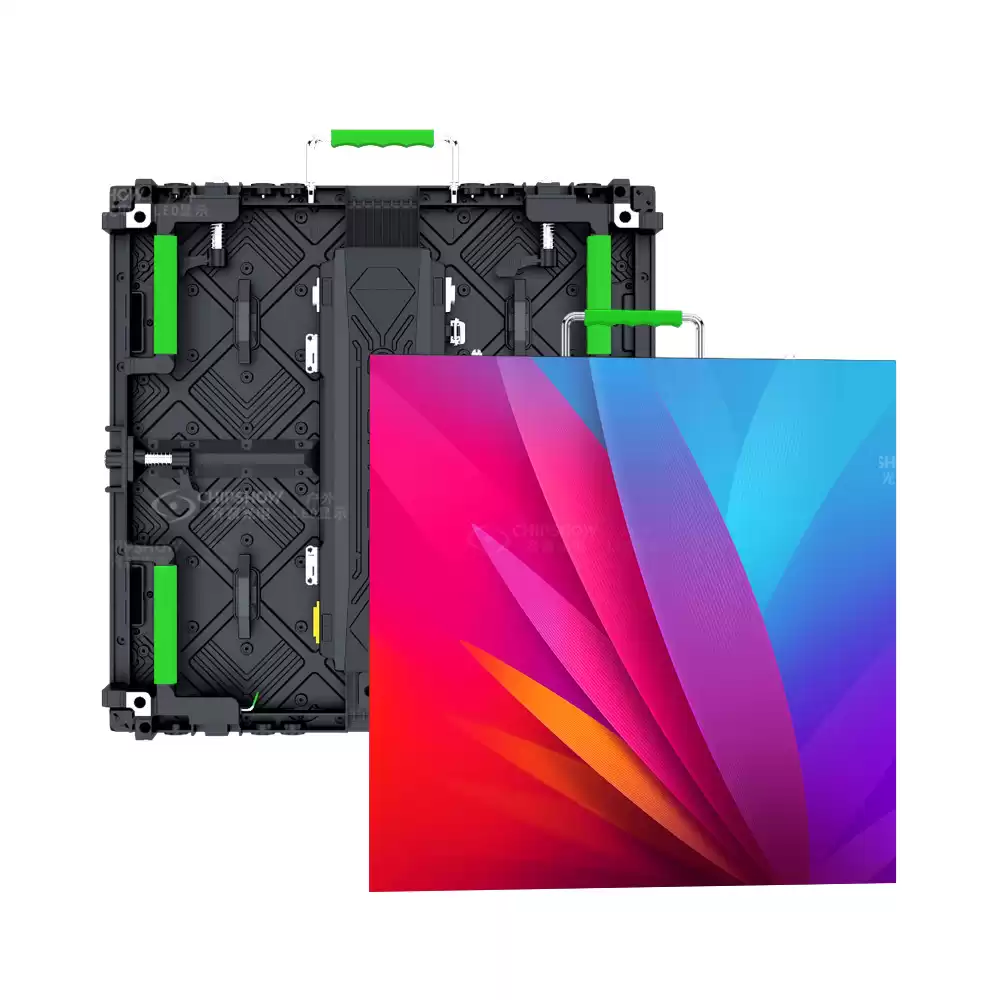

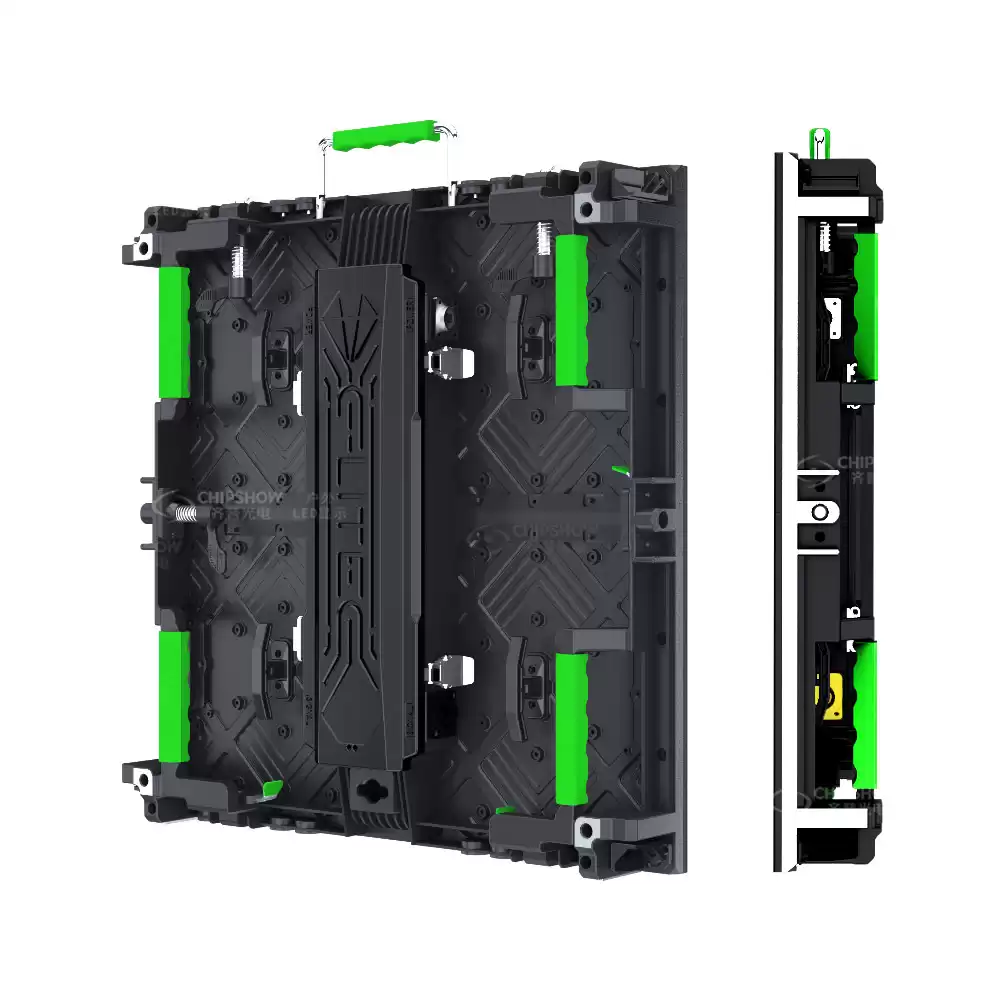

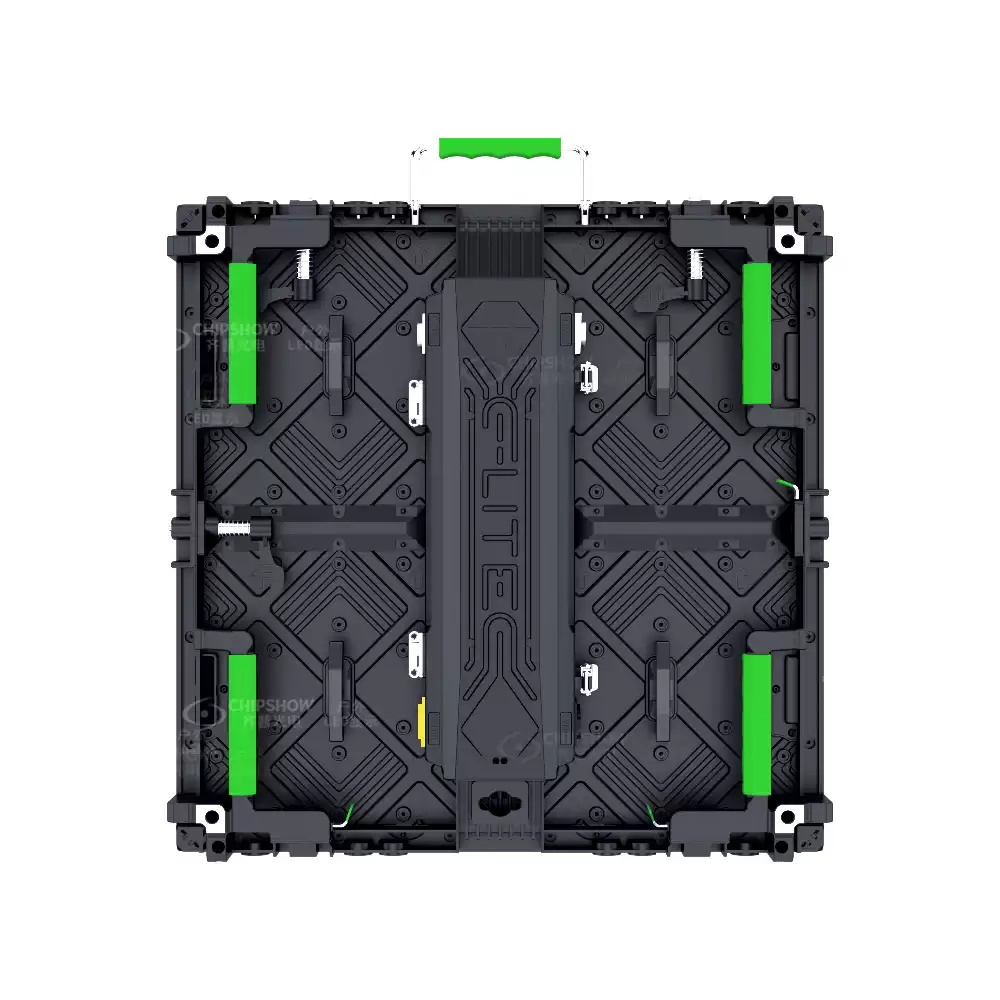

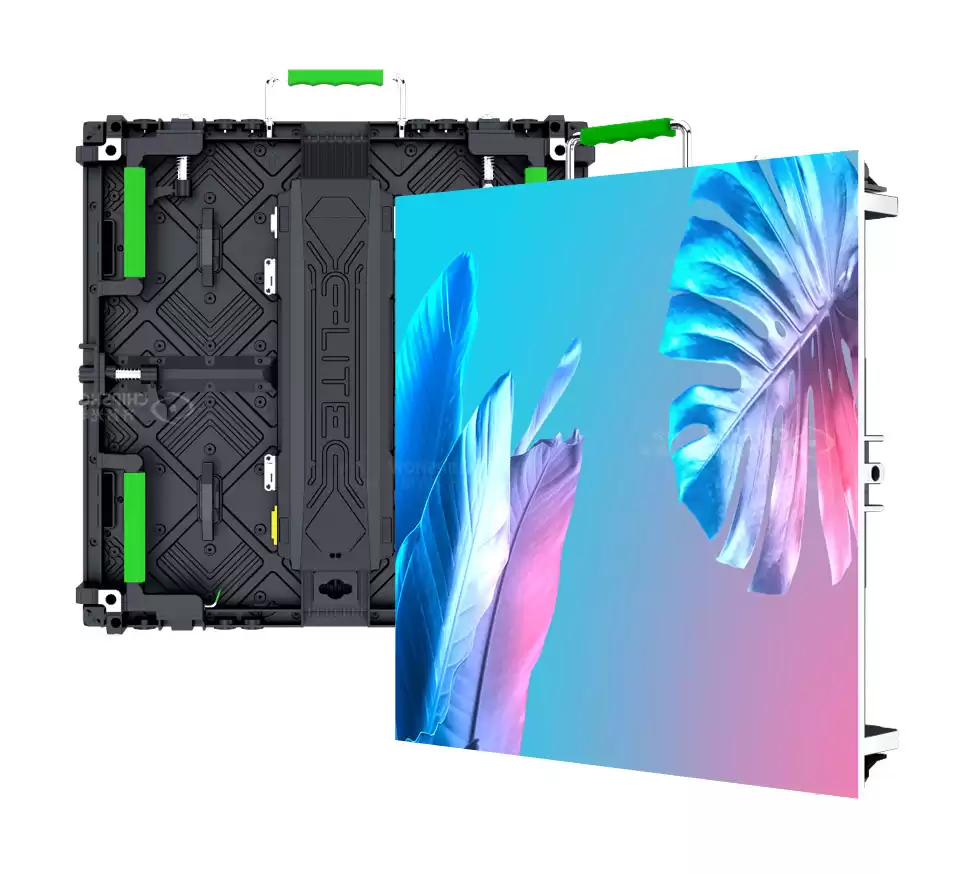

C-Lite-plus-c outdoor P1.56-500 * 500 die-cast aluminum full-color LED display screen, small spacing rental screen

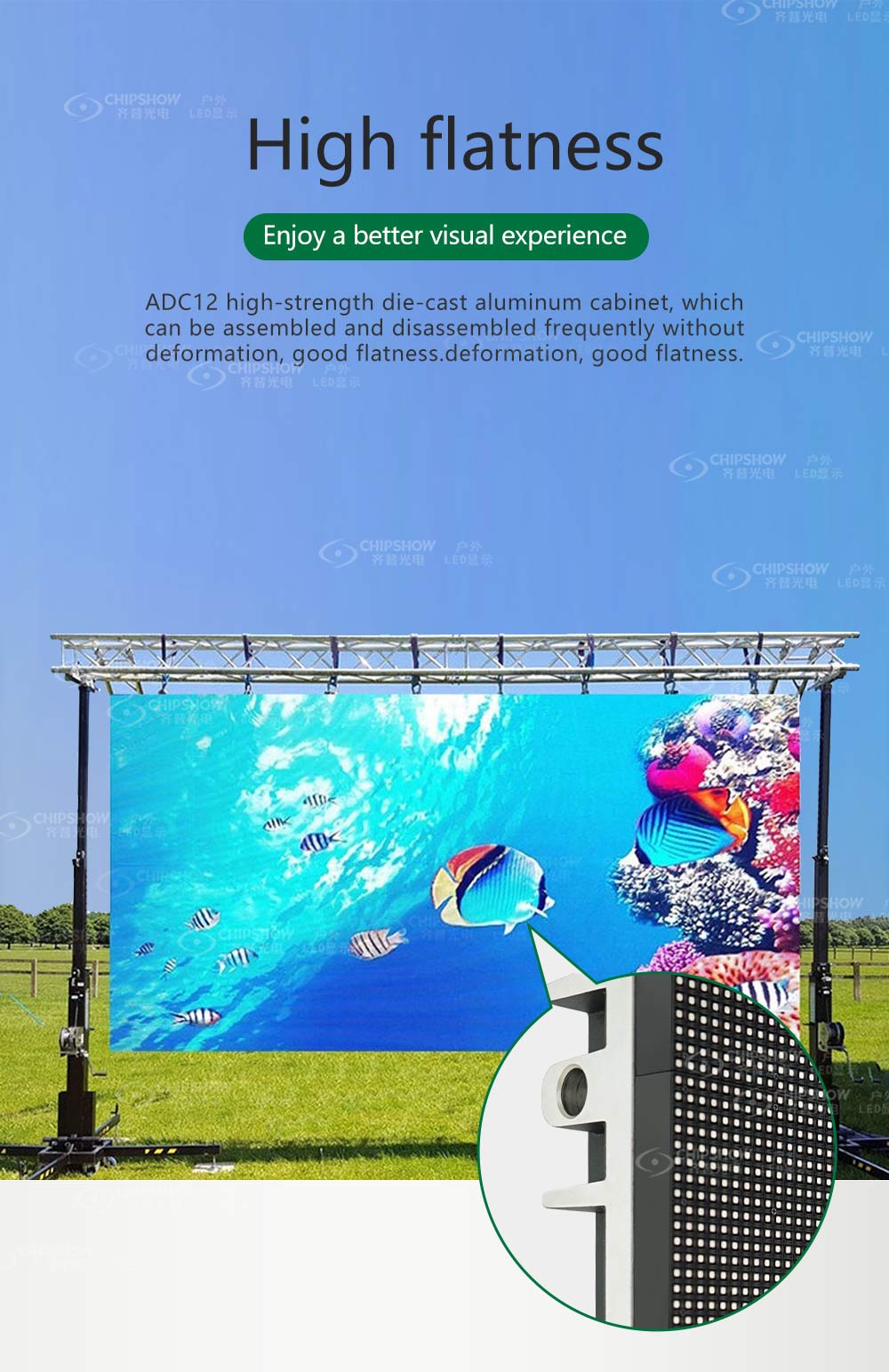

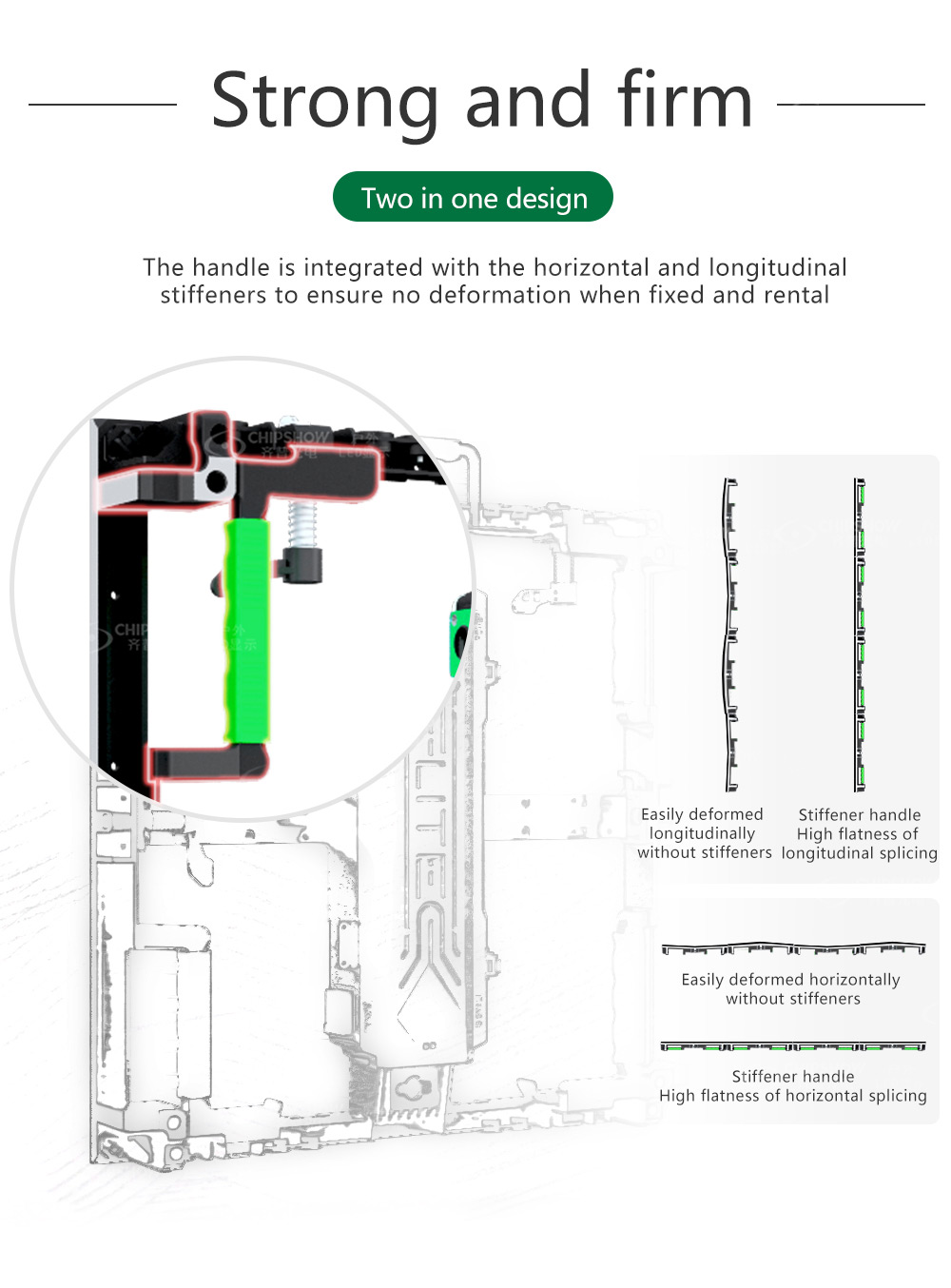

1. Flatness: ADC12 high strength die-cast aluminum cabinet, which can be assembled and disassembled frequently without deformation, good flatness.

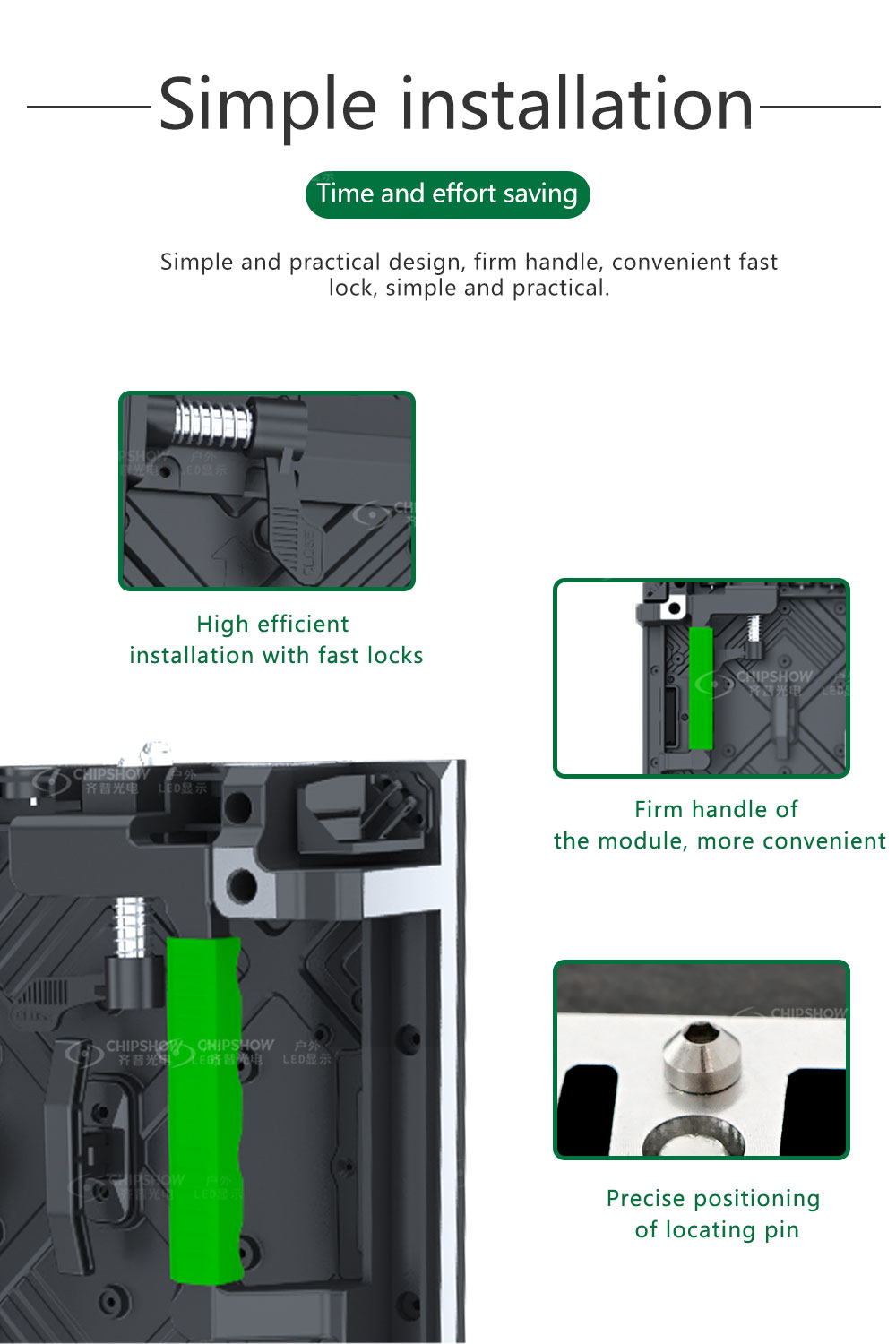

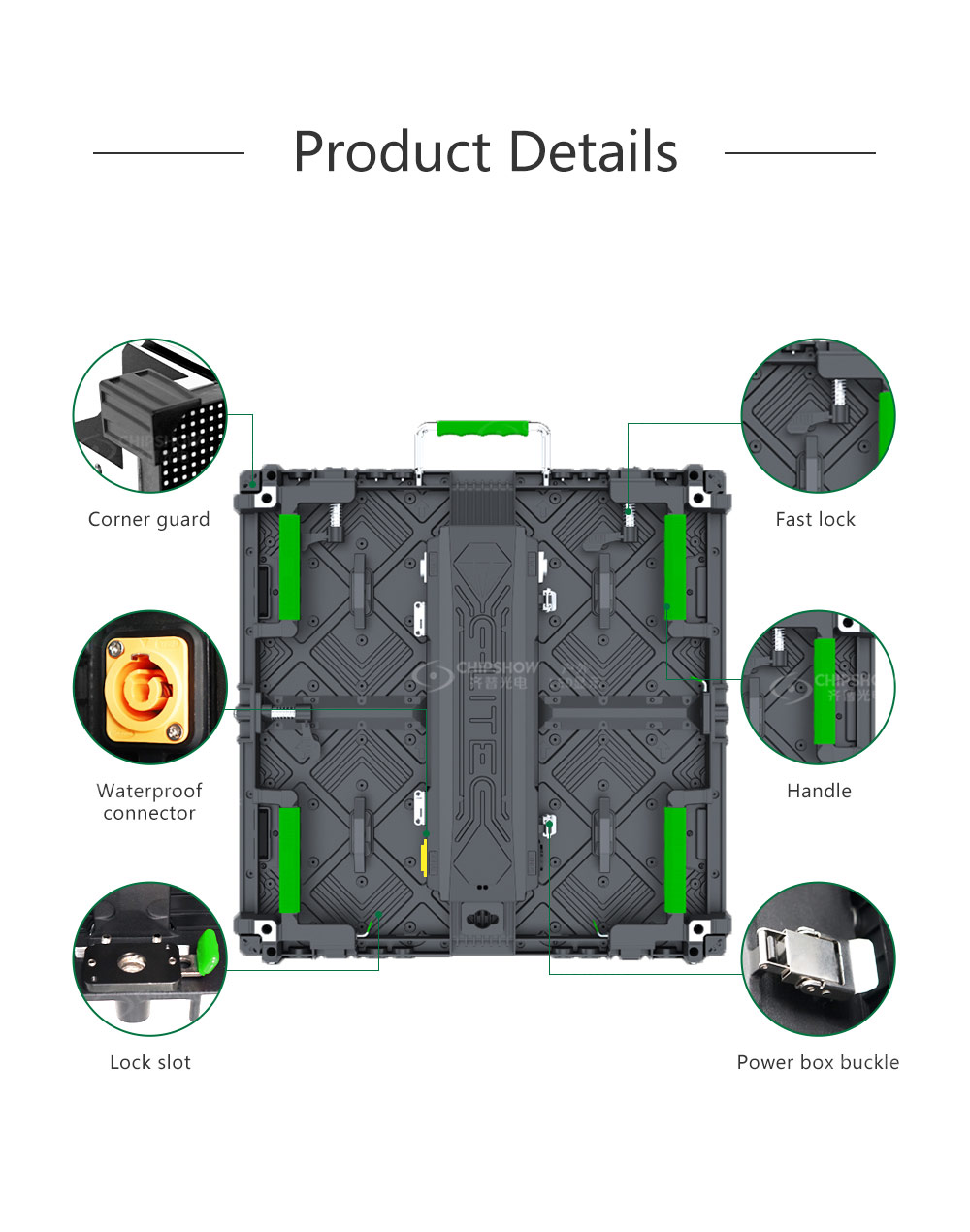

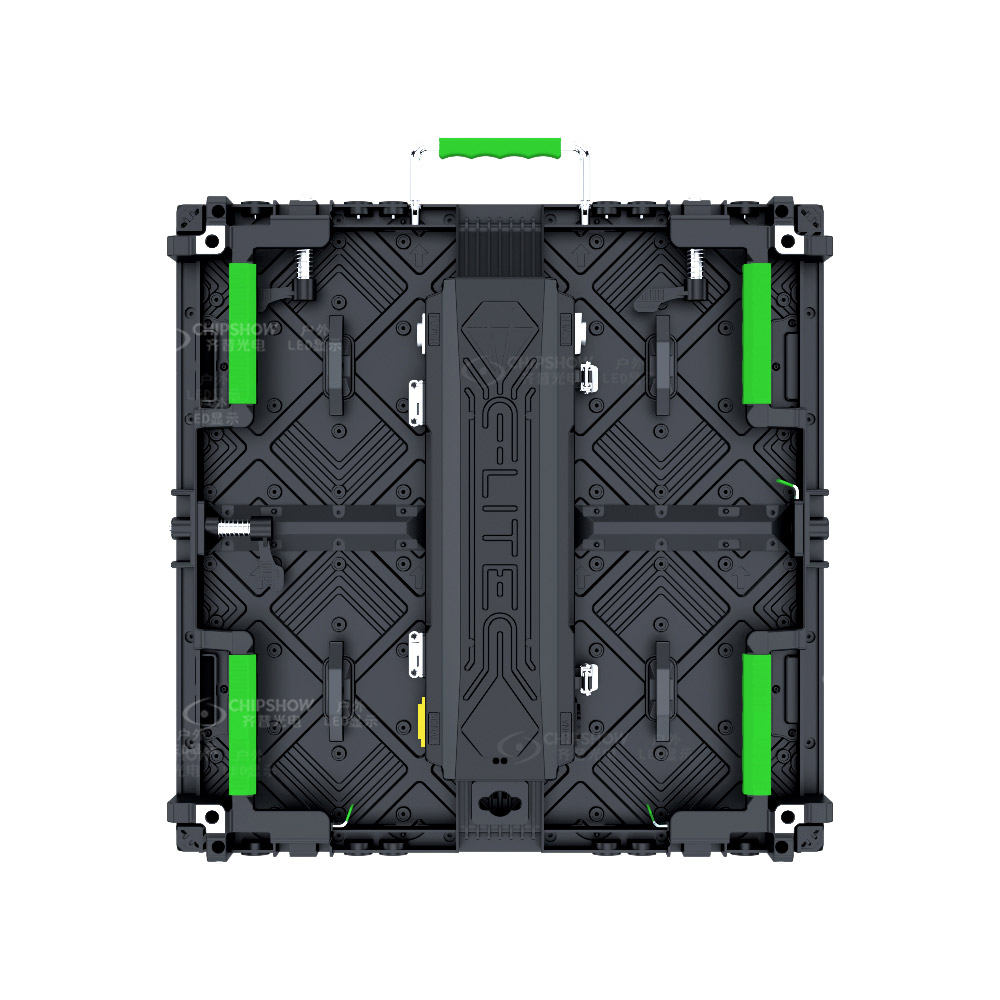

2. Practical: Simple and practical design, firm handle, convenient fast lock, simple and practical.

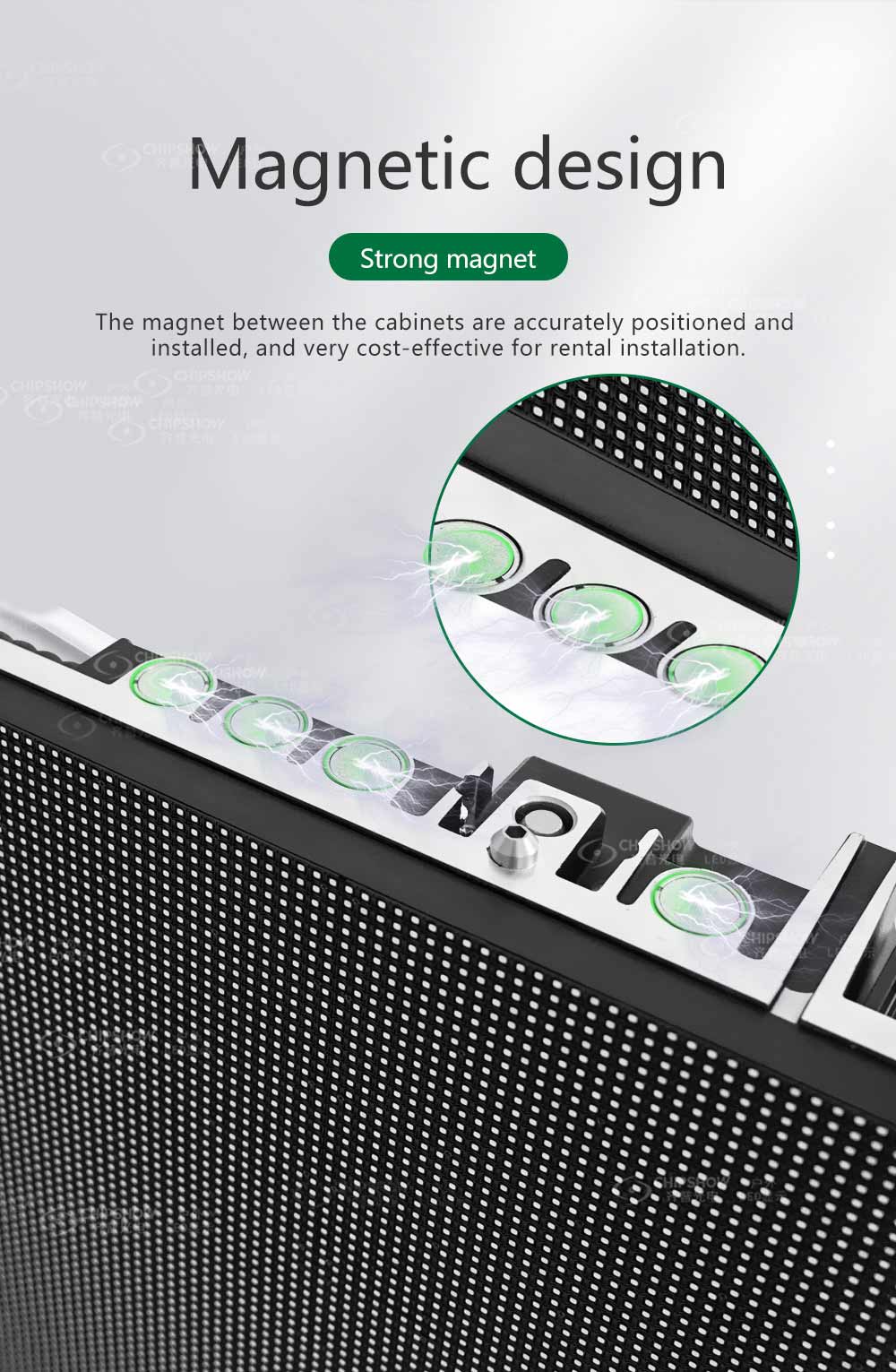

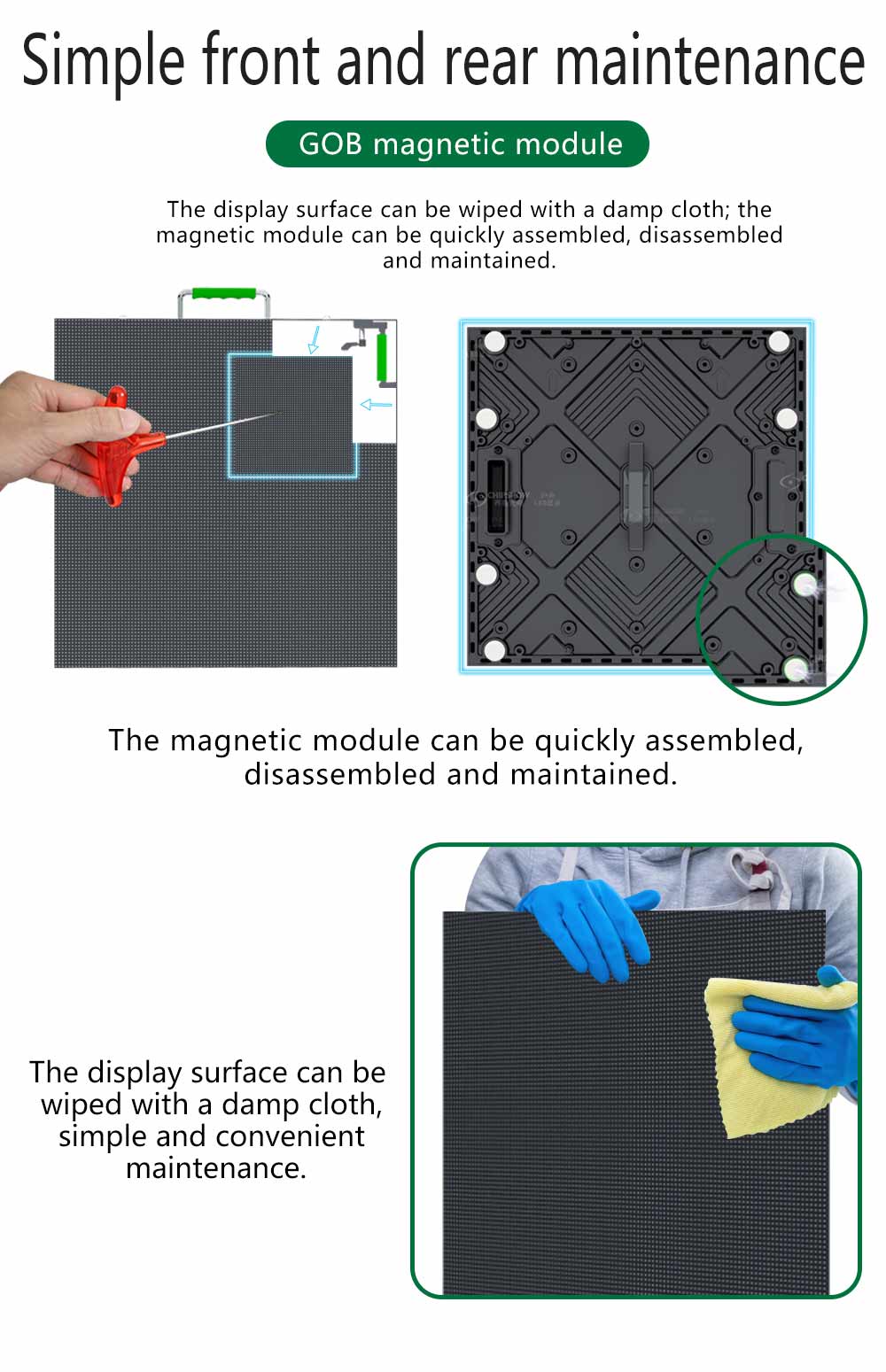

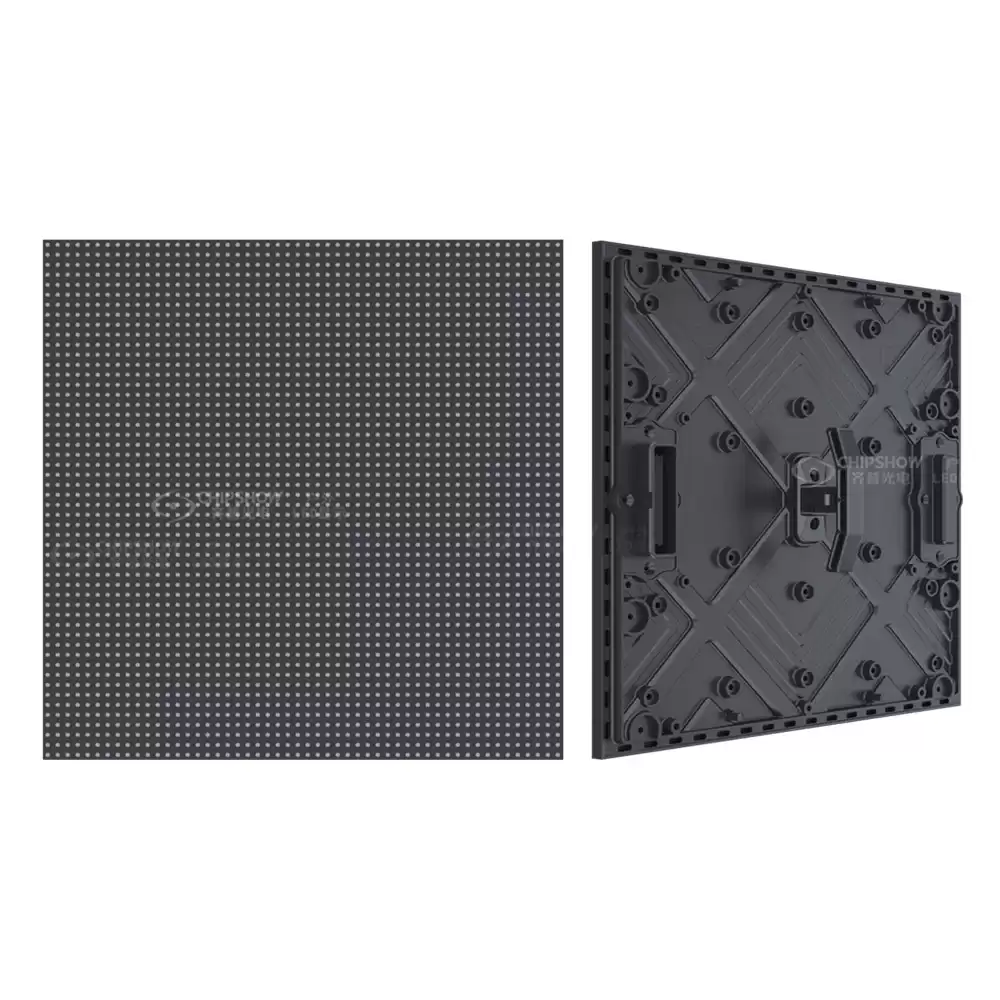

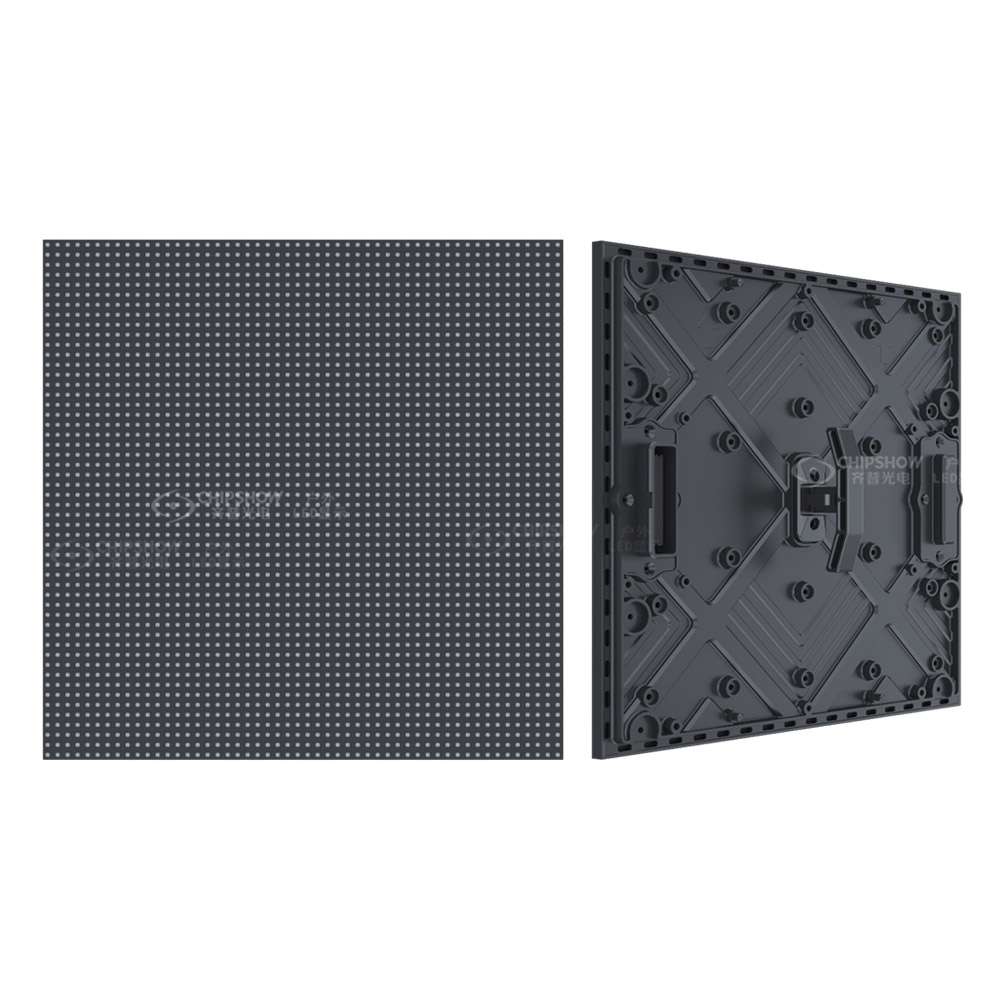

3. Magnetic design: The magnetic module can be maintained from front and rear; the magnet between the cabinets are accurately positioned and installed, and very cost-effective for rental installation.

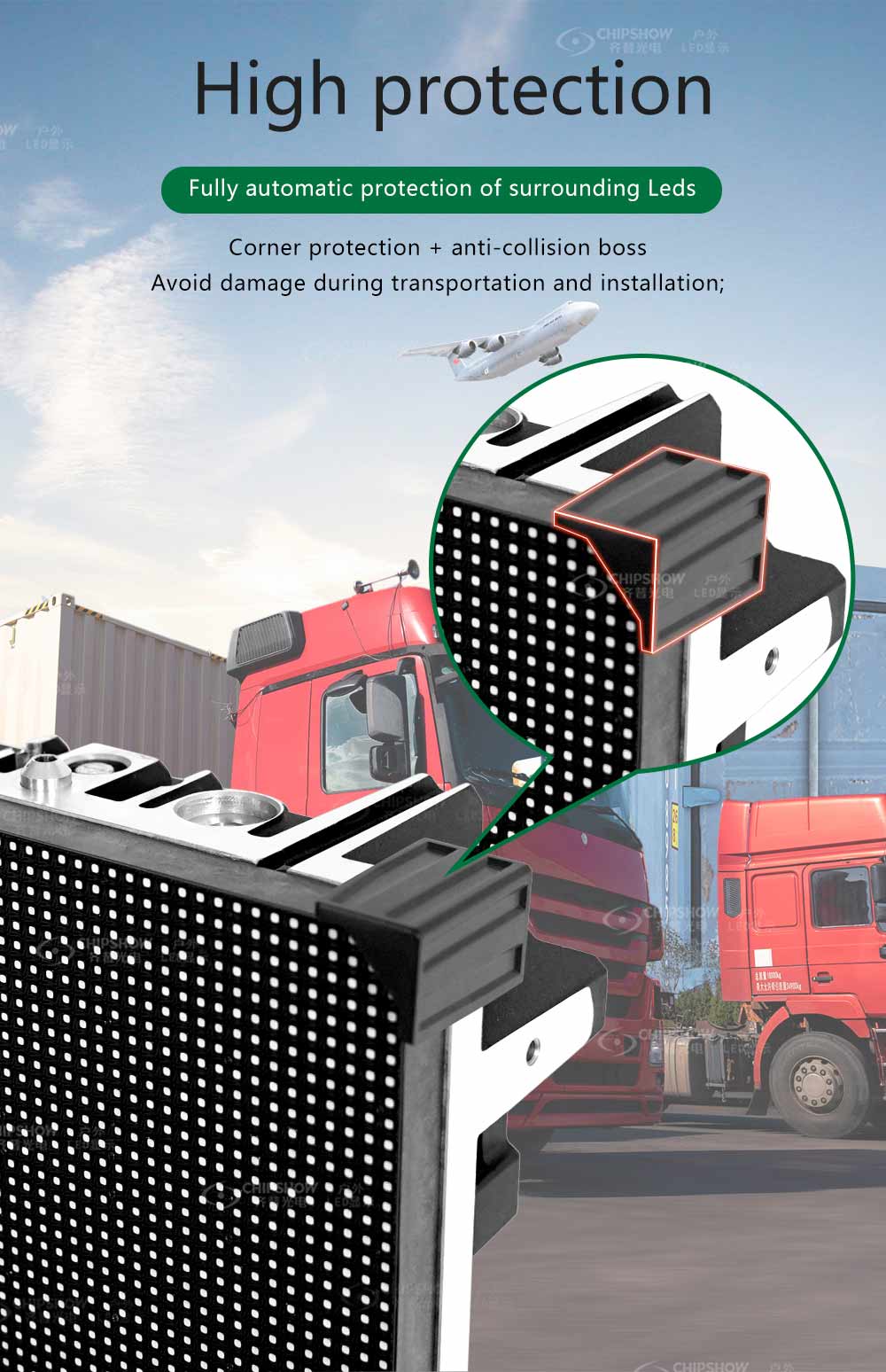

4. High protection: Corner protection+ anti-collision boss; Fully automatic protection of the surrounding Leds to avoid damage during transportation and installation;

5. Dual backup: Dual electric and signal backup can be selected to effectively solve the following problems: black screen, display error and unstable picture.

6. Over 5000m² global sales volume. Ready stock and fast delivery.

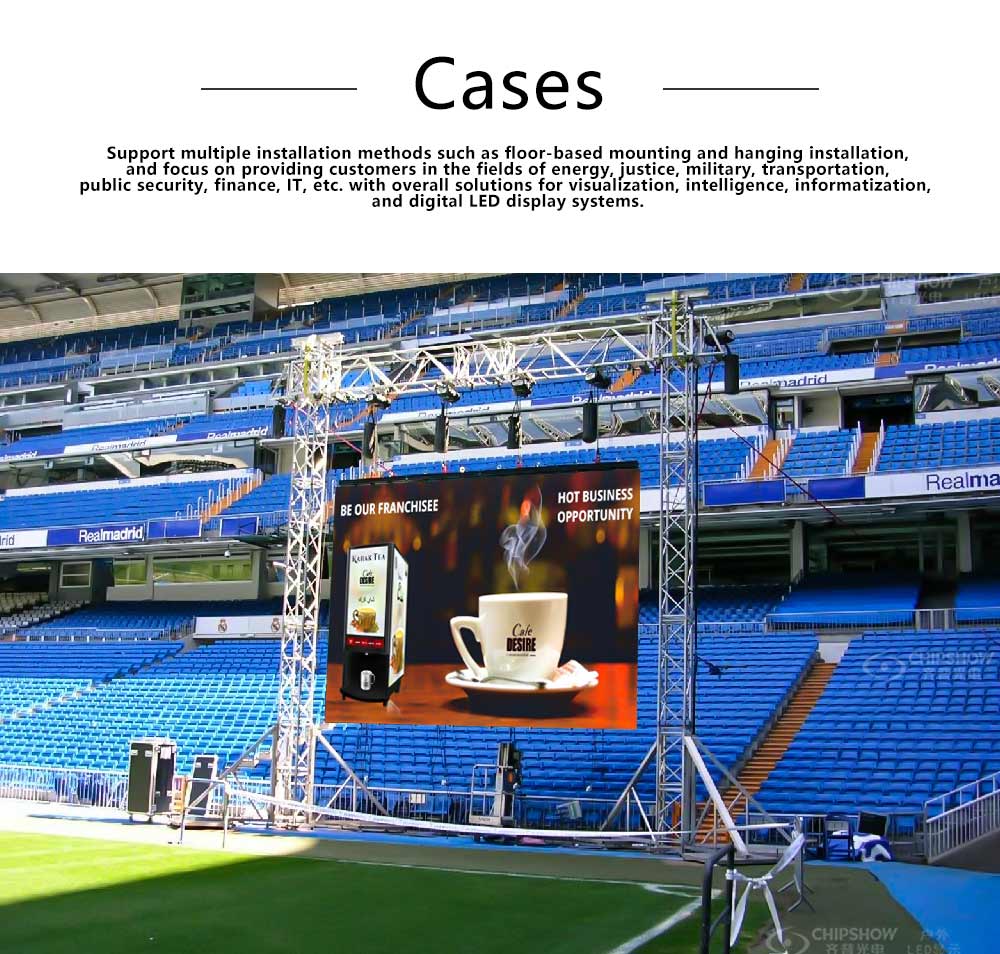

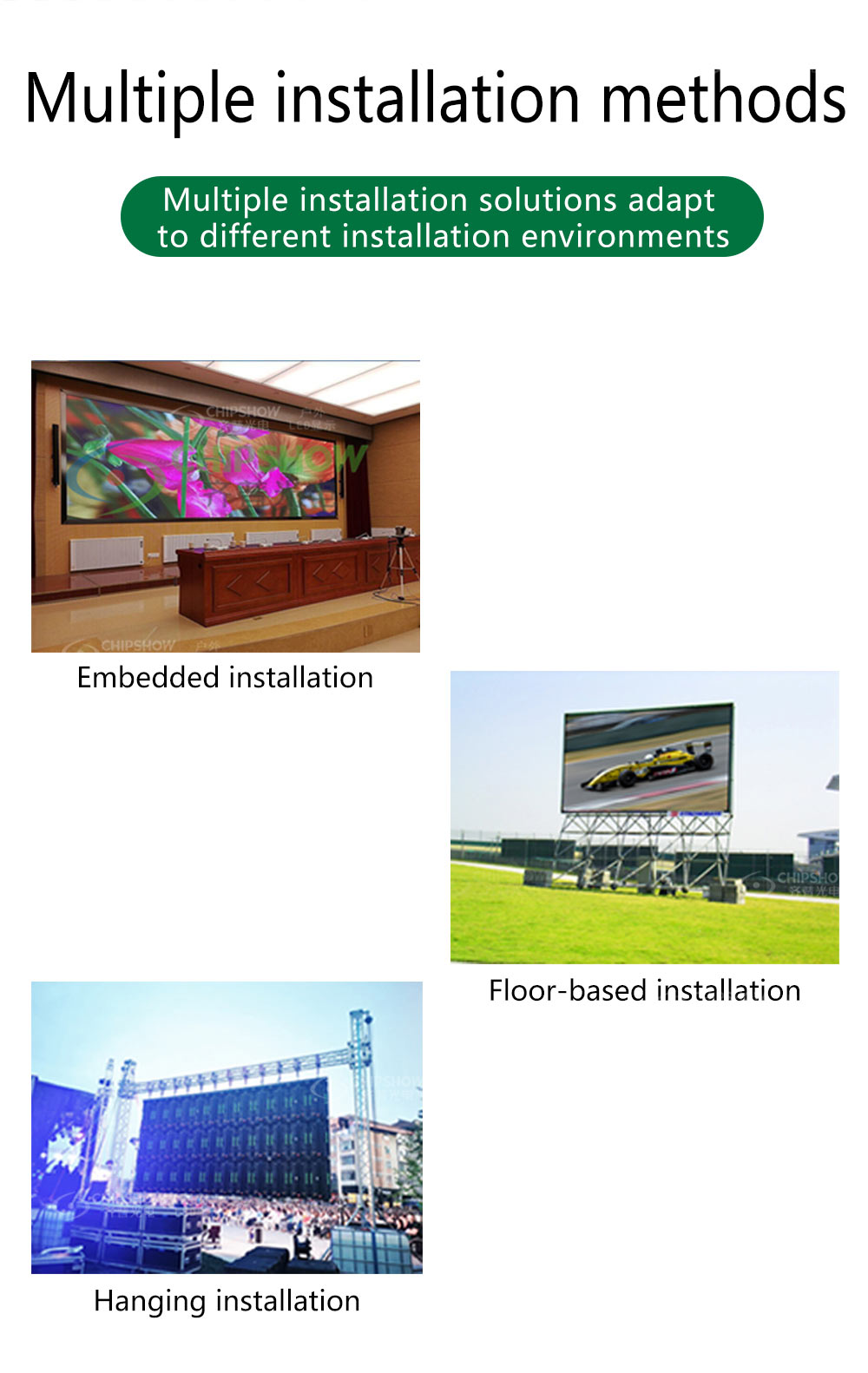

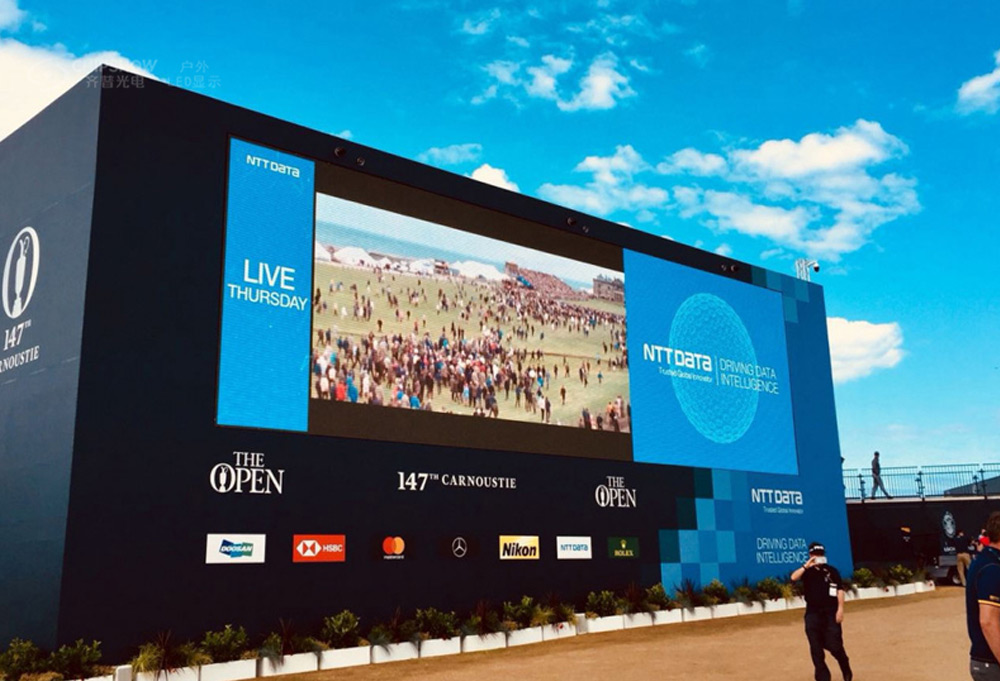

7. Multi applications: Support multiple installation methods such as floor-based mounting and hanging installation, and focus on providing customers in the fields of energy, justice, military, transportation, public security, finance, IT, etc. with overall solutions for visualization, intelligence, informatization, and digital LED display systems.

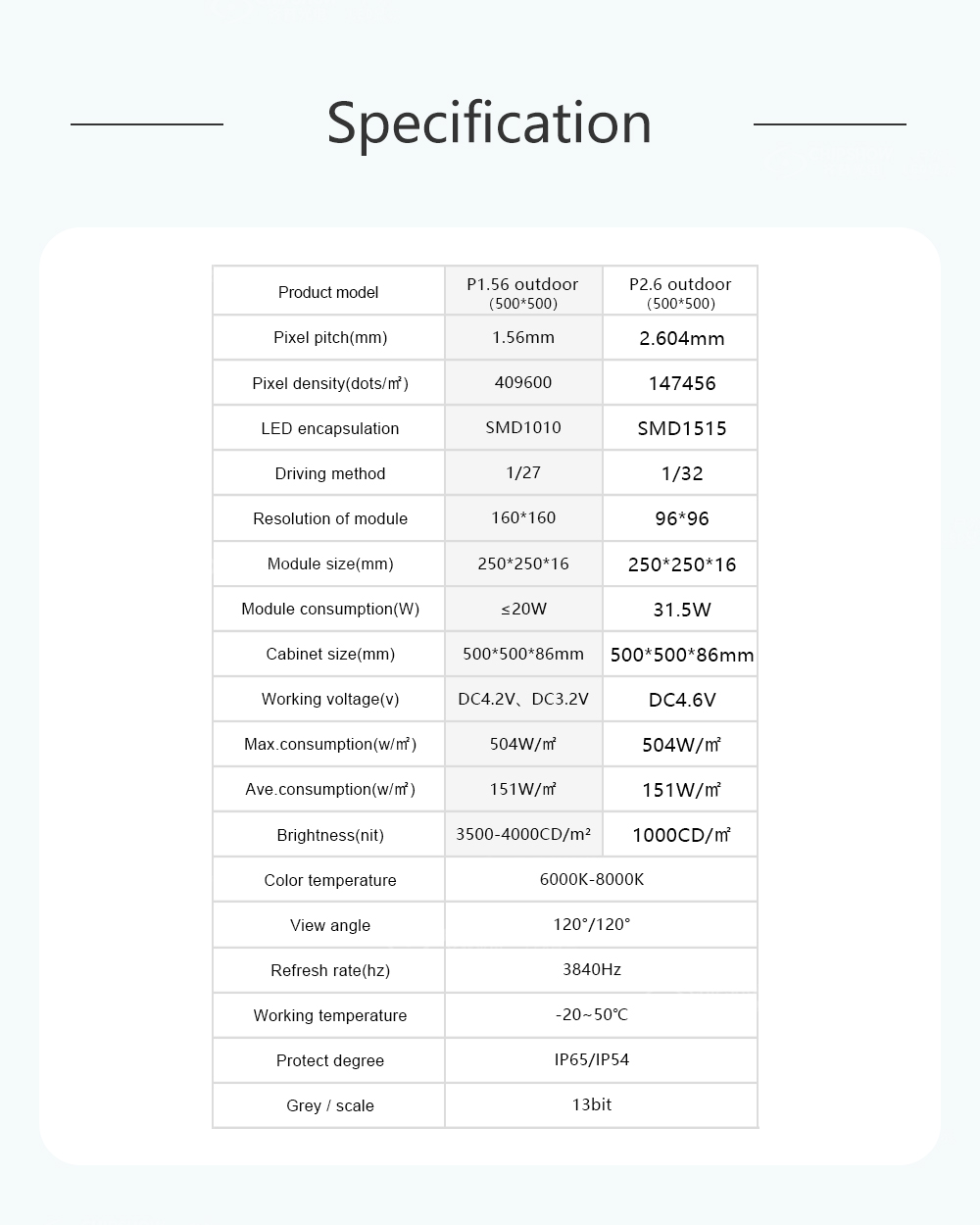

Item
Specification Parameter
Pixel Pitch、Resolution rate、size

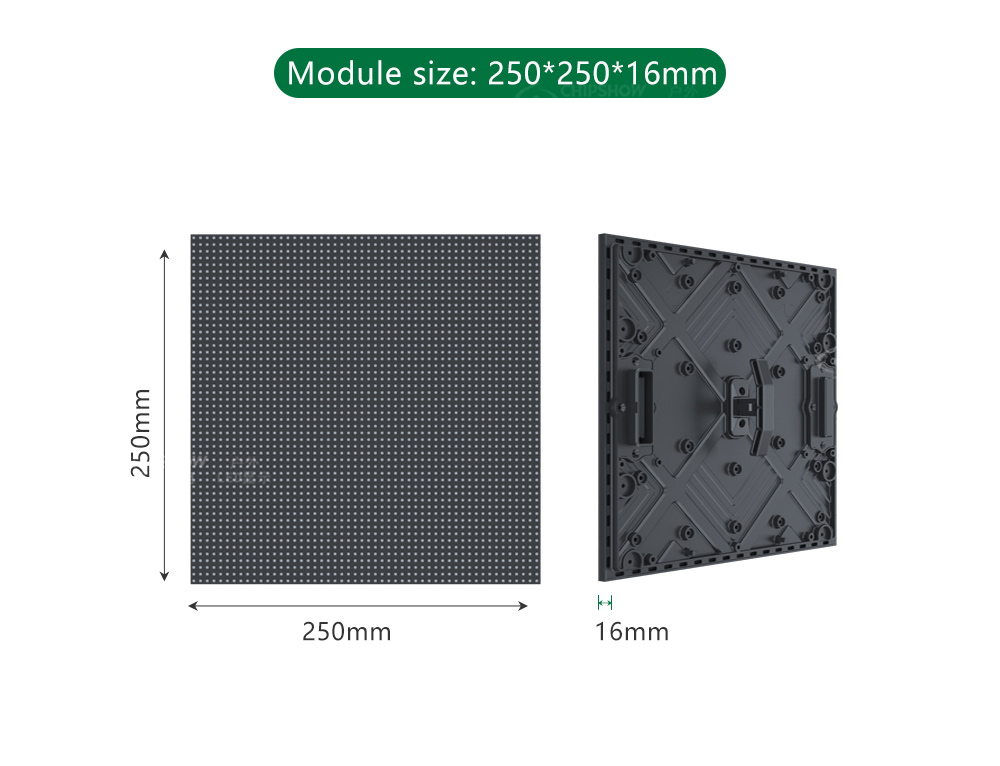

1.5625mm、160*160250*250*16mm

Pixel color Pixel LED


1R1G1B、 SMD1010
Working voltage、Module Power

DC4.2VDC3.231.5W


Working voltage、Module Power

DC4.2VDC3.231.5W


Driving IC、Driving way
ICN2159、1/27
HUB
-
Material、Cabinet Weight(kg/Cabinet)
Cast aluminum、7.3kg/Cabinet
Resolution rate、size、Module quantity

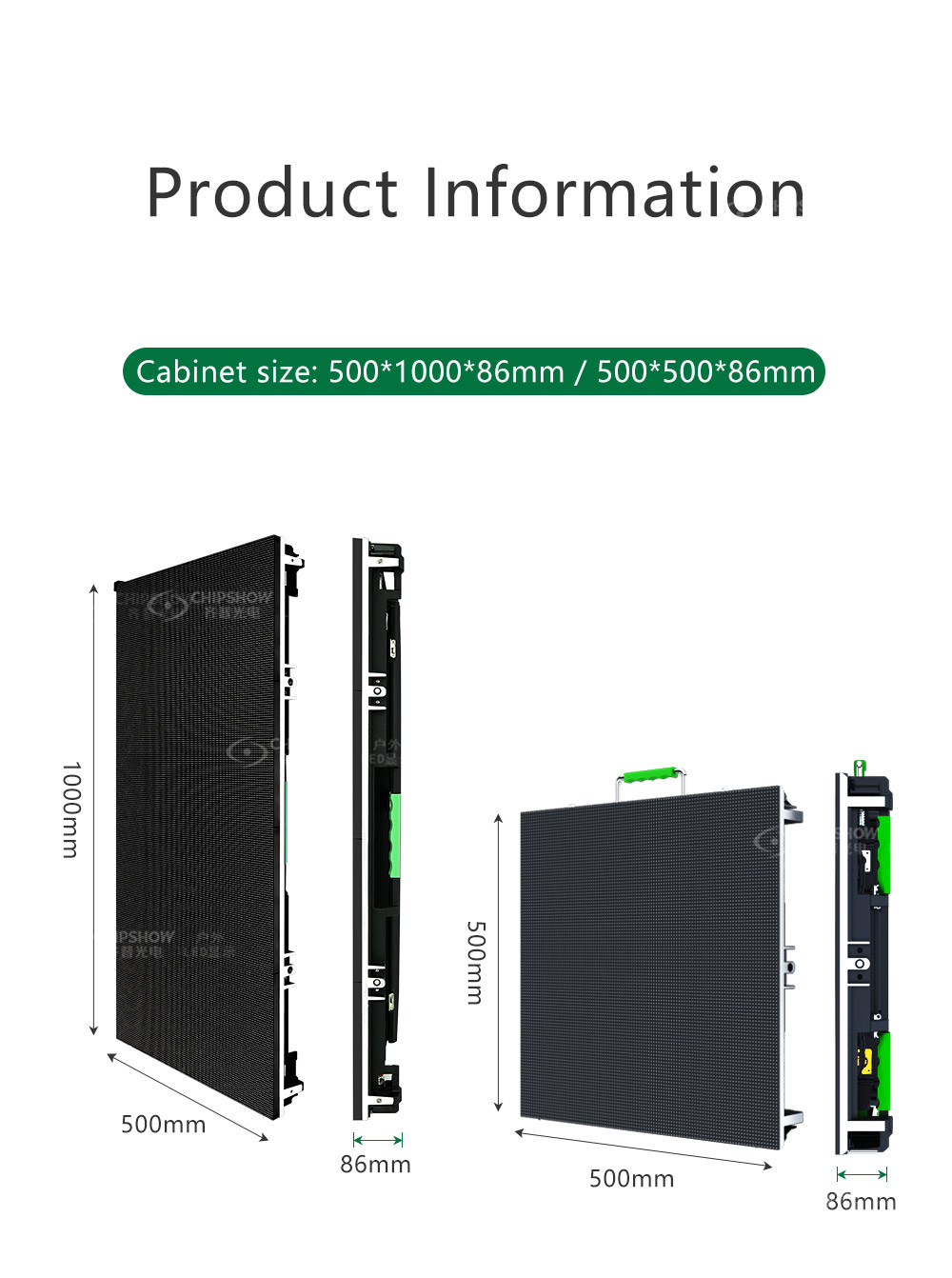

320*320Dots、500*500*86m2*2
Density
409600 Dots/㎡
White balance 、Color temperature
3500-4000 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
504W/㎡、≤151W/
Frame frequency、Refresh frequency、
60hz、3840Hz、≥13bit
Control system、System supports
CHIPSHOW,Windows XPWIN 7
Working temperature、Protection grade
-20~50℃、Front/BackIP40
