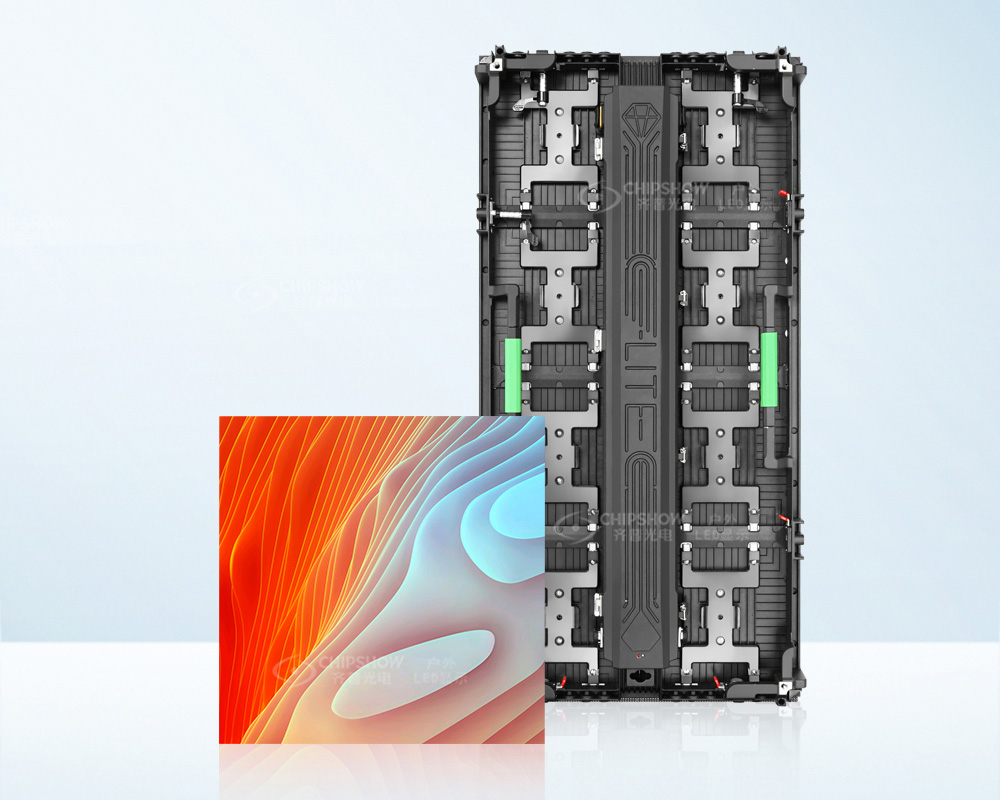

C-Lite-plus XR virtual shooting dedicated LED display p2.6p3.91

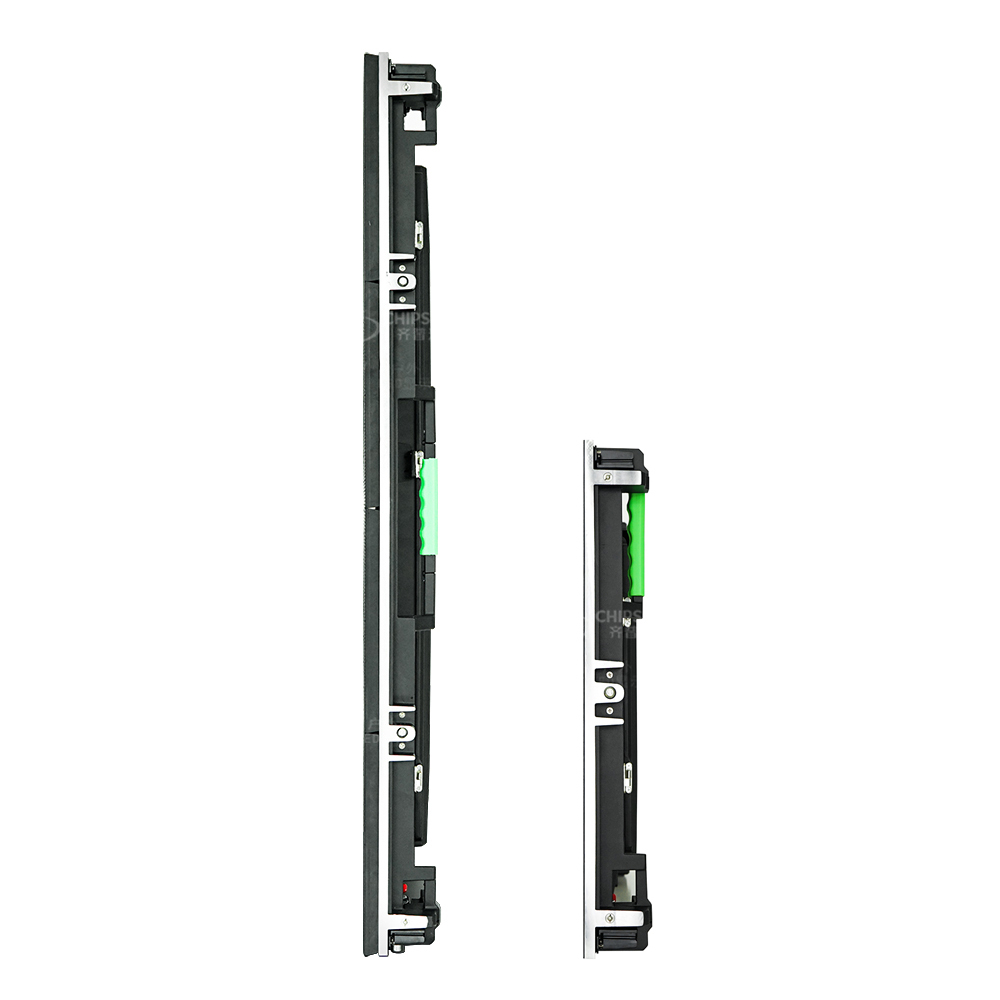

1.Fla:ADC12 high-strength die-cast aluminum cabinet, can be frequently assembled and disassembled without deformation, good flatness.

2.Practical:The extremely simple and practical design, firm handle, convenient fast lock, the simplest and most practical.

3.Magnetic locating:Fast and precise locating by the magnetic location pin on cabinet sides,  fast and easy installation for rental use.

4.Dual service:fast lock module design, easy maintenance from front or back.

5.Economical:Low cost, stable and reliable, and super cost-effective.

6.Global hot sale over 50,000 square meters. Ready stock, fast delivery.



led display


XR virtual shooting dedicated LED display


As you know, the popularity of XR virtual shooting has been very high in the past two years. All major production teams have begun to understand and use XR virtual shooting technology to complete high-quality films. For example, the Beijing Winter Olympics and the Mandalorian produced by Disney all use the XR virtual shooting technology of cash. This new technology can complete higher quality shooting at a lower cost, but at the same time, it has higher requirements for LED display. Therefore, we have specially developed an LED display applied to XR virtual shooting technology.


XR special display screen for virtual shooting


Global spot delivery


As you wish, we have this led display in stock in several warehouses around the world. When you need it, we can deliver it quickly. Or when you are close to our warehouse, we can arrange on-site pick-up.


LED screen

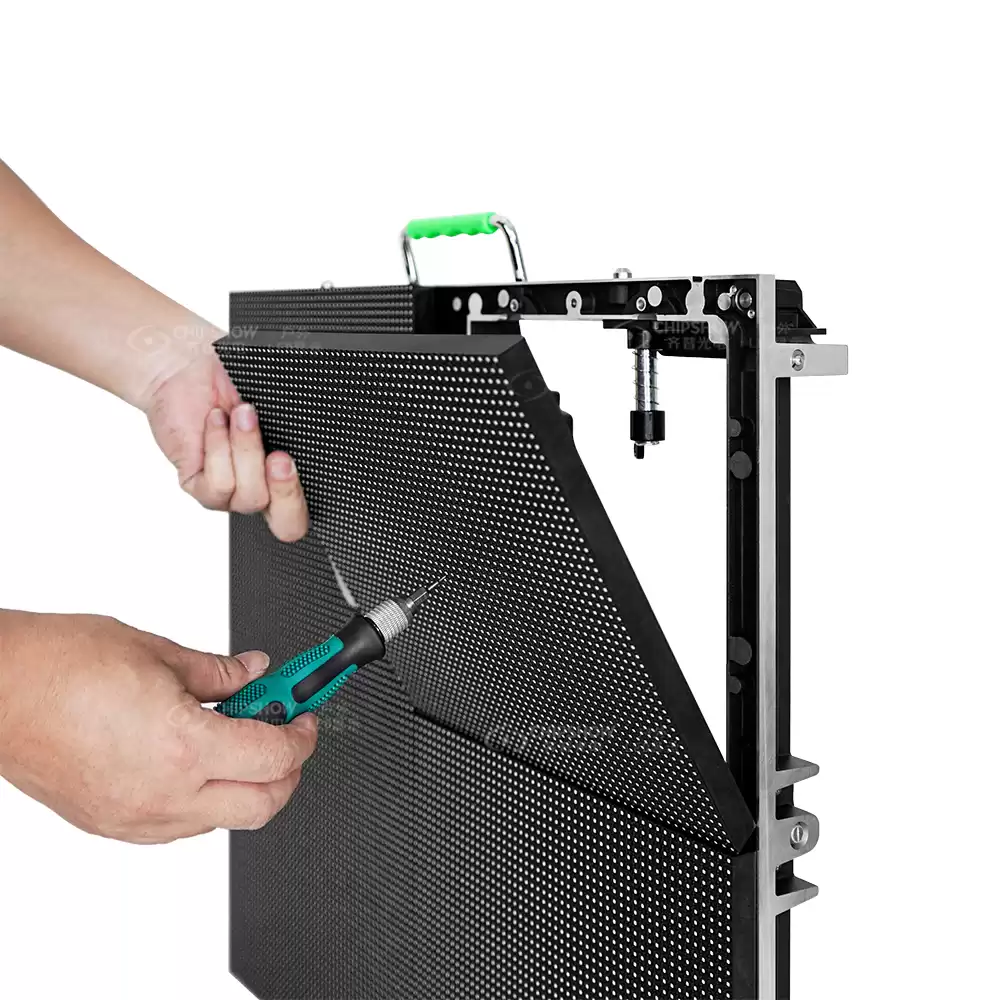

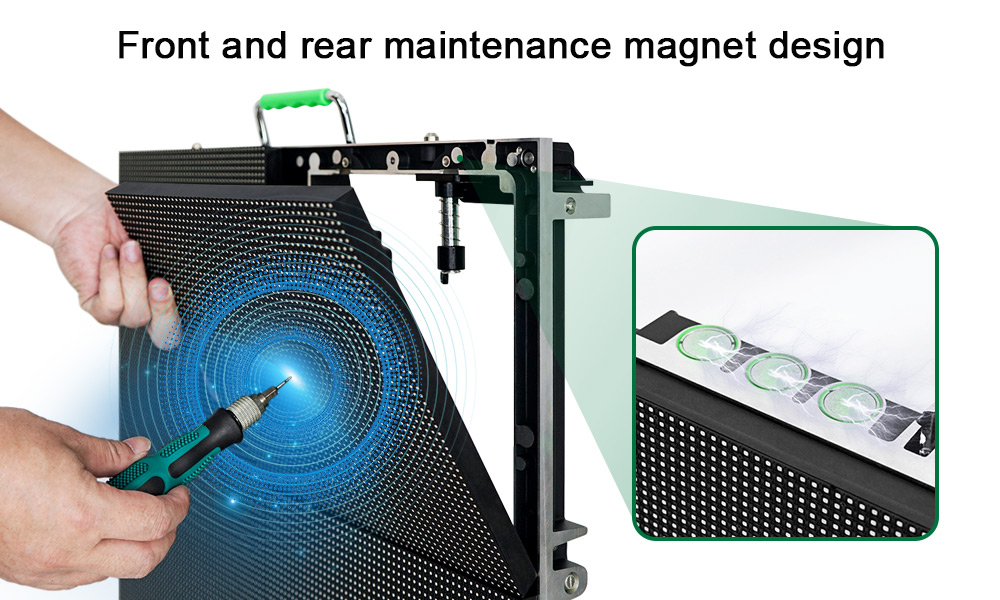

Front and rear maintenance magnet design

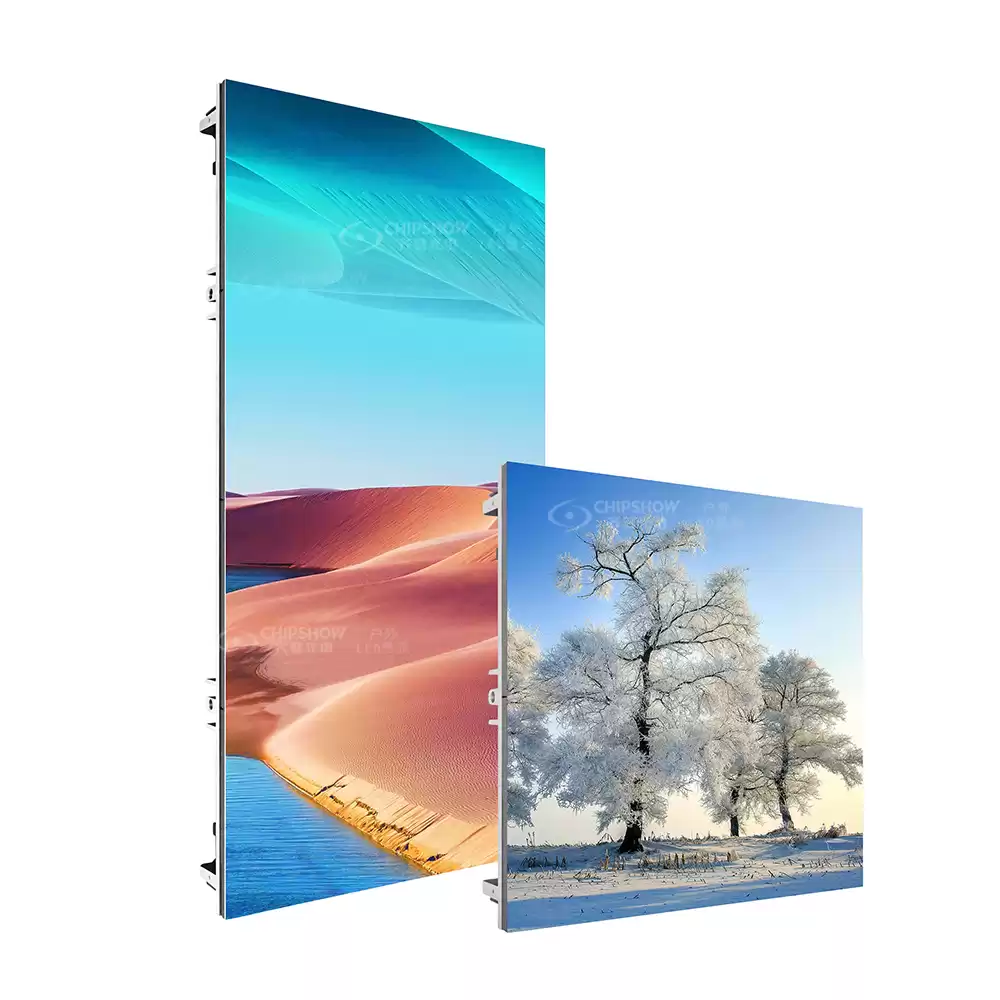

This special LED display for XR virtual photography is designed with aluminum alloy. The display made of this material has high flatness and better accuracy. No trace can be seen at the time of splicing, so the visual effect brought by the display will be better.


Rental display

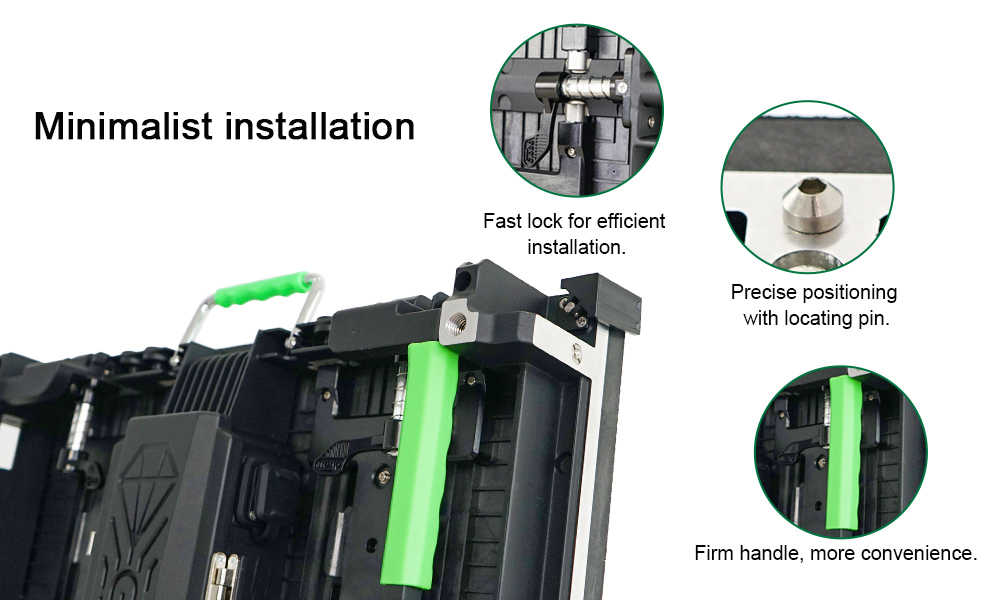

Minimalist installation

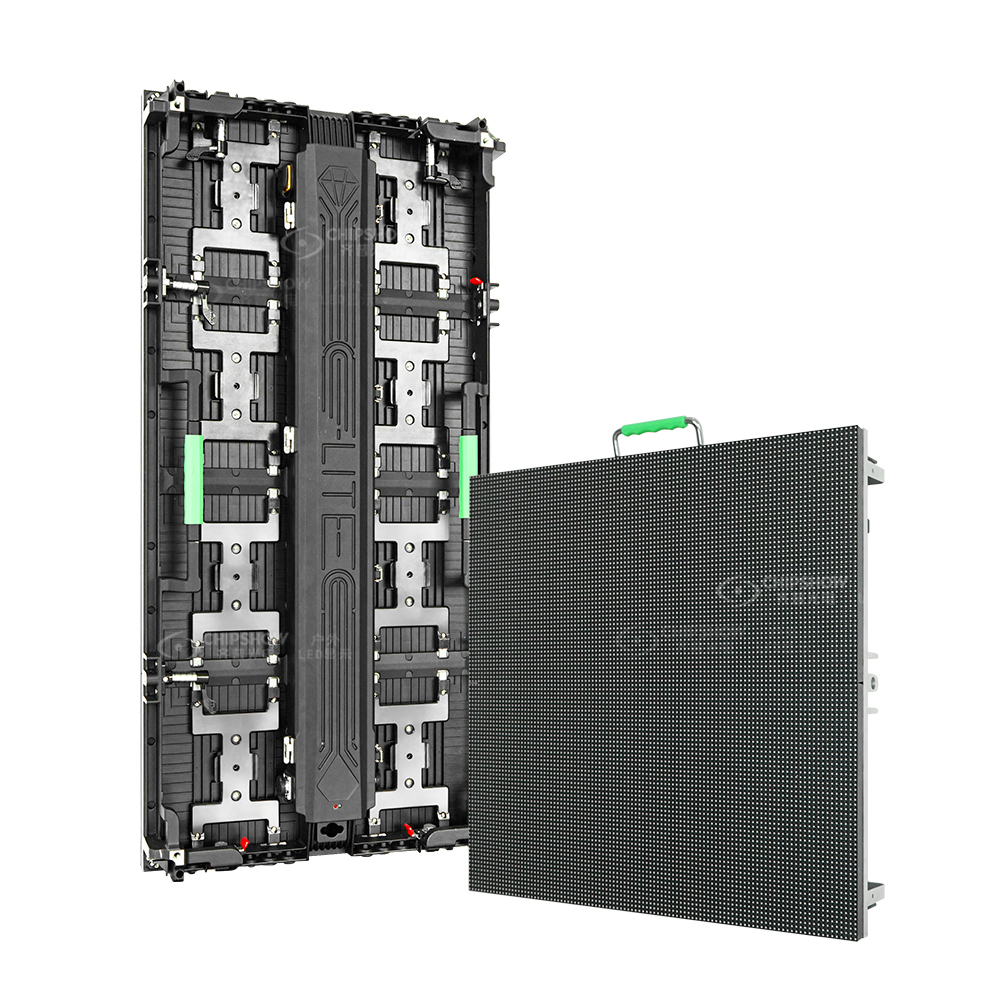

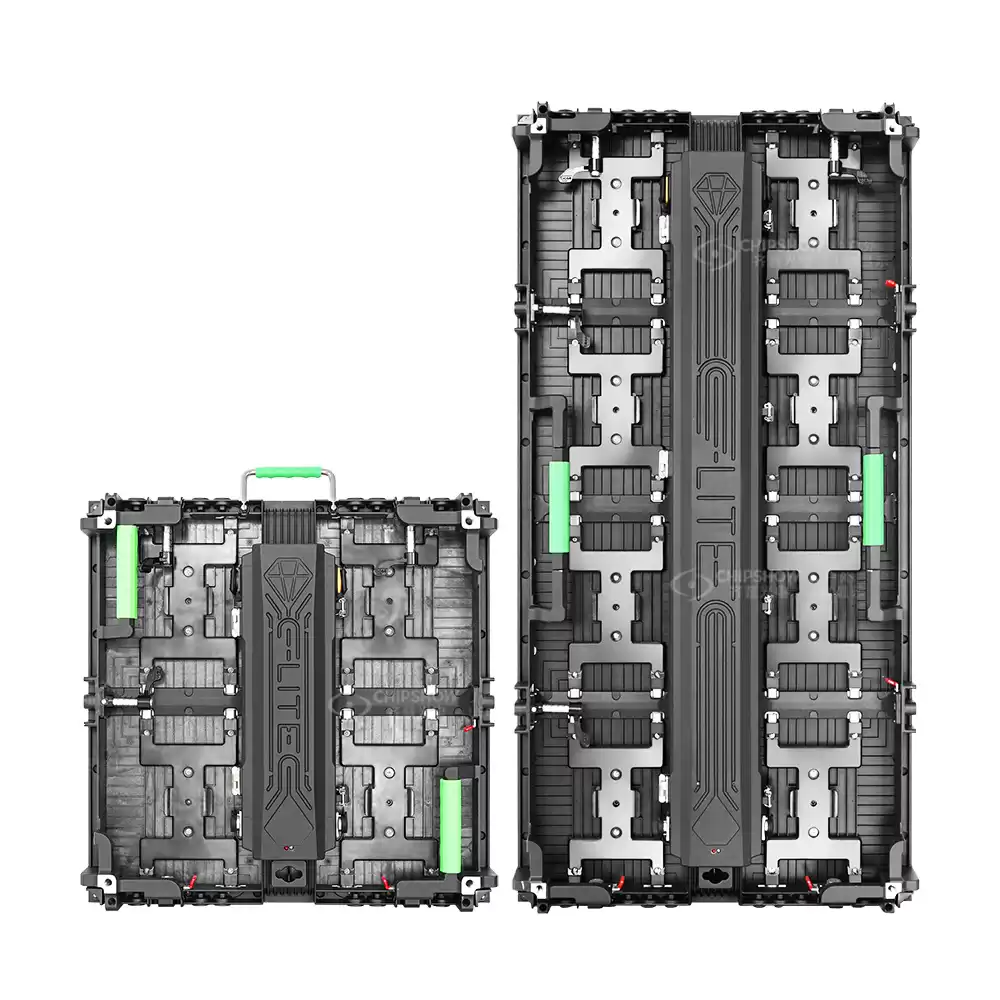

The material of aluminum alloy is not only high-precision but also lighter than other materials, so it is easier for us to install this led screen. At the beginning of our design, we considered that users may need to move it frequently, so we also upgraded the rental function of the LED screen. Yes, this display can also be called a rental display. Behind the LED display box is a wide handle and a quick lock, which is convenient and fast!


led wall

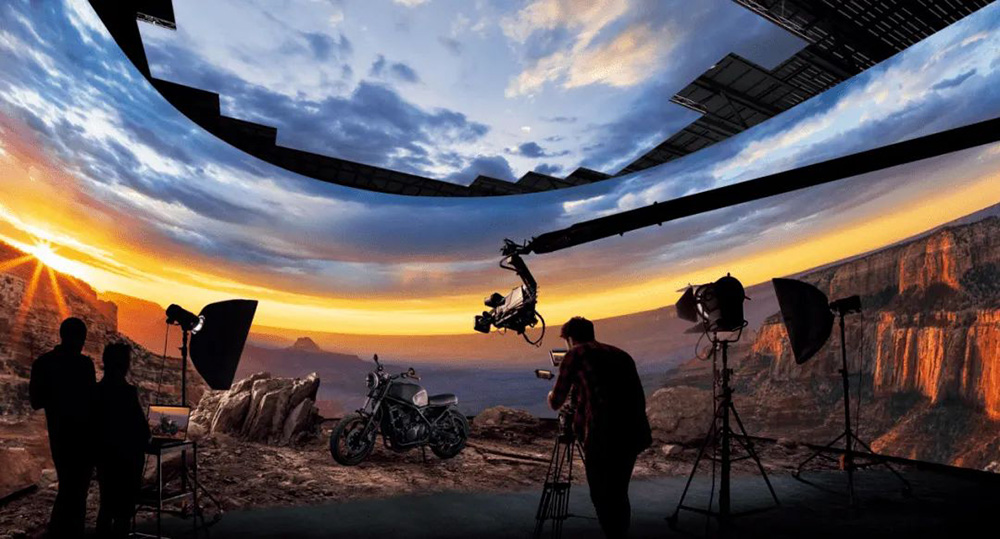

Application scenario


Video LED display


parameter


Item
Specification
Pixel Pitch、Resolution rate、size
3.91mm、64*64250*250*17mm

                                             Pixel color Pixel LED


1R1G1B、 SMD1921
Working voltage、Module Power

                             DC5V、≤45W


Driving IC、Driving way
ICN2153、1/16
HUB
HUB(AXS-500X500-PRO)-V1.0
Material、Cabinet Weight(KG/Cabinet)
Die-cast Aluminum、8kg/cabinet
Resolution rate、size、Module quantity
128*128Dots、500*500*89mm2*2
Density
65536 Dots/㎡
White balance 、Color temperature
4500CD/㎡、6000K-8000K
View angel、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
600/㎡、≤240/
Frame frequency、Refresh frequency、Gray grade
60Hz、3840Hz、≥13bit
Control system、System supports
CHIPSHOW,Windows XPWIN 7
Working temperature、Protection grade
-20~50℃、Front/BackIP65/IP54
