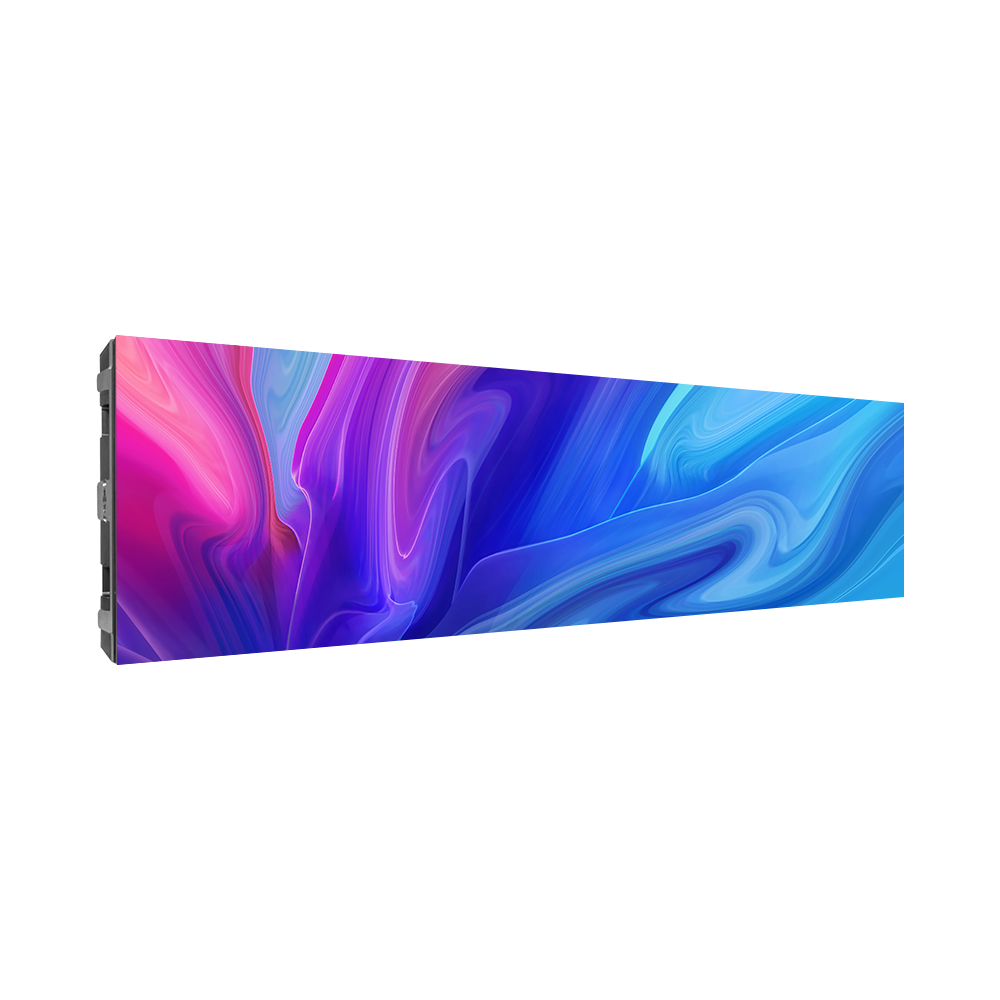

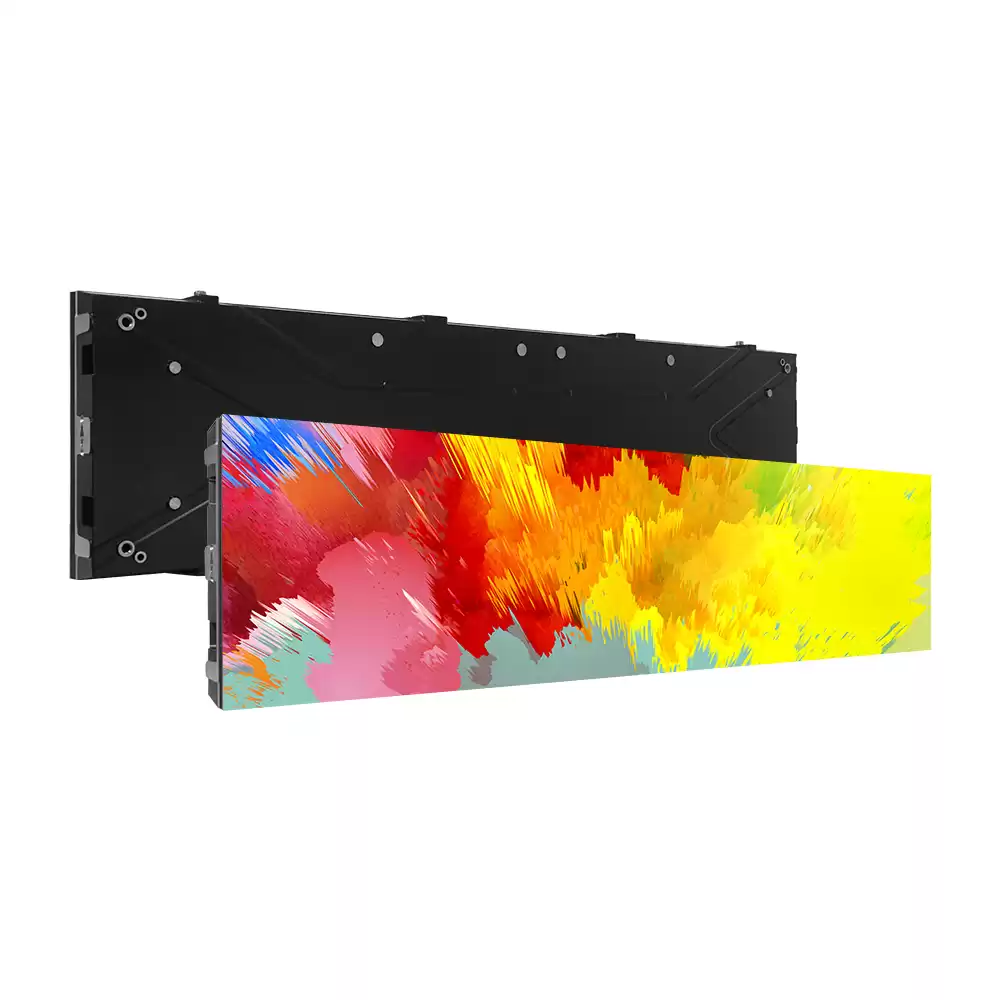

C-MAX indoor HD LED display p2.5 ultra thin high definition concert large screen

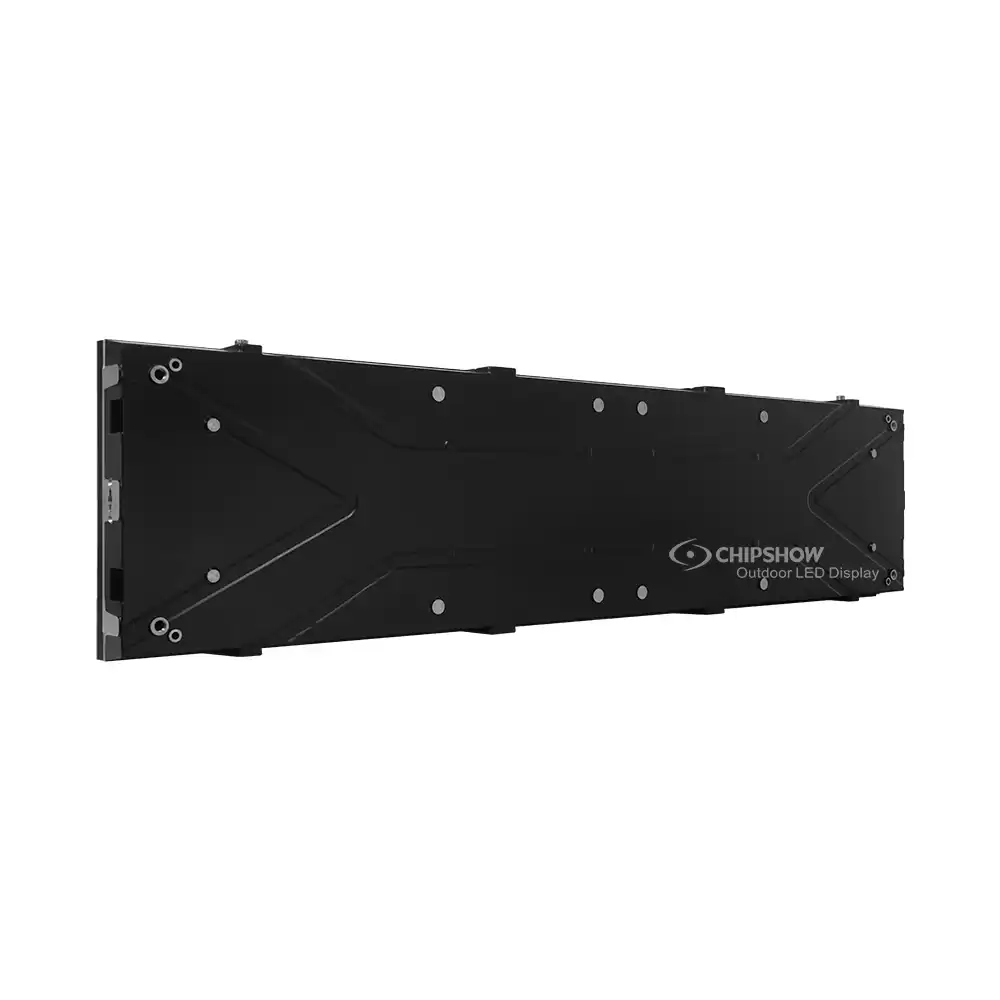

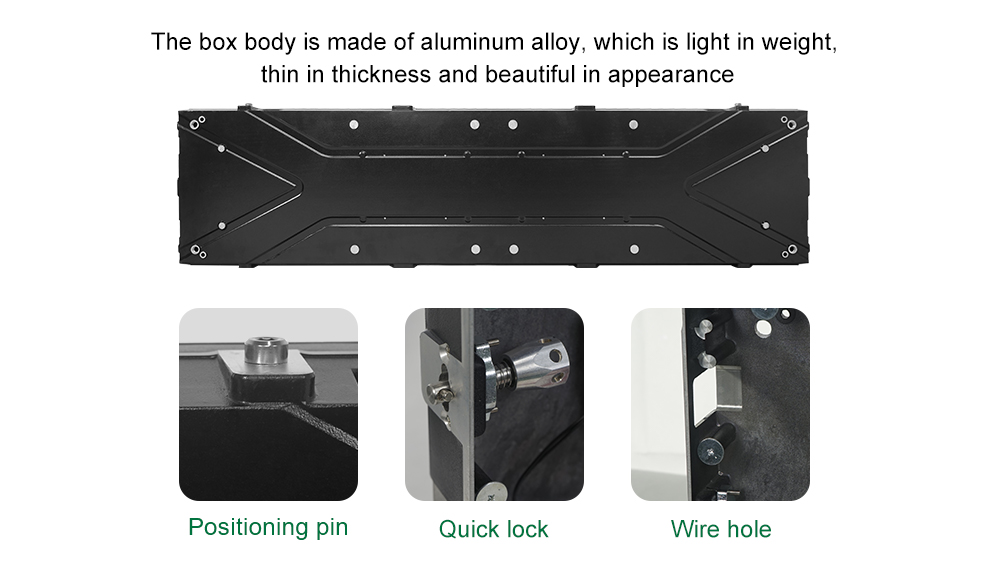

1.The box body is made of aluminum alloy, which is light in weight, thin in thickness, and beautiful in appearance;

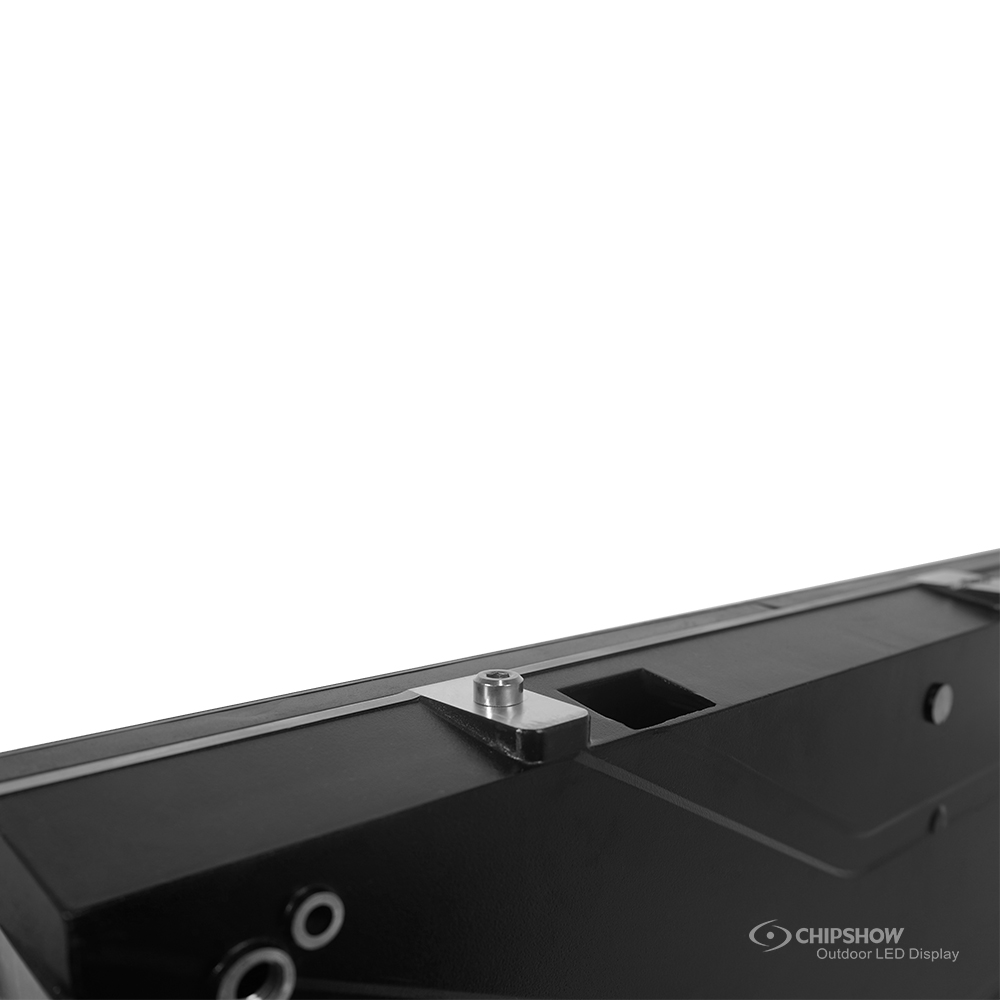

2.The module is completely front-maintained, has good flatness, and is easy to install and disassemble;

3.The box body adopts internal wiring, and the wiring is simple, which perfectly realizes the splicing of the box body;

4.The cabinet has good heat dissipation, no noise, energy saving and environmental protection;

5.The box body is installed on the wall, which is widely used in commercial display, indoor fixed advertising, auditorium, conference room, banquet, front hall, exhibition demonstration, transportation, studio, command and monitoring;

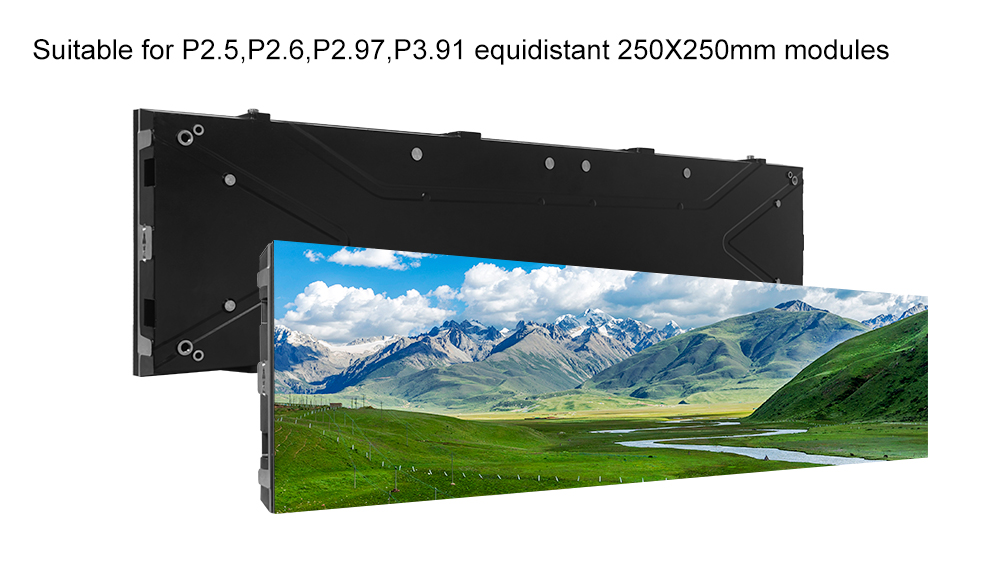

6.Suitable for P2.5, P2.6, P2.97, P3.91 equidistant 250*250mm modules;

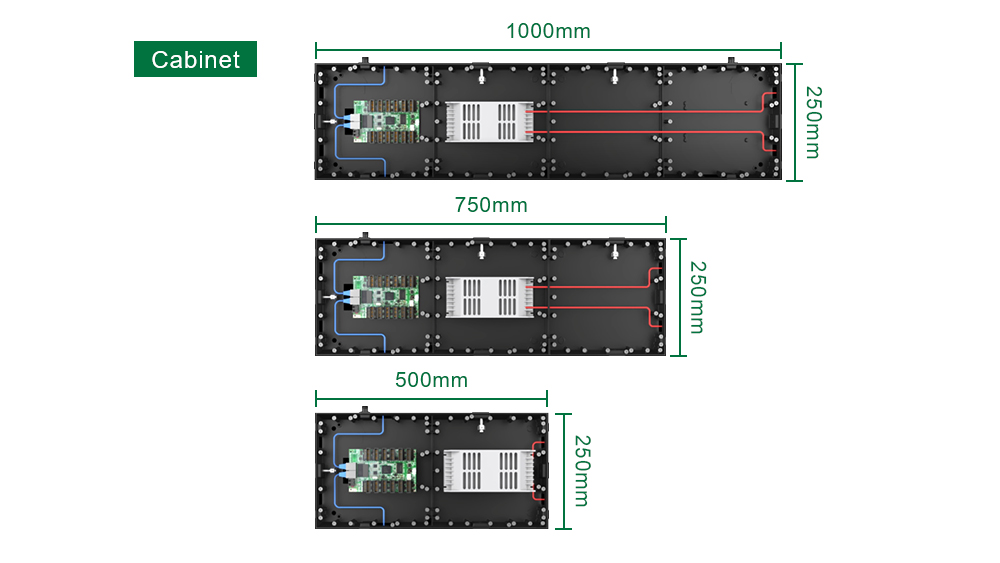

7.The box is easy to cut and can be made into the size of 1000/750/500*250 mm;


  • Warranty

Ultra high definition LED display C-MAX


indoor led screen


Multiple sizes

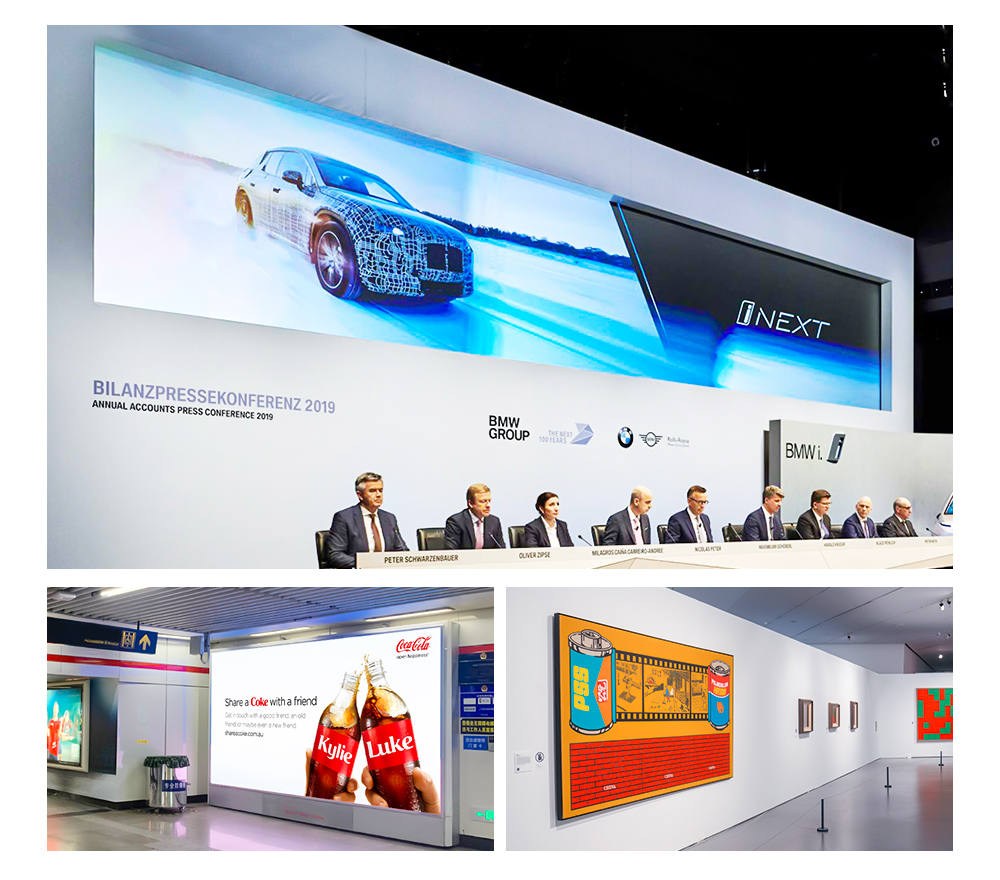

In order to meet the needs of different installation scenarios of LED display, we have designed several different product sizes. Users can install this display screen anywhere indoors, especially for shop advertisements, indoor concerts, wedding scenes, conference rooms, command rooms and other scenes.


led display


Ultra light, ultra-thin, beautiful and generous


This led screen adopts an aluminum alloy box, which not only has good heat dissipation, but also has light weight. It has low requirements for the strength of the installation structure and increases safety. In addition, the ultra-thin LED display requires less space and looks more beautiful when installed.


HD LED screen

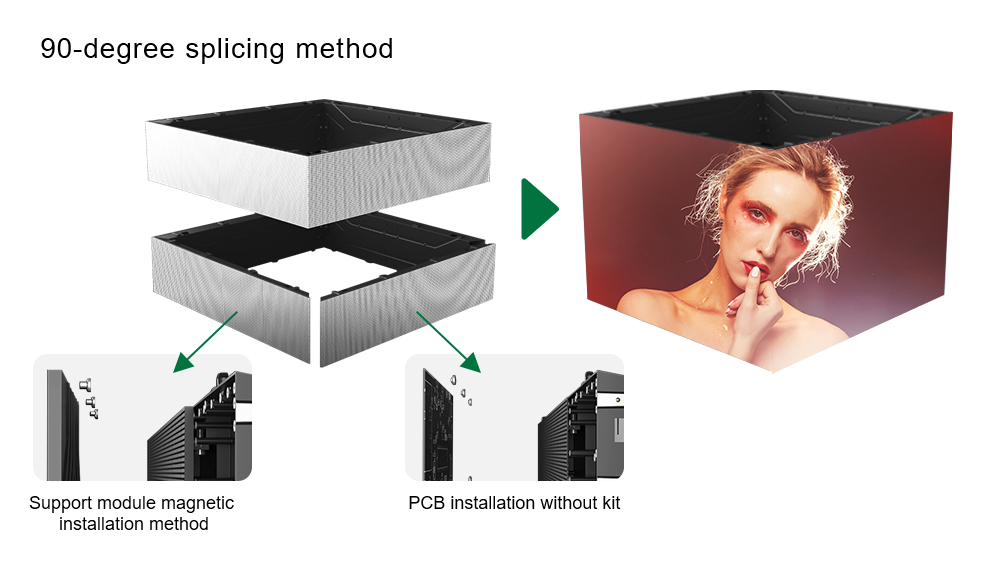

Interesting splicing methods


When you choose LED display, you should always consider its size. The various sizes of our C-MAX indoor HD display can meet most of the requirements. On the side of the LED display screen, a 45 degree angle is designed, which can realize the perfect splicing of 90 degrees between the boxes.


Ultra thin LED display


Installation scenario


Ultra thin display screen


Specifications


name
Specifications
Module dot pitch, resolution, size
2.5mm、100*100、250*250*16mm
Pixel structure, LED packaging method
1R1G1B、 SMD1515
Working voltage, module power

DC4.6V≤30W


Working voltage, module power

DC4.6V≤30W


Driver IC, scanning method
ICN2153、1/25
HUB
-
Box material, box net weight (kg/box)
Cast aluminum、6.5kg/Cabinet
Cabinet resolution, size, module
400*100 Dots、1000*250*46m、4*1
Pixel density
160000 Dots/㎡
White balance brightness, white balance color temperature
1000 CD/㎡、6000K-8000K
Viewing angle, screen flatness, module gap
H/V:120°/120°、<0.2mm、<0.2mm
Maximum power, average power
≤500W/㎡、≤150W/㎡
Frame change frequency, refresh frequency, grayscale/color
60hz、1920Hz-3840Hz、≥13bit
Control system, system support
CHIPSHOW,Windows XP,WIN 7
Working temperature, protection level
-20~50℃、Front/Back:IP40
