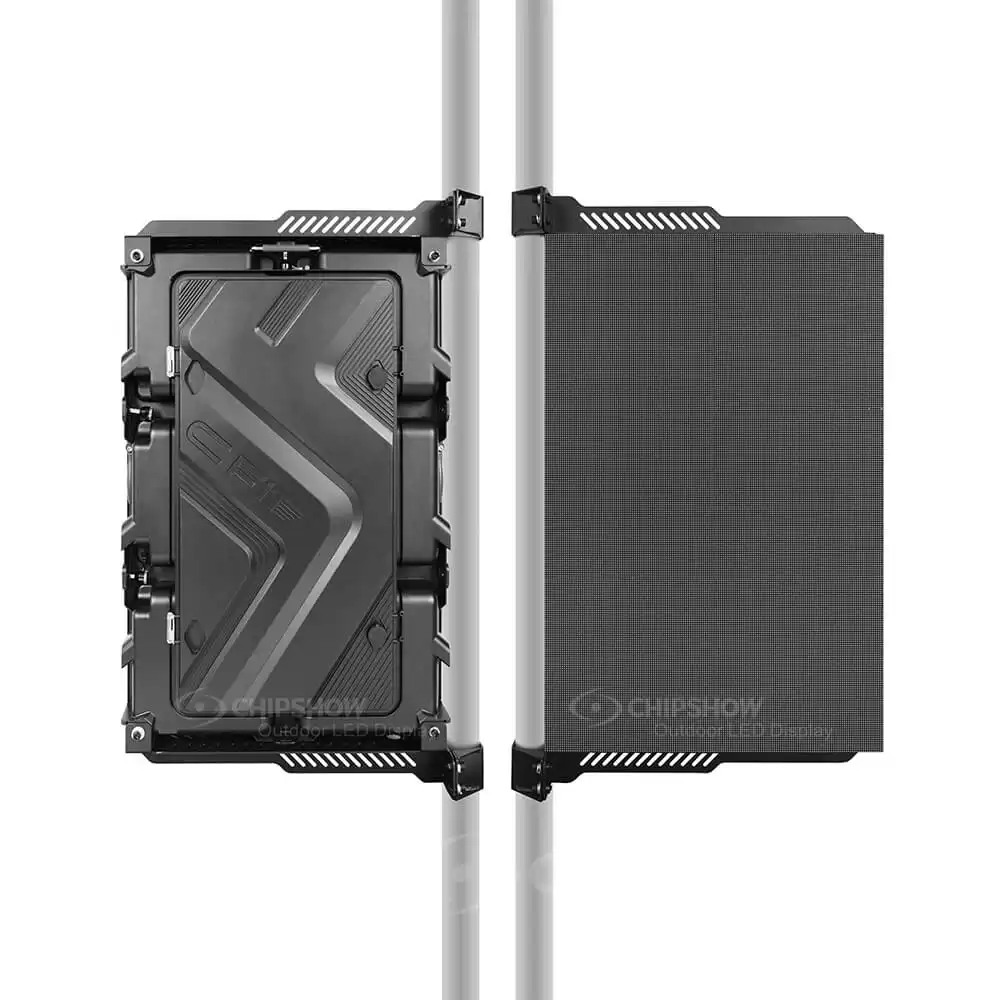

C-Pole P4 Outdoor Pole LED Advertising Screen

Features:

1. Intelligent lighting

It can adjust the brightness and color of the lighting adaptively according to the climate area, environmental brightness, etc., to achieve the best lighting effect, and the best power source energy saving.

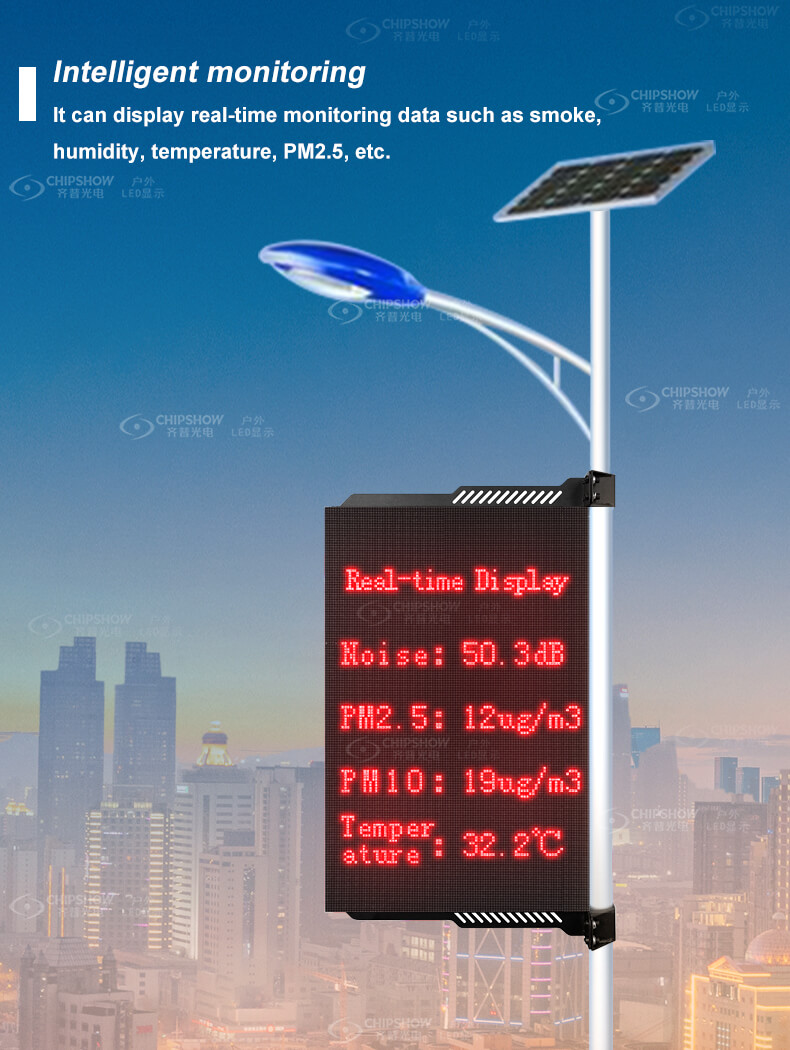

2. Intelligent monitoring function

With smoke, humidity, temperature, PM2.5 monitoring, remote power switch, voice and video interaction, face recognition and other functions.

3. News broadcast

The smart pole should have a networked broadcast function module, which can broadcast to people in the area in time when there is an emergency safety situation.

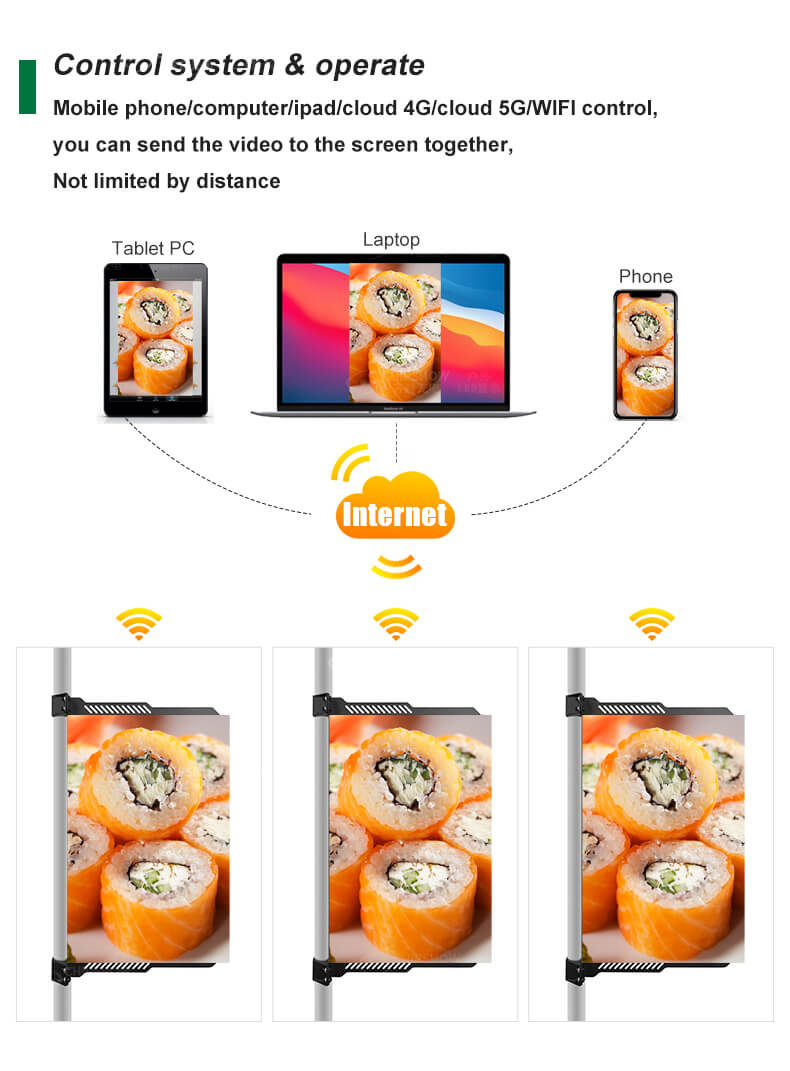

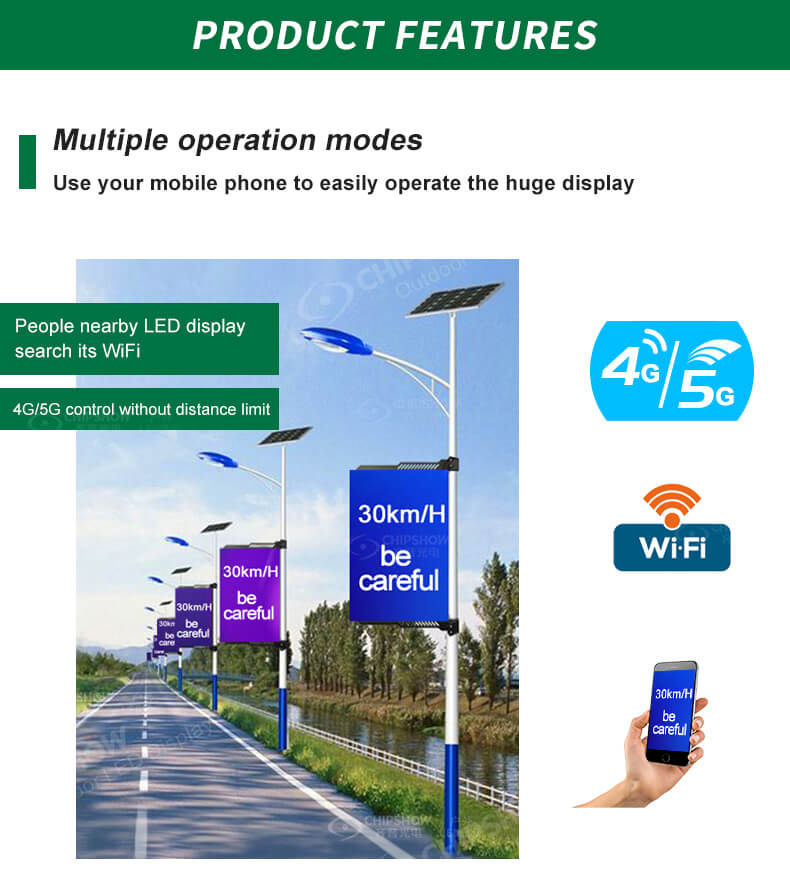

4. Information release and 4G/5G networking remote control

Large-scale networking, unlimited number of LED display networking, fast transmission speed, suitable for sending videos, animations, pictures and other programs.

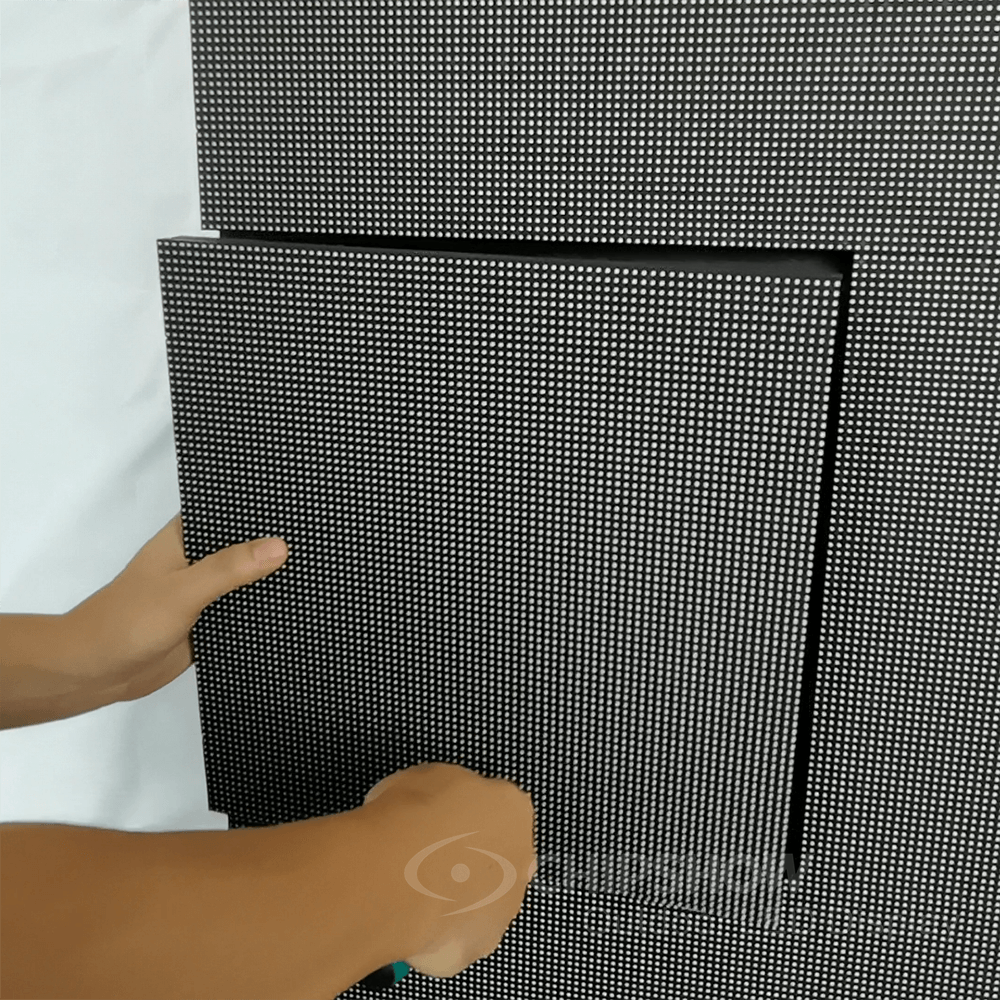

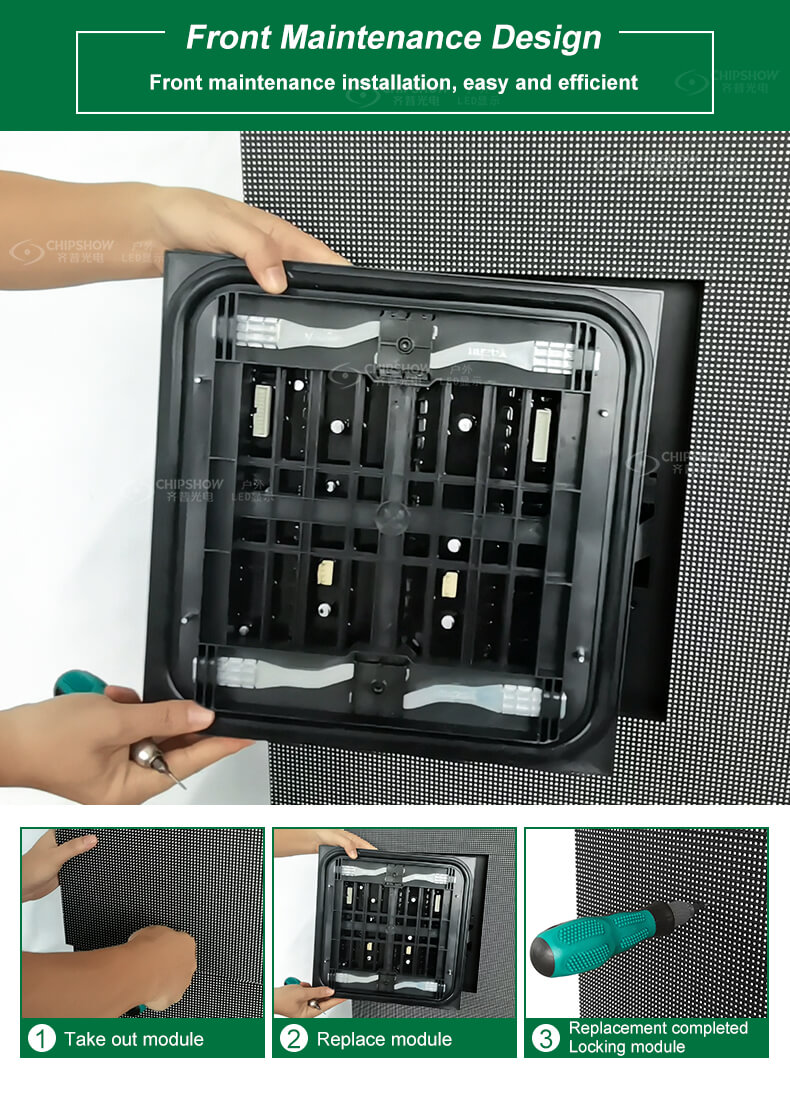

5. Product modular design

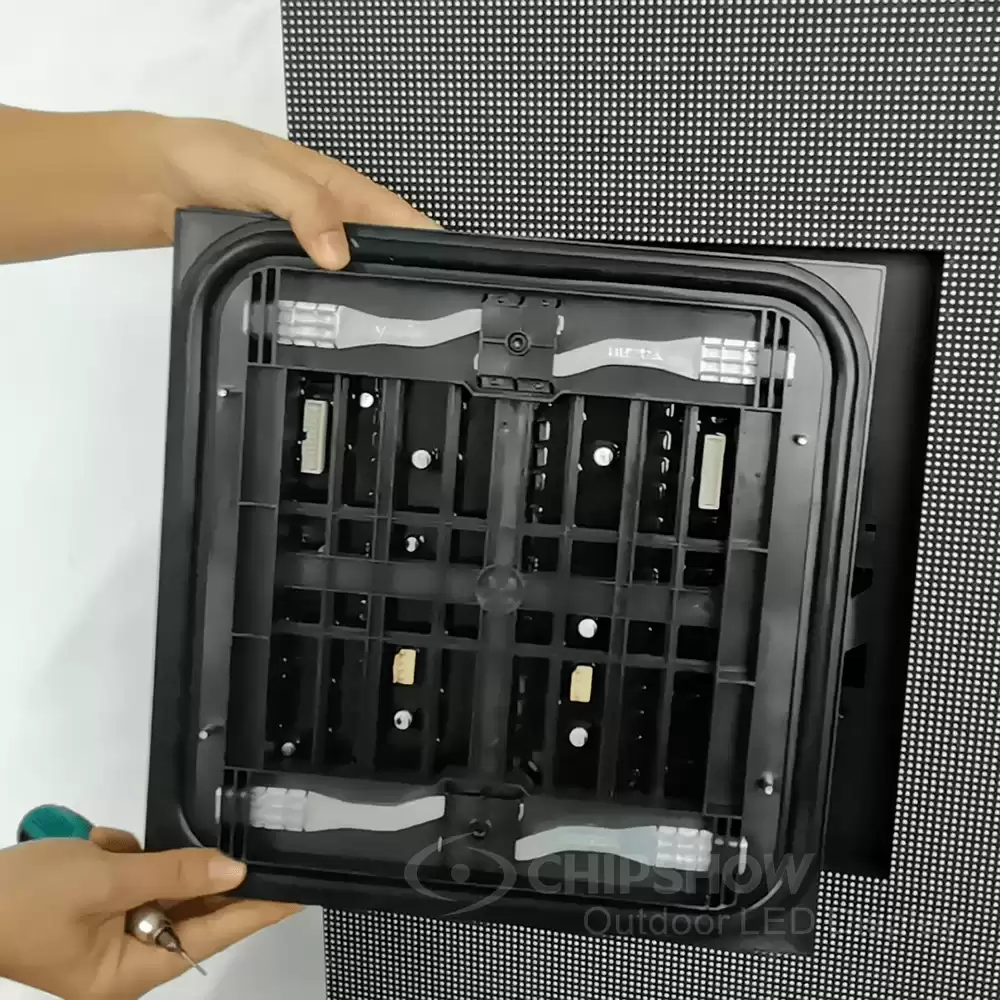

With front and rear maintenance functions, convenient for future maintenance and overhaul.

6. High product protection level

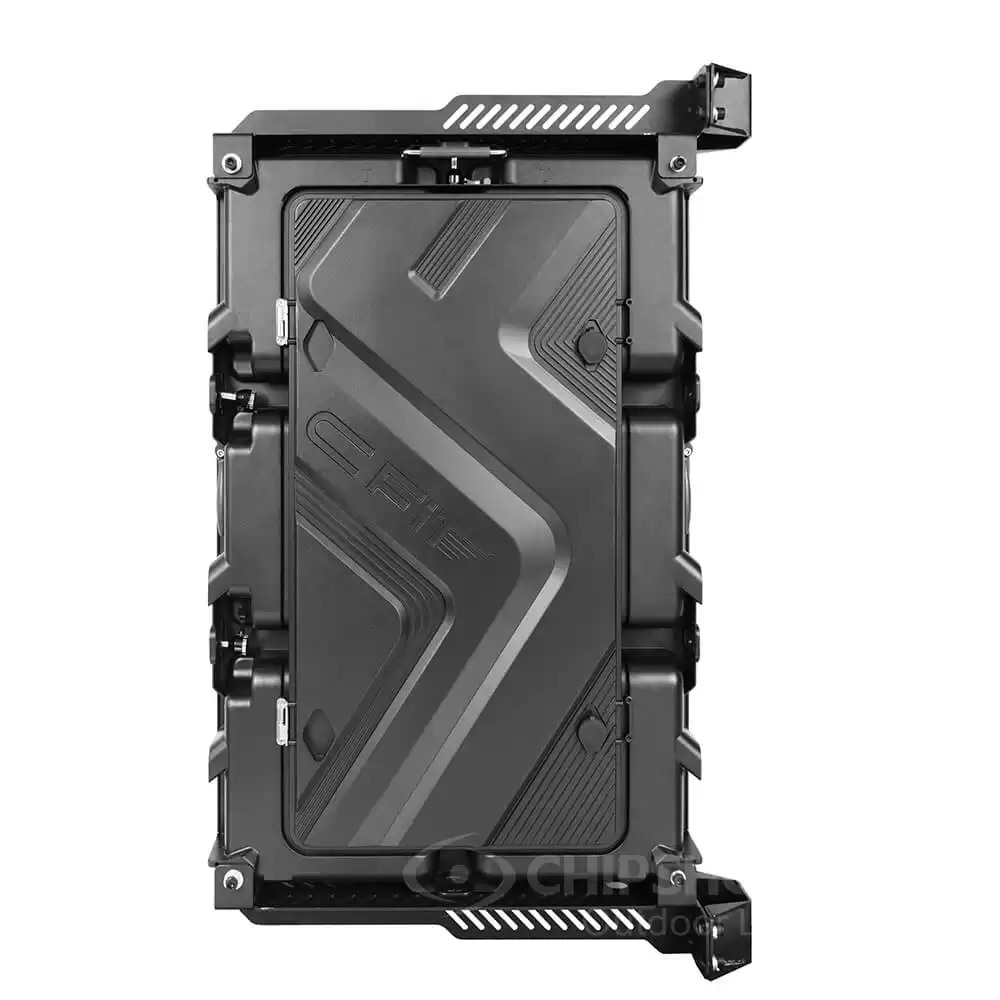

The special magnesium alloy die-casting box structure ensures that the box can reach lP65 (front) and the rear can reach lP54.




Specifications

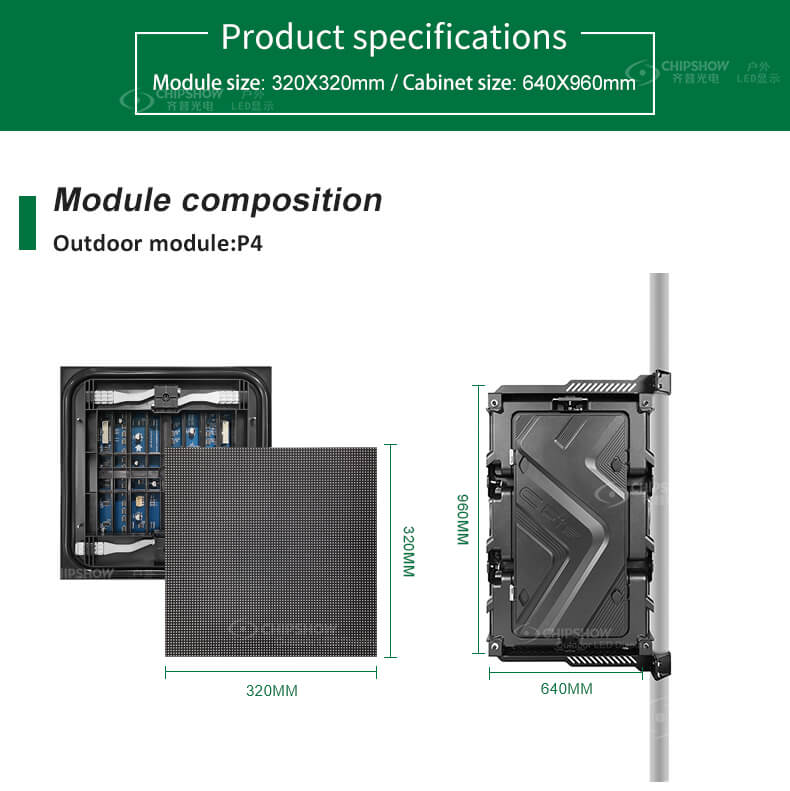

Module

Pixel Pitch

4mm

Resolution rate

80*80Dots

Size

320*320mm

Pixel color

1R1G1B

Pixel LED

SMD1921

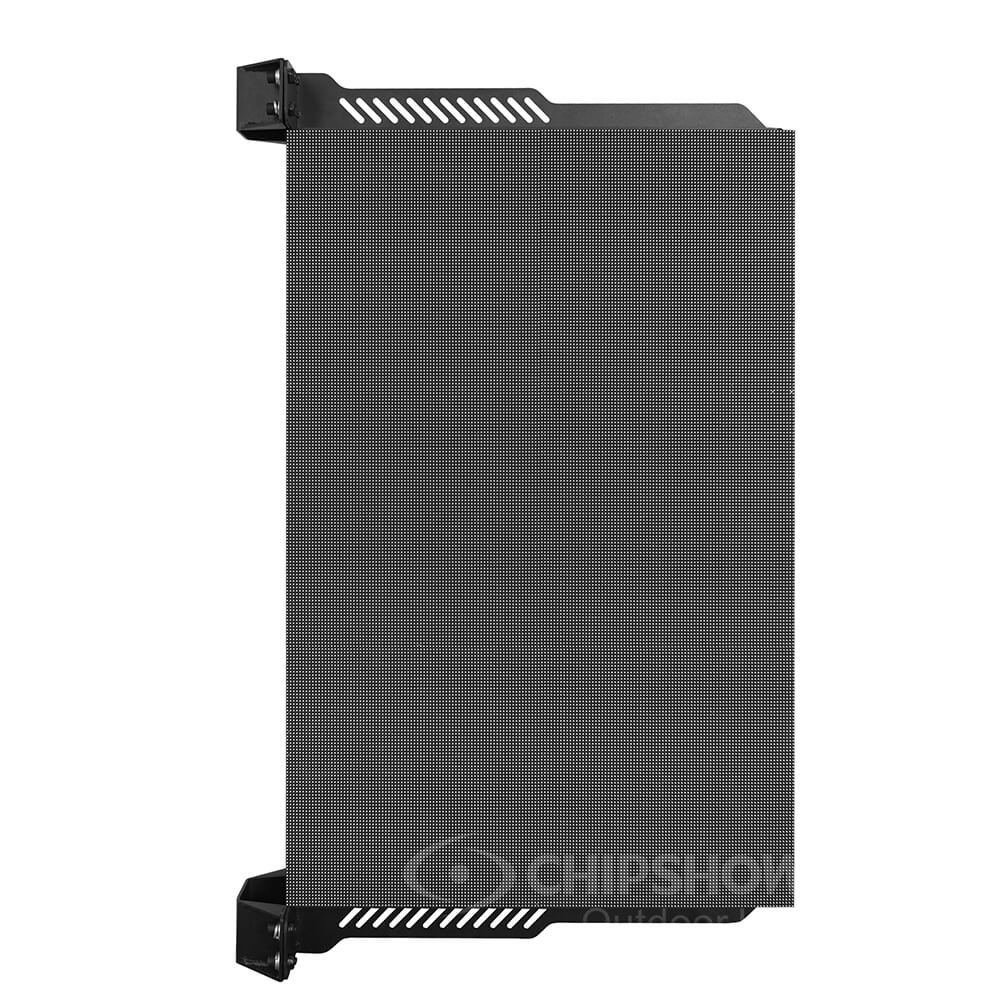

Cabinet

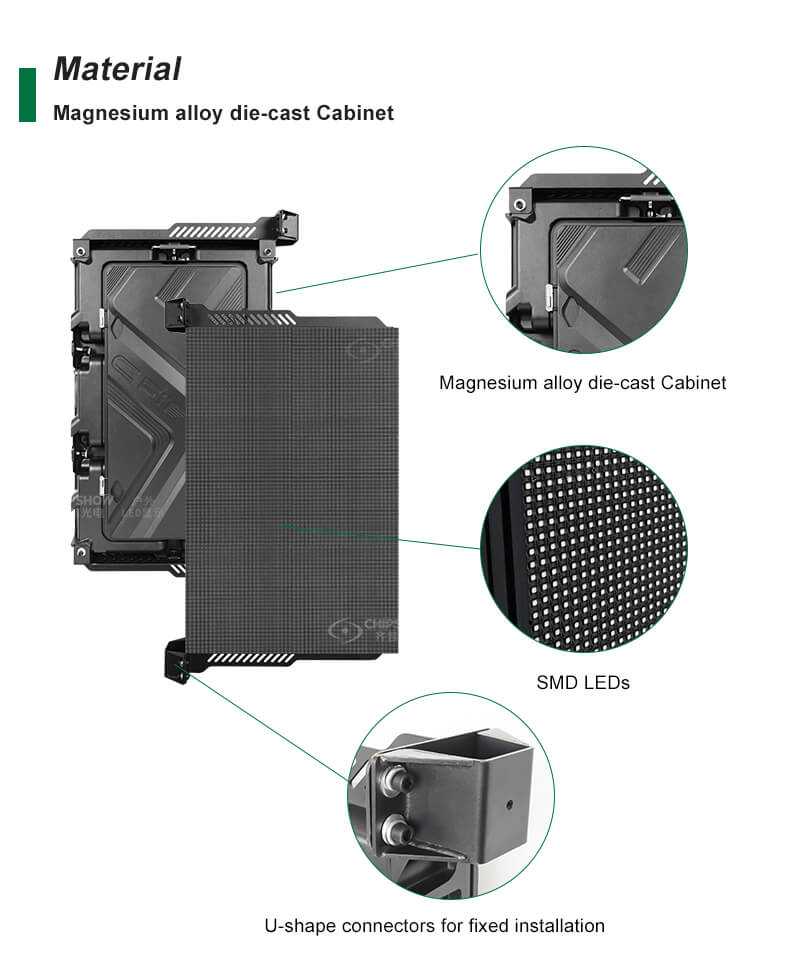

Material

Die-cast magnesium alloy

Cabinet Weight
<25kg/Cabinet

Resolution rate

160*240Dots

Size

640*960*87.5mm

Module quantity

2*3

Density

62500 Dots/㎡

White balance

5500cd/㎡

Color temperature

6000k-8000k

Maximal power

<800w/㎡

Average power

<240w/㎡

Frame frequency

60hz

Refresh frequency

3840hz

Gray grade

13bit

Working temperature

-10 ~60℃

Protection grade

front/rear: IP65/IP54


Product Tags pole LED display          pole LED screen          pole LED sign
