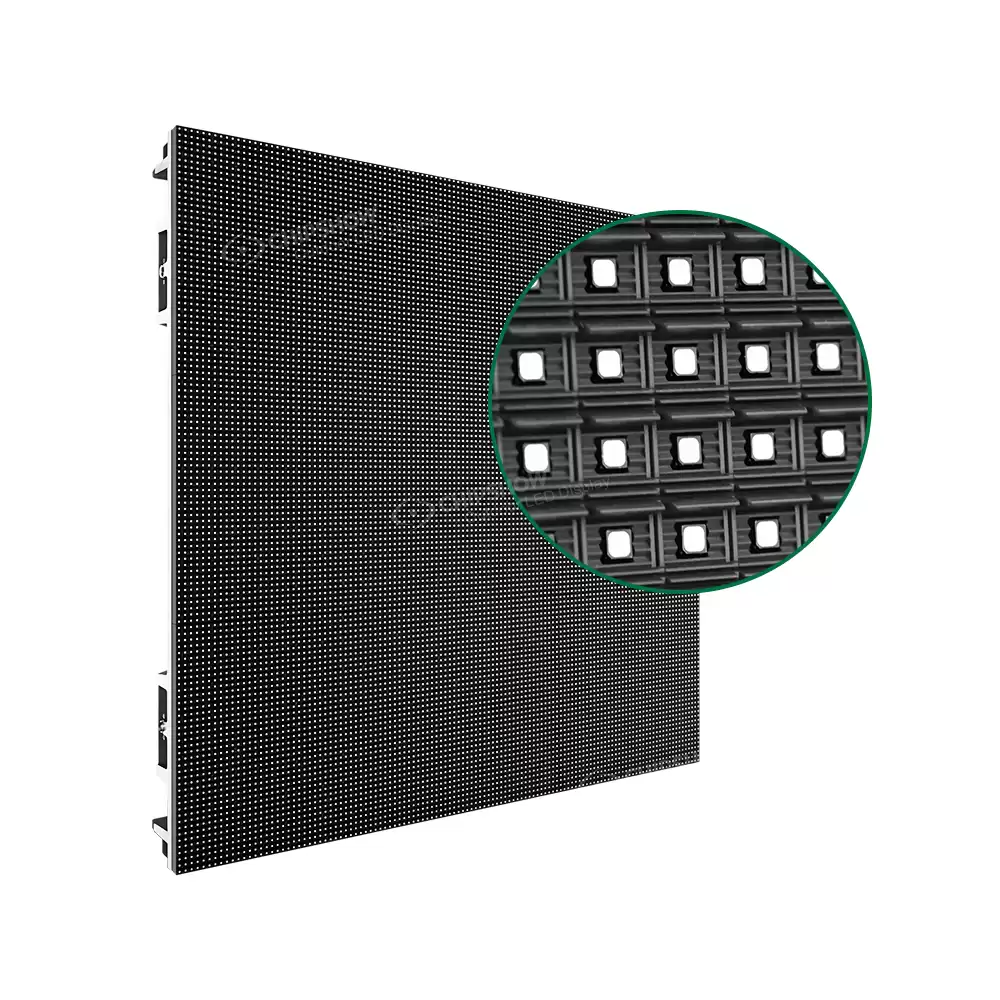

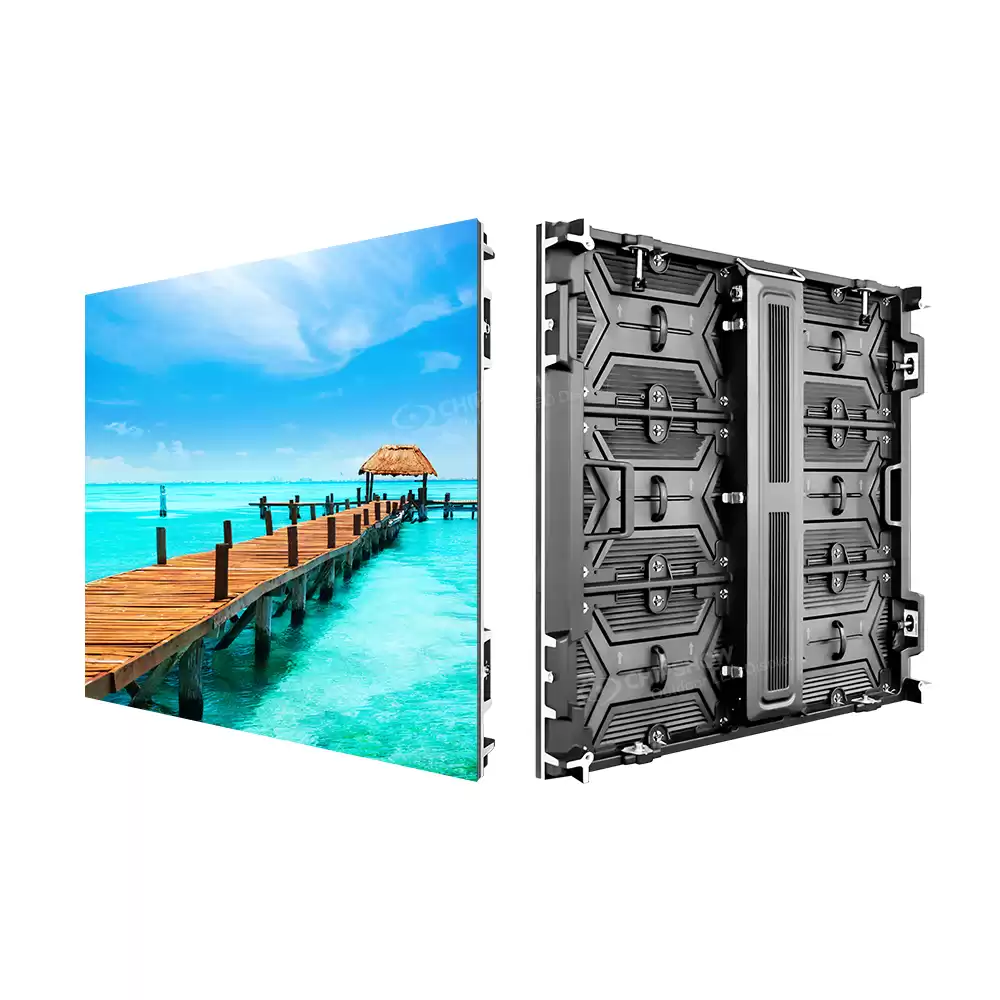

C-Slim P8/6.67 Outdoor high protection low power consumption advertising sign LED display

1.  Low power consumption, low temperature rise, energy saving, average power consumption ≤180W/;

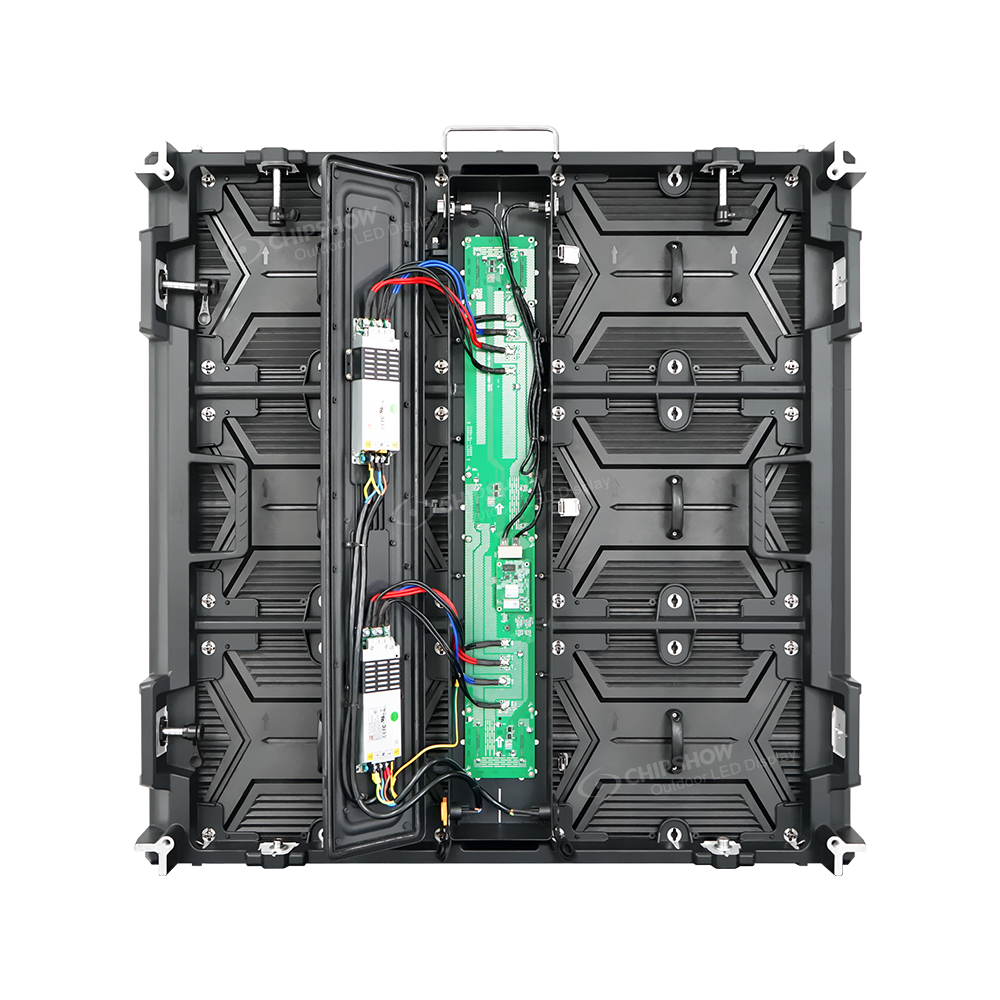

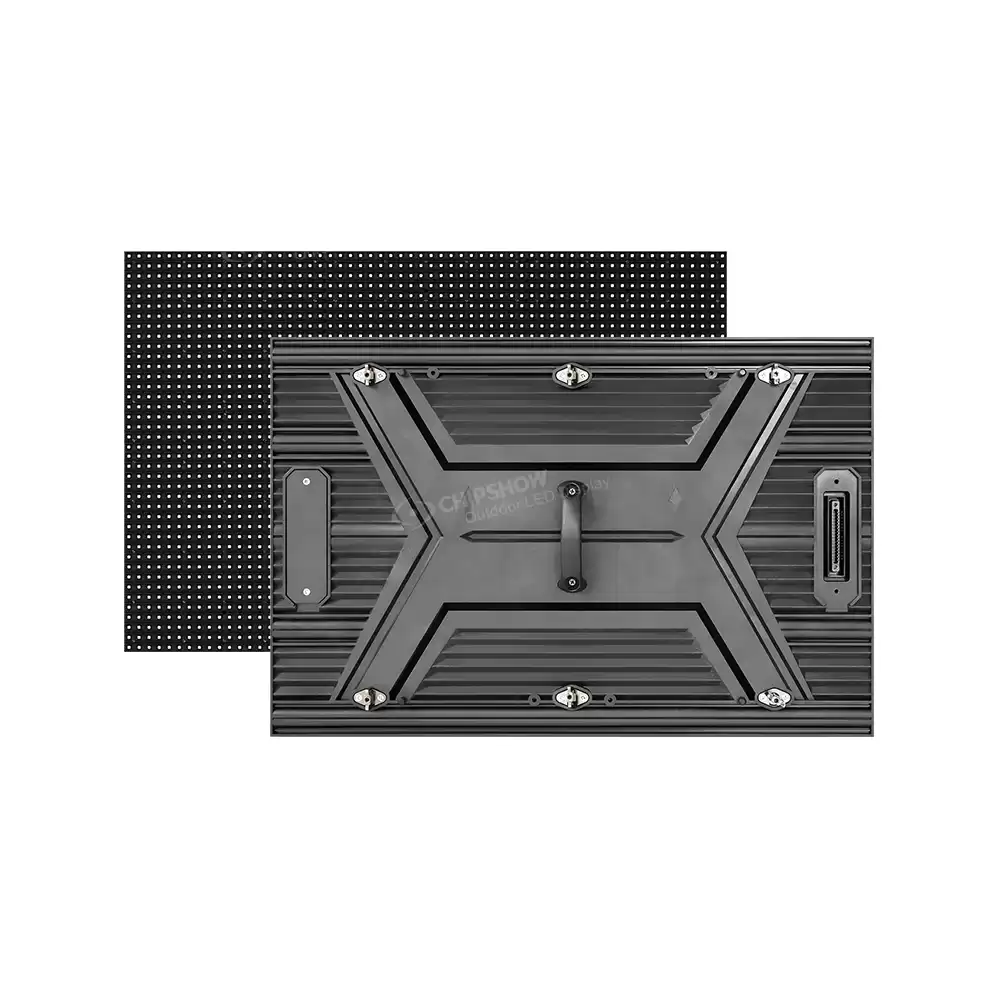

2.  Totally enclosed module; The disassembly and assembly of the module has no screws and can be quickly disassembled

3.  The connection between the module and the box adopts a side waterproof leather ring, which has high waterproof reliability

4.  All-cast aluminum box, ultra-light and thin; weight≤29kg, thickness≤105mm

5.  High waterproof level, the whole box is IP65

6.  Application fields: outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions, image promotion, commercial real estate, etc.


  • Warranty

A high protection outdoor LED screen


In a complex outdoor environment, LED displays are always vulnerable to various injuries, such as rain immersion, salt fog, sand and dust. These encounters often cause damage to the display screen, which is not a joke. Therefore, Chipshow engineers have developed this high protection outdoor display screen. Its module is fully enclosed and its waterproof grade reaches ip65, effectively preventing external invasion.


led display


Ultra low power consumption


It will not only cost a lot to buy LED outdoor screens, but also cost a lot to use later. For example, the electricity cost of the display screen will be a huge expense. With scientific design, C-Slim will save more power in similar displays.


outdoor led signs

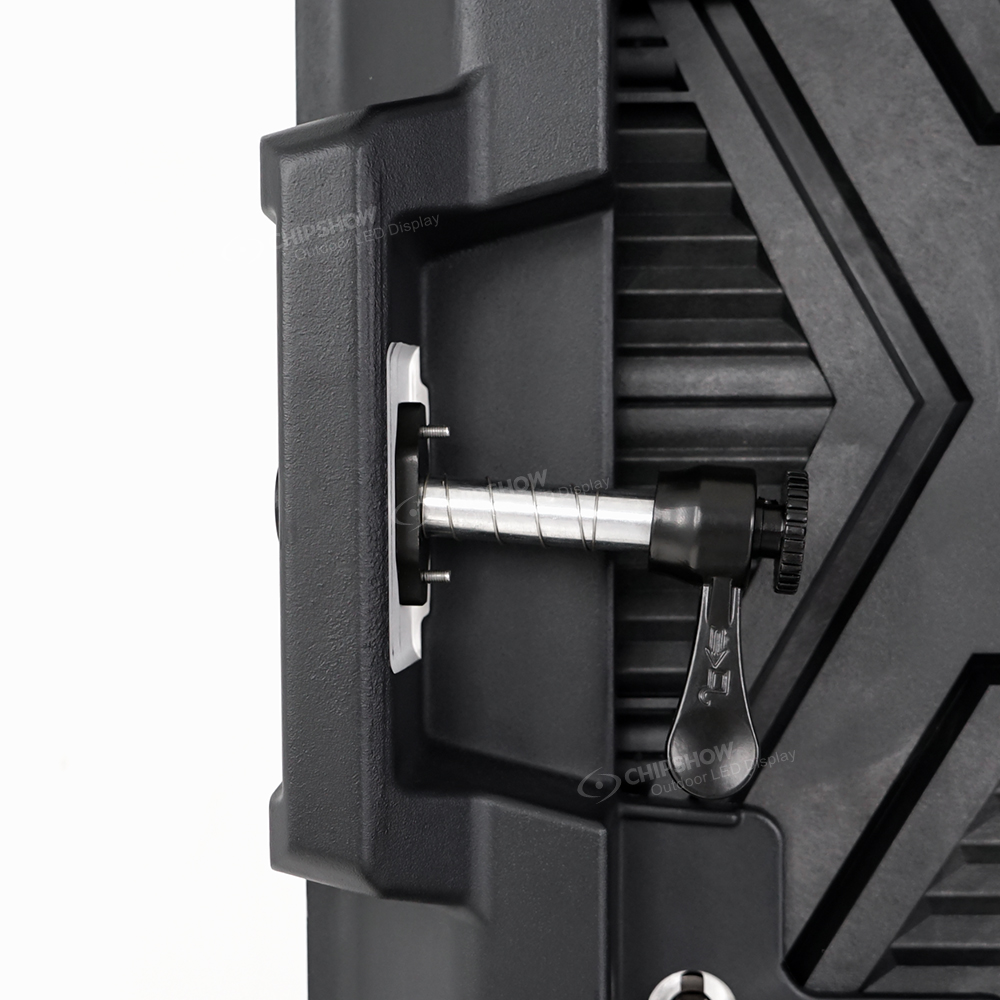

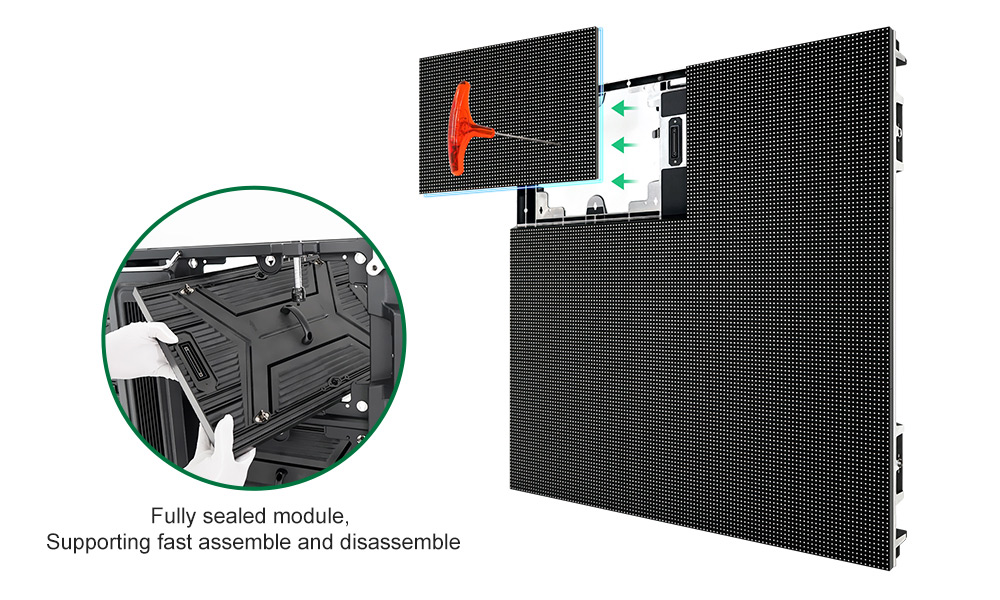

Quick disassembly


The fully enclosed module supports rapid disassembly, which is very convenient for future maintenance, which will greatly save time and money.


led screen

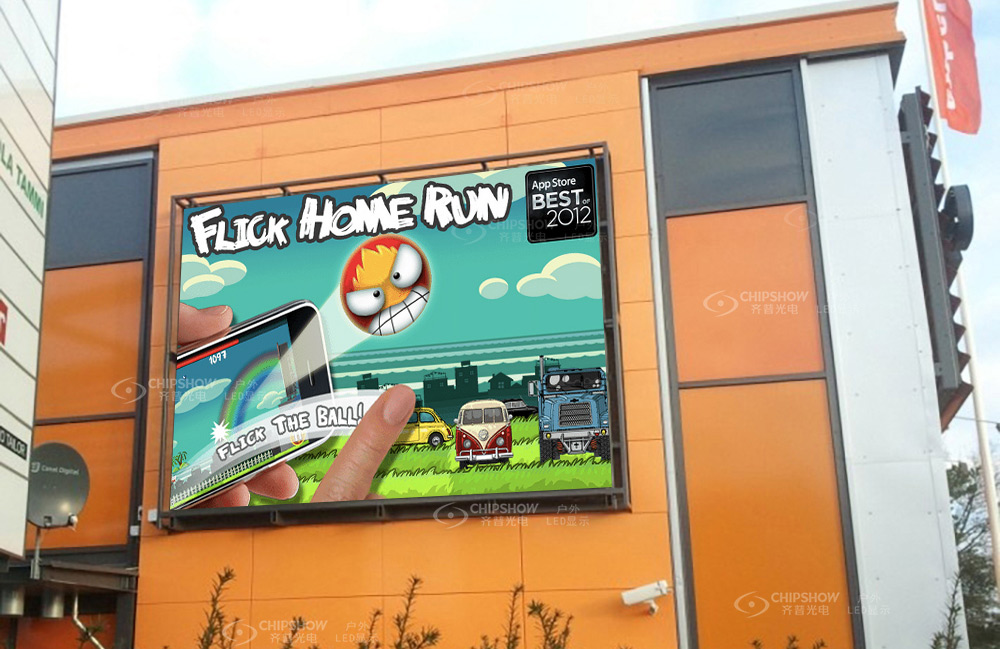

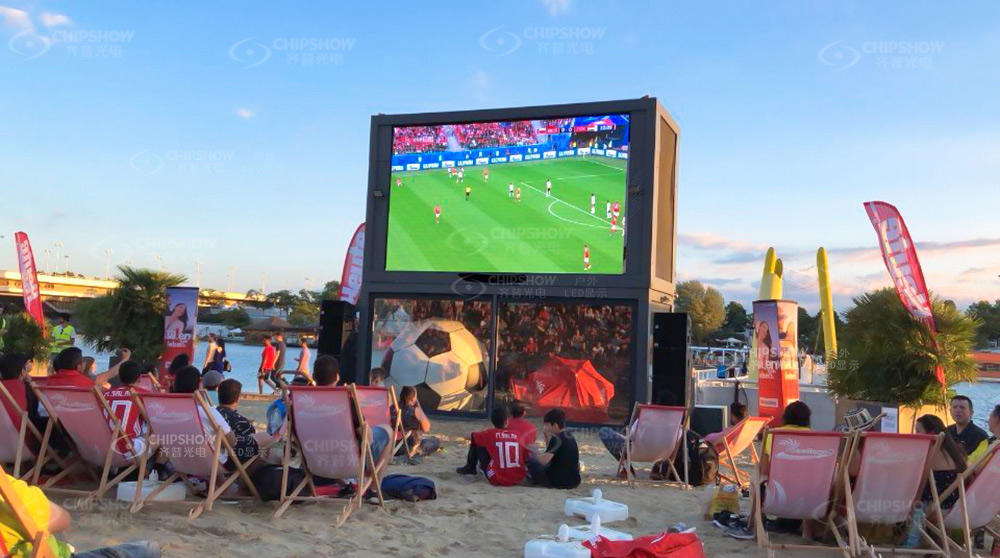

Installation scenario display


led wallLED Billboard

Specifications

Item
Specification Parameter
Pixel Pitch、Resolution rate、size
8mm、60*40Dots、480*320

                                   Pixel color Pixel LED

1R1G1B、 SMD2727
Working voltage、Module Power

                         DC4.2V/3.2V66W

Driving IC、Driving way
MBI5124、1/3
HUB
HUB75
Material、Cabinet Weight(kg/Cabinet)
Die-Cast Aluminum 、29kg/m²
Resolution rate、size、Module quantity
120*120Dots、960*960*105mm、2X3
Density
15625 Dots/㎡
White balance 、Color temperature
5300 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
≤550W/㎡、≤180W/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、1920Hz、≥13bit
Control system、System supports
CHIPSHOW,Windows XP,WIN 7
Working temperature、Protection grade
﹣20~50℃、 Front/Back :IP65
