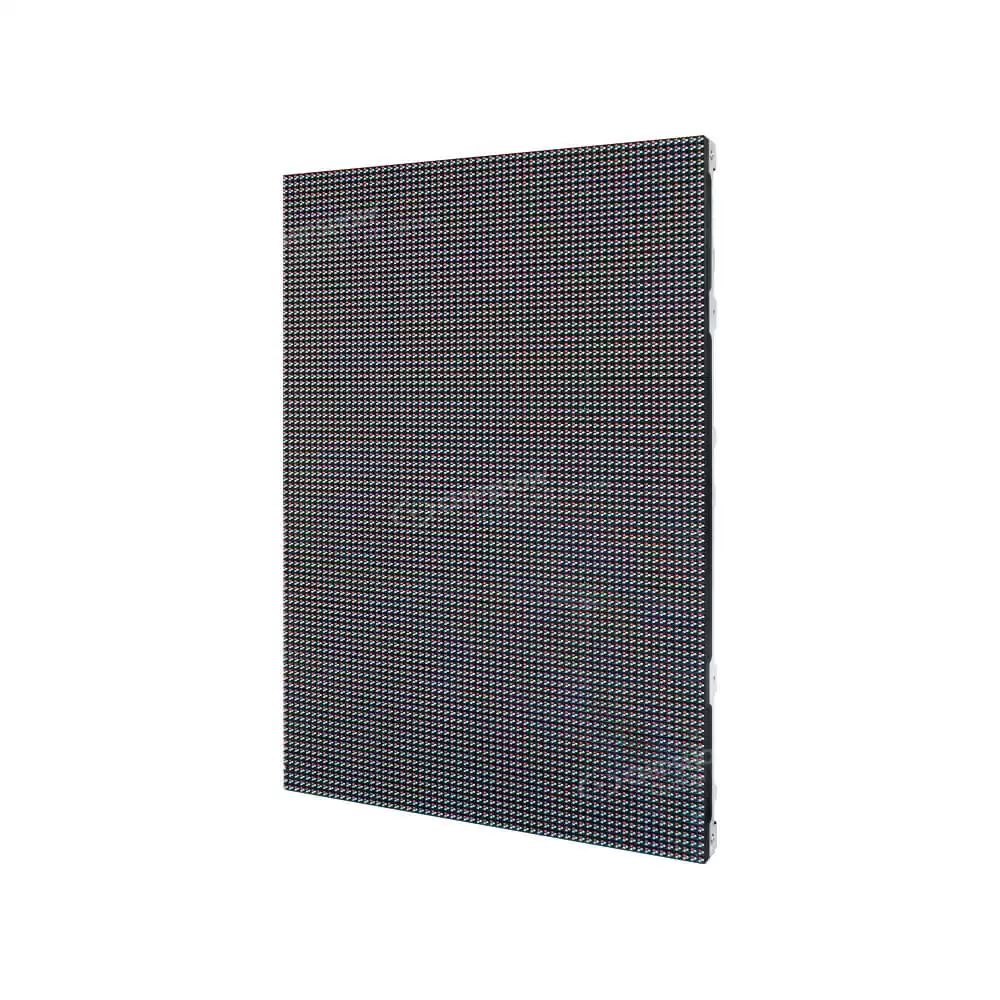

C-Smart 3 in1 P10 Full Color LED Display

1. Modular design with integrated power supply and receiving card, directly replace the traditional cabinet, saving the cost of the cabinet, only with a simple bracket for the installation;

2. Ultra-thin design, can be installed on the wall and maintained from the front and rear, convenient maintenance;

3. Unique mask design, deep black color and high contrast;

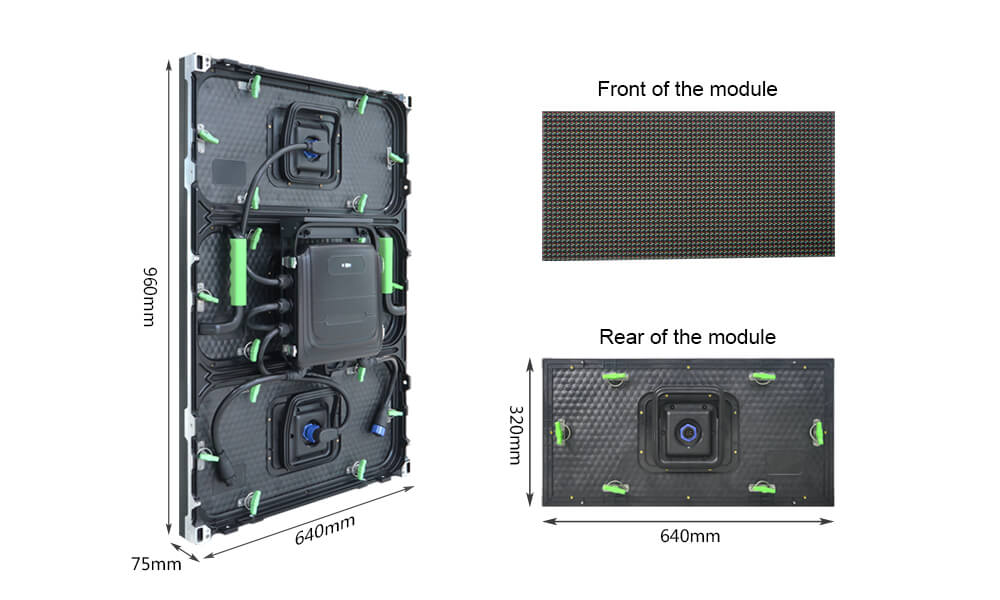

4. The module size is 640mm*320mm, larger size, better flatness;

5. The module uses 346 LEDs, with the characteristics of good heat dissipation and good weather resistance;

6. Constant current drive, 1/4 scan;

7. High brightness, up to 8500cd/㎡, and has the advantages of good light distribution curve and good angle consistency;

8. The protection grade for the module is IP65.



Ultra-thin and Ultra-light





Good heat dissipation and good weather resistance

The module uses 346 LEDs, with the characteristics of good heat dissipation and good weather resistance.

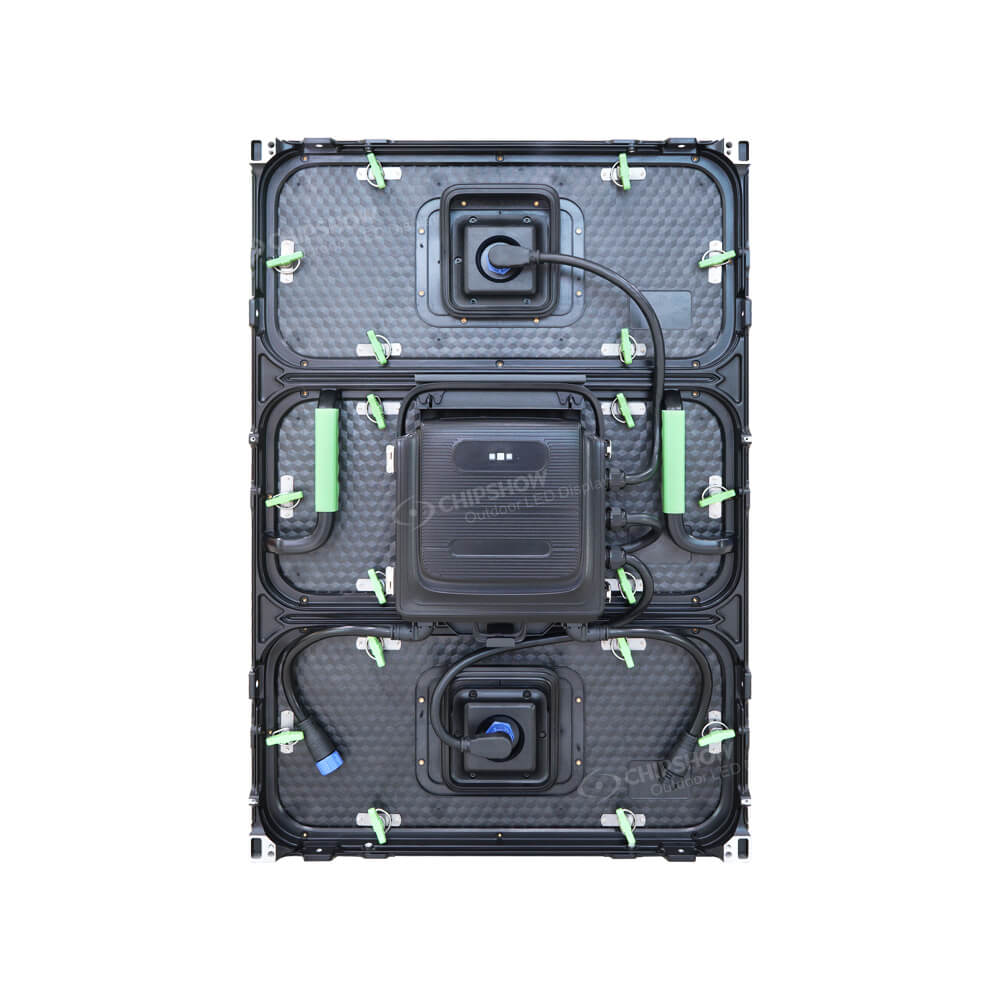

Front and rear maintenance

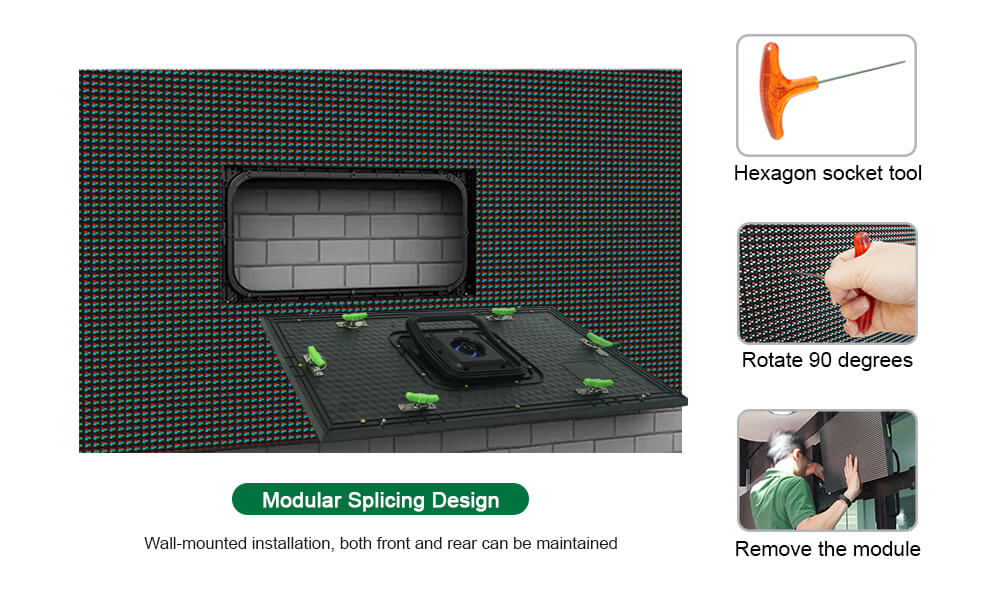

Modular splicing design, can be installed on the wall and maintained from the front and rear, convenient maintenance

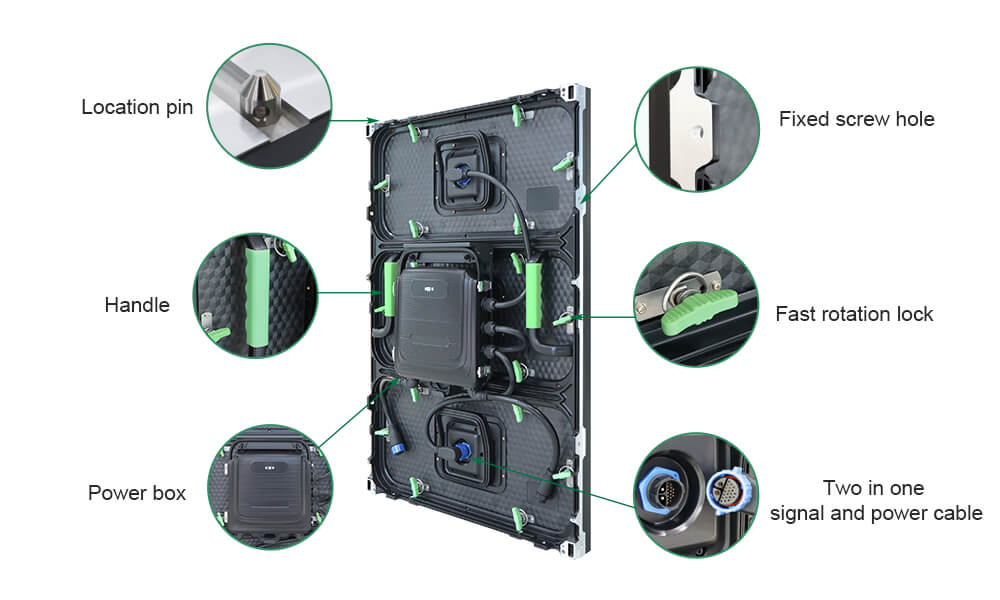

Fast installation

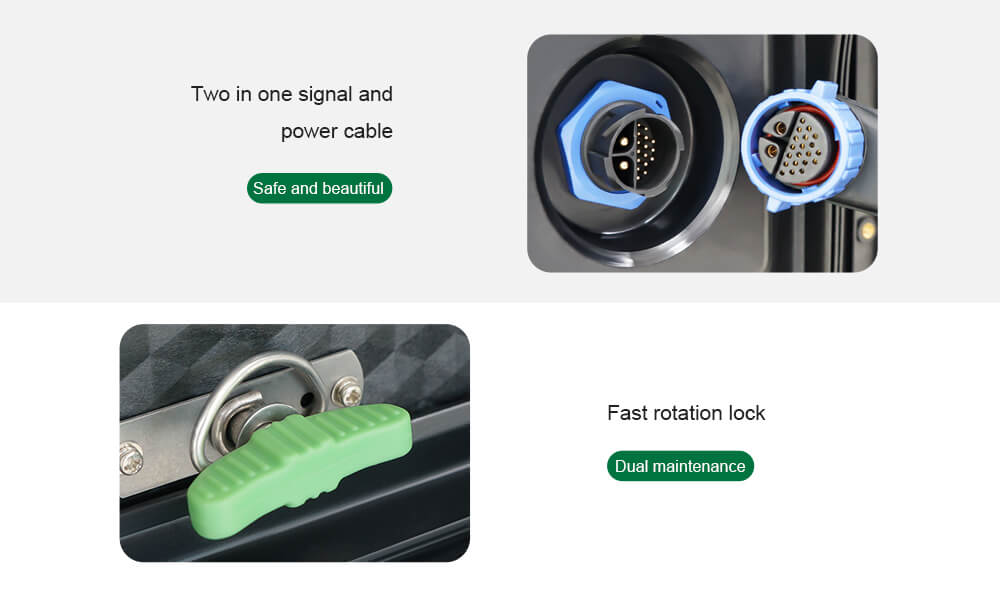

Fast lock & 2 in 1 signal and power cable

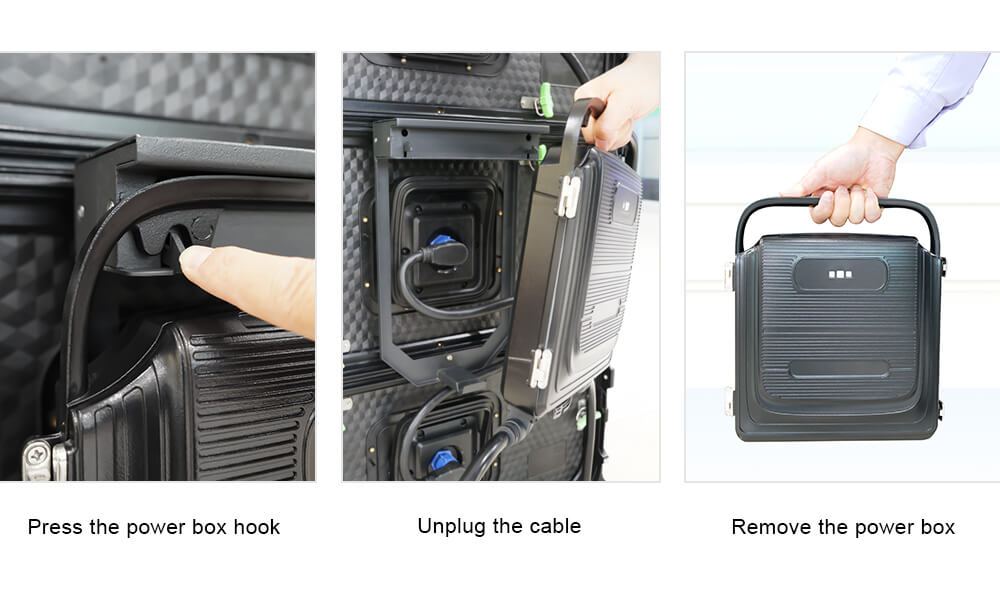

Integrated power supply and receiving card

Directly replace the traditional cabinet, saving the cost of the cabinet, only with a simple bracket for the installation

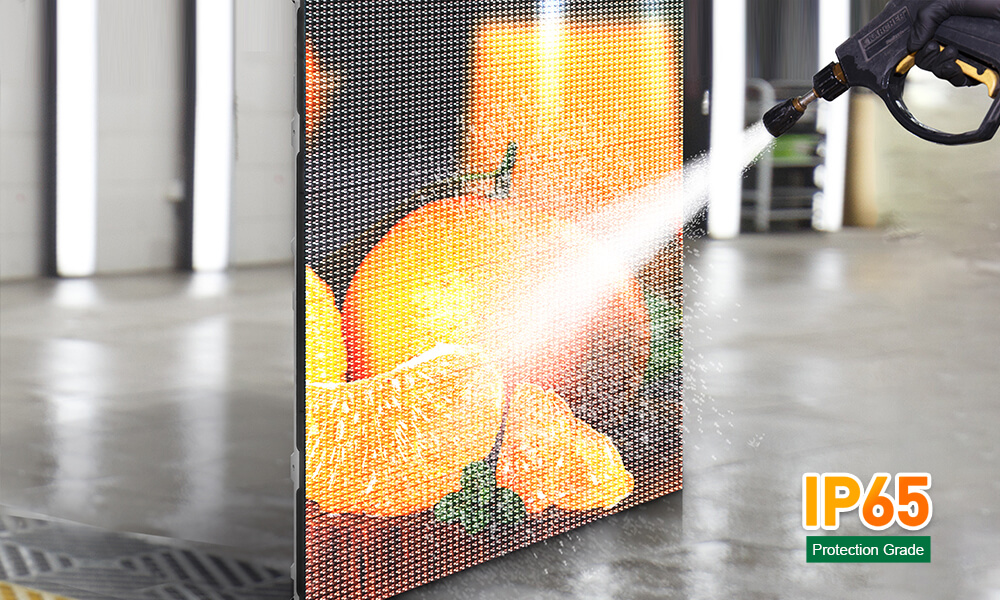

IP65 waterproof

The protection grade for the module is IP65


Product details

Applications

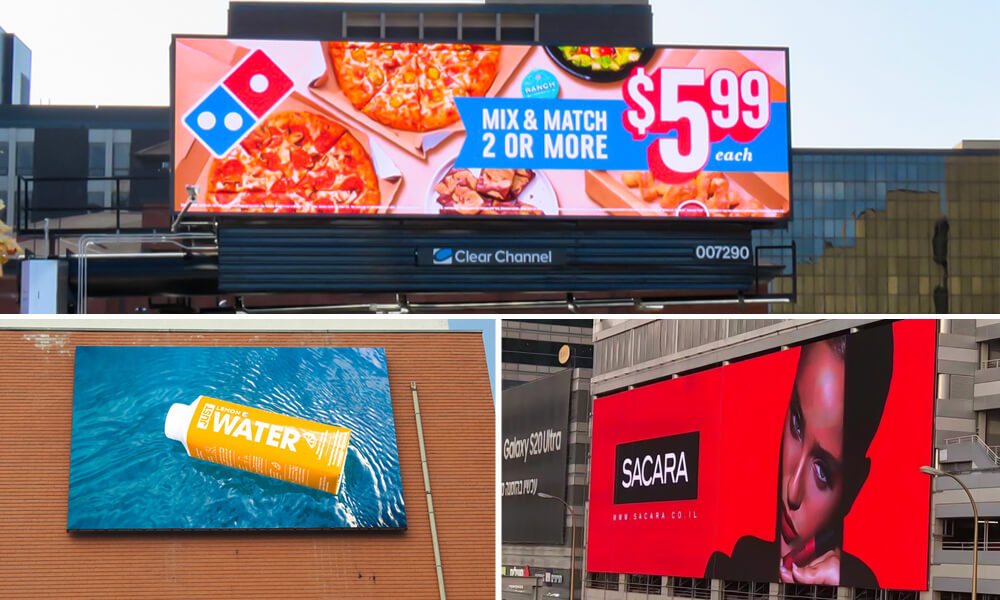

Suitable for shopping malls, airports, banks, hotels, car 4S shops, and building curtain walls.




Specifications

Product

C-Smart 3in1

Pixel pitch

10mm

Resolution rate

64*32 Dots

Module size

640*320mm

Pixel color

1R1G1B

Pixel LED

DIP 346

Working voltage

DC4.2V

Driving way

1/4

Frame material

Cast aluminum

Frame weight

3.62kg

Cabinet weight

22Kg/PCS

Resolution rate

4*96 Dots

Cabinet size

640*960*75mm

Module quantity

1*3

Density

10000  Dots/㎡

White balance

8500 CD/㎡

Color temperature

6500-8000K

Maximal power

400W/㎡

Average power

140W/

Refresh frequency

1920Hz

Gray scale

13bit

Working temperature

-20~50℃

Protection grade

IP65
