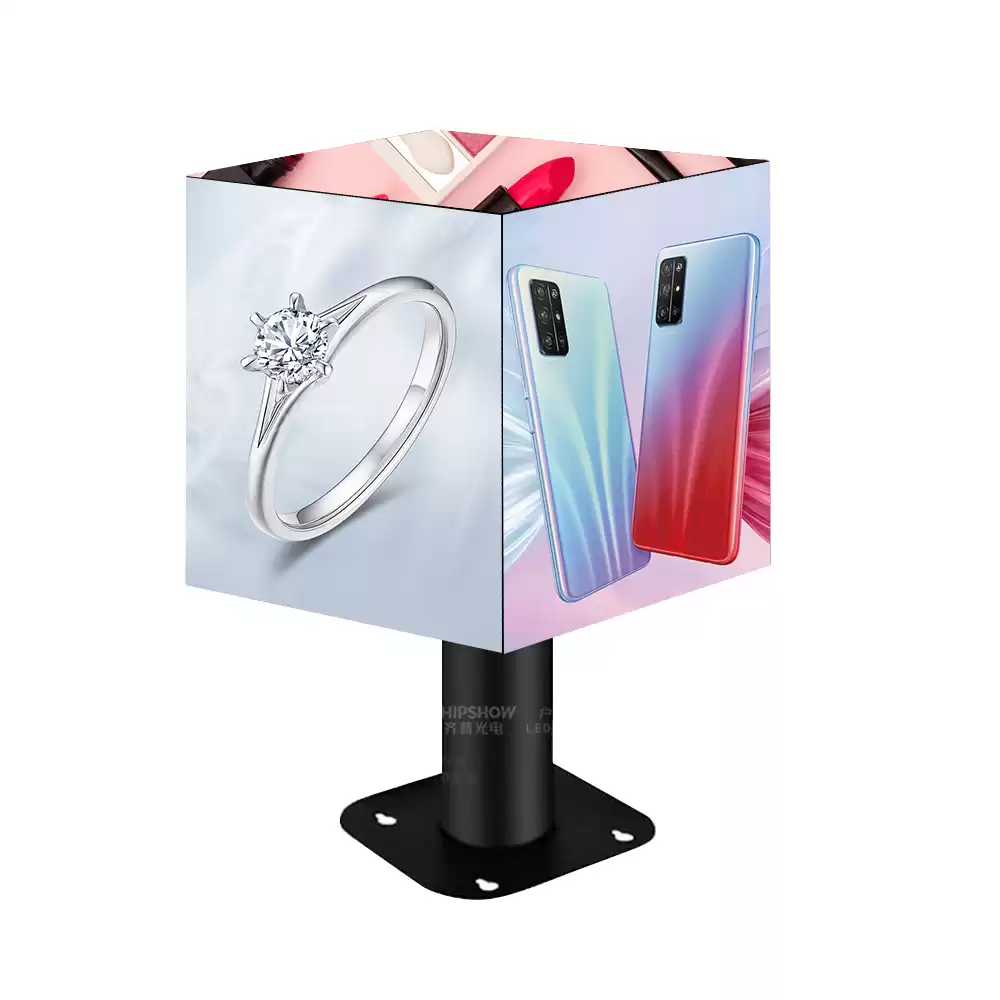

Led magic cube screen
This is an LED display with a similar shape to the magic cube, so it is called the magic cube display. In many cases, LED display screen needs to show sufficient sense of technology and vision. There is no doubt that the novel shape of magic cube display screen can meet this. Therefore, this led display is so beautiful and practical.
No installation, buy and use
The main body of the LED display screen has been installed. In fact, it can be used after you buy it. We only need to fix it in the right place, or use a bracket to fix the display screen, which will show the best effect, which saves a lot of installation energy compared with other LED displays.
Mobile control
Without complex system, users can realize the remote control of LED screen with mobile phone, and can upload and play the content you want anytime and anywhere, which is simple and convenient.
Strong visual impact

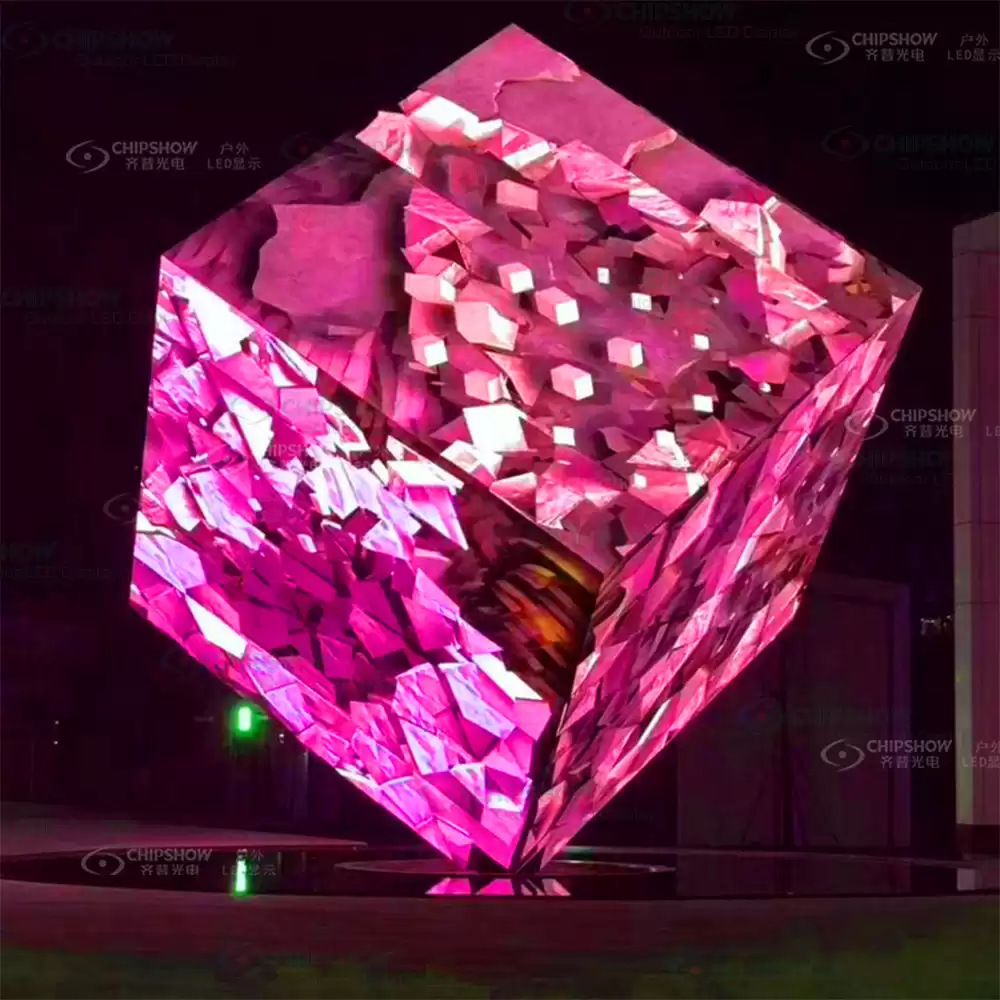

This led screen has a 360 degree viewing angle and can play videos in multiple directions, giving the audience a great visual impact. And the LED screen has a wide color gamut, and the content played is bright and moving.

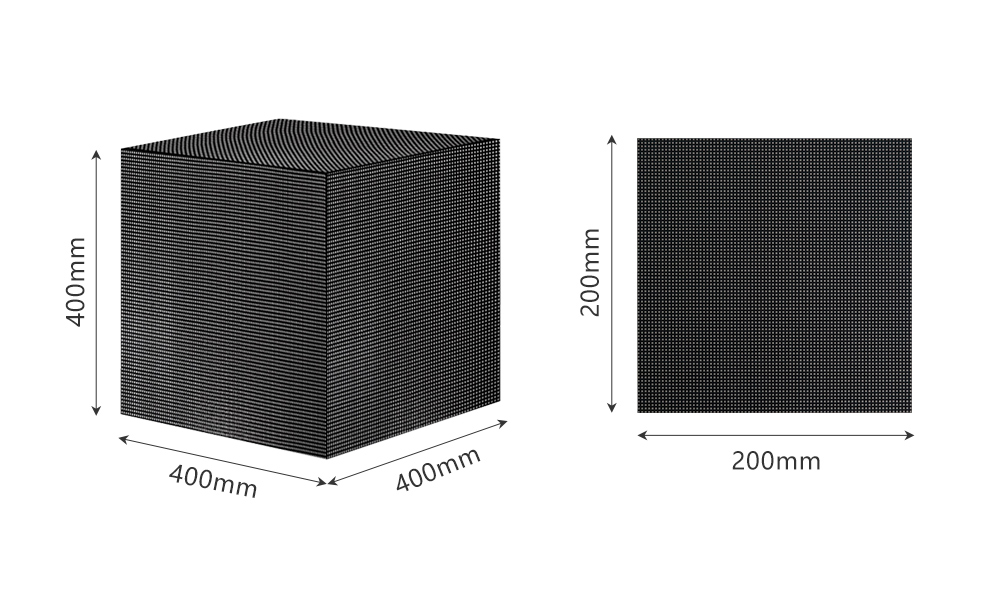

size

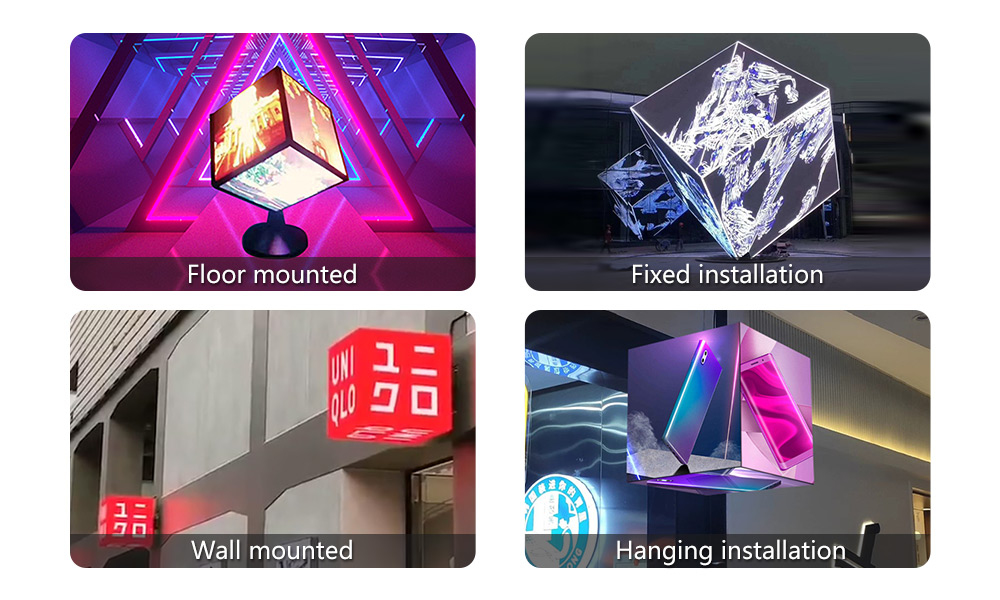

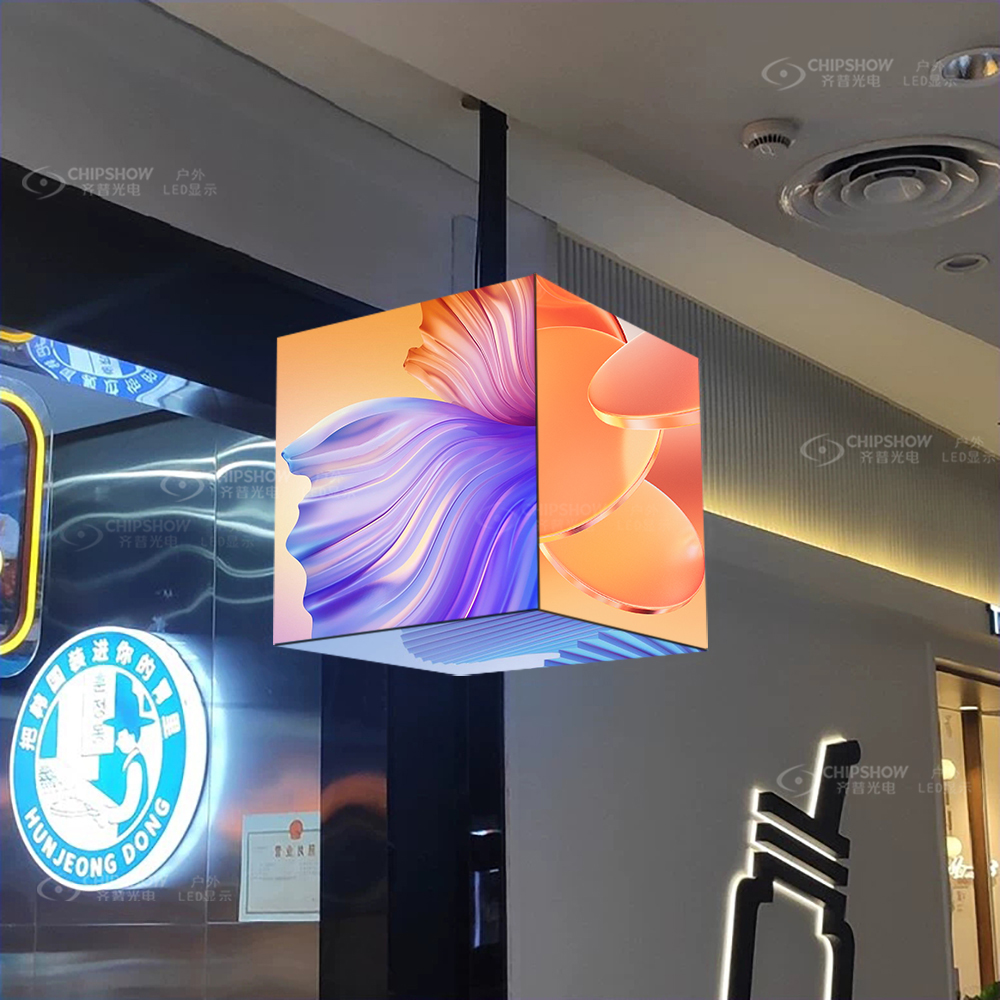

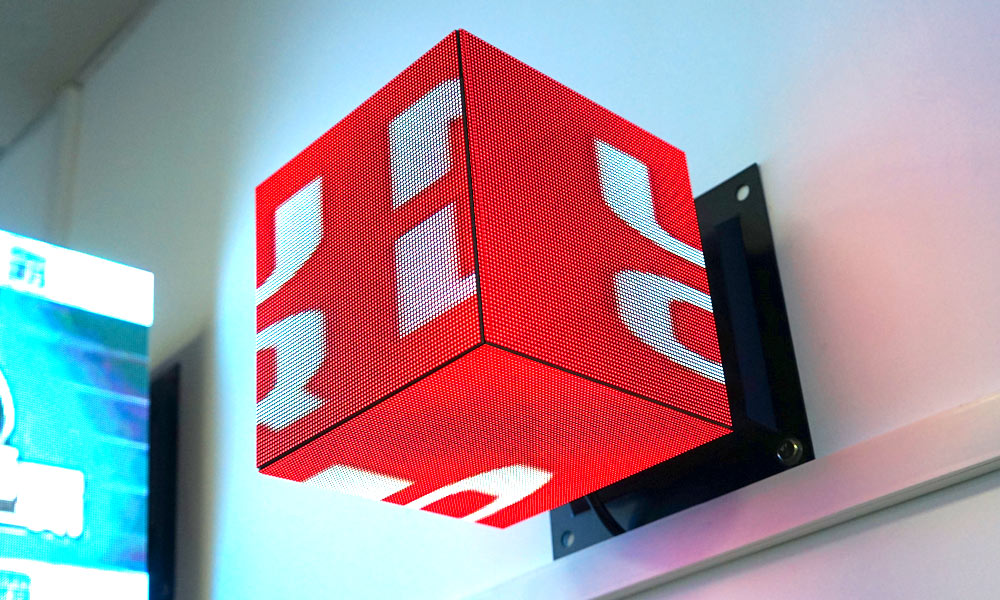

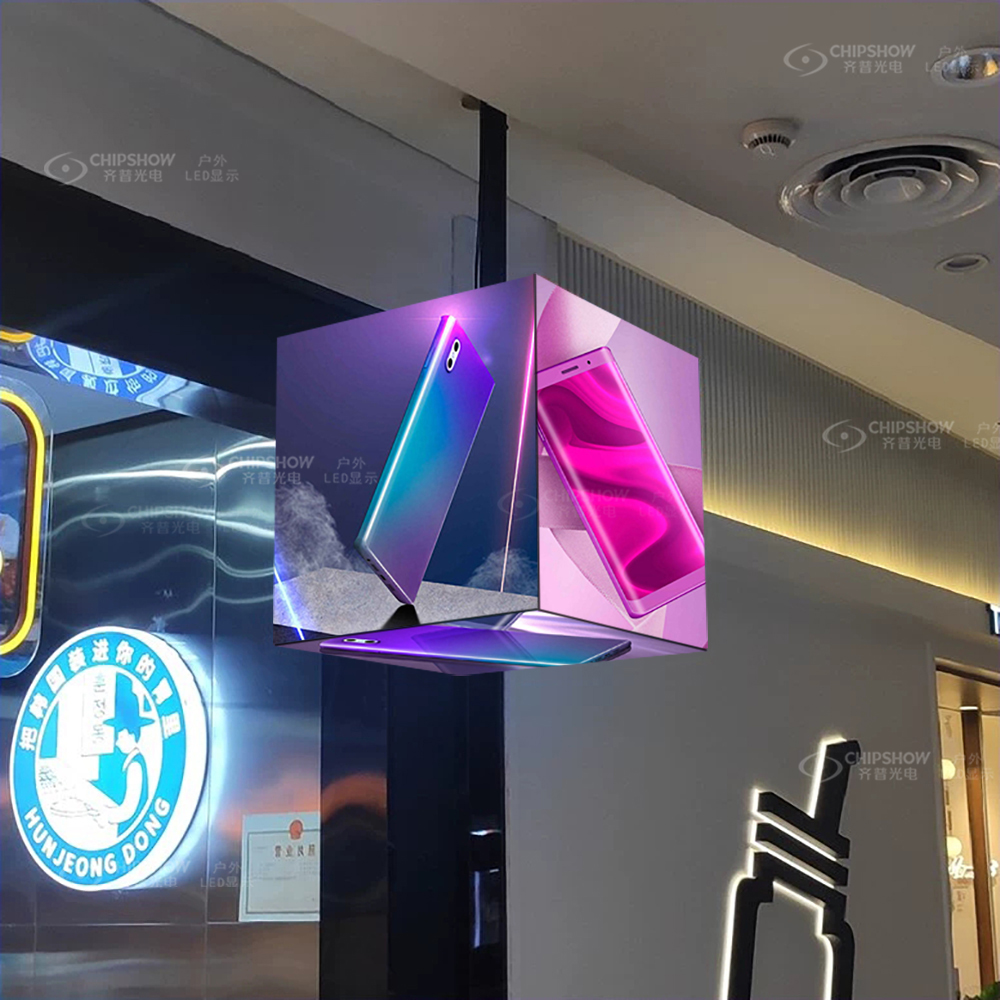

Installation scenario
Table parameters
Item
|
Specification
|
Pixel
Pitch、Resolution rate、size
|
2.5mm，80*80dots，200mm*200mm
|
|
|
1R1G1B
、SMD2020
|
Working
voltage、Module Power
|
|
Driving
IC、Driving way
|
-、1/40
|
HUB
|
-
|
Material、Cabinet Weight(KG/Cabinet)
|
sheet
metal 、16kg/cabinet
|
Resolution
rate、size、Module quantity
|
160*160Dots/side、400*400*400mm、2*2*5/side
|
Density
|
160000Dots/㎡
|
White
balance 、Color temperature
|
600cd/m²、 6000~8000K
|
View
angel、Non-Flatness、Module interval
|
H/V：140°/140°、≤0.5mm、≤0.5mm
|
Maximal
power/㎡、Average power/㎡
|
240W/set、75W/set
|
Frame
frequency、Refresh frequency、Gray
|
50Hz、3840Hz、13bit
|
Control
system、System supports
|
Nova,ColorLight,，CHIPSHOW，Windows XP/Win7/10
|
Working
temperature、Protection grade
|
-20～+60℃、IP40
|
