C-Sport P8 Professional Stadium LED Screen

C-Sport is a professional stadium perimeter LED screen.

Features

1. The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience.

2. Soft mask protection, athletes and LED screen are perfectly protected.

3. The cabinet is designed with cast aluminum, which is light and thin and has good heat dissipation, slows down the aging of the power and module.

4. The module can be maintained efficiently, and the operation is simple and convenient.

5. High protection grade, protection grade≥IP65.

6. Strong compatibility, it can be used as a stadium or rental screen to meet the diversified needs of customers on multiple occasions.

7. Energy saving, about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen.

8. Professional stadium playing software, diversified input of camera video sources, support DP, HDMD, VGA, SDL, DVD, etc.

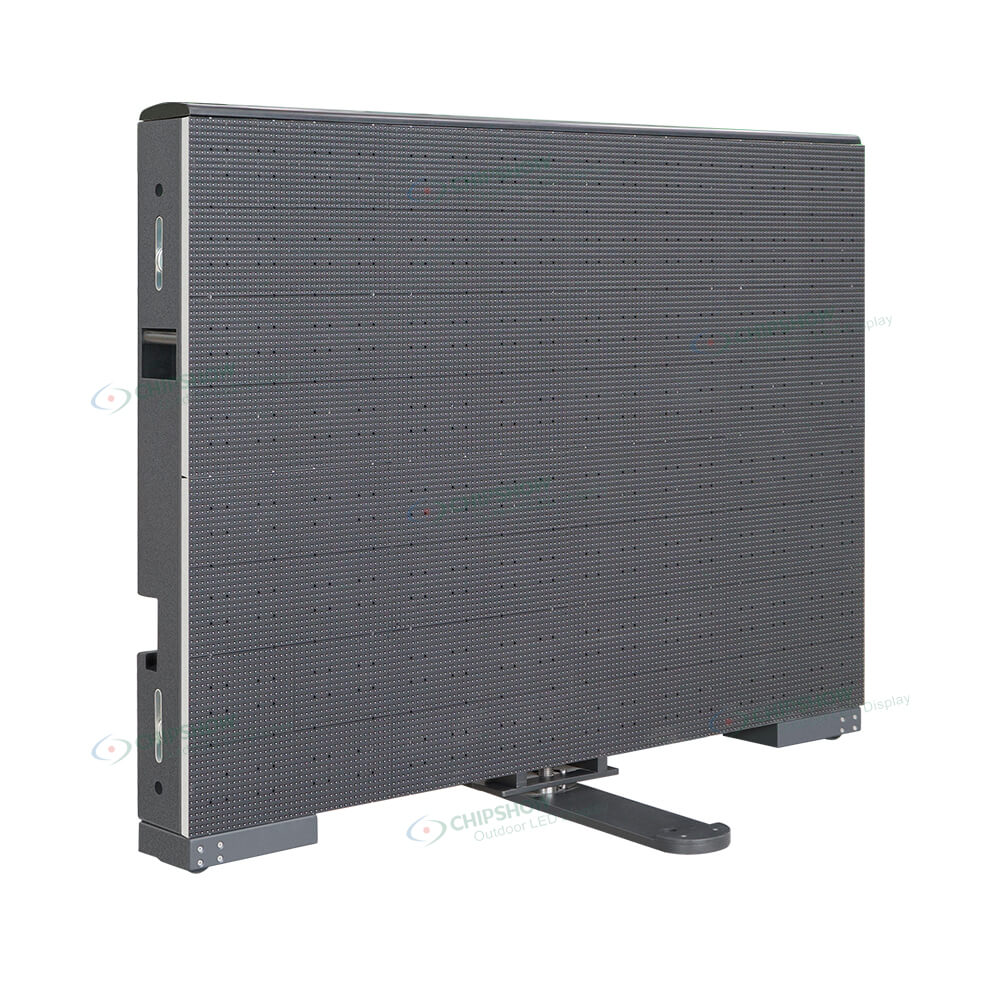

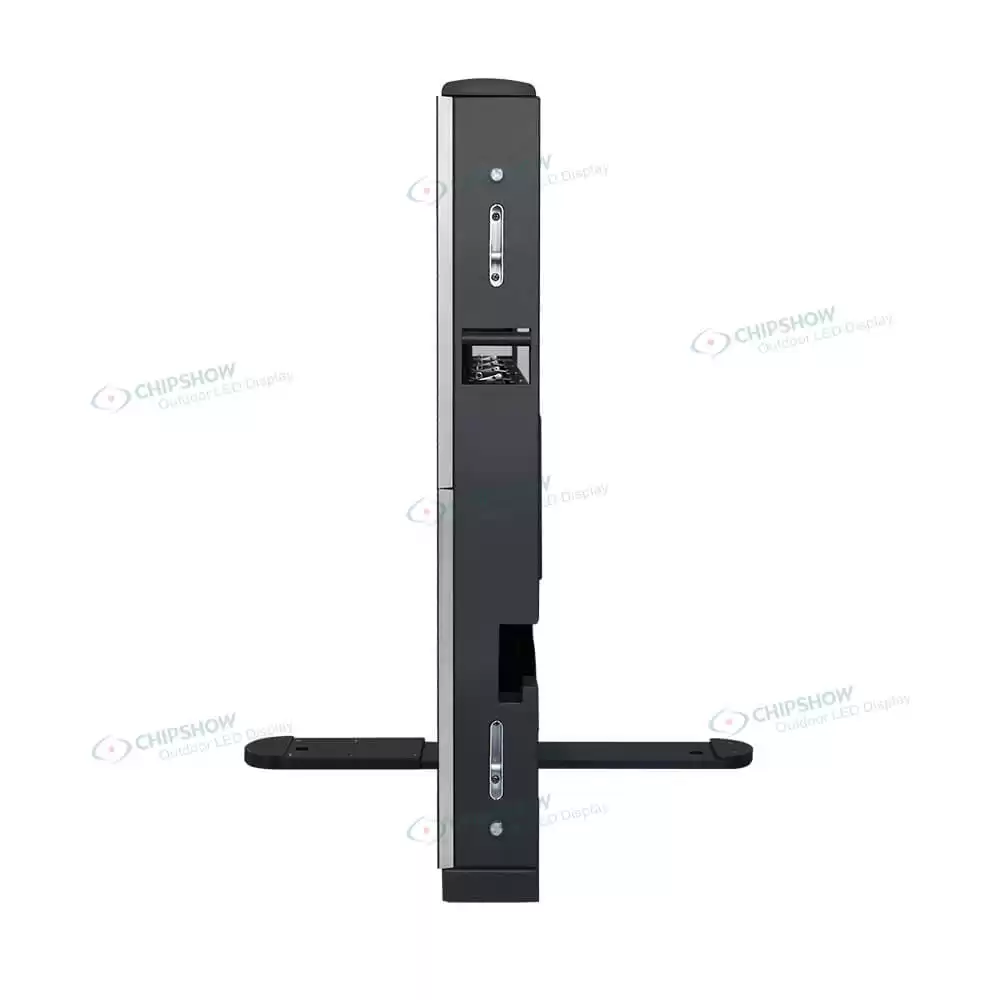

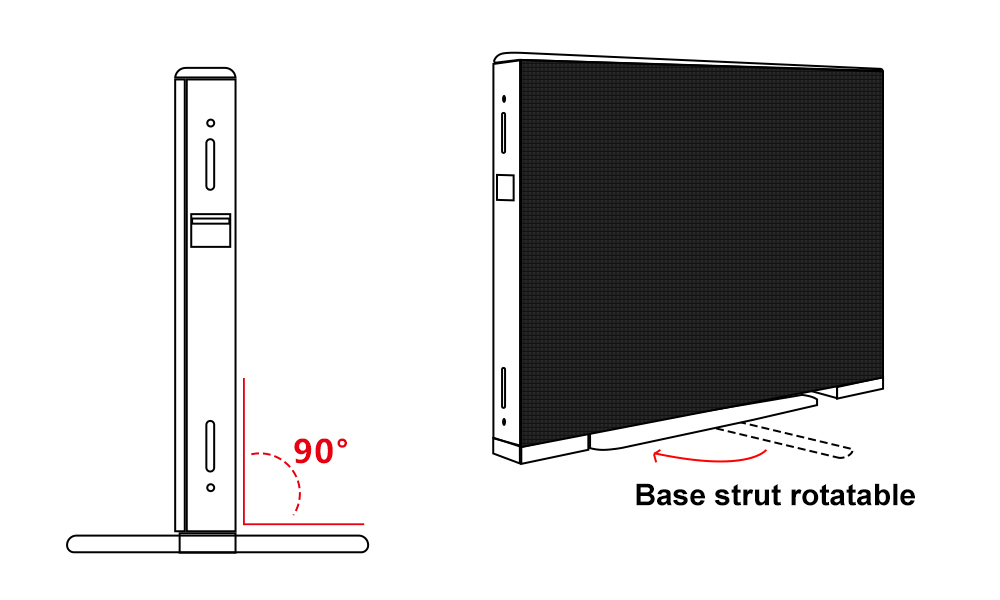

90-degree upright

The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience

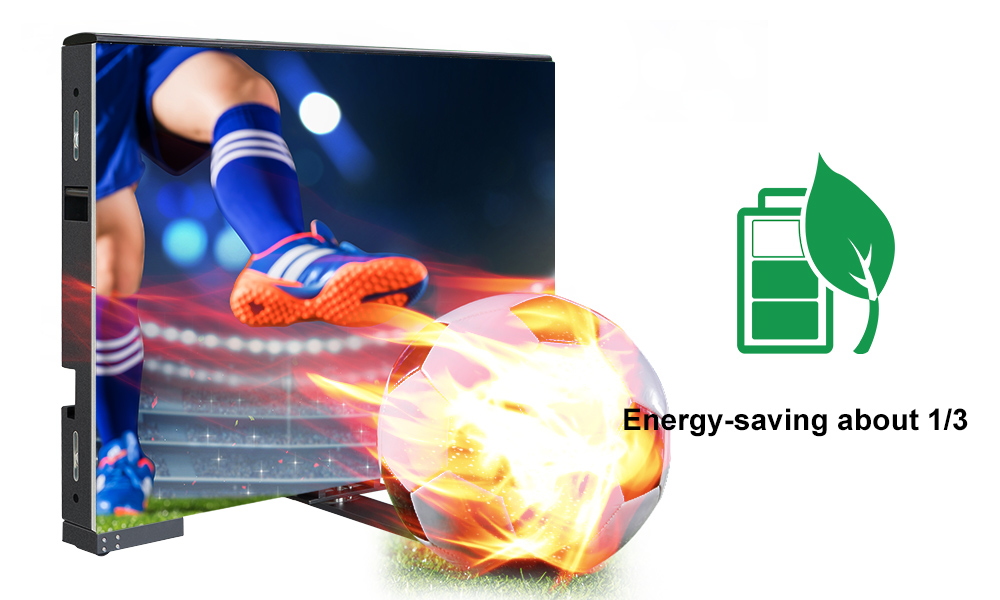

Energy saving 1/3

about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen

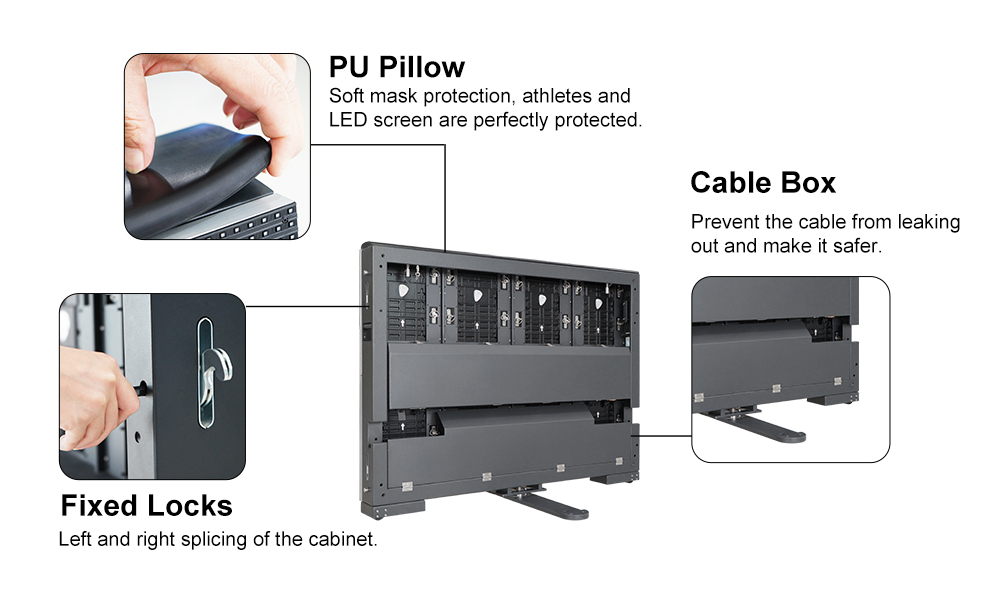

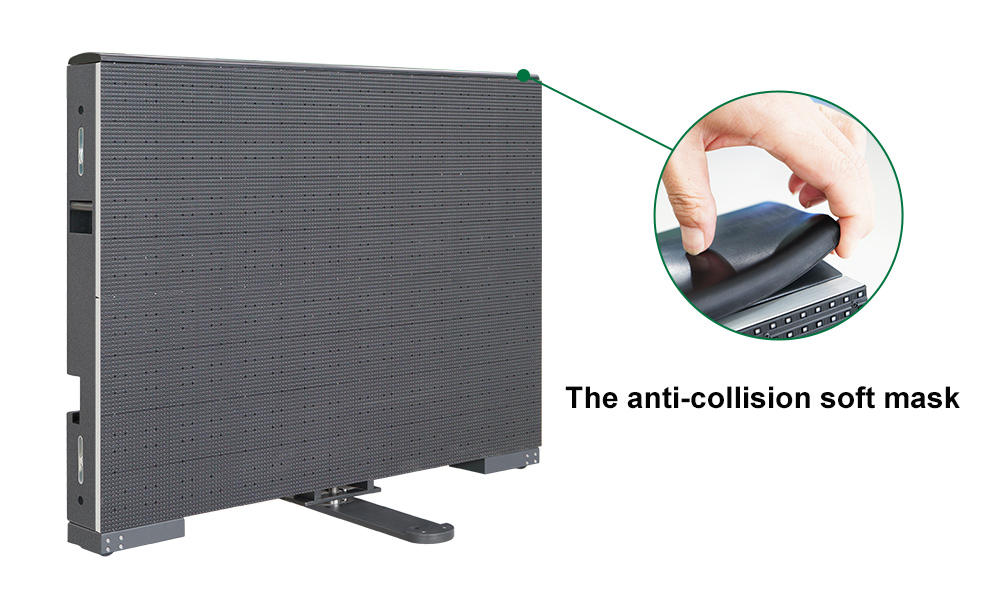

Soft mask protection

Soft mask protection, athletes and LED screen are perfectly protected

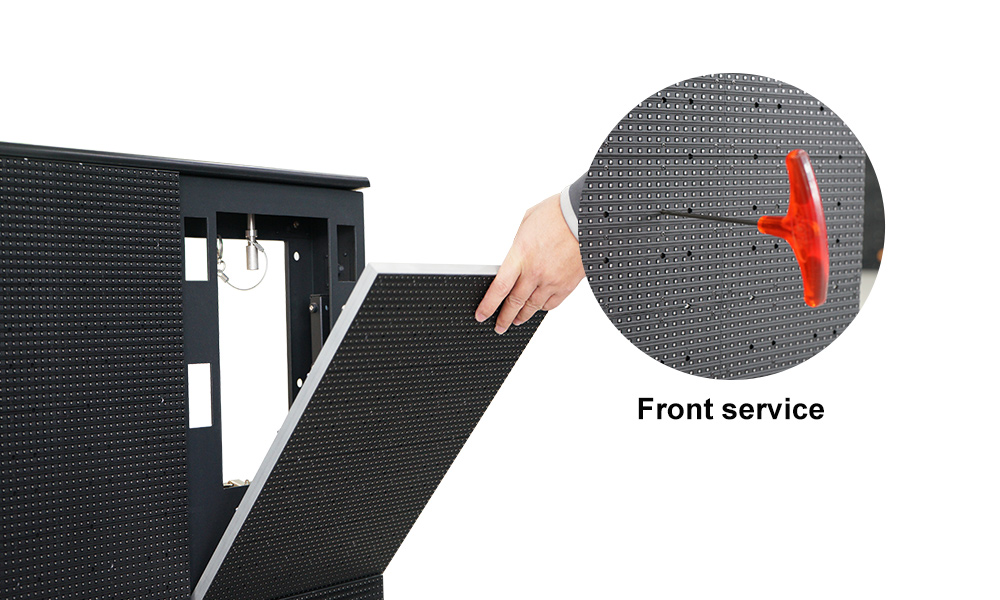

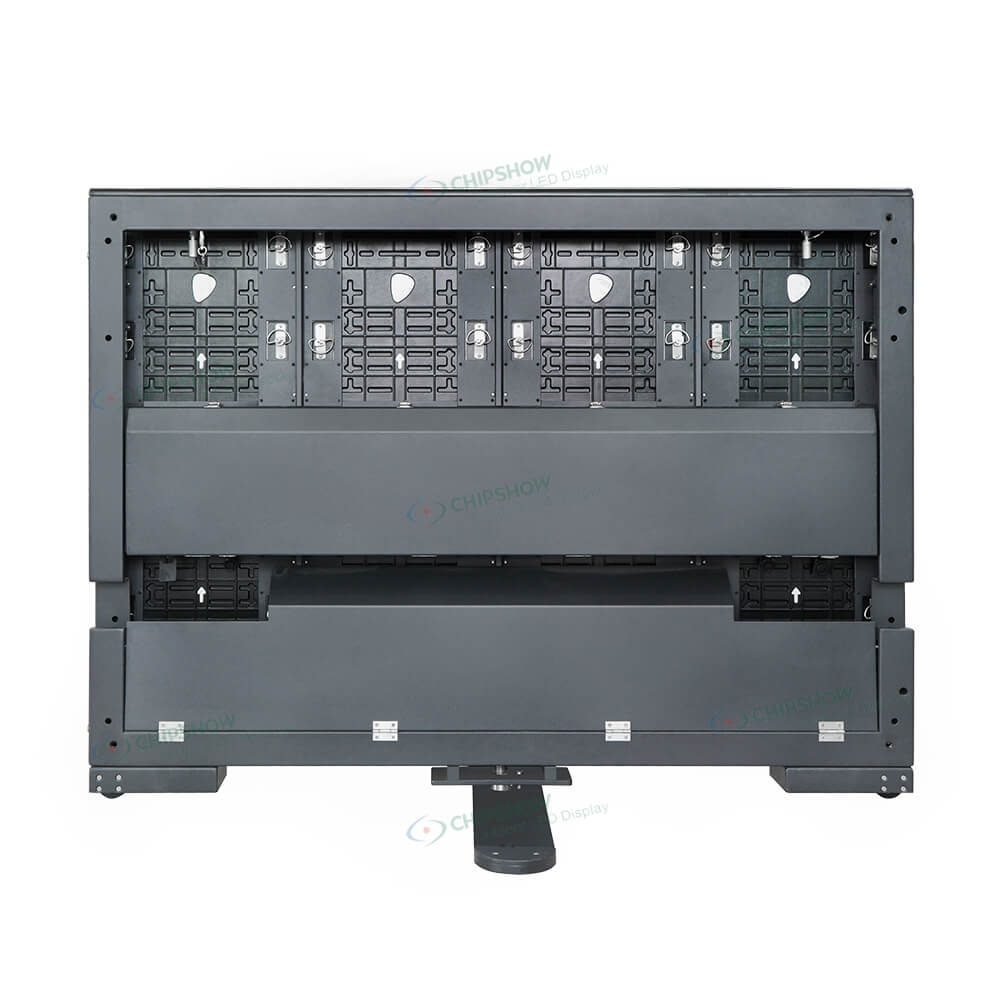

Front maintenance

The module can be maintained efficiently, and the operation is simple and convenient

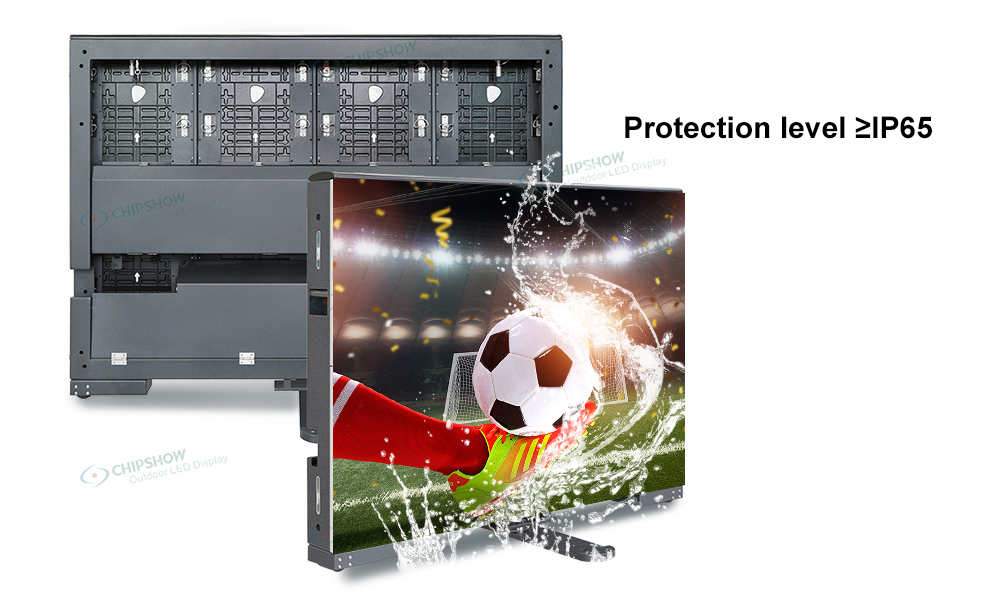

IP65 waterproof rating

High protection grade, protection grade≥IP65

Surprising design

Specifications

Product

 C-Sport

Pixel Pitch

 8mm

Pixel LED

SMD2727

Module size

320*450mm

Cabinet size

1280*900*120mm

Cabinet weight

42kg

Brightness

5800nits

Maximal power

977w/

Average power

293w/

Color temperature

 6000~8000K

Working temperature

 -20~50℃

IP rating

IP65
