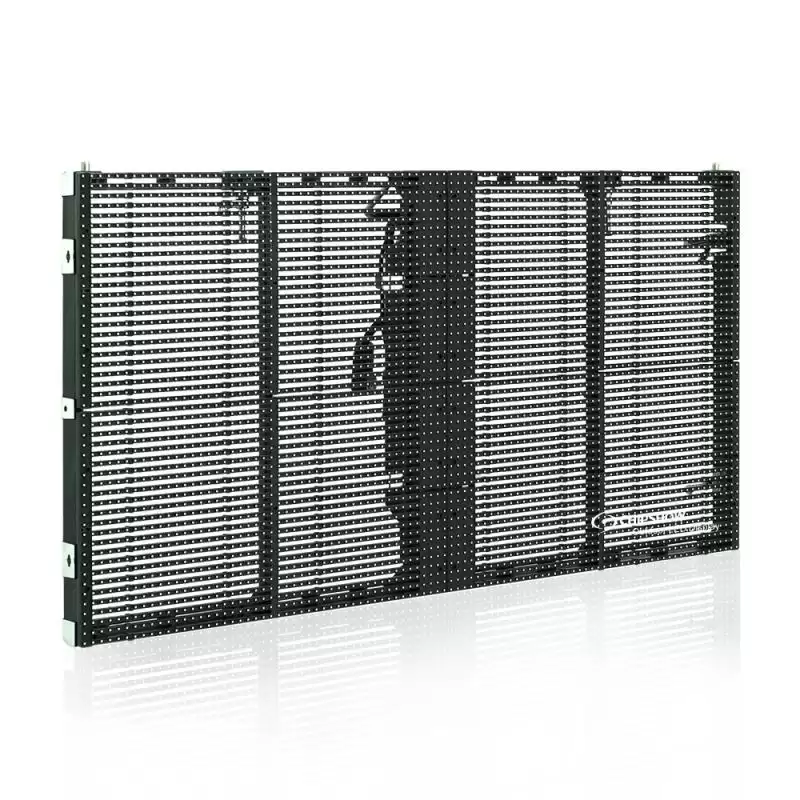

C-Trans P10.41 Outdoor Transparent SMD Full Color Screen

Outdoor transparent LED advertising solutions

Advantages:

1. Lightweight: the weight is only 7.5kg/pcs, easy to install and maintain, without supporting structure reinforcement, and high efficiency.

2. High transparency: 58% transparency, turning the glass screen into a lifelike video wall, without affecting the outdoor vision.

3. All-weather: resistant to various working conditions such as low temperature, high temperature, humidity, etc..

4. Low power consumption: using positive-emitting high-brightness LED lights, high conversion efficiency PFC function power supply, large screen energy saving more than 50%.

5. Front and rear maintenance: greatly improving the adaptability of the product to on-site installation conditions.

6. No steel structure: directly use the original glass curtain wall steel structure, which can reduce the weight of the steel structure by about 50kg per square meter.

Application:

Mainly used in shopping malls, terminal, car building, exhibition hall, office building glass curtain wall and other occasions with high lighting requirements.

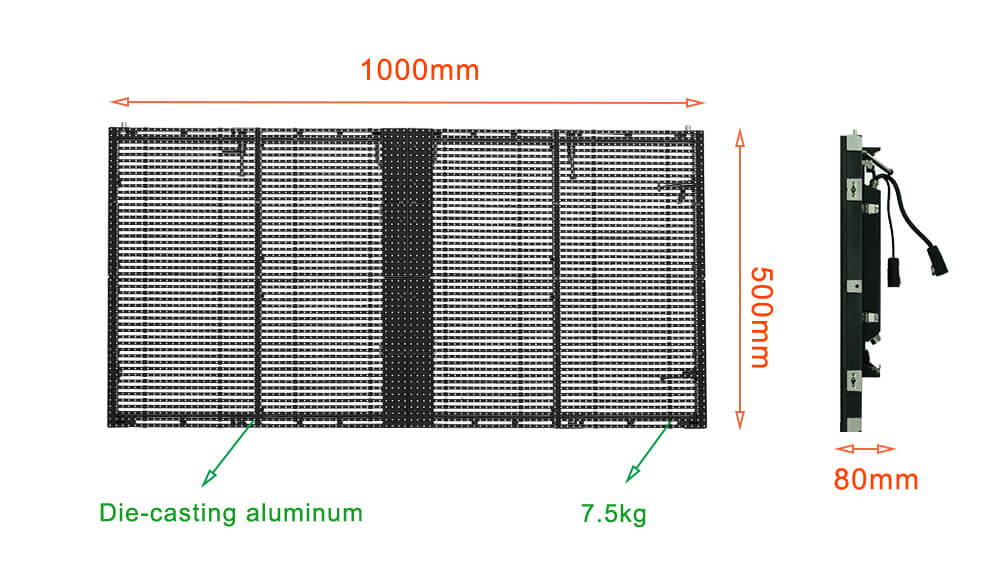

Ultra-Light & thin

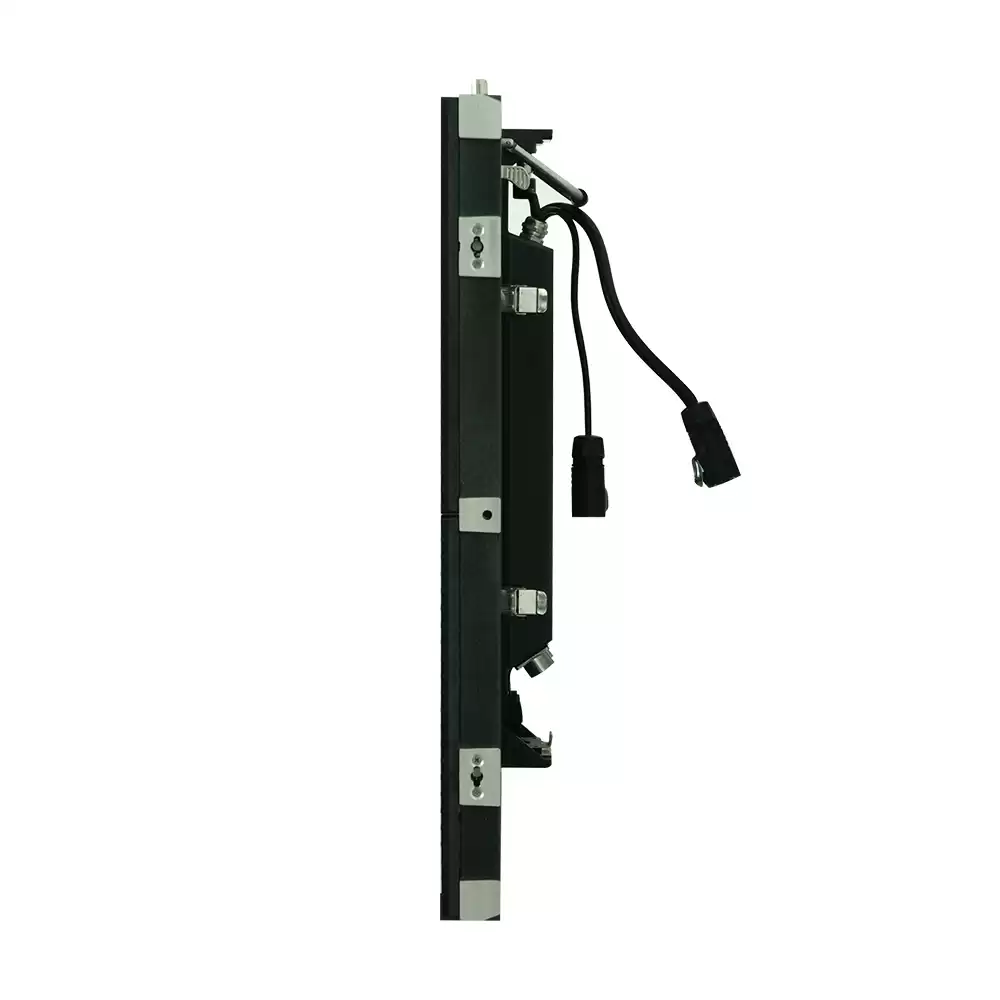

Die-cast aluminum cabinet, transparent structure, the weight is only 7.5kg/pcs, thickness is 80mm




Transparent SMD led Screen

Ultra-high transparency

58% transparency, greatly reduce wind resistance, better cooling effect, without affecting the outdoor vision

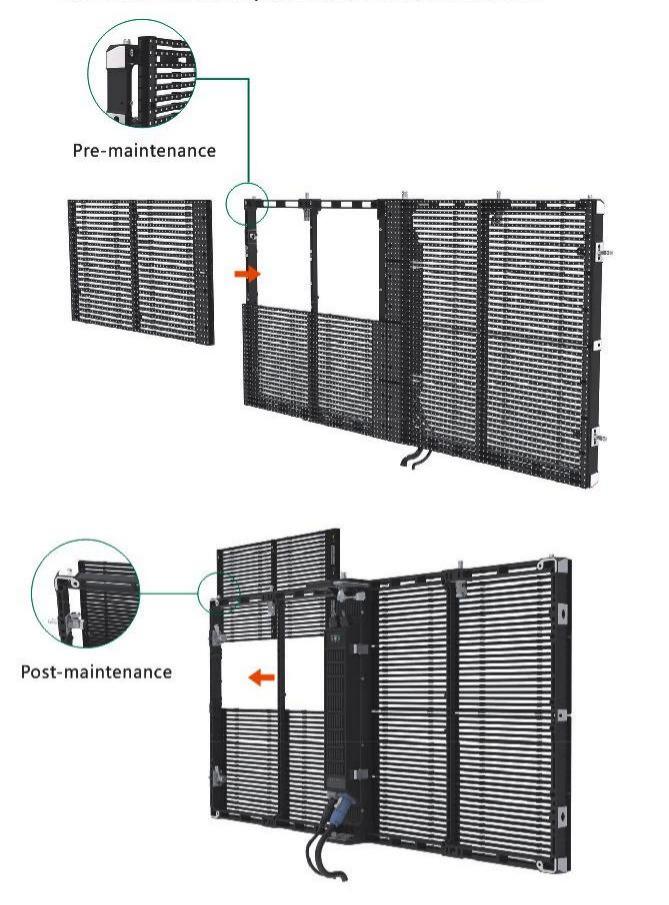

Front and rear maintenance

Fast and easy maintenance, low maintenance costs, only need to replace a single light bar



transparent led curtain display

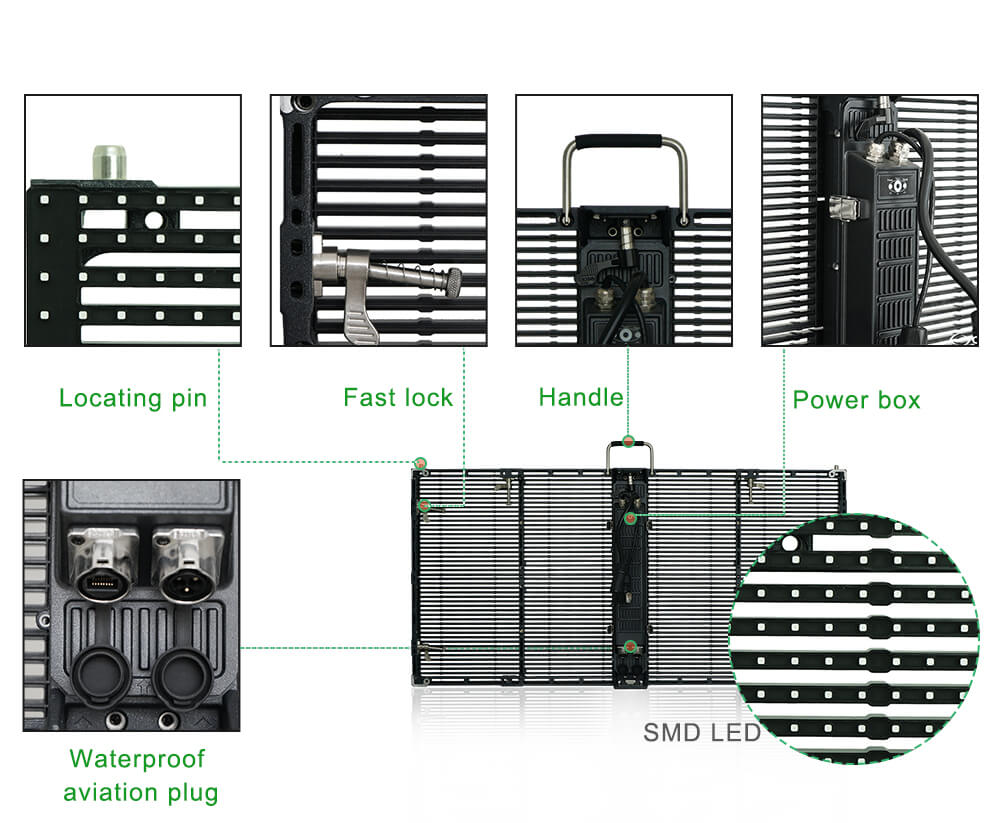

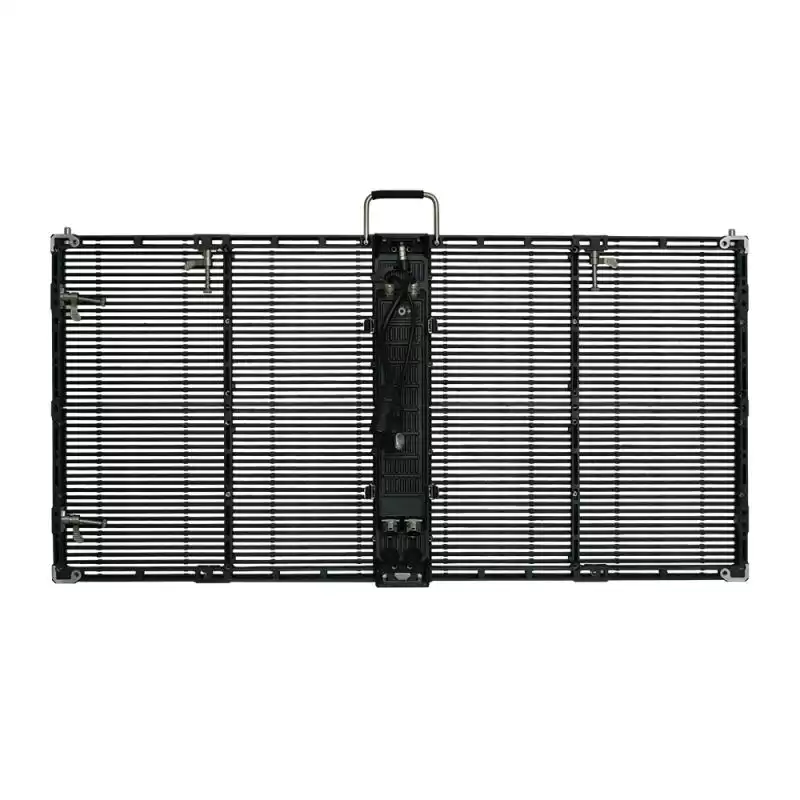

Product details

SMD LEDS, locating pin, quick lock, handle, power box, waterproof aviation plug


high transparent led display

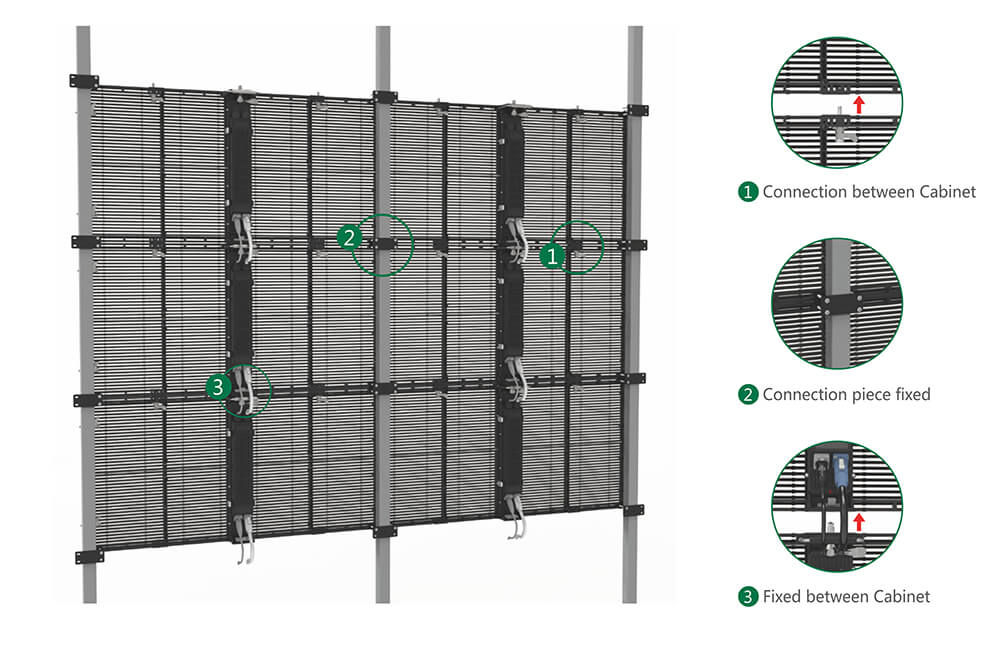

Product Installation

led transparent display panel

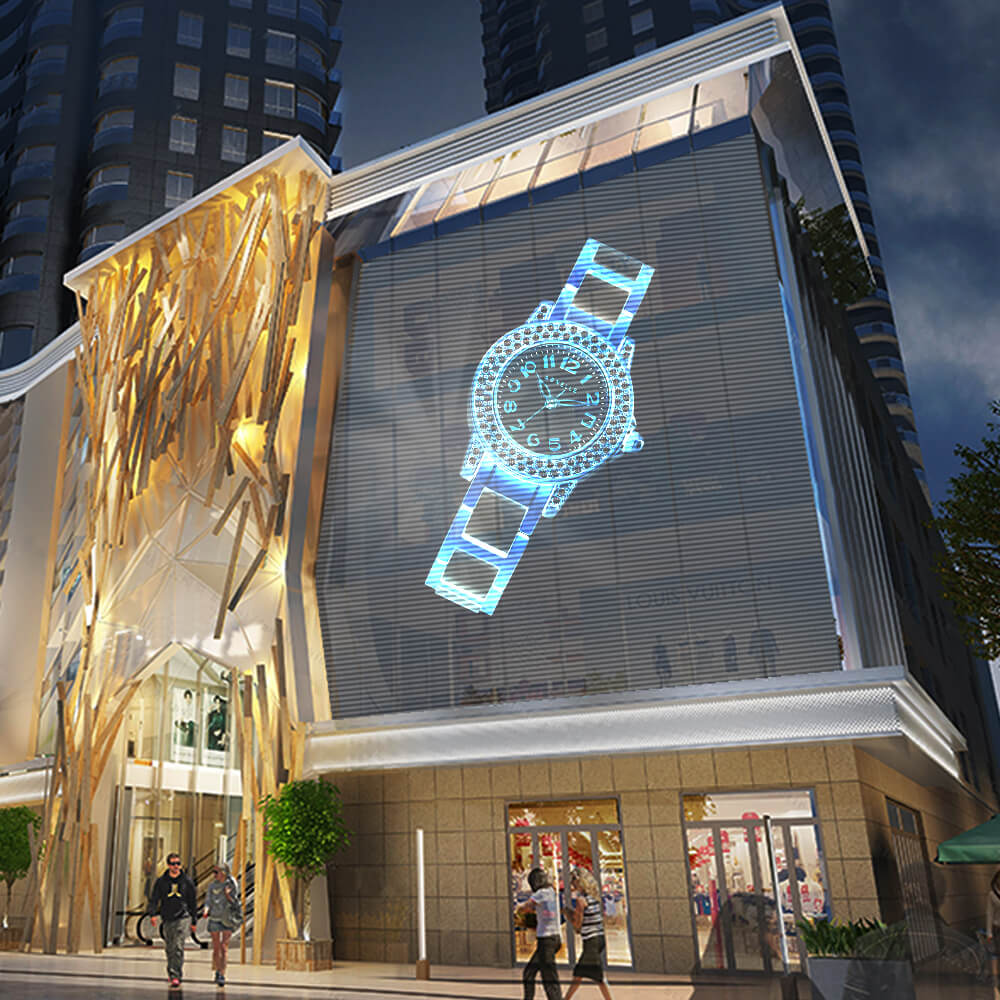

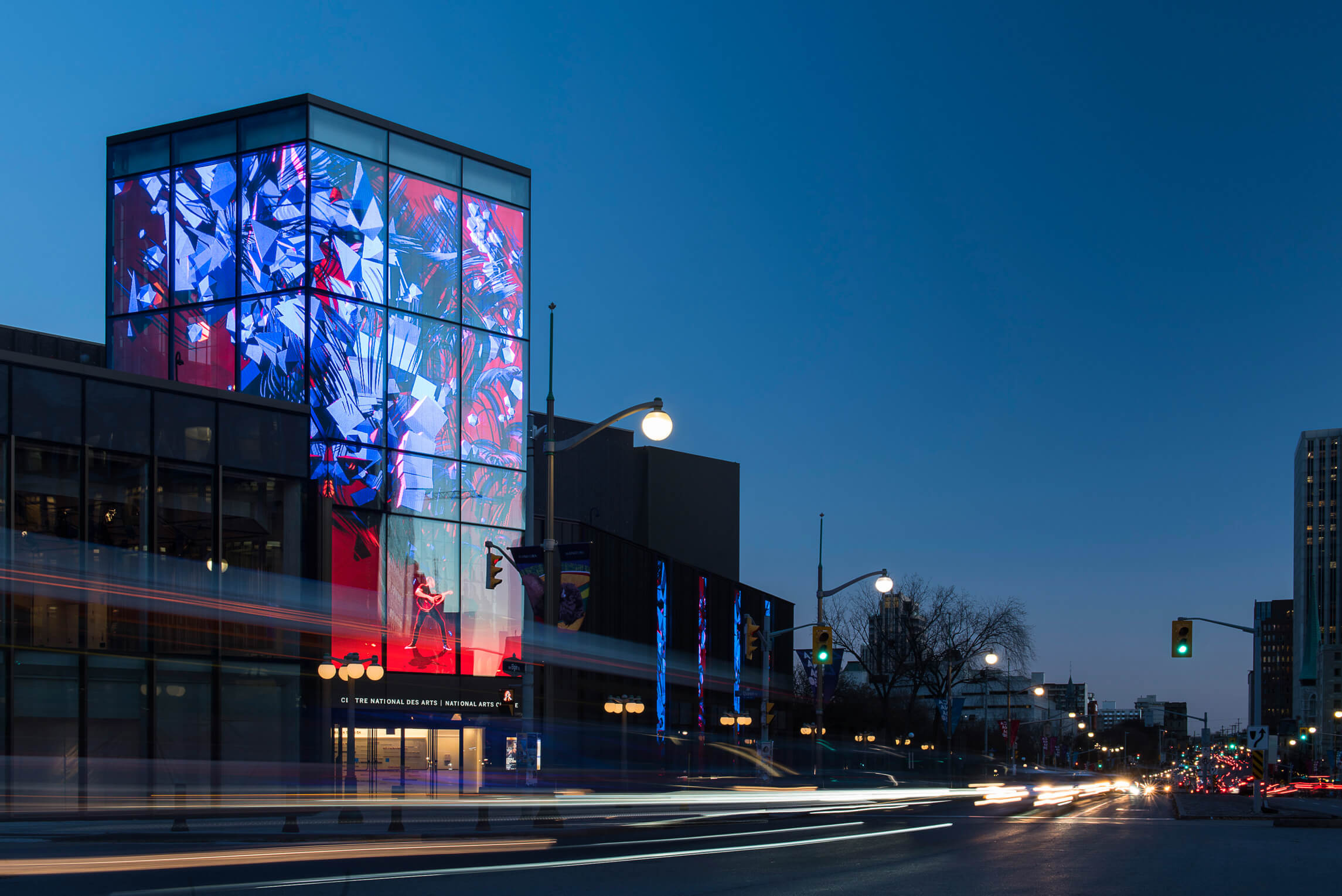

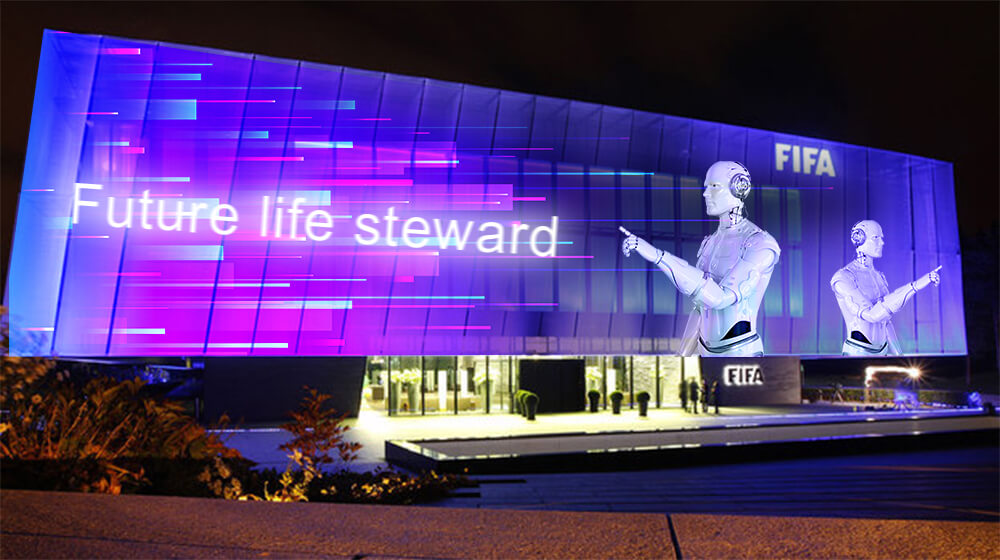

Product Case


outdoor transparent led display panel


outdoor transparent led display panel


outdoor transparent led display panel


Specifications

Product

C-Trans
Module
Pixel pitch 10.41mm

Permeability

58%

Module size

500*250mm

Pixel color

1R1G1B

Pixel LED

SMD2727

Working voltage

DC4.6~5V

Cabinet

Cabinet Material

Die-cast aluminum

Cabinet Weight

7.5kg
Cabinet size

1000*500*80mm

Density

9216 Dots/㎡

White balance

4500 CD/㎡

 Color temperature

6500-8000K

View angel

H:120°;V:120°

Maximal power/㎡

≤800W/㎡

Average power/㎡

≤260W/㎡

Frame frequency

60Hz

Refresh frequency

3840Hz

Gray grade

14bit

Working temperature

-20~50℃

Protection grade

IP65
