C-Vent P16.67,25 Outdoor Transparent LED Curtain Screen

This LED display excellent for outdoor installation of glass curtain wall. No need of steel structure while installation, educing steel structure weight 50kgs/m2, 60%-80% transparency, making glass curtain wall more vivid and without affecting the views.

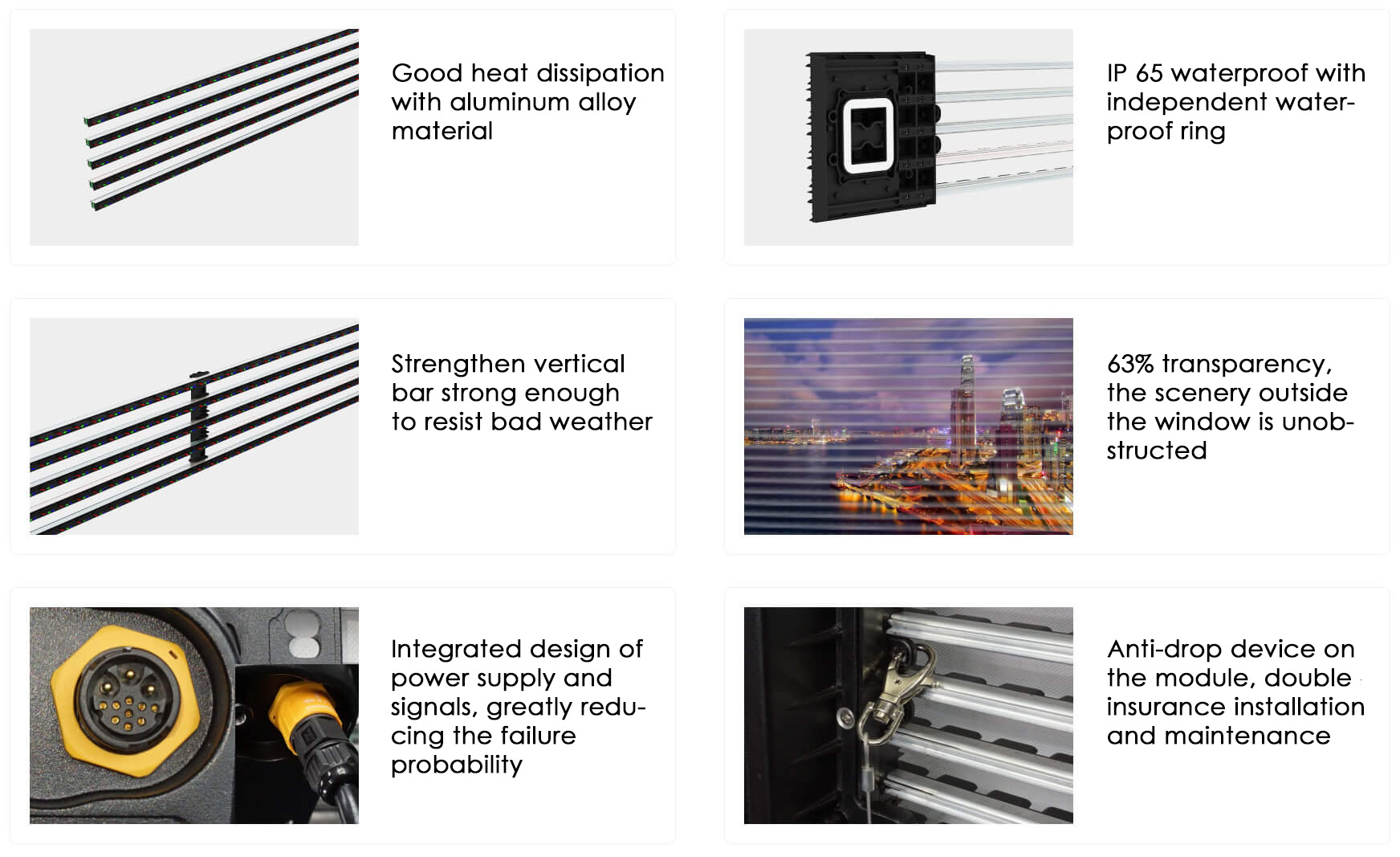

Advantages:

1. Light weight, thin and transparent

2. Transparency ratio up to 63%

3. Strong adaptablity

4. Low power consumption

5. Front and rear serviceable

6. High-cost effective witnout supporting structure

7. Fast plug in and out the power cable and signal cable

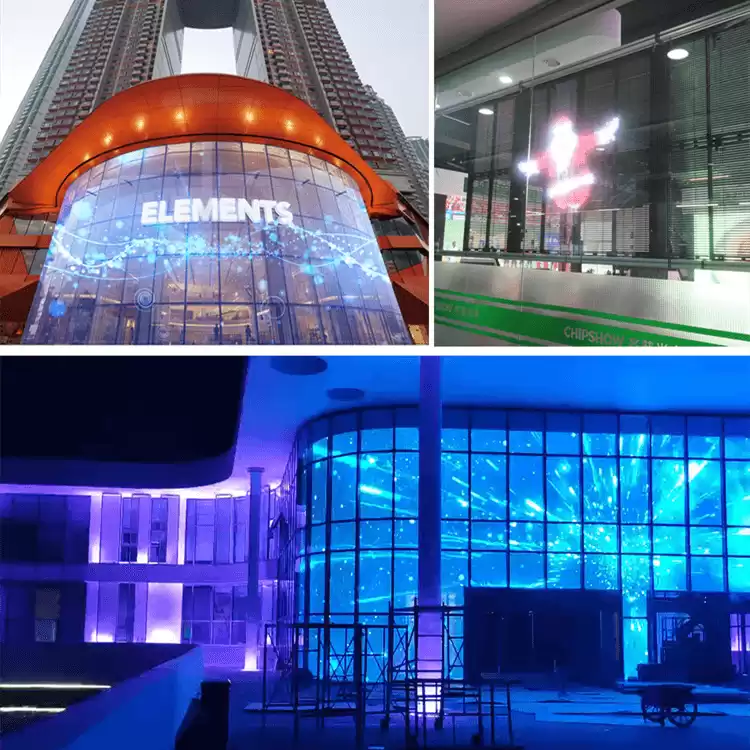

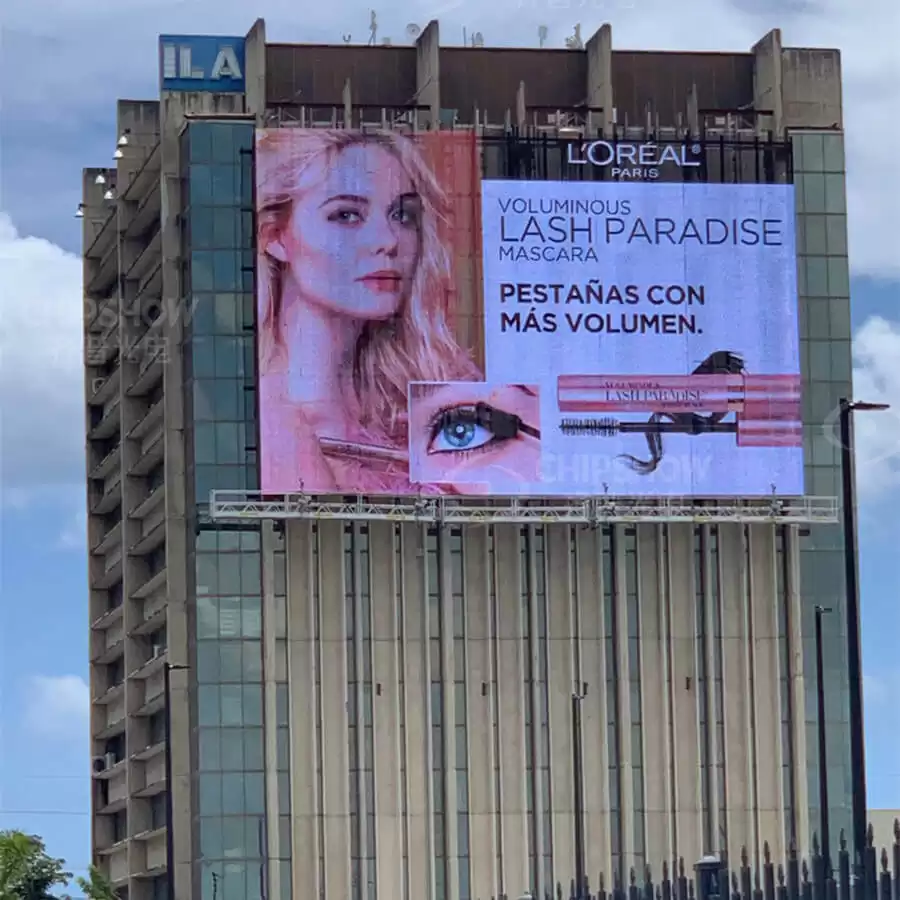

Application:

outdoor upper-air glass curtain wall, outdoor partition wall, exhibition hall, airport, park landscape etc.

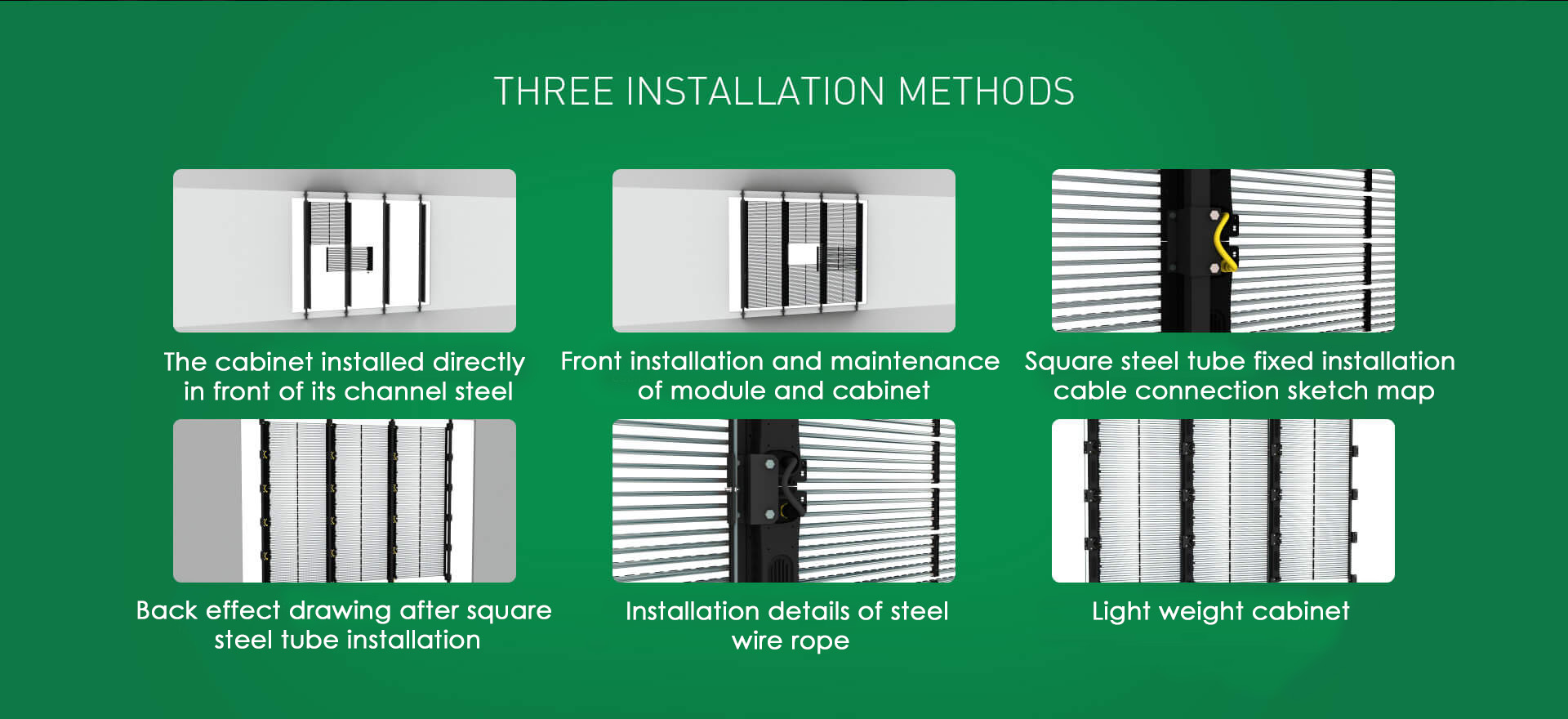

Three Installation Methods

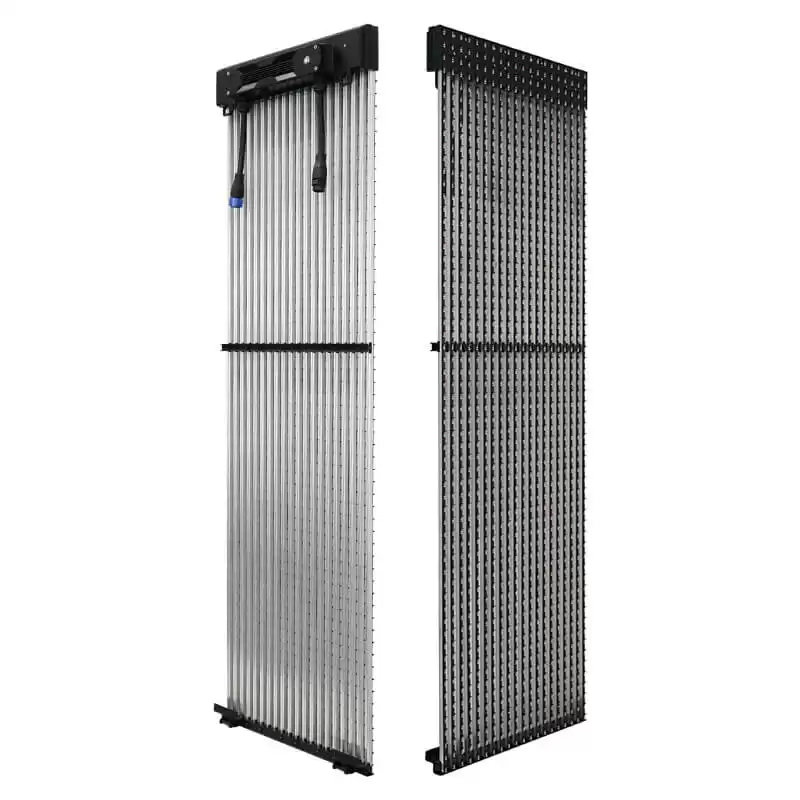

Structure Design


Specifications

Product

C-Vent P16.67

C-Vent P25

Pixel Pitch

16.67mm

25mm

Pixel color

1R1G1B

1R1G1B

Pixel LED

DIP346

DIP346

Module size

166.7*1500mm

125*1500mm

Cabinet Material

Cast aluminum

Aluminum

Cabinet Weight

11.5kg

8kg

Cabinet size

500*1500mm

500*1500mm

Brightness

7000 nits

7000 nits

Color temperature

3200~9300 K

3200~9300 K

View angle

H:90°, V:55°

H:90°, V:55°

Maximal power

333W/㎡

270W/㎡

Average power

100W/㎡

90W/㎡

Refresh frequency

3840HZ

3840HZ

Gray grade

14bit

14bit

Working temperature

-40℃~50℃

-40℃~50℃

Protection grade

Front/Back:IP65/IP65

Front/Back:IP65/IP65
