C-Vent P16 Outdoor Ventilation Wall Advertising Screen

This screen is ventilation, lightweight, thin and front maintenance available, which is suitable for outdoor wall advertising solutions.

Features

1. Ultra-thin design: The weight is 33kg/cabinet and the thickness of the whole cabinet is only 127mm

2. Low windage: The screen is ventilation, it reduce the windage and can save the structure costs.

3. Good ventilation: Do not need to use air conditioning fan and save cost.

4. Strong adaptability: Waterproof, dustproof and airproof design.

5. Environmental protection and energy saving: Good ventilation, do not need to use air conditioning fan and save cost.

6. Front and rear service.

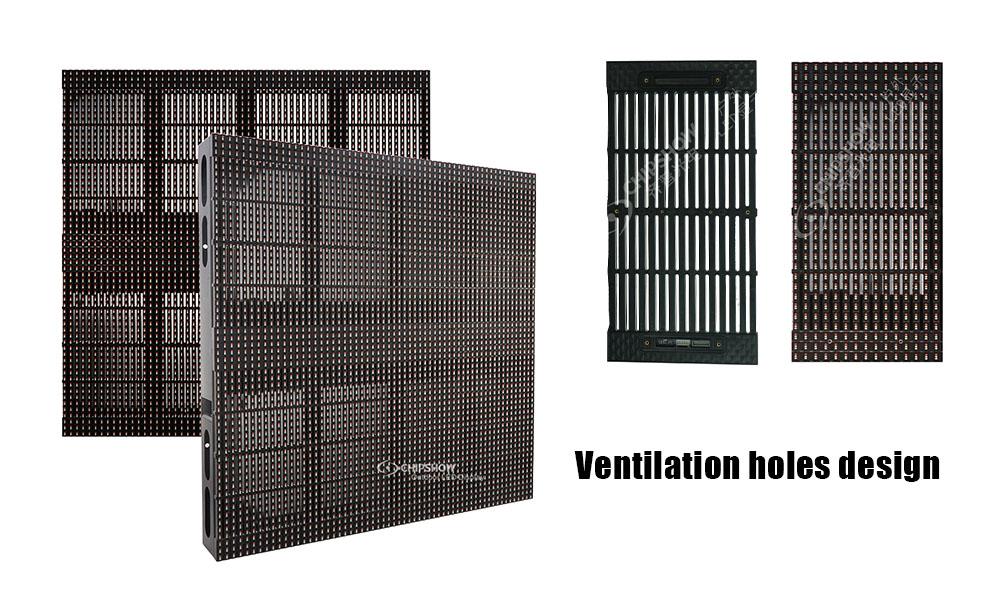

Ventilation & Ultra-thin design


Ultra-light & ultra-thin design requires low load bearing and 50mm thinner than the routine cabinet that makes installation more easier.


Good ventilation & Low windage


Module ventilation design, it reduce the windage and can save the structure costs. Both effective cooling, without air conditioning fan and save cost


Specifications

Product

C-Vent P16 Wall Screen

Module Parameter

Pixel Pitch

16mm

Resolution rate

15*30 Dots

Module size

240*480*30mm

Pixelcolor

1R1G1

Pixel LED

DIP346

Working voltage

DC5V

Driving way

static
Cabinet Parameter

Material

Aluminum/Iron

Cabinet Weight

33kg

Resolution rate

90*60 Dots

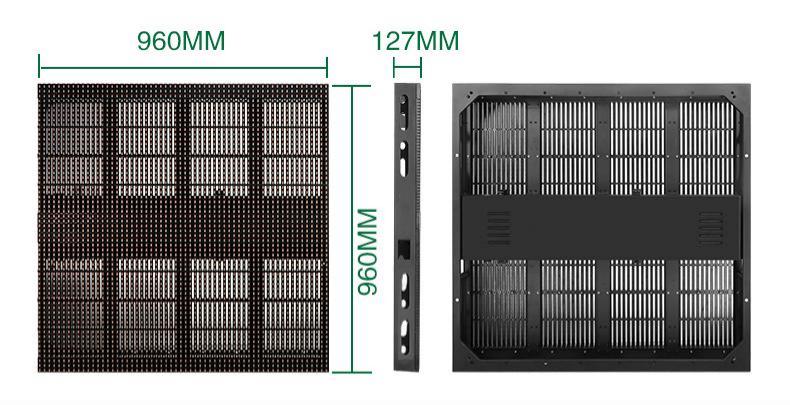

Size

960*960*127mm

Module quantity

4*2

Density

3910 Dots/㎡

White balance

7500CD/㎡

Color temperature

6500 K

View angel

H:110°;V:110°

Non-Flatness

<1mm

Module interval

<1mm

Maximal power/㎡

337.5W

Average power/㎡

101.25W

Frame frequency

60Hz

Refresh frequency

3860Hz

Gray grade

16bit

Working temperature

-20℃ - +50℃

Protection grade

Front/Back:IP65/IP54
