Application:
It is suitable for 5 to 15gram drip coffee inner and outer bag packaging.
Features:
1. Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2. Adopts PID temperature controller for more accurate temperature adjustment.
3. Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are imported, ensuring the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
10. Adopts high specifications components.
Standard Technical Data
|
Type
|
Drip Coffee Packaging Machine Series
|
|
Model
|
C19D
|
|
Product name
|

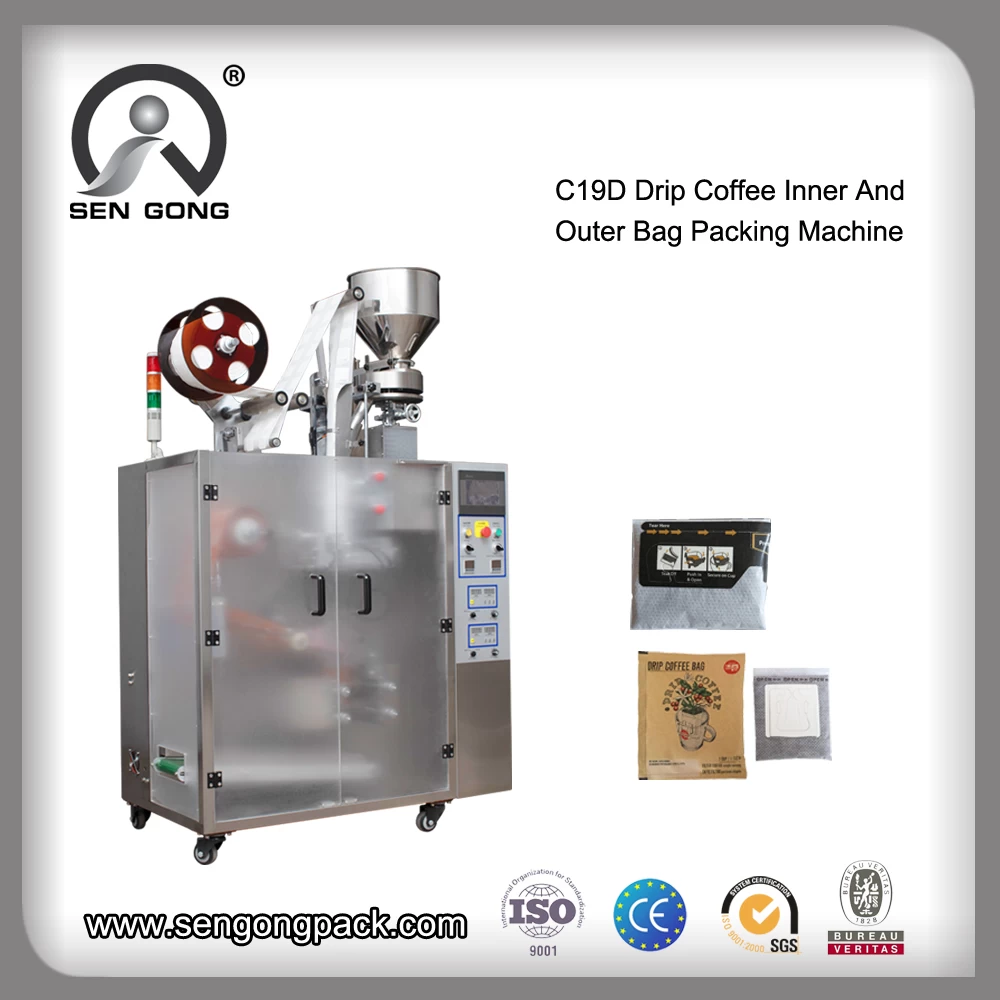

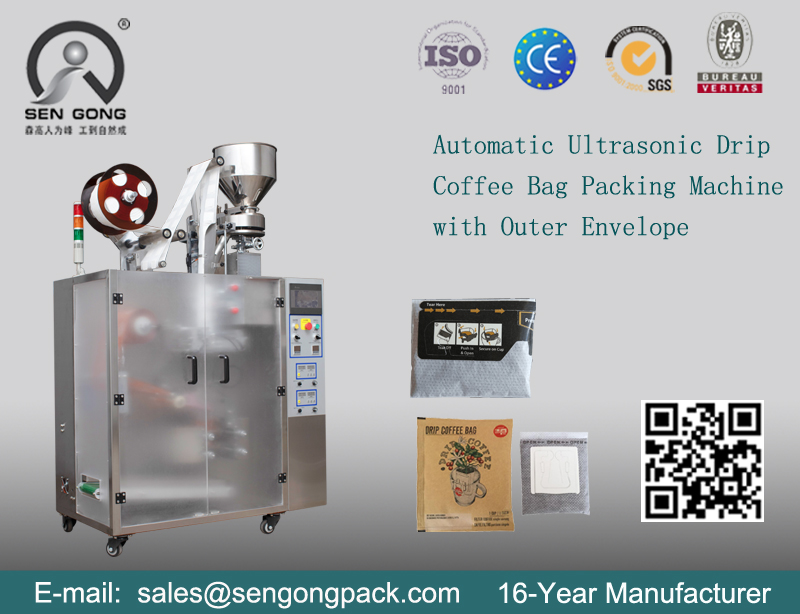

C19D Ultrasonic drip coffee machine packets
|
|
Bag type
|
Ultrasonic sealing
|
|
Packing material
|
Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
|
|
Feeding system
|
Volumetric cup filler
|
|
Package range
|
5-15g
|
|
Inner bag size
|
L:50-75mm , W:50-90mm
|
|
Outer bag size
|
L:85-120mm , W:75-100mm
|
|
Inner bag film width (180mm)
|
Bag size: L90mm*W75mm
|
|
Outer bag film width(200mm)
|
Bag size: L120mm*W100mm
|
|
Power supply
|
Single phase, 220V, 50HZ, 3.7KW
|
|
Packing speed
|
30-60bags/min
|
|
Weight
|
550KG
|
|
Dimension (L*W*H)
|
1200*900*1900mm
|
Manufacturer of a wide range of Packaging Machine,which include Coffee Pouch Packing Machine,coffee bagging machine,etc.
