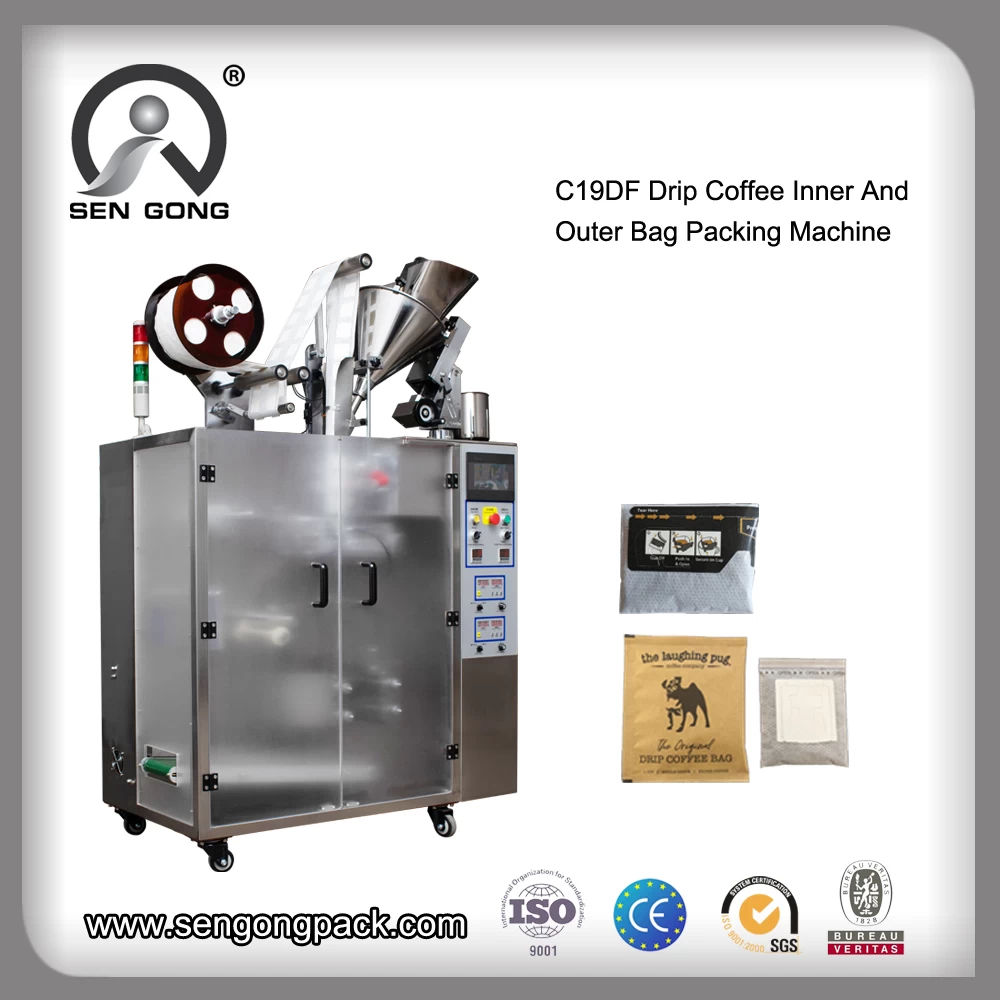

C19DF coffee pouch filter sealing machine

We promise

1:On - site repair
2:Free one-year warranty
3:Free testing machine
4:Free operating machine training








Application;

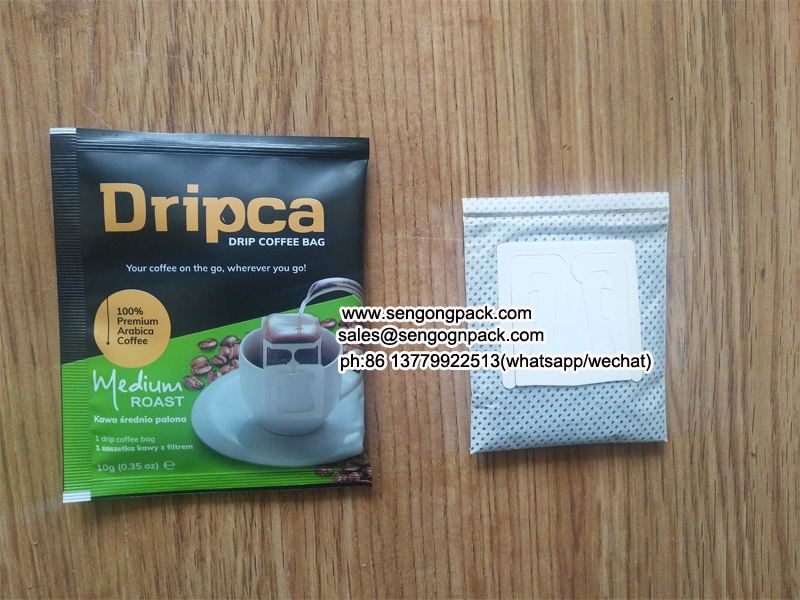

It is suitable for;5 to 15gram;drip coffee inner and outer bag;packaging.
Features;
1.Outer bag sealing is controlled by the;stepper motor, ensuring accurate and stable;bag length positioning.
2.Adopts PID temperature controller for more accurate temperature adjustment.
3.Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of  SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are imported, ensuring;the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts;automatic conveyor system.
8. Options: Date;code printer.

9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
10. Adopts high specifications components.
Standard Technical Data;

Type Drip Coffee Packaging Machine Series
Model C19DF
Product name C19DF  coffee pouch filter sealing machine
Bag type Ultrasonic sealing
Packing material Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
Feeding system Volumetric cup filler
Package range 5-15g
Inner bag size L:50-75mm , W:50-90mm
Outer bag size L:85-120mm , W:75-100mm
Inner bag film width (180mm) Bag size: L90mm*W75mm
Outer bag film width(200mm) Bag size: L120mm*W100mm
Power supply Single phase, 220V, 50HZ, 3.7KW
Packing speed 30-60bags/min
Weight 580KG
Dimension (L*W*H) 1200*900*1900mm











Product Tags drip coffee bag packaging machine          drip on coffee bag          drip coffee bag sealing machine          sealing drip coffee bagging machine          drip machine for making coffee bags          drip resealable coffee bagging machine          drip bag coffee bag machine for sale          drip bag coffee          drip coffee machine
