l;Application:

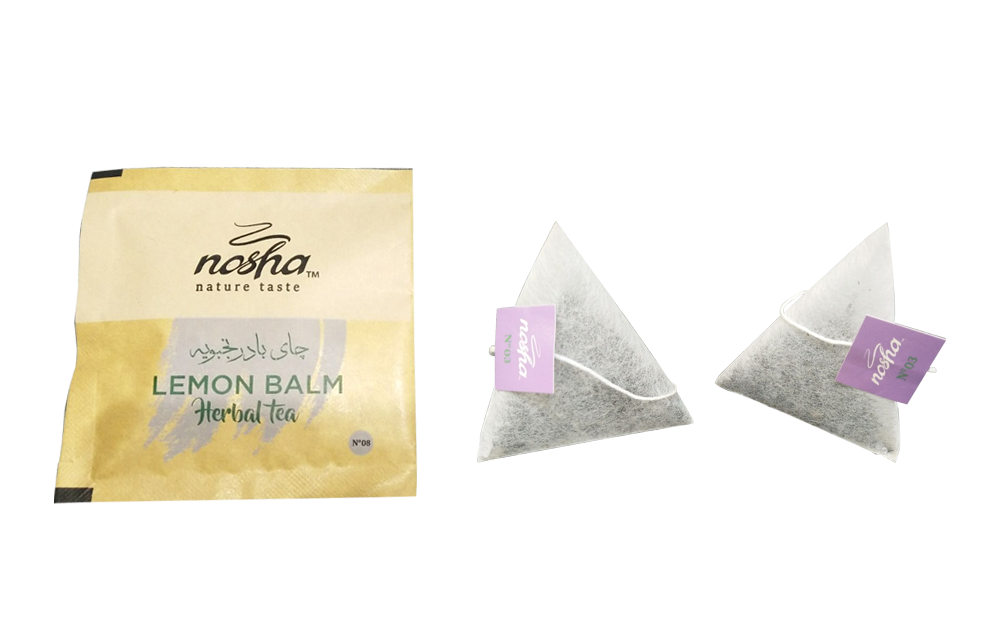

It is suitable for;inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.
We have over 18 year experience in Tea Pouch Packing Machine design, research, development, production, sales and service.
l;Features:
1.;The packing material of the;triangle packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.;The machine uses a unique;sealing method--ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
l;;Technical data:
|
Machine type:
|
Tea Bag Packing Machine Series
|
|
Machine Model:
|
C21DX
|
|
Machine;name:
|

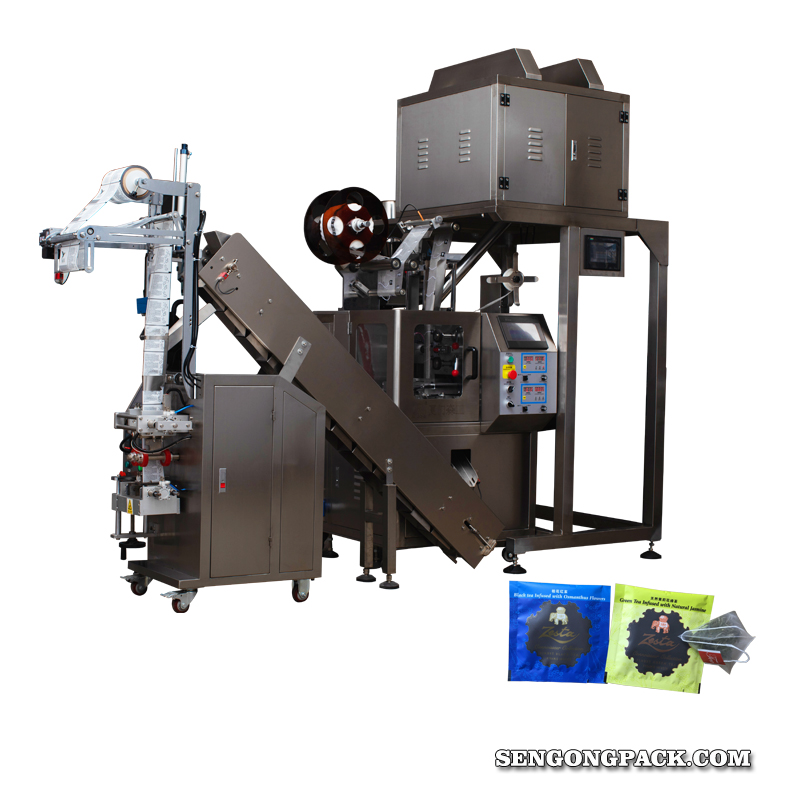

Automatic Pyramid Tea Bag Packing Machine with Outer Envelope
|
|
Packing speed:
|
30～50bags/min
|
|
Filling range:
|
10g
|
|
Accuracy:
|
±0.1g/bag
|
|
Packing roll width:
|
140, 160, 180(mm)
|
|
Outer bag size:
|
W:80-100mm, L: 90-120mm
|
|
Sealing method:
|
Cutting and sealing by ultrasonic
|
|
Quantity of seal device:
|
2sets
|
|
Power supply:
|
220V, 50Hz,1.85KW
|
|
Air supply:
|
0.6MPa (can be quipped with air compressor)
|
|
Dimensions:;
|
3000*900*2350mm(L*W*H)
|
|
Machine weight:
|
700KGS
|
;
