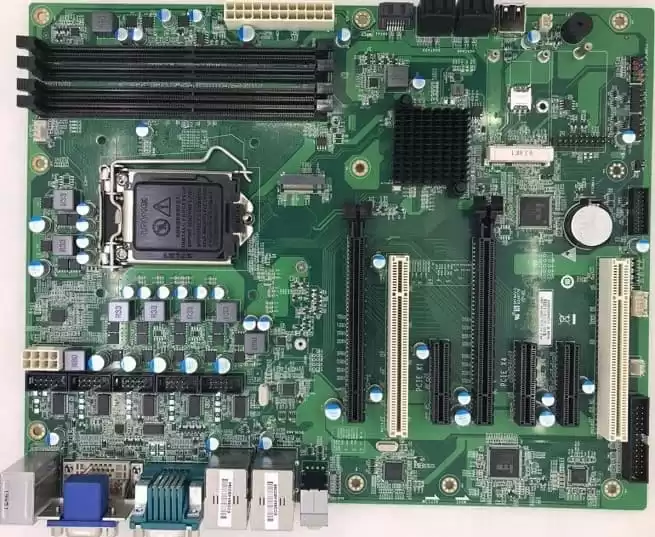

C236 ATX Industrial Motherboard 2LAN/6COM/13USB 7 Slots

ATX-C236AH26D

ATX Industrial Motherboard, Intel@ PCH C236 Chip, 2LAN/6COM/13USB, 7 slots(2PCI)



ATX Industrial Motherboard Intel@ PCH C236 Chip 2LAN/6COM/13USB 7 Slots

Product Introduction

ATX-C236AH26D industrial motherboard is likely designed for applications in industrial environments where reliability, durability, and specific connectivity options are crucial. The motherboard has two LAN (Local Area Network) ports, indicating dual Ethernet connectivity. This can be useful for networking purposes, redundancy, or load balancing. The ATX industrial motherboard offer a variety of communication ports and multiple expansion slots to accommodate diverse industrial needs.



Product Features

■ Support LGA 1151 architecture 6/7/8/9 generation and Xeon E3 V5&V6 CPU

■ 2 Intel Gigabit LAN ports

■ VGA, DVI, HDMI ports

■ 6COM RS232, COM1 support RS422 / 485

■ Can be extended by LPC for another 4COM

■ 7USB2.0, 6USB3.0

■ 8-bit GPIO

■ 2PCIEx16 (x8 signals); 3PCIEx4 (1 x1 signal); 2PCI expansion

■ 256-level watchdog



Specification

CPU/GPU

Supports LGA 1151 architecture for 6th/7th/8th/9th generation Intel® Core CPU i7/ i5/ i3 Pentium®/ Celeron®; Intel E3 V5&V6 Xeon CPU.

Chip

Intel@ PCH C236

Memory

4×DDR4 DIMM slots,up to 64GB SDRAM

Storage

5×SATA3.0(support RAID 0/1/5/10),1×M.2

Sound card

Realtek HD Audio

NIC

2×LAN Intel GbE

Graphic card

CPU integrated graphics card

Display interface

VGA, DVI, HDMI

USB2.0

7

USB3.0

6

GPIO

8 bits

COM

6COM RS232(COM1 support RS422 / 485),available via LPC to 4COM

Backplane I / O

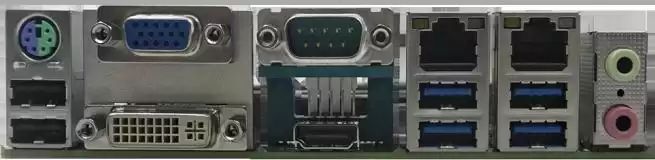

PS2+2USB2.0, COM+HDMII,VGA+DVI, 2 RJ45 LAN+4USB3.0, Line-out+Mic-in

Board I / O

5USB2.0(1 bends USB) , 2USB3.0,  5COM ,  front audio , CLR_CMOS ,  CPU fan power ,  System fan power , GPIO,  Front panel ,  24P+4P ATX,  Print,LPC

Expansion

2PCIEx16(x8 signal);  3PCIEx4(of which 1 X1 signal);  2PCI

System

Support Windows(WIN 7,WIN 10 ...),Linux

Mechanical & Environmental

Power supply

 ATX

Heat dissipation

Fan

Size(L×W)

305mm×244mm

Operating temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90% air humidity, non-condensing

Packing List

ATX-C236AH26D motherboard×1,SATA data cable×1,interface bezel×1,COM cablex2
