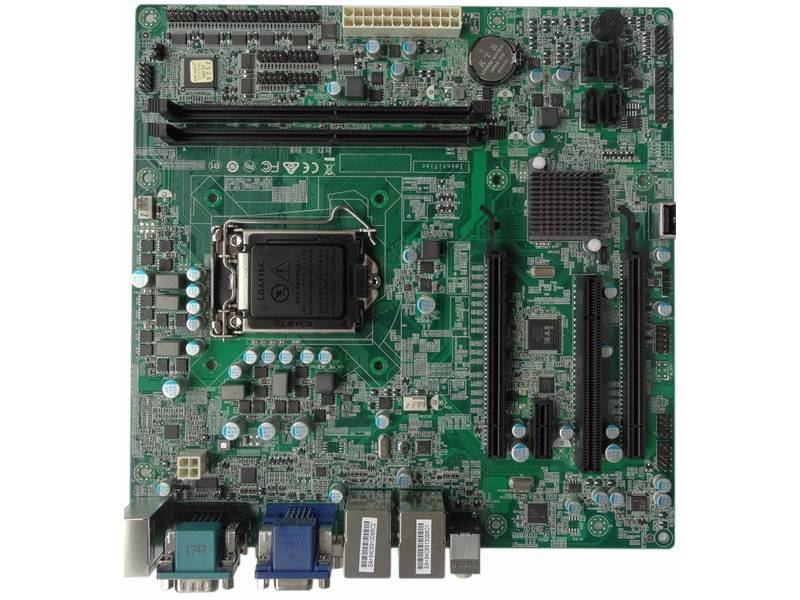

C236 Chip Micro ATX Industrial Motherboard 2LAN 6COM 14USB 4slots(2PCIEx16)

MATX-C236AH26E

Micro ATX Industrial Motherboard, Intel@ PCH C236 Chip,  2LAN/6COM/14USB,  4 slots(2PCIEx16), Sopport LGA 1151 architecture 6th/7th/8th/9th CPU and Intel® Xeon E3 V5 V6 CPU



MATX-C236AH26E Micro ATX Industrial Motherboard, Intel@ PCH C236 Chip,  2LAN/6COM/14USB,  4 slots(2PCIEx16)



Product Introduction

The Micro ATX industrial motherboard is a versatile, compact and reliable solution for a wide variety of industrial and embedded applications. When selecting a Micro ATX motherboard for a specific project's needs, trade-offs should be made based on factors such as desired I/O options, endurance, temperature range, power requirements, and cost.



Product Features

■ Sopport LGA 1151 architecture 6th 7th 8th 9th Intel CPU and Intel® Xeon E3 V5V6 CPU

■ 2×LAN Intel GbE

■ VGA,DVI,HDMI display interface

■ 6×COM RS232,COM1 support RS422 / 485

■ 10×USB2.0,  4×USB3.0

■ 8 bits GPIO

■ 2PCIEx16(X8 signal);  1 PCIEx1;  1PCI expansion

■ 256S watchdog



Specification

CPU/GPU

Support Intel Xeon E3 V5/V6 CPU and 6th、7th、8th、9th generation desktop CPU

Chip

Intel@ C236 server chip

Memory

4×DDR4 DIMM slots,up to 64GB SDRAM

Storage

5×SATA,1×M.2 2280,support RAID 0,1,5,10

Sound card

RealtekHD Audio

NIC

2×LAN Intel GbE

Graphic card

CPU integrated graphic

Display card

VGA,DVI, HDMI

USB2.0

10

USB3.0

4

GPIO

8 bits

COM

6COM RS232(COM1 support RS422 / 485)Another 4×COM can be extended by LPC

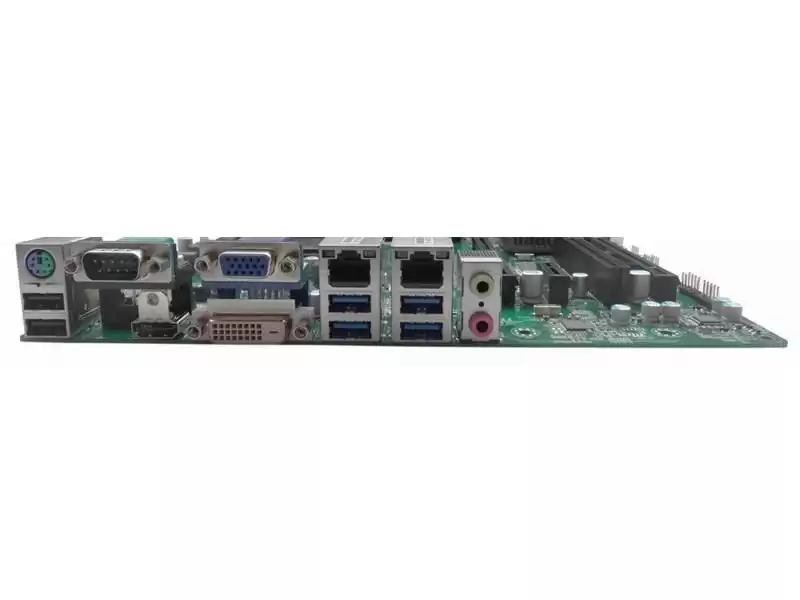

BackplaneI / O

PS2+2USB2.0,VGA+DVI,COM+HDMI,2 RJ45 LAN+4USB3.0,Line-out+Mic-in

BoardI / O

8USB2.0(2 upright USB2.0) , 5COM ,  front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO,  Front panel ,  24P+4P ATX,  Print,LPC, TPM

Expansion

 1PCIEx16;  1 PCIEx4;  2PCI

System

Support Windows(WIN 7,WIN 10 ...),Linux





Mechanical & Environmental

Power Supply

ATX

Heat dissipation

Fan

Size(L×W)

244mm×244mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environment humidity

0~90%air humidity,no-condensation

Packing list

MATX-C236AH26E motherboard×1,SATA data cable×1,interface bezel×1,COM cable x1

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
