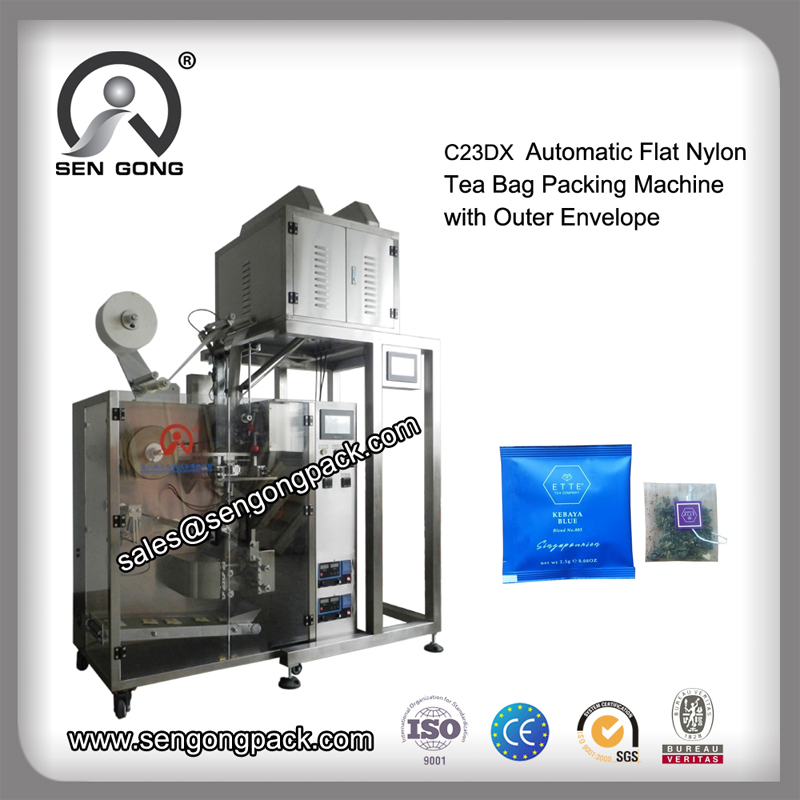

C23DX rectangle tea bag machine

pyramid tea bag packing machine,pyramid tea bag machine








Application:

It is suitable for rectangle inner and outer bag packaging for products such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, DaHongPao, rose tea, ginseng, etc.

Features:

1. The packing material of the triangle bag machine is nylon, non-woven fabric material imported from Japan, which is non-toxic, no bacteria, heat-resistant high quality food grade material, conforming to our national safety inspection standard.

2. The machine uses a unique sealing method - ultrasonic. It can seal tightly, safely, reduce the width of the extra edge, avoiding any waste of packing material.

;;Technical data;

Type: Tea Bag Packing Machine Series
Model: C23DX
Product name C23DX  rectangle tea bag machine
Packing Material: Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA.
Filling range: 1-3g/bag, error≤±0.2g/bag(depends on the materials)
Packing roll width: 120, 140, 160, 180(mm)
Adjustable range: 50, 60, 70, 80(mm)
Sealing and Cutting: Electronic pulse--Ultrasonic melt cutting and heat sealing
Quantity of sealing device: 2 sets
Packing speed: 40-60bags/min
Motor Power: ; 220V, 50Hz, 1.2KW
Air supply: Pressure≥0.9MPa, (optional with air pump )
Weight: 500KGS
Dimension: 1400mm*1200mm*2200mm(L*W*H)
;


;
