Performance characteristics:

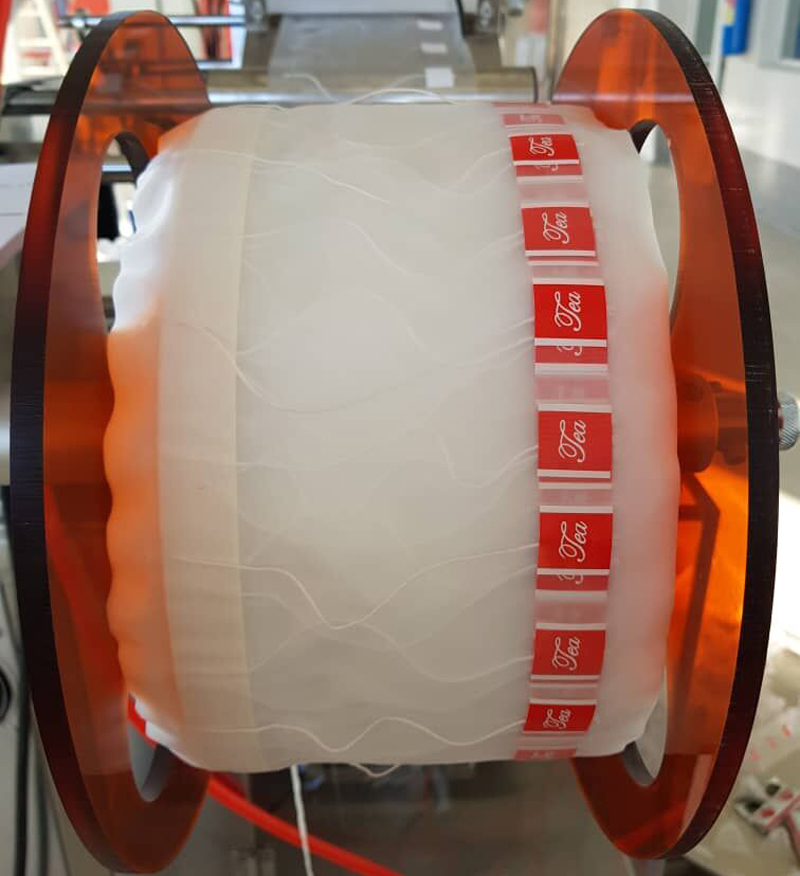

1.it using ultrasonic bonding method,the 20x20mm label paper is fixed on the wide-width ultrasonic sealing material of 120.140.160.180mm.
2 it can accurately control the adhesion,fastness and effect,the trigger type ultrasonic with high stability,and low failure rate.
3.With full computer monitoring and automatic shutdown function when missing lines and missing labels.
4.Adopt PLC control to realize man-machine interface.
5.This machine can automatic switch between long-line and short-line.
Standard Technical Data
|
Technical data
|
|
Product model:
|

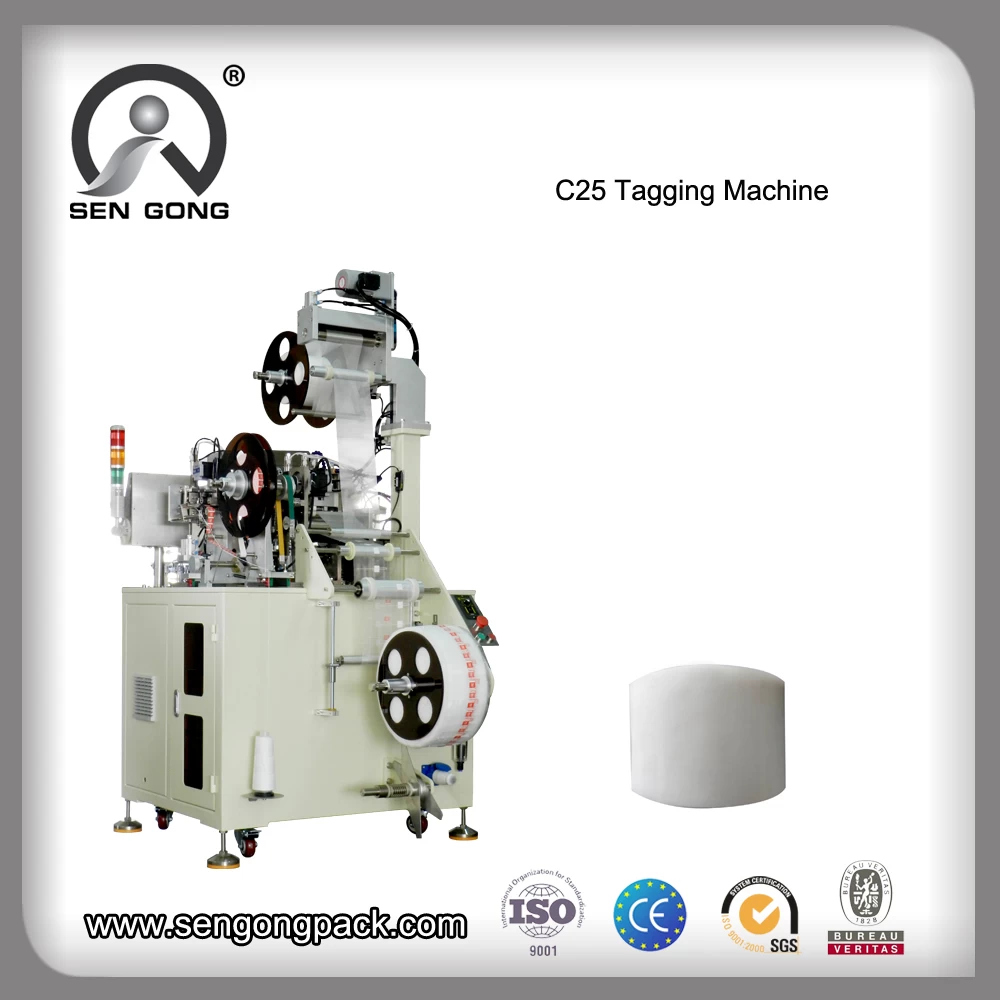

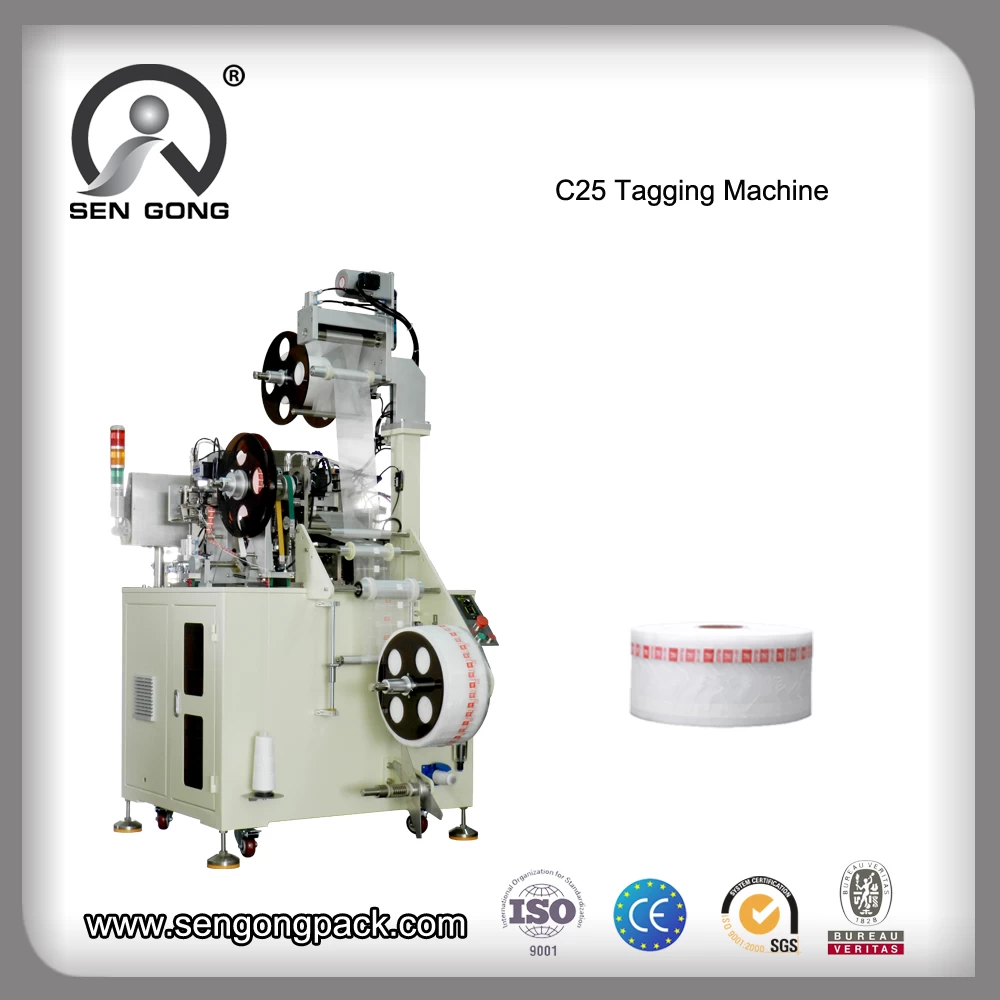

C25
|
|
Product name:
|
Automatic Tagging Machine
|
|
Speed:
|
40-60 tag/min
|
|
Material:
|
Nylon mesh, PET, Non-woven, PLA mesh
|
|
Film width:
|
120, 140, 160, 180
(depends on Machine)
|
|
Tag size:
|
20*20
|
|
Thread length:
|
110 - 130
|
|
Tag Film width:
|
20 (Film needs to meet requirements)
|
|
Film inner diameter
|
Φ76
|
|
Film outer diameter
|
≤Φ400
|
|
Tagging method:
|
By ultrasonic
|
|
Ultrasonic device:
|
3 Sets
|
|
Air supply required:
|
≥0.6Mpa
|
|
Power:
|
AC220V/50HZ
|
|
Dimension:
|
L 1200×W 1200×H 1800
|
|
Weight:
|
About 500kg
|
|
Operation:
|
By 1 person
|
|
Qualified rate:
|
≥99.8%
|
