lApplication:
It is suitable for inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.
We produce excellent quality Nylon Bag Packing Machine,contact us now!
lFeatures:

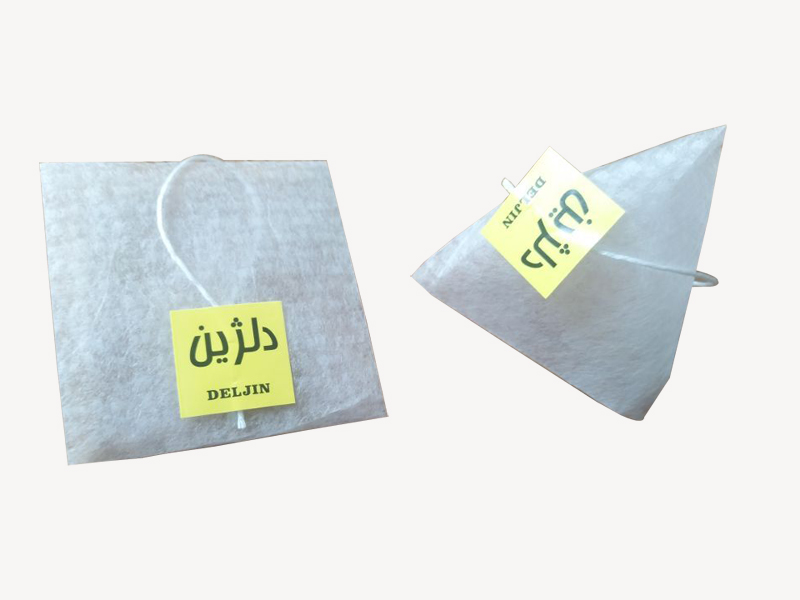

1.The packing material of thetriangle packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.The machine uses a unique sealing method--ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
lTechnical data:
|
Machine type:
|
Tea Bag Packing Machine Series
|
|
Machine Model:
|
C28DX
|
|
Machine;name:
|

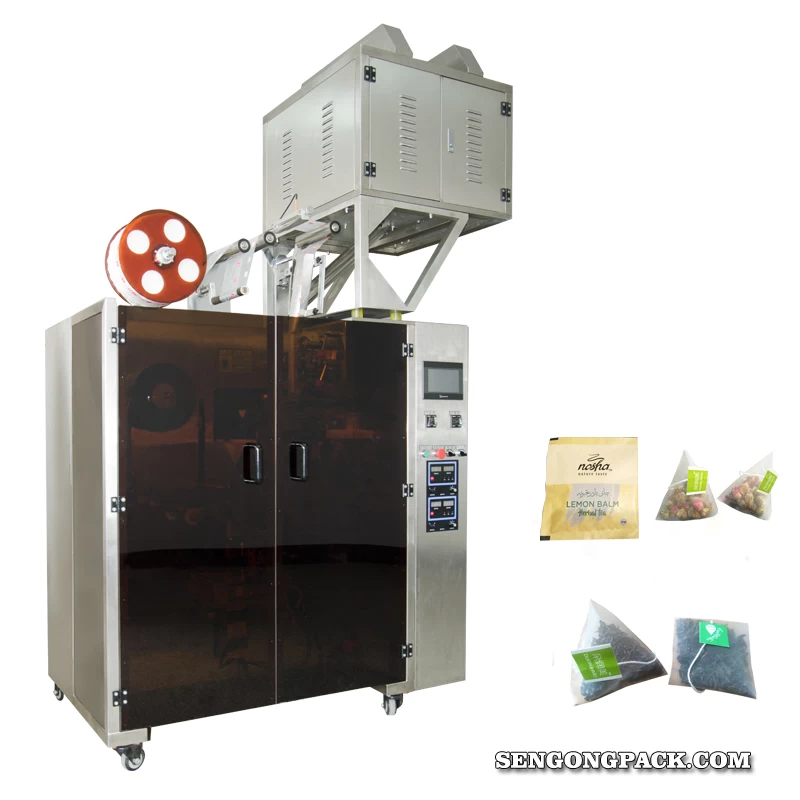

C28DX Automatic Nylon Pyramid/Flat Inner and Outer Bag Packing Machine
|
|
Packing speed:
|
35～55bags/min
|
|
Filling range:
|
1～10g
|
|
Accuracy:
|
±0.1g/bag
|
|
Packing roll width:
|
140, 160, 180(mm)
|
|
Outer bag size:
|
W:80-100mm, L: 90-120mm
|
|
Sealing method:
|
Cutting and sealing by ultrasonic
|
|
Quantity of seal device:
|
2sets
|
|
Power supply:
|
220V, 50Hz,1.85KW
|
|
Air supply:
|
0.6MPa (can be quipped with air compressor)
|
|
Dimensions:
|
3000*900*2350mm(L*W*H)
|
|
Machine weight:
|
700KGS
|
