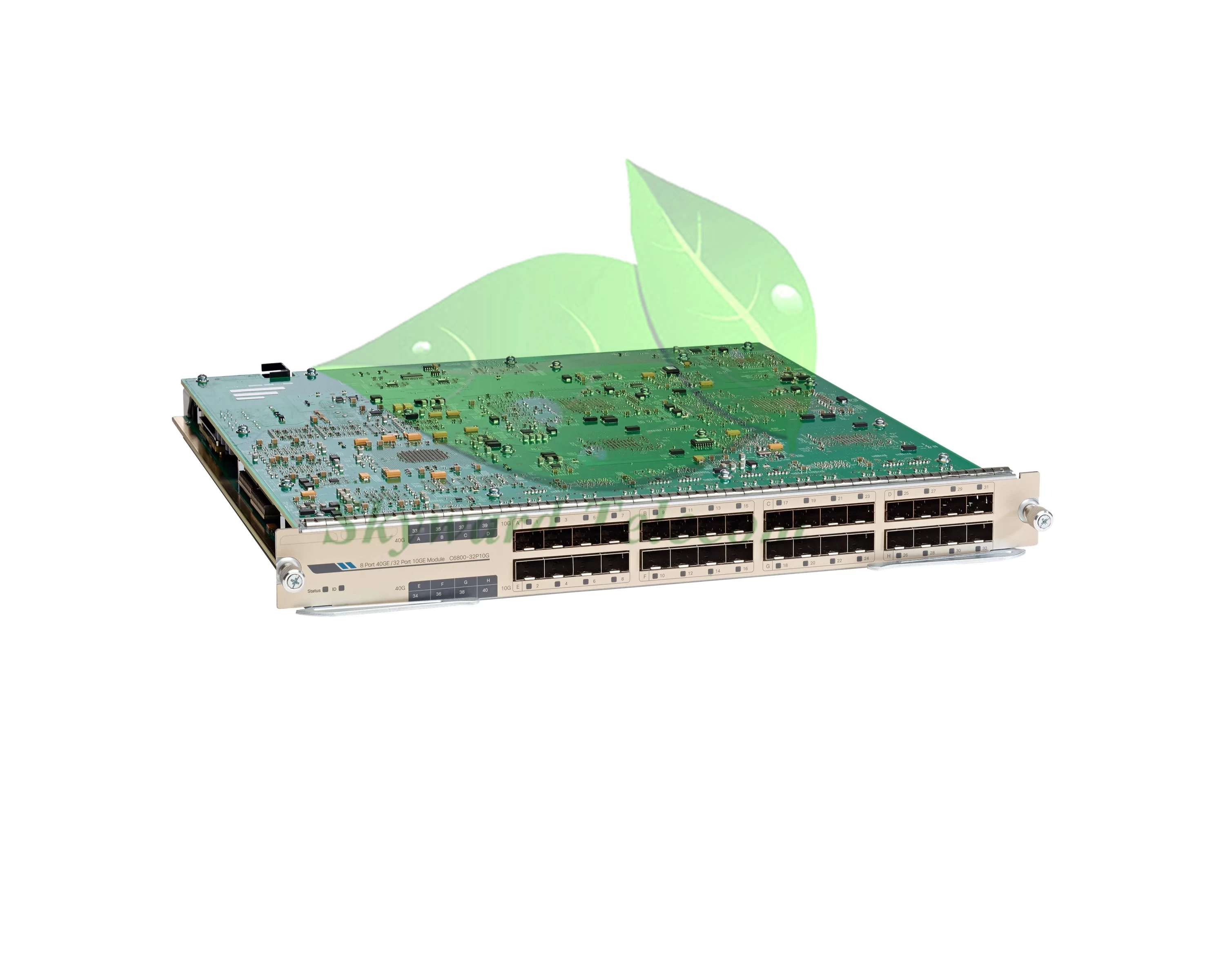

Product Code
|
C6800-32P10G=
|
|
Ports per
module
|
32 ports—Thirty-two 1G ports, or thirty-two 10G
ports, or eight 40G ports
|
|
Ports are numbered left to right.
|
|
The top row has odd numbered ports 1 to 31.
|
|
The bottom row has even numbered ports 2 to 32.
|
|
4 port groups. Port ranges per port group:
|
|
1, 3, 5, 7, 9,11, 13, 15
|
|
2, 4, 6, 8, 10, 12, 14, 16
|
|
17, 19, 21, 23, 25, 27, 29, 31
|
|
8, 20, 22, 24, 26, 28, 30, 32
|
|
Backplane connection
|
160-Gbps backplane bandwidth in 6807XL; 80 Gbps
backplane bandwidth in 6500-E chassis
|
|
Chassis/slot support
|
Can occupy slots 1-2 and 5-7 in a Cisco Catalyst
6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E,
and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E
|
|
Distributed forwarding and performance
|
Comes equipped with factory-installed dual (2) DFC4-E
or DFC4-EXL daughter cards
|
|
Maximum frame size
|
Up to 9216 bytes per frame
|
|
Module
oversubscription rate
|
·2:1 oversubscription in a Cisco Catalyst 6807-XL
chassis. (When all thirty-two 10G ports are used.)
|
|
·4:1 oversubscription in a Cisco Catalyst 6500
E-series chassis.(When all thirty-two 10G ports are used.)
|
|
Supervisor
engine support
|
Supervisor Engine 2T-10GE
|
|
Supervisor Engine 6T
|
|
Software
support
|
With Supervisor Engine 2T-10GE —Cisco IOS Release
15.2(1)SY or later
|
|
With Supervisor Engine 6T – Cisco IOS Release
15.3(1)SY or later
|
|
Fabric
channel speed
|
In a Cisco Catalyst 6807-XL chassis—160 GB per second
|
|
In a Cisco Catalyst 6500-E series chassis—80 GB
per second
|
|
TDR support
|
Supported with GLC-T (1G Copper SFP) transceivers
|
|
Digital Optical Monitoring (DOM) support
|
The DOM-supported 1G transceivers and 10G Fiber
SFP/SFP+ transceivers
|
|
Port connector type
|
LC (optical) or RJ-45 (copper) depending on the SFP
transceiver installed. Depending on the distance between the end ports,
different QSFP+ transceivers can be used
|
|
Dimensions (H x W x D)
|
1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
|
|
Weight
|
14.33 lb (6.5 kg)
|
|
Warranty
|
1
year
|
|
Lead time
|
2-3
business days
|
|
Shipment
|
DHL,
Fedex, Aramex, EMS or per request
|
