C6800-32P10G-XL Overview

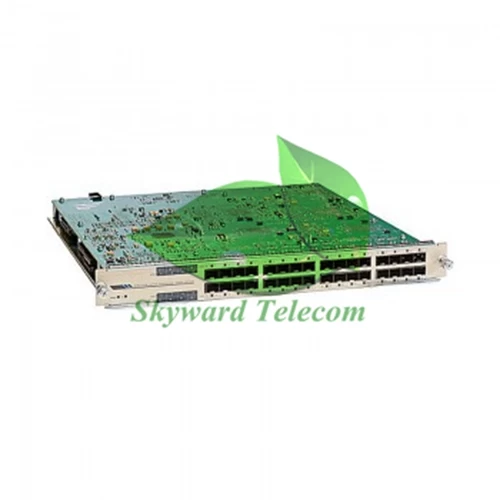

The Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-32P10G-XL= is the C6800-32P10G-XL Spare, it provides eight 40G, thirty two 1G or thirty two 10G transceiver ports.
C6800-32P10G-XL Specification
|
Brand
|
Cisco
|
|
Part
number
|
C6800-32P10G-XL
|
|
Product
Description
|
Catalyst 6800 32 port 10GE with integrated
dual DFC4XL
|
|
Backplane
connection
|
160-Gbps
backplane bandwidth in 6807XL; 80 Gbps backplane bandwidth in 6500-E chassis
|
|
Chassis/slot support
|
Can
occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in
Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6
and 9-13 in a Cisco Catalyst 6513-E
|
|
Distributed forwarding and performance
|
Comes
equipped with factory-installed dual (2) DFC4-E or DFC4-EXL daughter cards
|
|
Maximum frame size
|
Up to
9216 bytes per frame
|
|
Module oversubscription rate
|
·2:1 oversubscription in a Cisco Catalyst 6807-XL chassis. (When
all thirty-two 10G ports are used.)
|
|
·4:1 oversubscription in a Cisco Catalyst 6500 E-series
chassis.(When all thirty-two 10G ports are used.)
|
|
Supervisor engine support
|
Supervisor
Engine 2T-10GE
|
|
Supervisor
Engine 6T
|
|
Software support
|
With
Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later
|
|
With
Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
|
|
Fabric channel speed
|
In a
Cisco Catalyst 6807-XL chassis—160 GB per second
|
|
In a
Cisco Catalyst 6500-E series chassis—80 GB per second
|
|
TDR support
|
Supported
with GLC-T (1G Copper SFP) transceivers
|
|
Digital Optical Monitoring (DOM) support
|
The
DOM-supported 1G transceivers and 10G Fiber SFP/SFP+ transceivers
|
|
Port connector type
|
LC
(optical) or RJ-45 (copper) depending on the SFP transceiver installed.
Depending on the distance between the end ports, different QSFP+ transceivers
can be used
|
|
Dimensions (H x W x D)
|
4.39 x
39.11 x 41.65 cm
|
|
Weight
|
6.5 kg
|
|
Warranty
|
One year
|
|
Lead
time
|
2-3 business days
|
|
