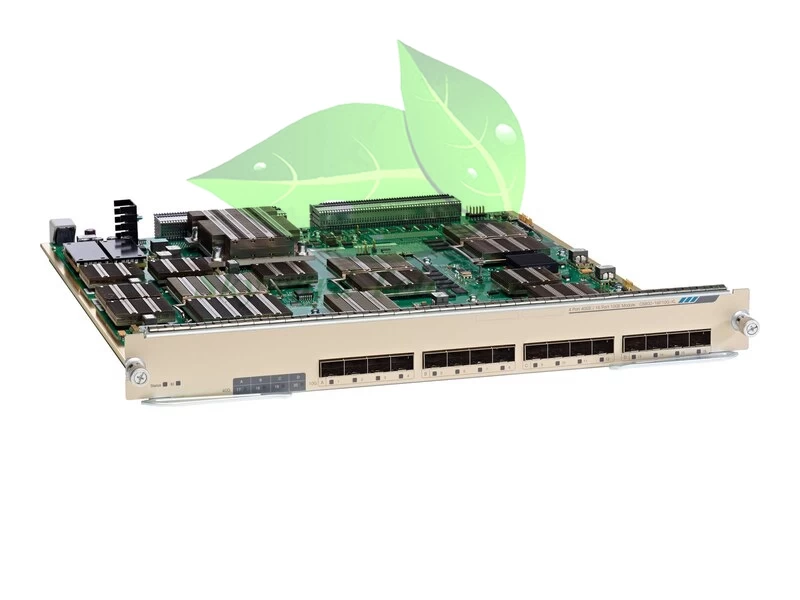

Product Code
|
C6800-16P10G-XL
|
|
Ports per module
|
16
ports—Sixteen 1G ports, or sixteen 10G ports, or four 40G ports
|
|
Ports are numbered left to right.
|
|
2 port groups. Port ranges per port group:
|
|
1 to 8
|
|
9 to 16
|
|
Cabling
distance
|
Depends
on the SFP transceiver installed in the module port
|
|
Maximum
frame size
|
Up
to 9216 bytes per frame
|
|
Module
oversubscription rate
|
2:1
(When all sixteen 10G ports are used.)
|
|
Supervisor engine
support
|
Supervisor
Engine 2T-10GE
|
|
Supervisor Engine 6T
|
|
Software support
|
With
Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later
|
|
With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
|
|
Fabric channel speed
|
In
a Cisco Catalyst 6807-XL chassis—80 GB per second
|
|
In a Cisco Catalyst 6500-E series chassis—80 GB per second
|
|
TDR
support
|
Supported
with GLC-T (1G Copper SFP) transceivers
|
|
Digital
Optical Monitoring (DOM) support
|
The
DOM-supported 1G transceivers and 10G Fiber SFP/SFP+ transceivers
|
|
Operating temperature
|
Certified
for operation: 32° to 104°F (0° to 40°C)
|
|
Designed and tested for operation: 32° to 130°F (0° to 55°C)
|
|
Dimensions
(H x W x D)
|
1.73
x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
|
|
Weight
|
11.02
lb (5.0 kg)
|
|
|
|
|
Chassis compatibility
|
6500
E-Series*: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E
|
|
6800 Series: Cisco Catalyst 6807-XL
|
|
Switch
fabric
|
6-Tbps
crossbar switch fabric with 28 fabric channels
|
|
Line card
compatibility
|
C6800-8P10G,
C6800-8P10G-XL
|
|
C6800-16P10G, C6800-16P10G-XL
|
|
C6800-32P10G, C6800-32P10G-XL
|
|
C6800-48P-SFP, C6800-48P-SFP-XL
|
|
C6800-48P-TX, C6800-48P-TX-XL
|
|
WS-X6904-40G-2T, WS-X6904-40G-2TXL
|
|
WS-X6908-10G-2T, WS-X6908-10G-2TXL
|
|
WS-X6824-SFP-2T, WS-X6824-SFP-2TXL
|
|
WS-X6848-SFP-2T, WS-X6848-SFP-2TXL
|
|
WS-X6848-TX-2T, WS-X6848-TX-2TXL
|
|
WS-X6816-10T-2T, WS-X6816-10T-2TXL
|
|
WS-X6816-10G-2T, WS-X6816-10G-2TXL
|
|
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-A, WS-F6k-DFC4-AXL)
|
|
WS-X6704-10GE
|
|
WS-X6724-SFP
|
|
WS-X6748-SFP
|
|
WS-X6748-GE-TX
|
|
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-E, WS-F6k-DFC4-EXL)
|
|
WS-X6716-10GE
|
|
WS-X6716-10T
|
|
Service
Modules
|
No
Service Modules are supported
|
|
Supported IA clients
|
C6800IA-48TD
– 48-port data-only IA
|
|
C6800IA-48FPD – 48-port PoE/PoE+
|
|
C6800IA-48FPDR – 48-port PoE/PoE+
|
|
WS-C3560CX-12PD-S – 12-port PoE, 8-port PoE+
|
|
WS-C3560CX-8XPD-S – 8-port PoE
|
|
Slot requirements
|
Occupies
the Supervisor slots as follows:
|
|
3-slot E-chassis – slots 1 and 2
|
|
4-slot E-chassis – slots 1 and 2
|
|
6-slot E-chassis – slots 5 and 6
|
|
7-slot 6807-XL chassis – slots 3 and 4
|
|
9-slot V-E chassis – slots 5 and 6
|
|
9-slot E-chassis – slots 5 and 6
|
|
13-slot E-chassis – slots 7 and 8
|
|
Software
compatibility
|
Cisco
IOS® Software Release 15.3(1)SY and future releases
|
|
Software packages
|
IP
Services
|
|
Advanced Enterprise
|
|
Mgmt0
|
RJ45/SFP
replaces the connectivity management processor (CMP)
|
|
DRAM
|
4-GB
DDR3 for Standard and XL
|
|
NVRAM
|
4
MB
|
|
Bootdisk
|
4
GB (eUSB)
|
|
Disk
0
|
USB
type A host drive
|
|
USB
console port
|
USB
type B mini
|
|
Management
LED
|
Blue
Beacon LED
|
|
Uplink ports
|
8
x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports
|
|
2 x 40-Gb QSFP ports
|
|
Console ports
|
RJ-45
serial
|
|
USB mini B USB console
|
|
RJ-45 management Ethernet port
|
|
SFP fiber management port
|
|
Reliability and
availability
|
Stateful
Switchover + Nonstop Forwarding (SSO+NSF)
|
|
Fast Software Upgrade (FSU)
|
|
Enhanced Fast Software Upgrade (EFSU) – (Single Box, 2 Supervisors)
|
|
In-Service Software Upgrade (ISSU) – (VSS, VS4O)
|
|
Online insertion and removal (OIR) hot swap of power supplies, modules,
fan trays, supervisors
|
|
Network management
|
Cisco
Prime™ Infrastructure
|
|
Cisco Application Policy Infrastructure Controller – Enterprise Module
(APIC-EM)
|
|
Simple Network Management Protocol (SNMP), Remote Monitoring (RMON)
|
|
Physical specifications
|
(H
x W x D): 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm)
|
|
Weight: 11.64 lbs, 11.73 lbs (XL)
|
|
Power consumption
|
Standard:
341 W maximum
|
|
XL: 354 W maximum
|
|
ECC
|
ECC
protection support
|
|
Environmental
conditions
|
Operating
temperature: 32 to 104°F (0 to 40°C)
|
|
Storage temperature: -40 to 167°F (-40 to 75°C)
|
|
Relative humidity: 10 to 90 percent, noncondensing
|
