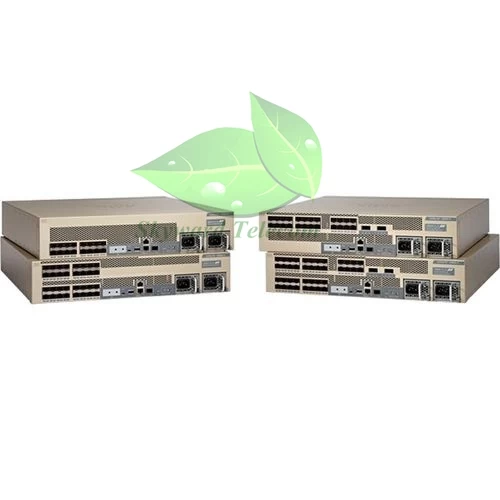

Device Type
|
Switch - 32 ports - L3 - managed
|
|
Enclosure Type
|
Desktop, rack-mountable 2U
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Ports
|
32 x 1 Gigabit SFP/ 10 Gigabit SFP+
|
|
Performance
|
Forwarding performance: up to 120 Mpps ¦ Switching capacity (full duplex): up to 160 Mbps ¦ IPv4 routing: up to 120 Mpps ¦ IPv6 routing: up to 60 Mpps ¦ Layer 2 bridging: up to 120 Mpps
|
|
Capacity
|
IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 1000000 ¦ IPv4 routes (Multicast): 128000 ¦ IPv6 routes (Multicast): 64000 ¦ Virtual interfaces (VLANs): 4094 ¦ Domains: 16000 ¦ ACL entries: 64000 ¦ Logical interfaces: 128000
|
|
MAC Address Table Size
|
128K entries
|
|
Jumbo Frame Support
|
9216 bytes
|
|
Routing Protocol
|
IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, MSDP, MLDv2, MLD, MPLS, PIM-SMv6, PIM-DMv6
|
|
Remote Management Protocol
|
RMON, SMON
|
|
Features
|
NAT support, VLAN support, traffic shaping, DoS attack prevention, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), PIM snooping, Spanning Tree Protocol (STP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), reset button, Unicast Reverse Path Forwarding (URPF), IPv4 support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR), Port Security, Remote Switch Port Analyzer (RSPAN), NetFlow, Management Information Base (MIB), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Label Distribution Protocol (LDP), Location ID Separation Protocol (LISP), Instant Access (IA), Virtual Switching System (VSS)
|
|
Compliant Standards
|
IEEE 802.1x, IEEE 802.1ae
|
|
RAM
|
4 GB
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
32 x 10GBase-X SFP+ ¦ 1 x management (LAN) RJ-45 ¦ 1 x serial (console) RJ-45 ¦ 1 x USB Type A ¦ 1 x console (mini-USB) Type B ¦ 1 x management SFP
|
|
Power
|
|
|
Power Device
|
Internal power supply - hot-plug
|
|
Installed Qty
|
0 (installed) / 2 (max)
|
|
Power Redundancy
|
Optional
|
|
Power Redundancy Scheme
|
1+1 (with optional power supply)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CISPR 22 Class A, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, UL 60950-1 Second Edition, FCC Part 15 A, AS/NZS 3548 Class A, AS/NZS 60950, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, ETS 300 386, ETSI 300 019
|
|
Software / System Requirements
|
|
|
Software Included
|
Cisco IOS Advanced Enterprise Services, Cisco IOS IP Services
|
|
OS Required
|
Cisco IOS 15.2(2)SY
|
|
Dimensions & Weight
|
|
|
Width
|
17.4 in
|
|
Depth
|
21.5 in
|
|
Height
|
3.5 in
|
|
Weight
|
33.95 lbs
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - advance parts replacement - 1 year - response time: 10 days
|
|
Environmental Parameters
|
|
|
Min Operating Temperature
|
32 °F
|
|
Max Operating Temperature
|
104 °F
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Min Storage Temperature
|
-4 °F
|
|
Max Storage Temperature
|
149 °F
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
